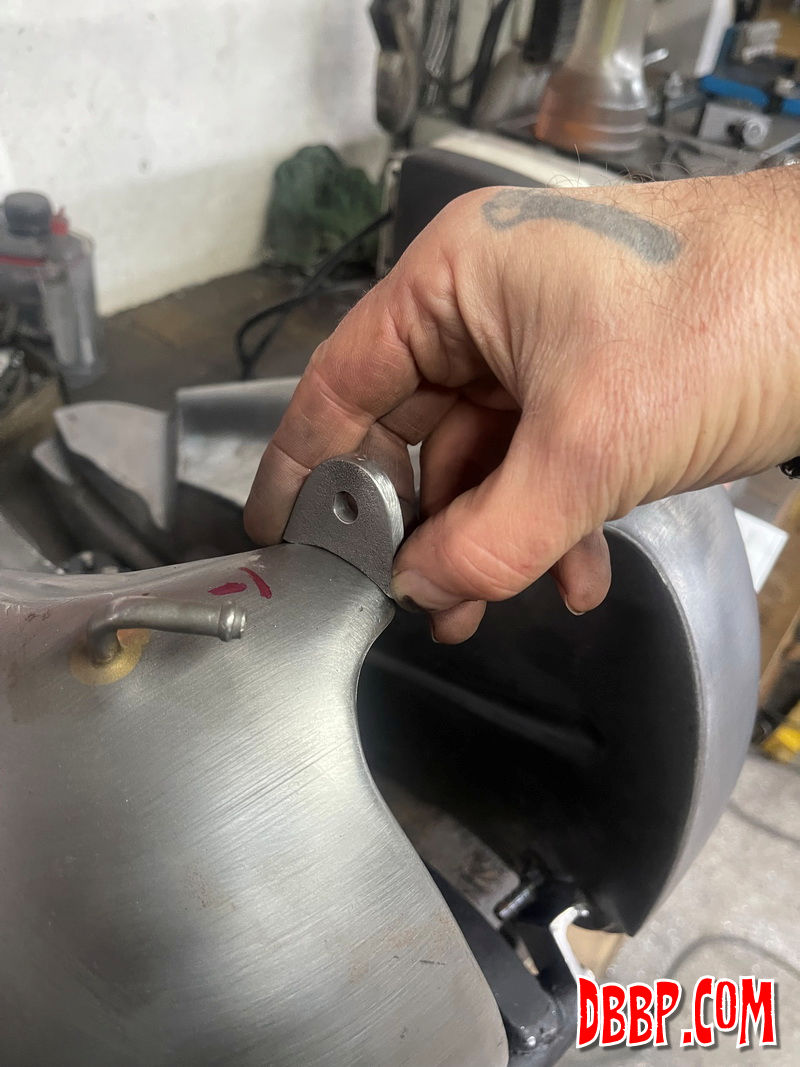

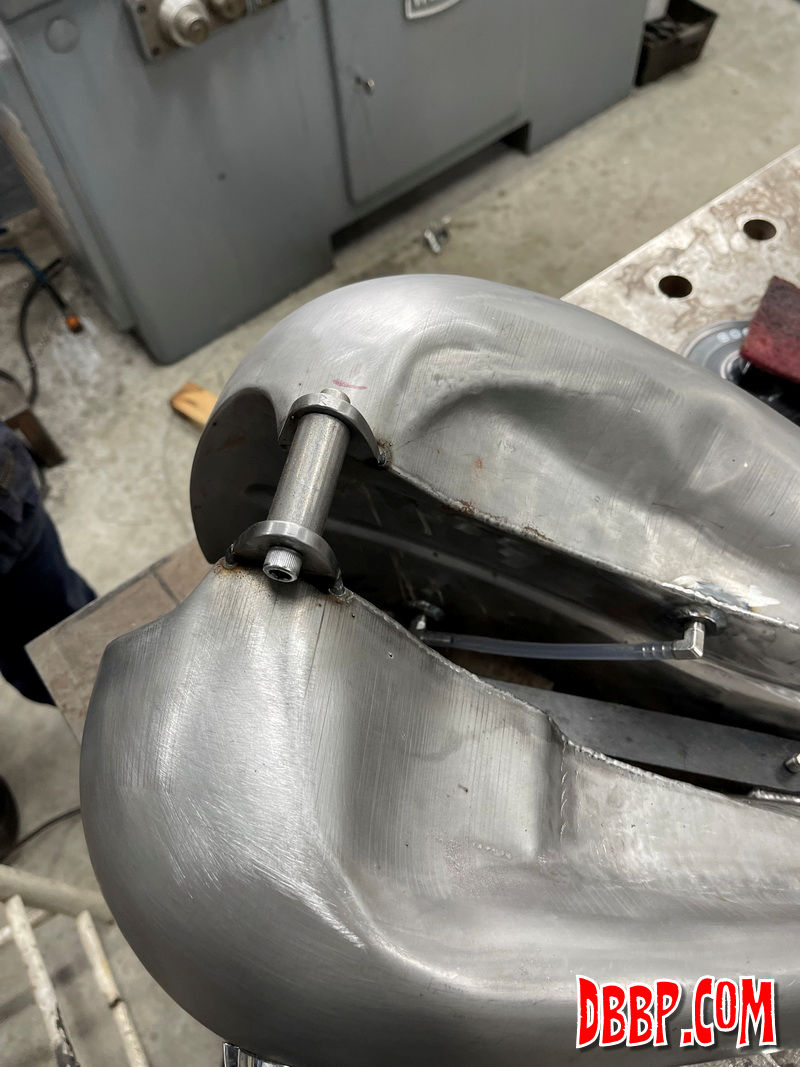

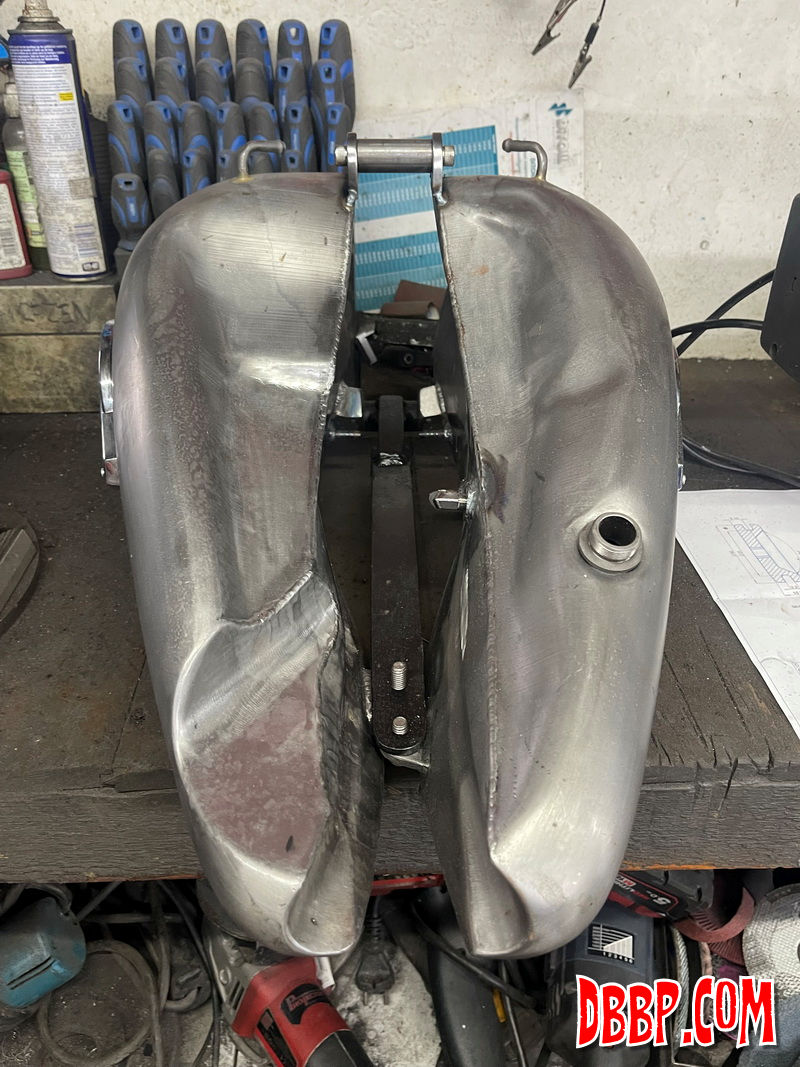

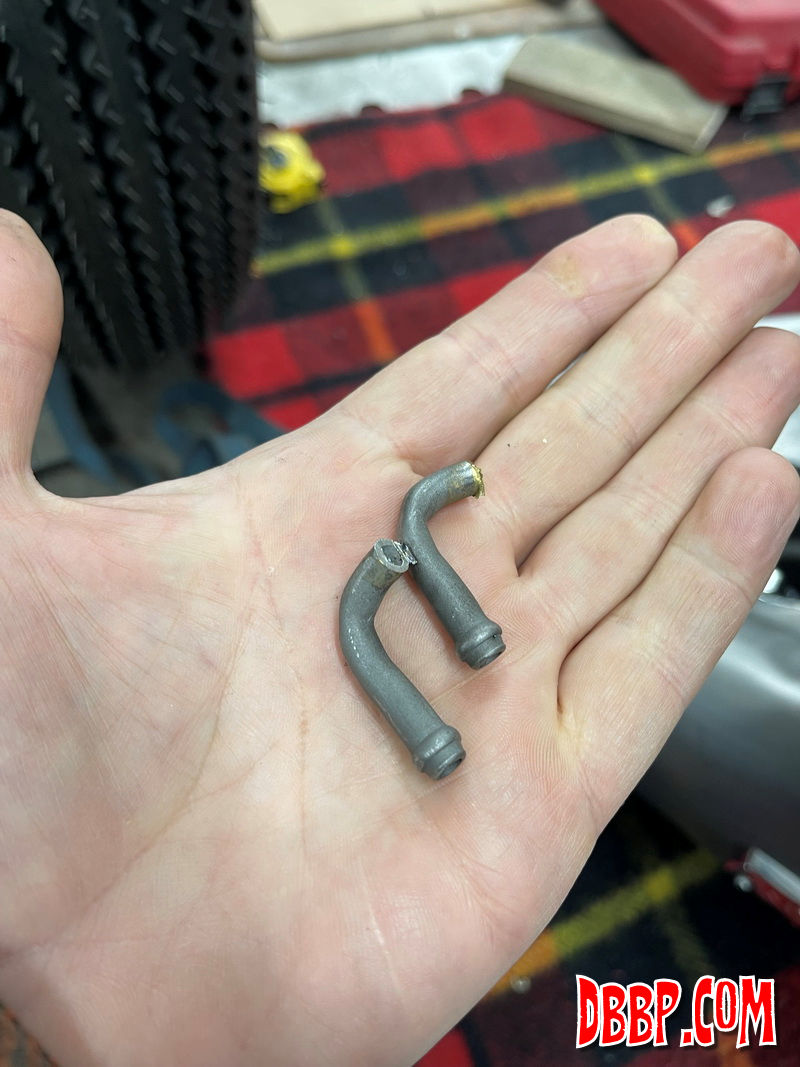

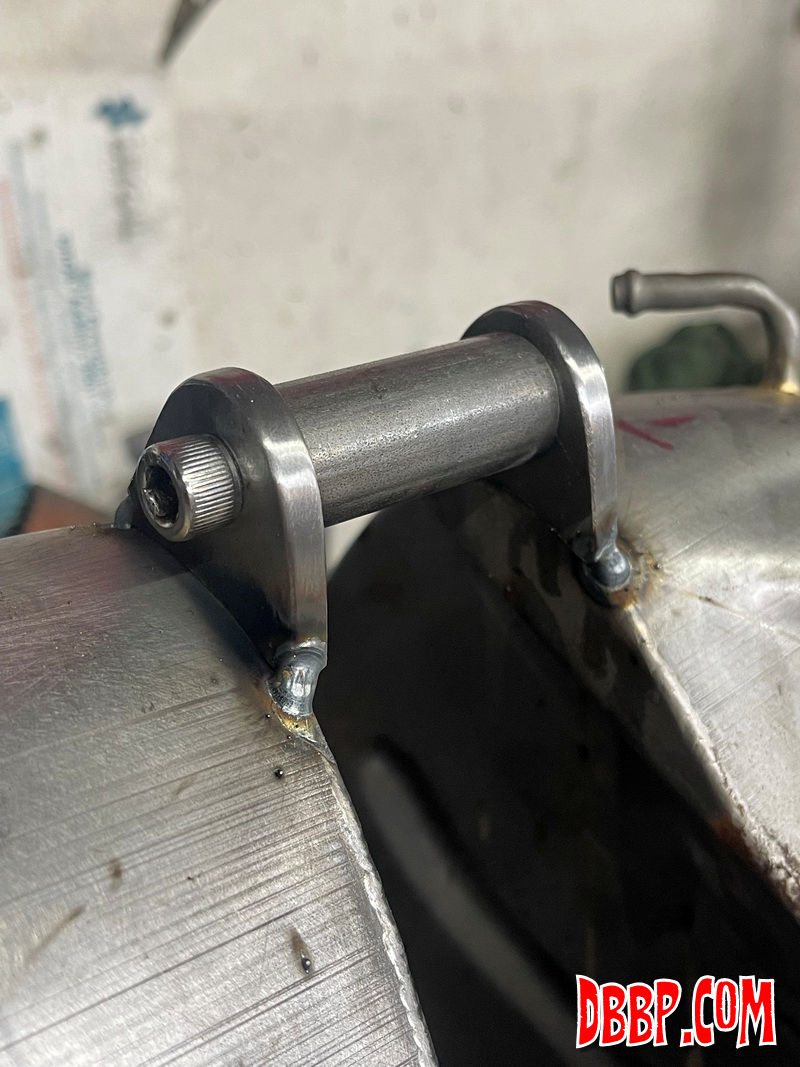

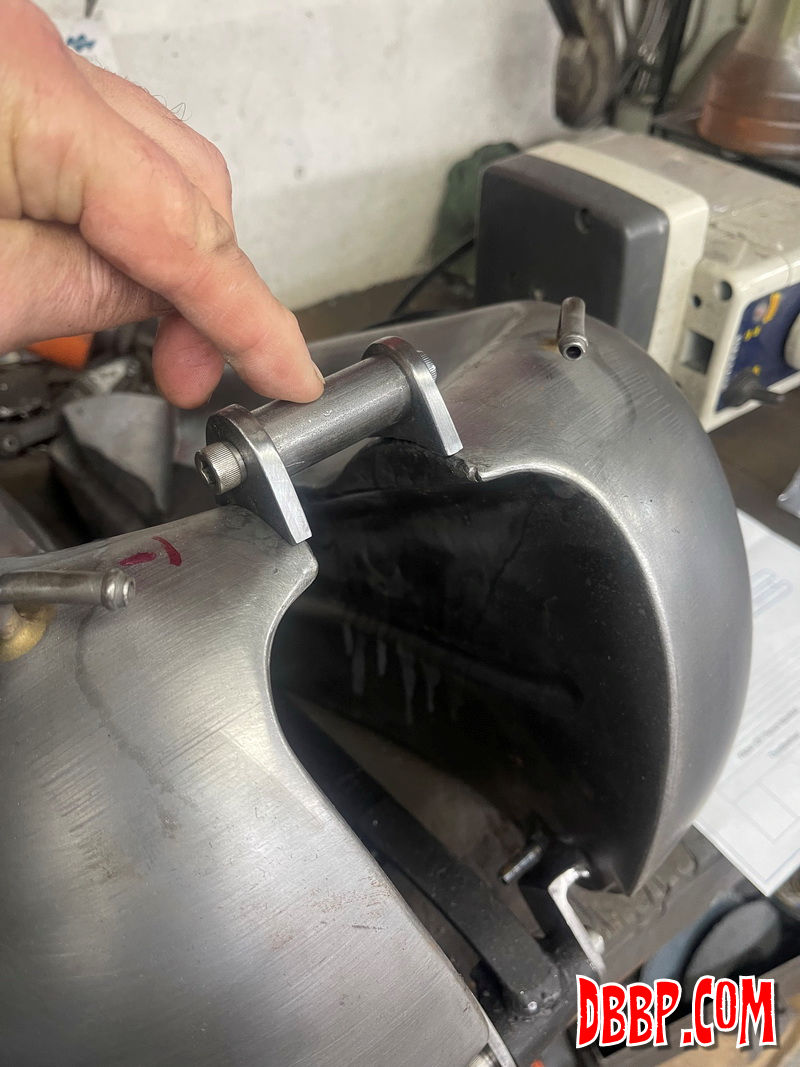

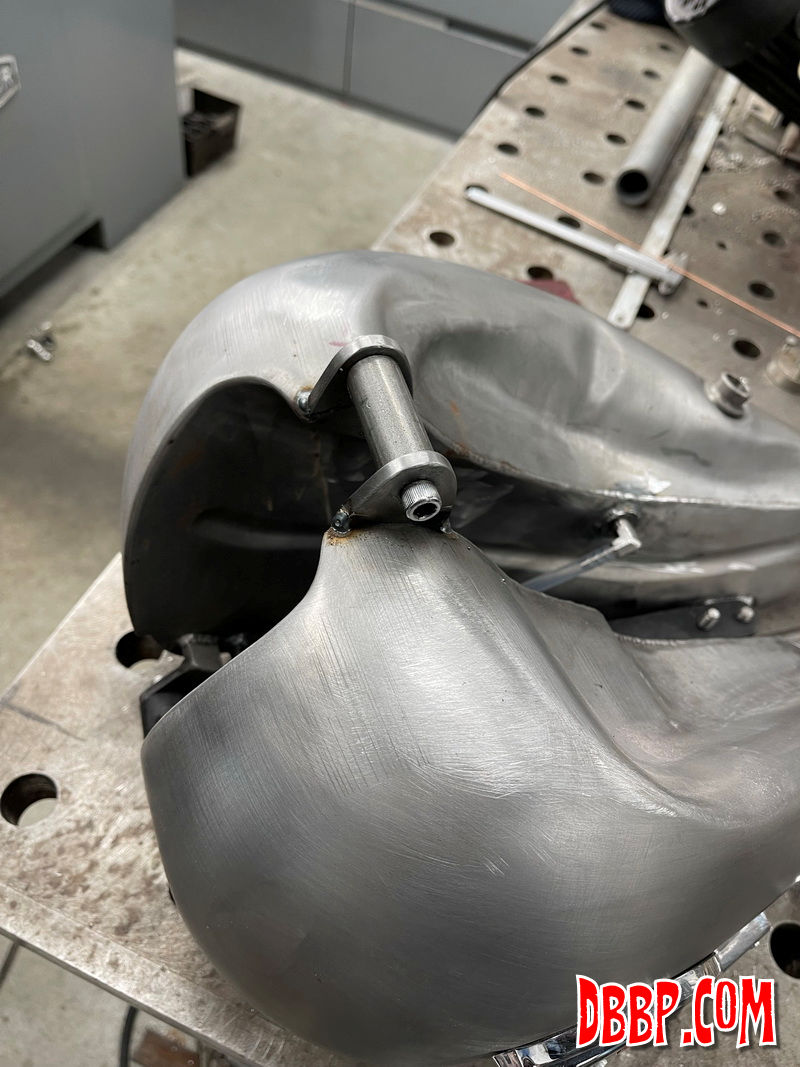

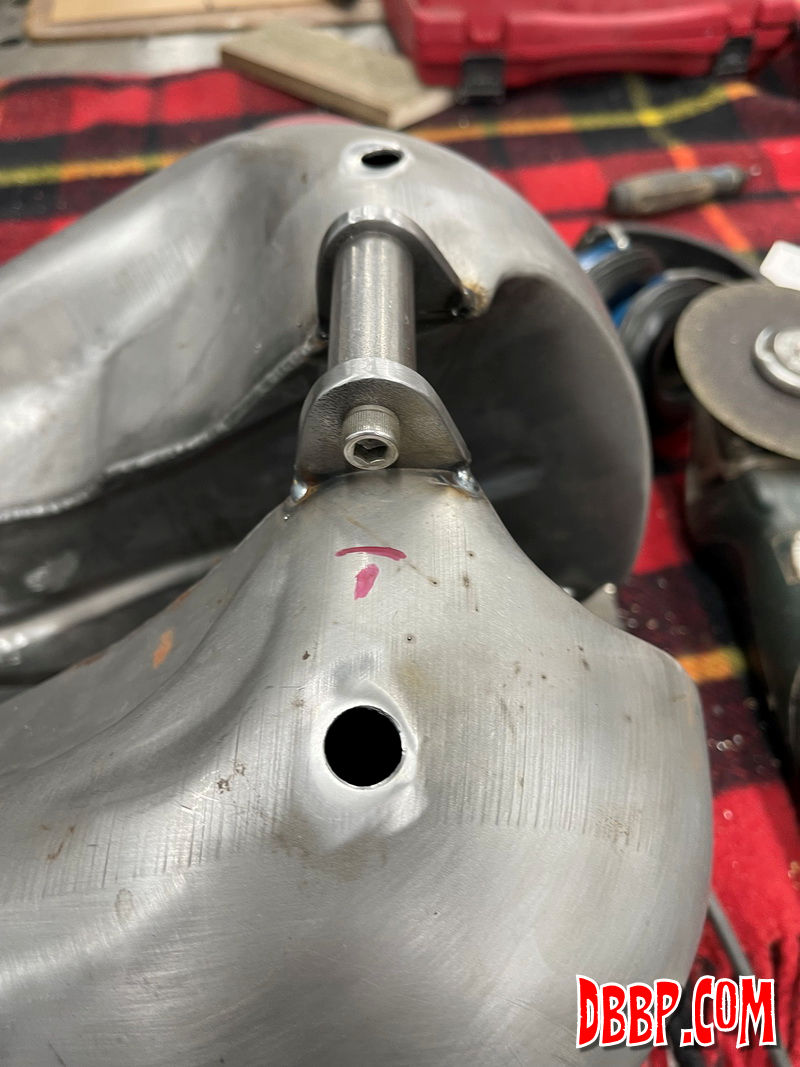

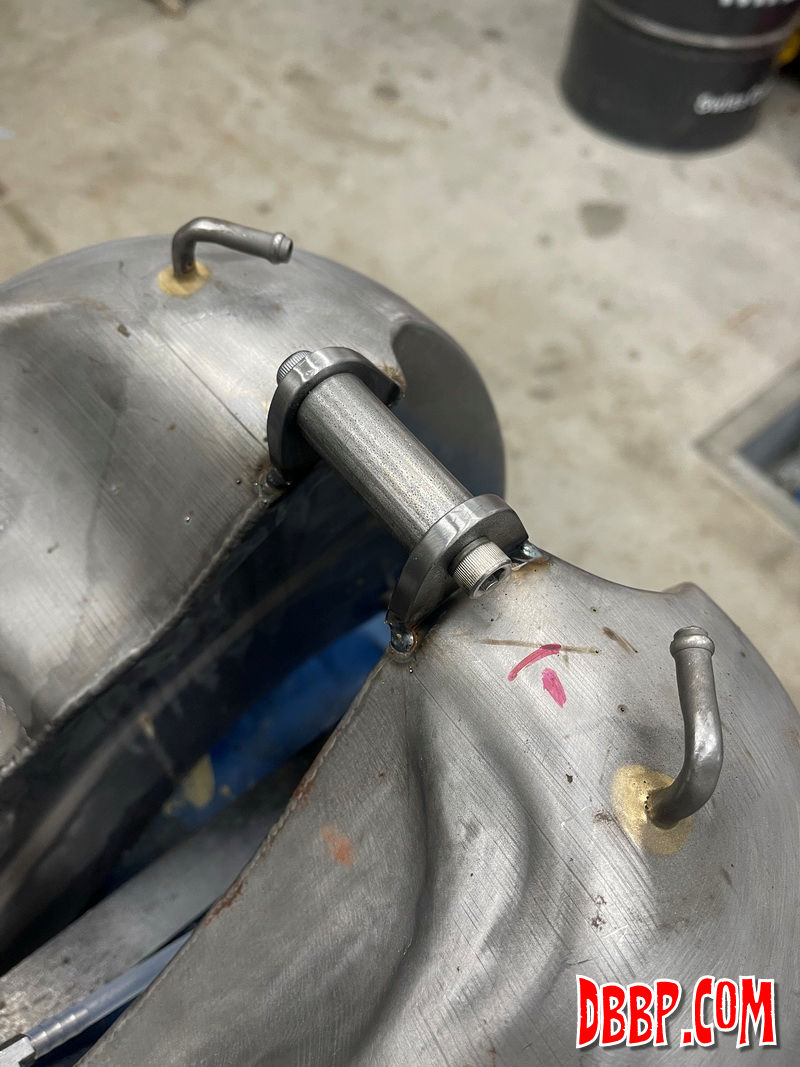

I fabricated some new lower tank mounts and with both halves back in the little jig I made last time, I tacked them in place. The crossover line connections were also cut off, I will use a cleaner solution for this.

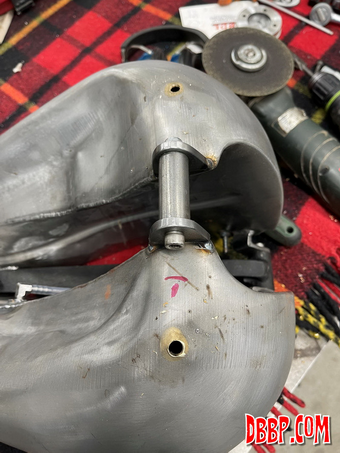

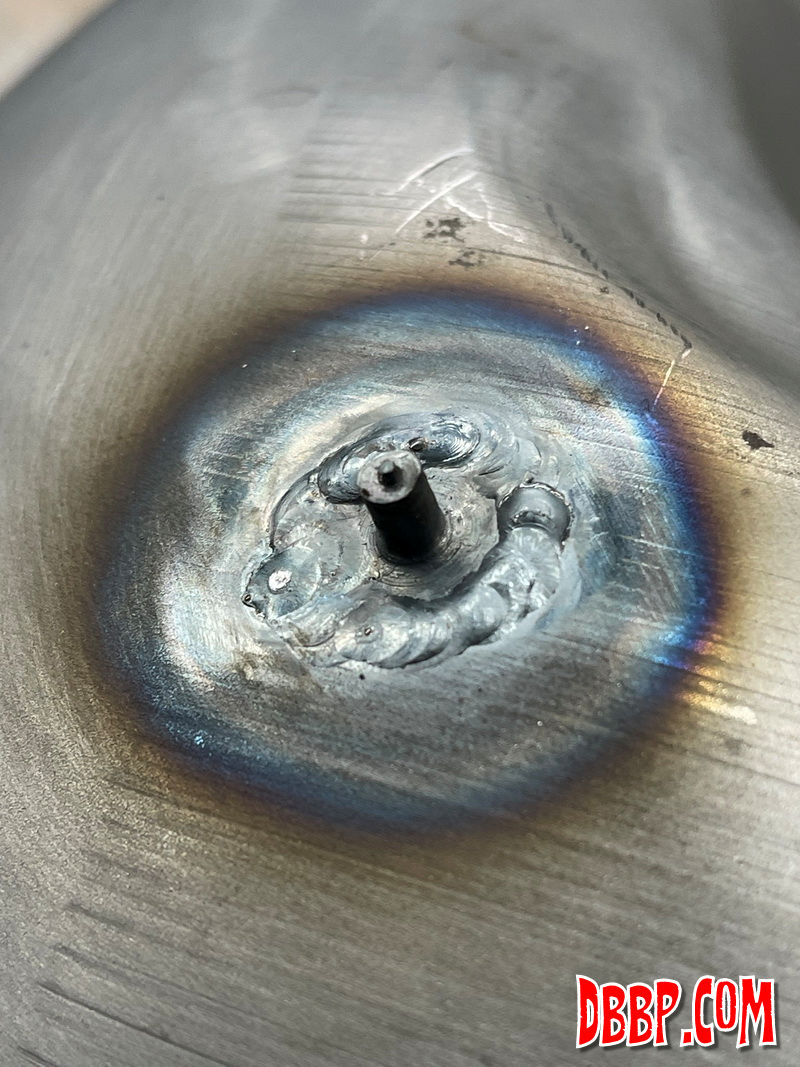

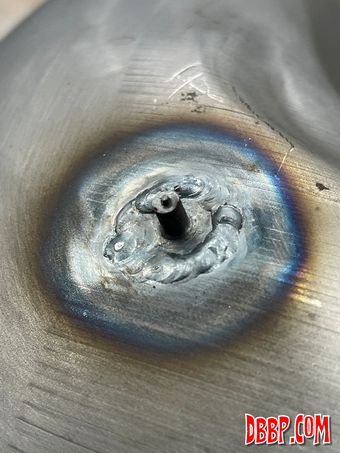

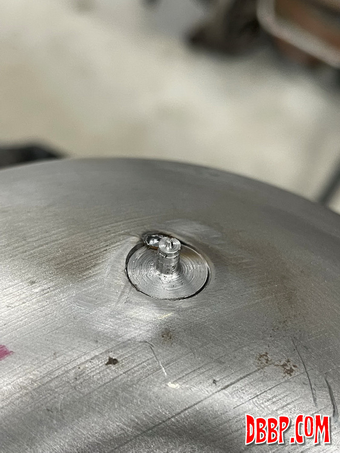

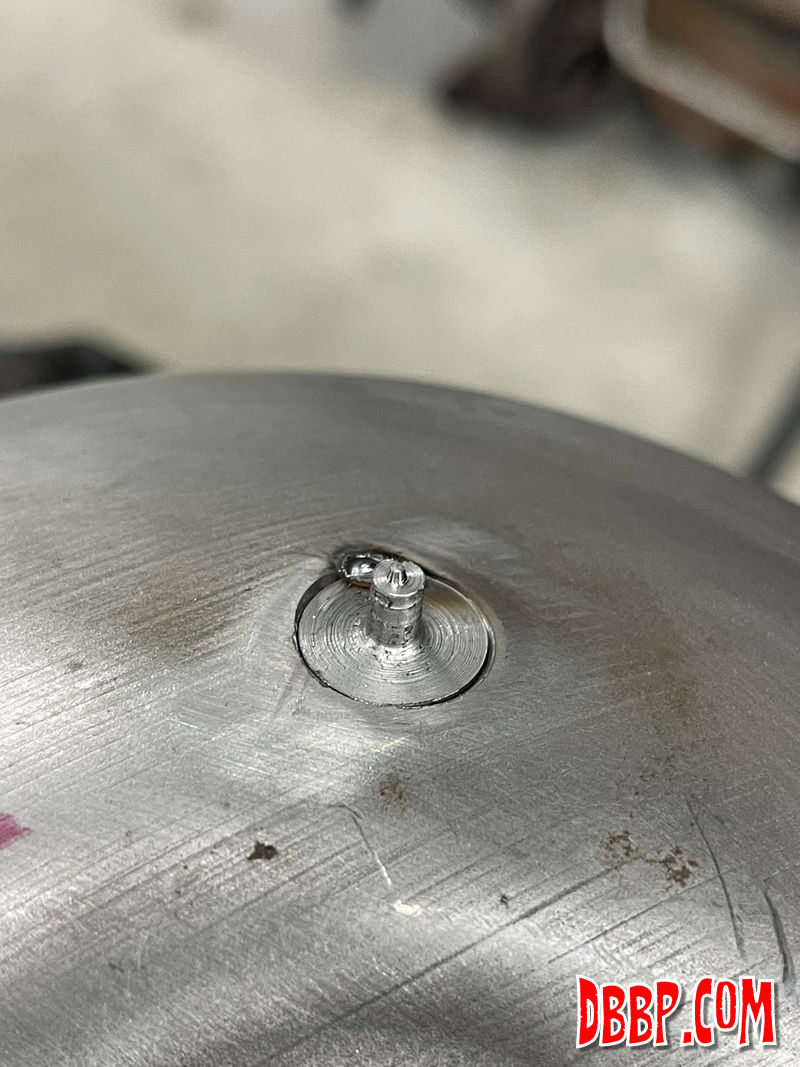

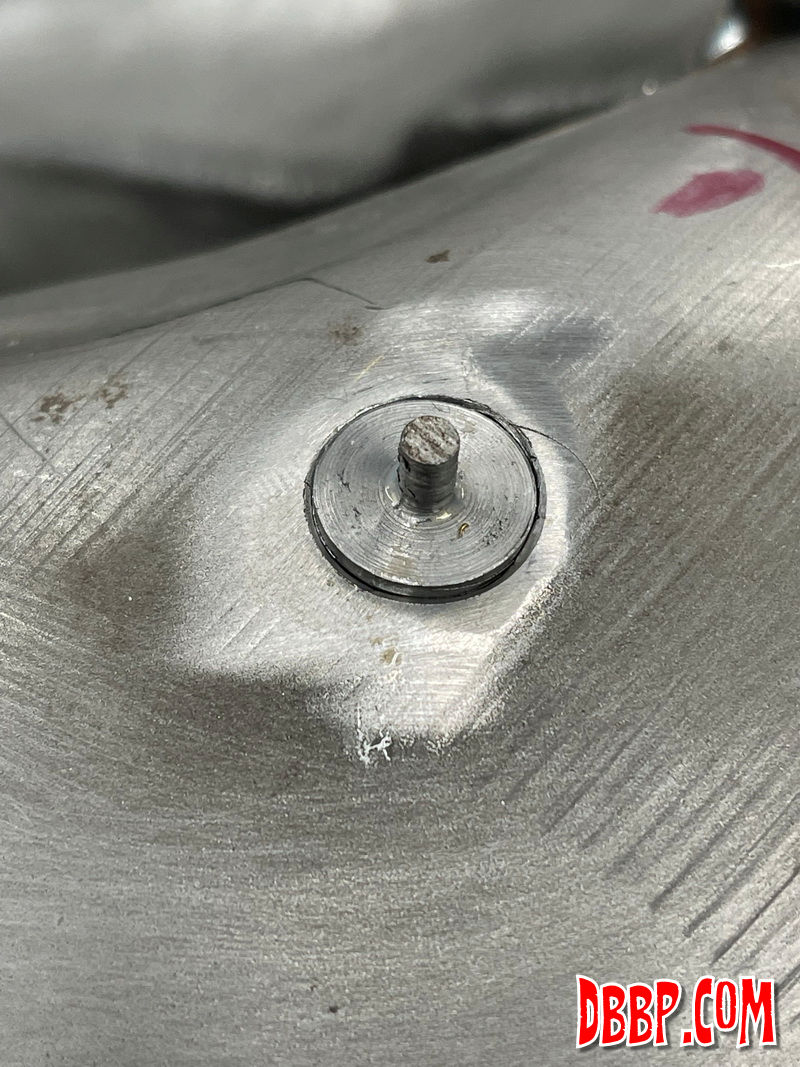

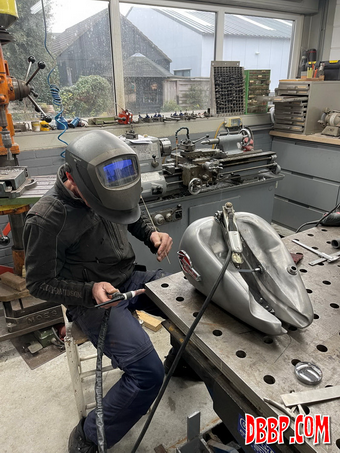

The holes were cleaned and drilled larger to get rid of the brass that was used for soldering them on when the original tanks were made. Some plugs were welded in by Aad

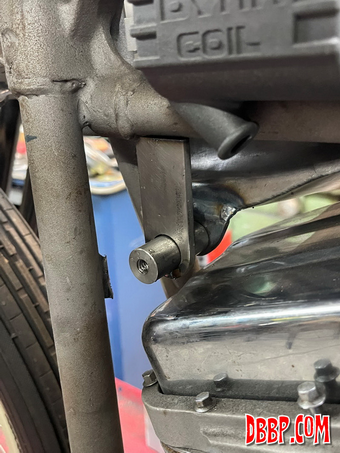

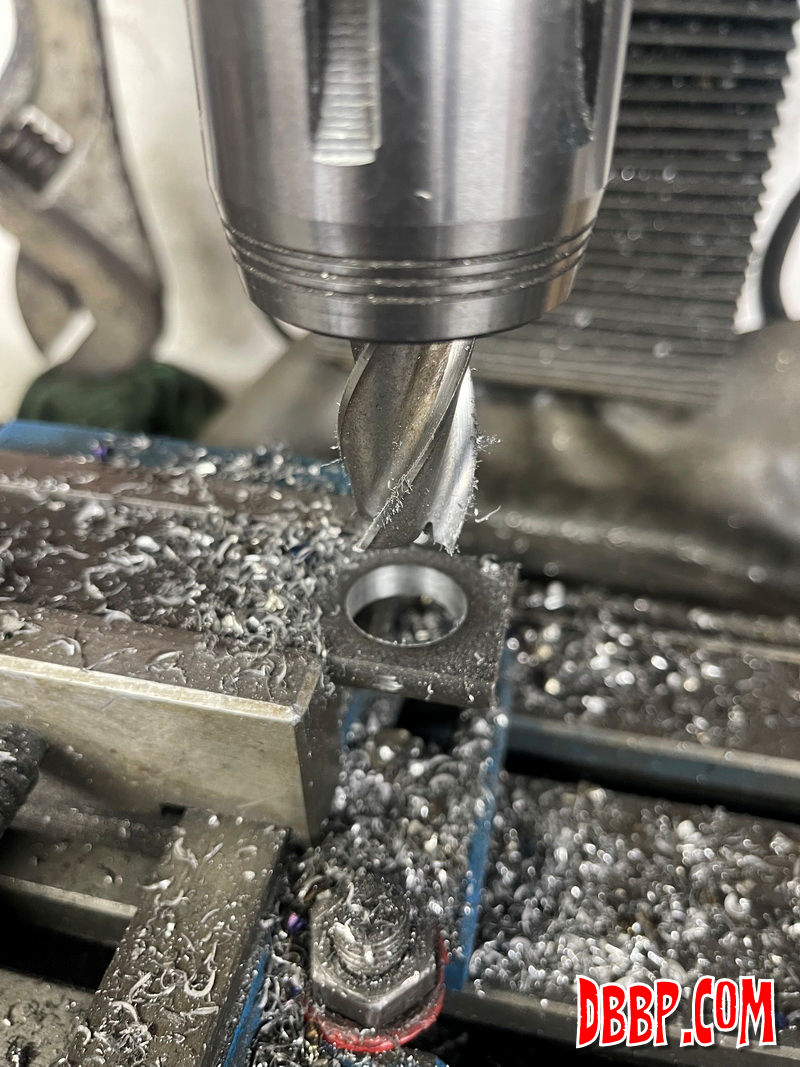

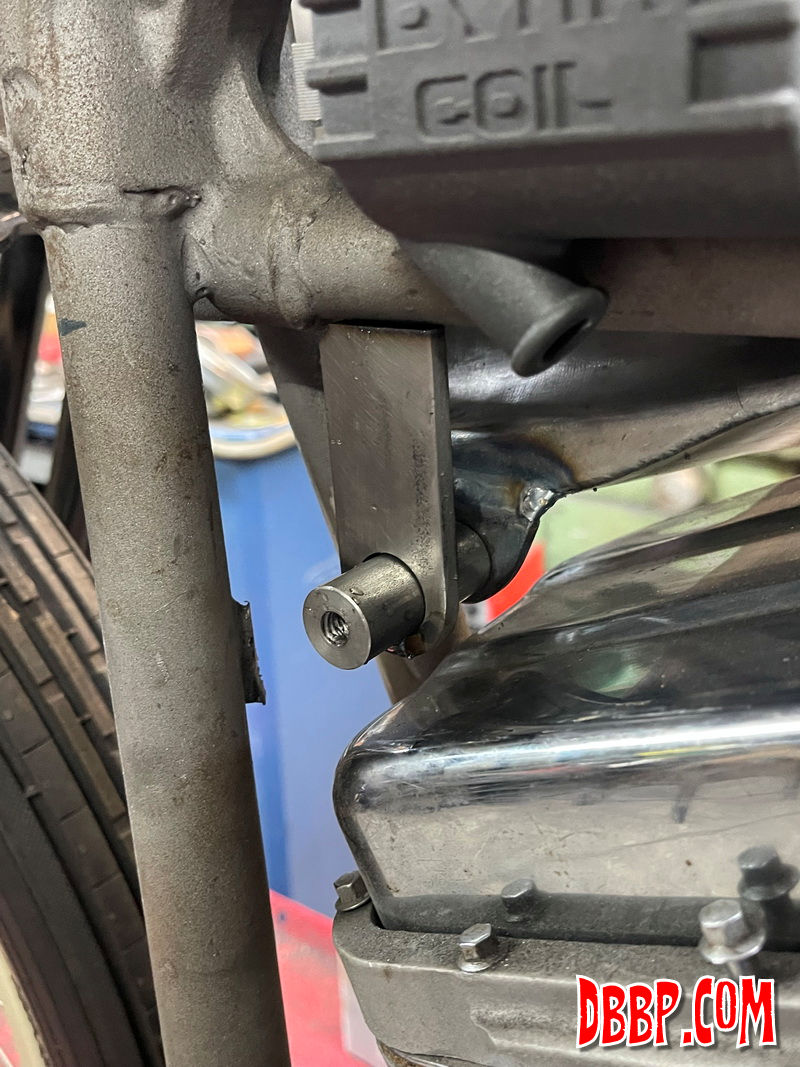

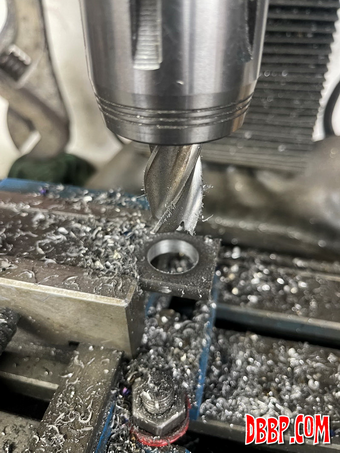

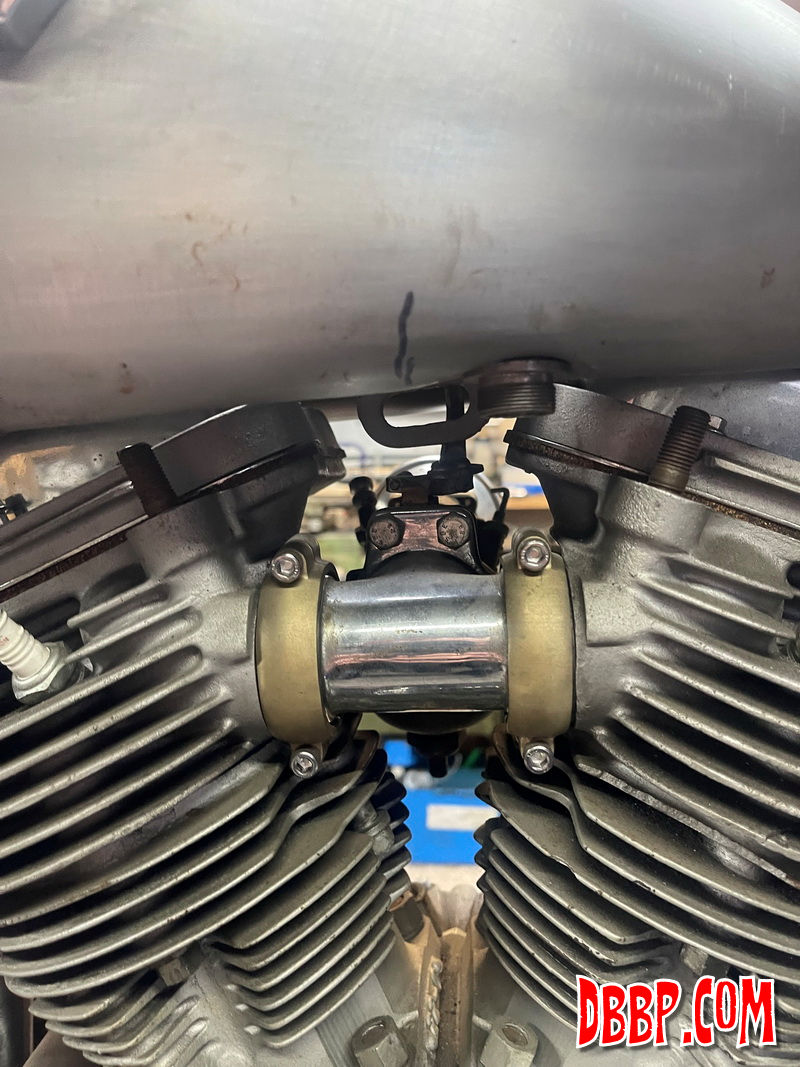

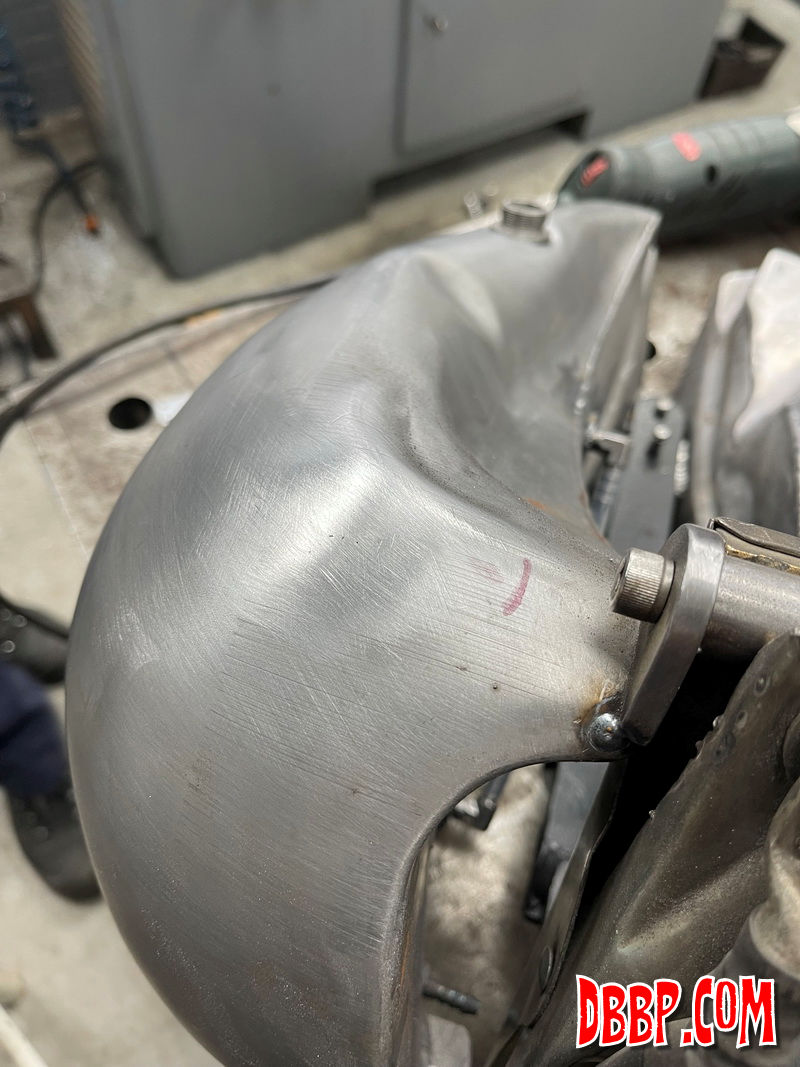

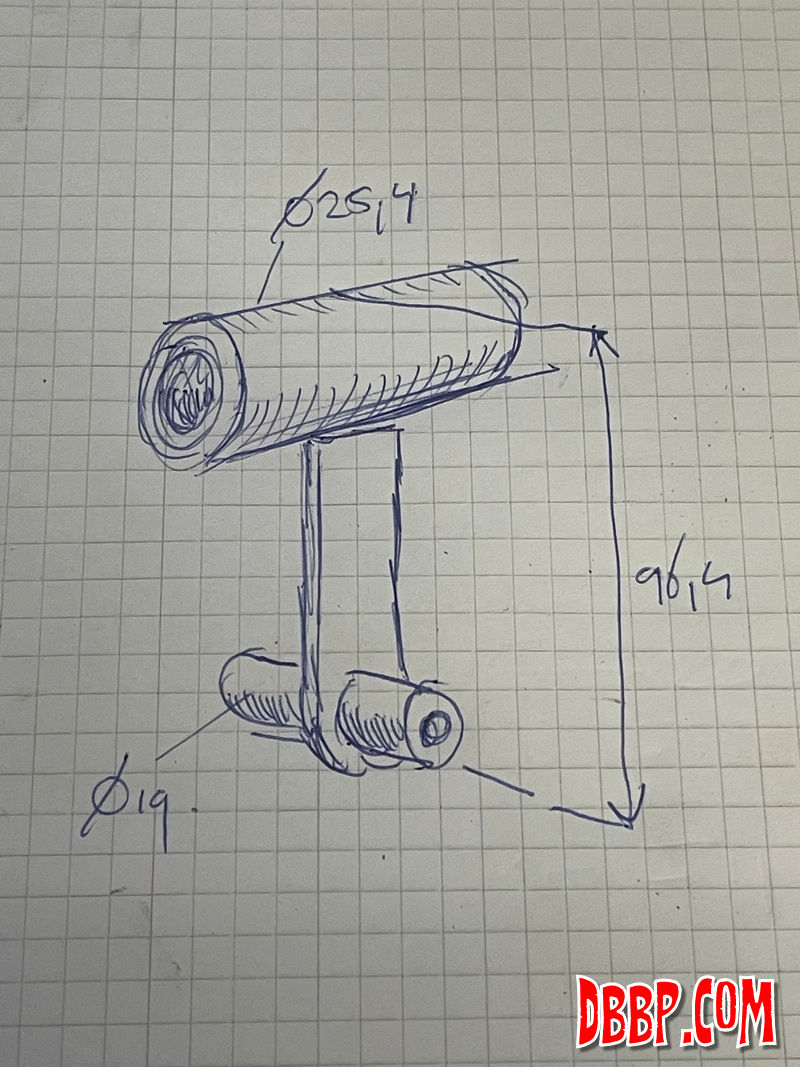

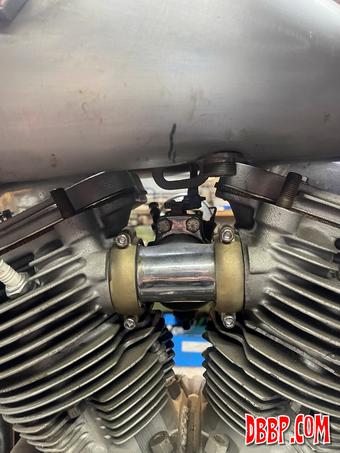

After a bit of massaging there was no trace of them left! In the meantime I srtarted fabricating the framemount where the lower tankmounts will connect to. I might need to make this mount removeable because it looks like it will be in the way when pulling out the engine. There are still bits of the stock tankmounts visible, these will be cleaned up when the engine is out and I have better access to the area
