Copyright WWW.DBBP.COM | updated 19-August-2024


Project started December 2020,
See the CAD version
here

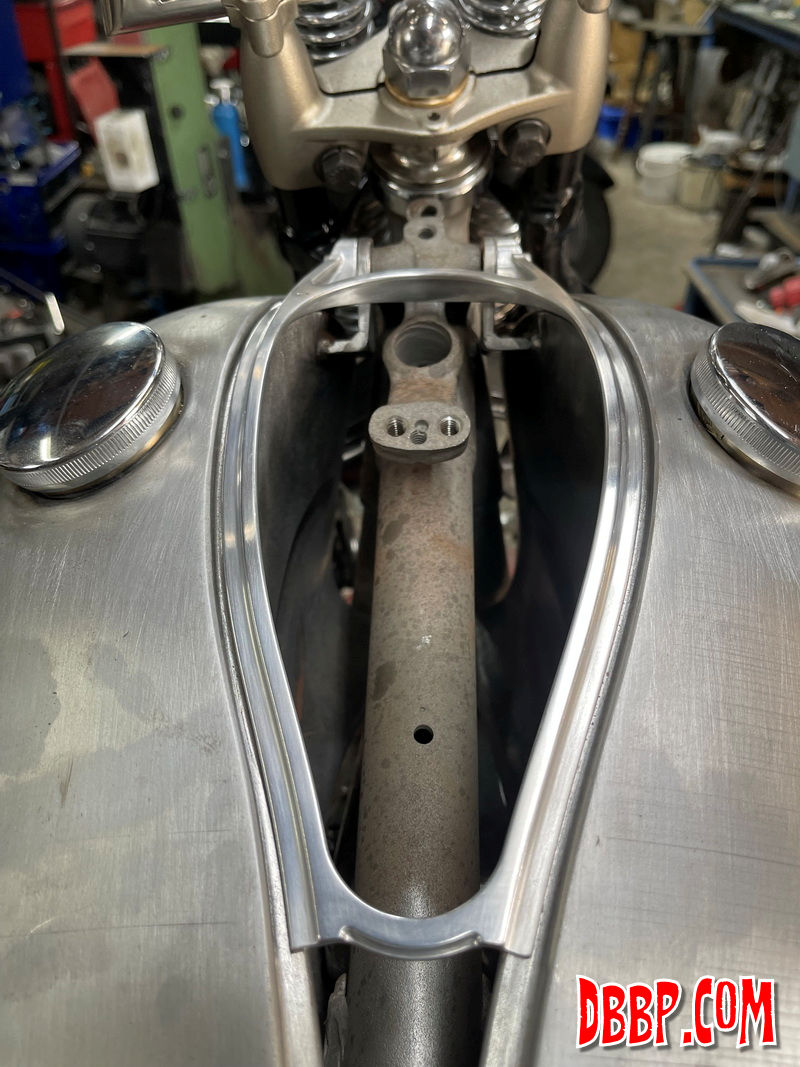

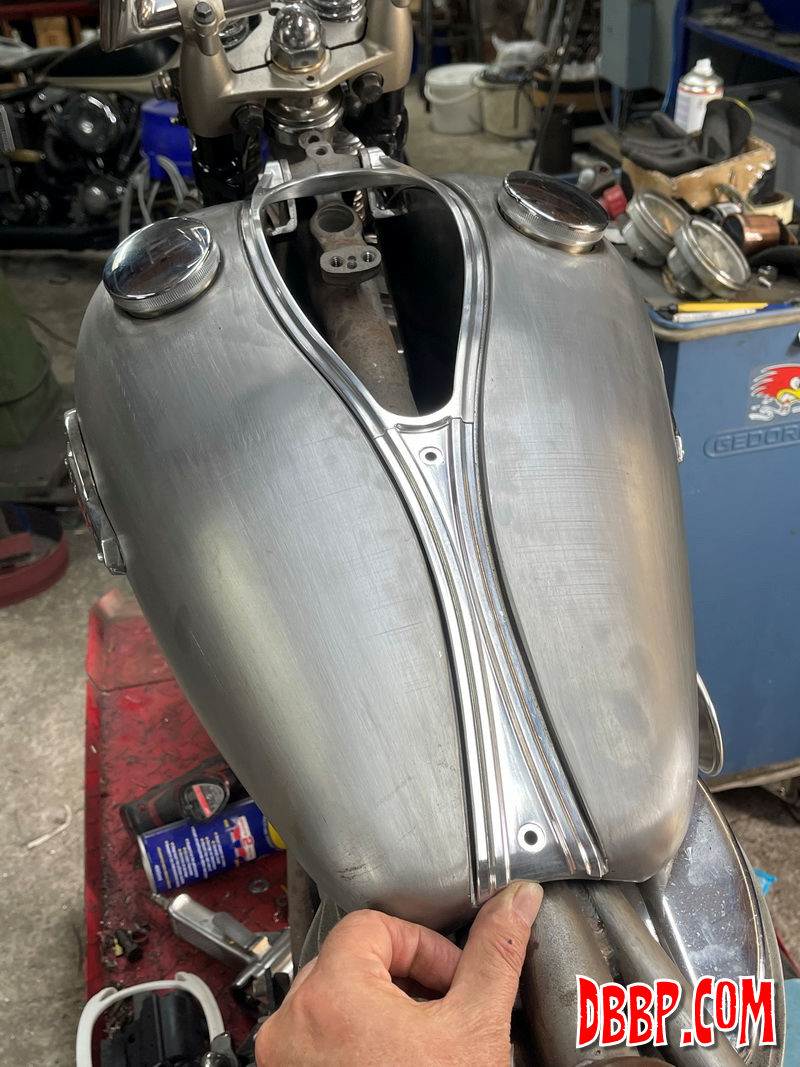

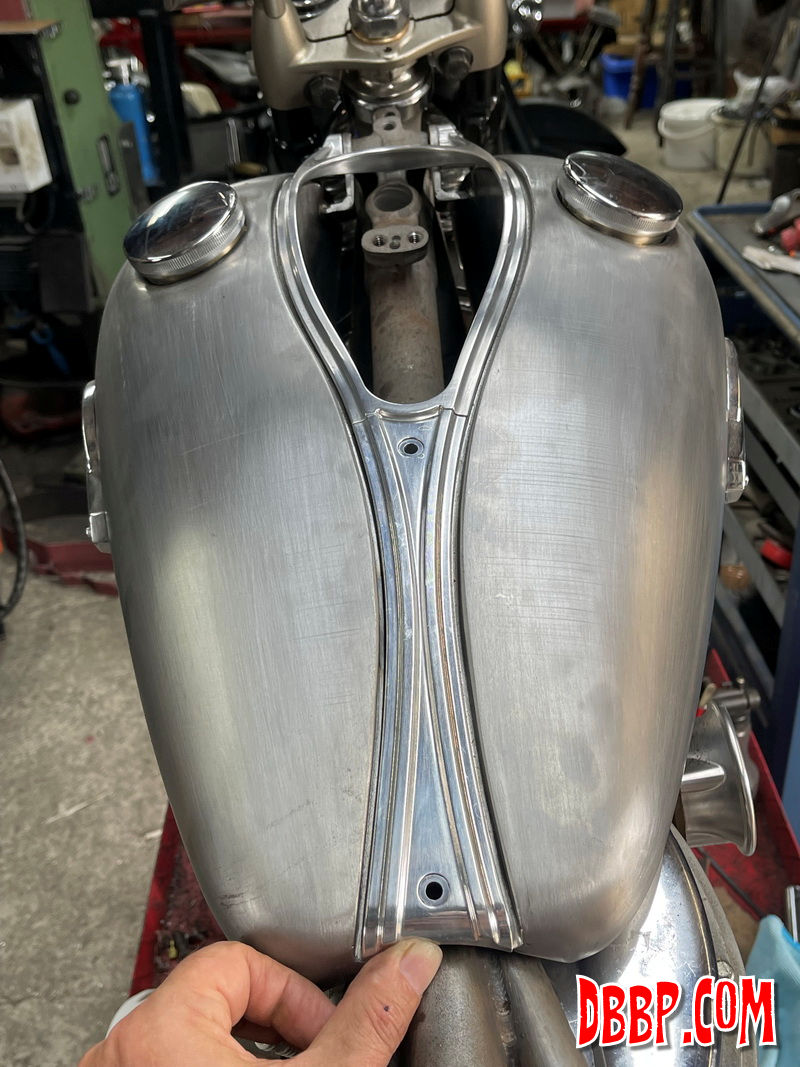

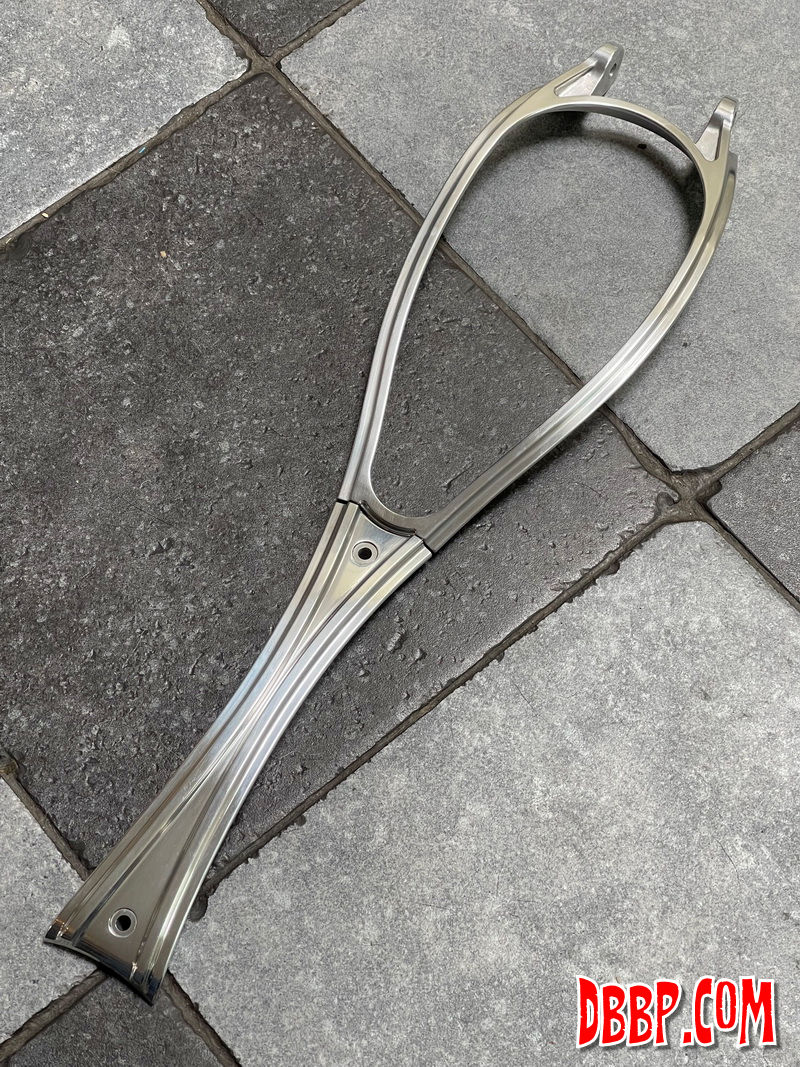

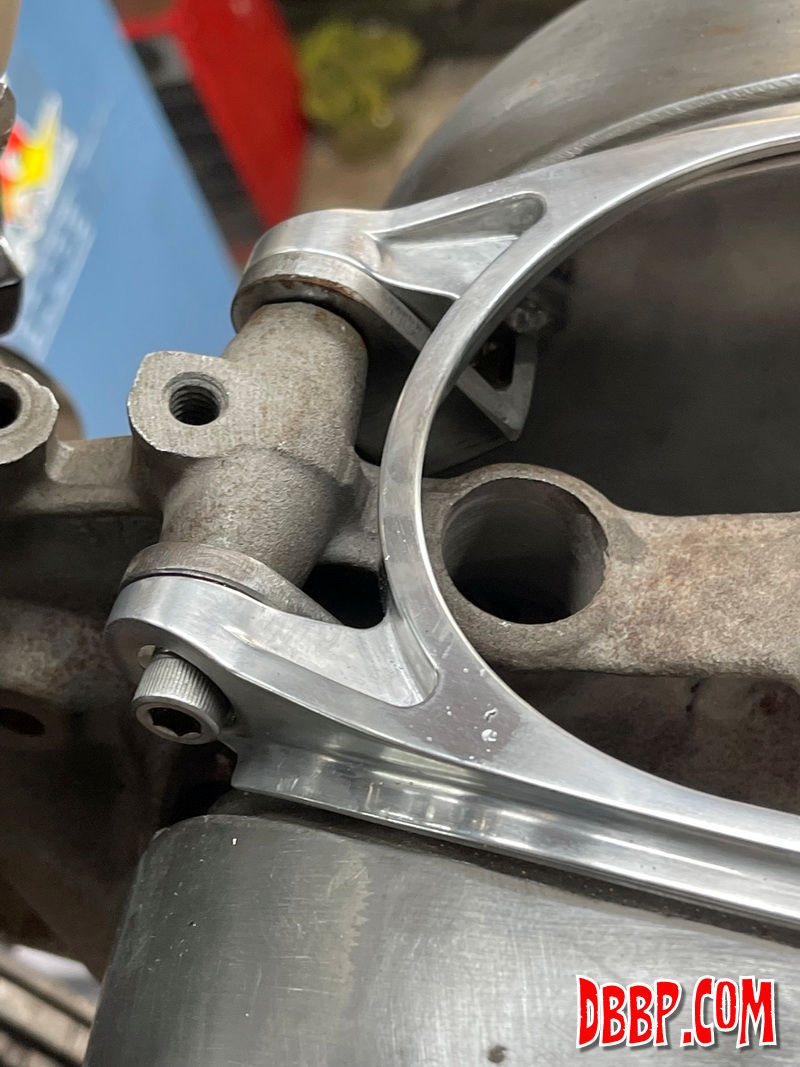

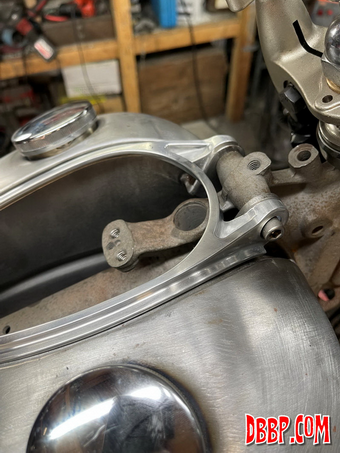

After testfitting the printed trim for the bubbledash, the actual parts were CNC machined from 6061 aluminum and I was very happy with the fit, nice even gaps all around!

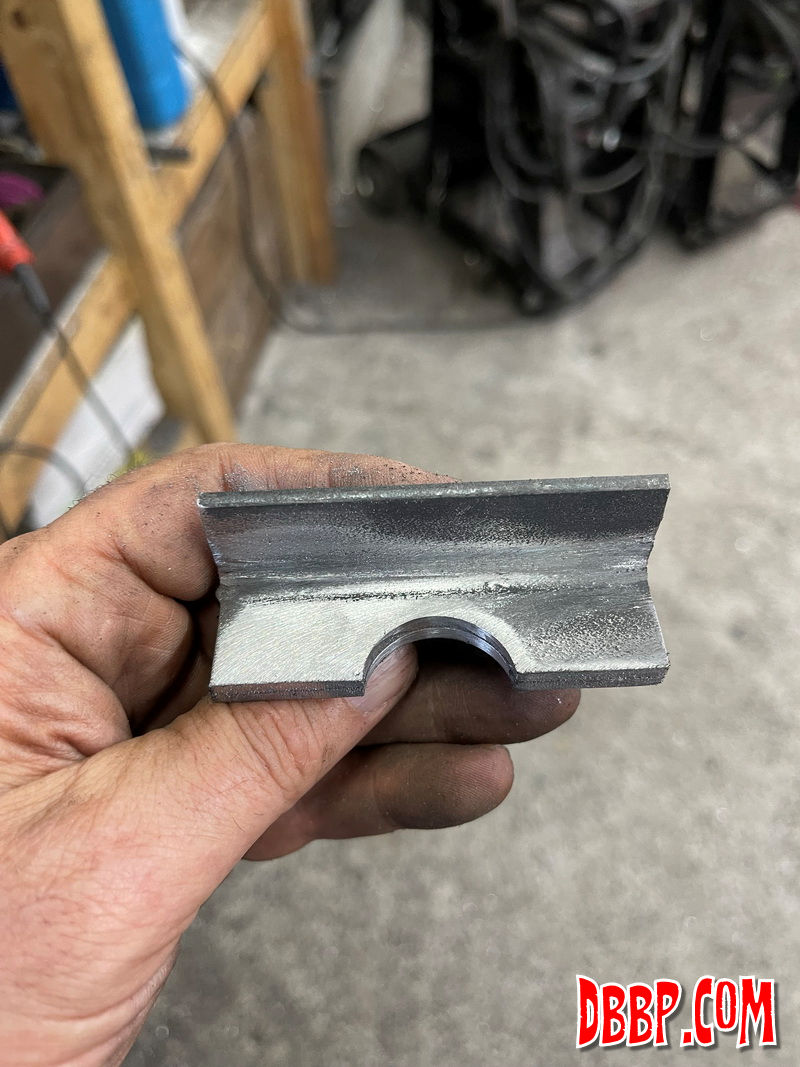

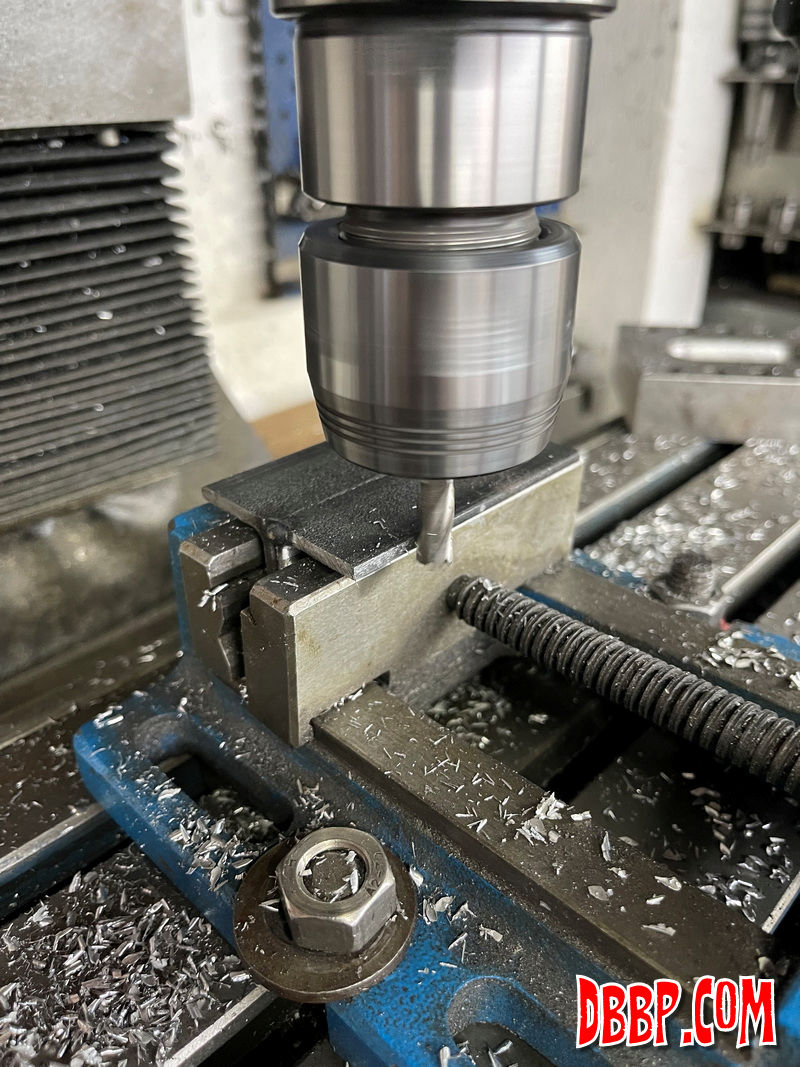

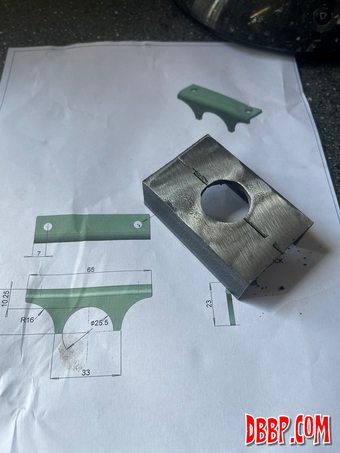

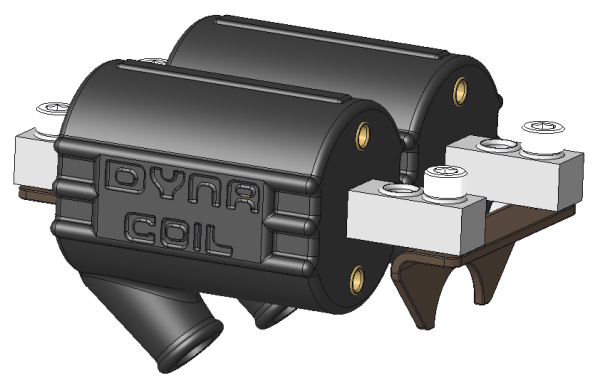

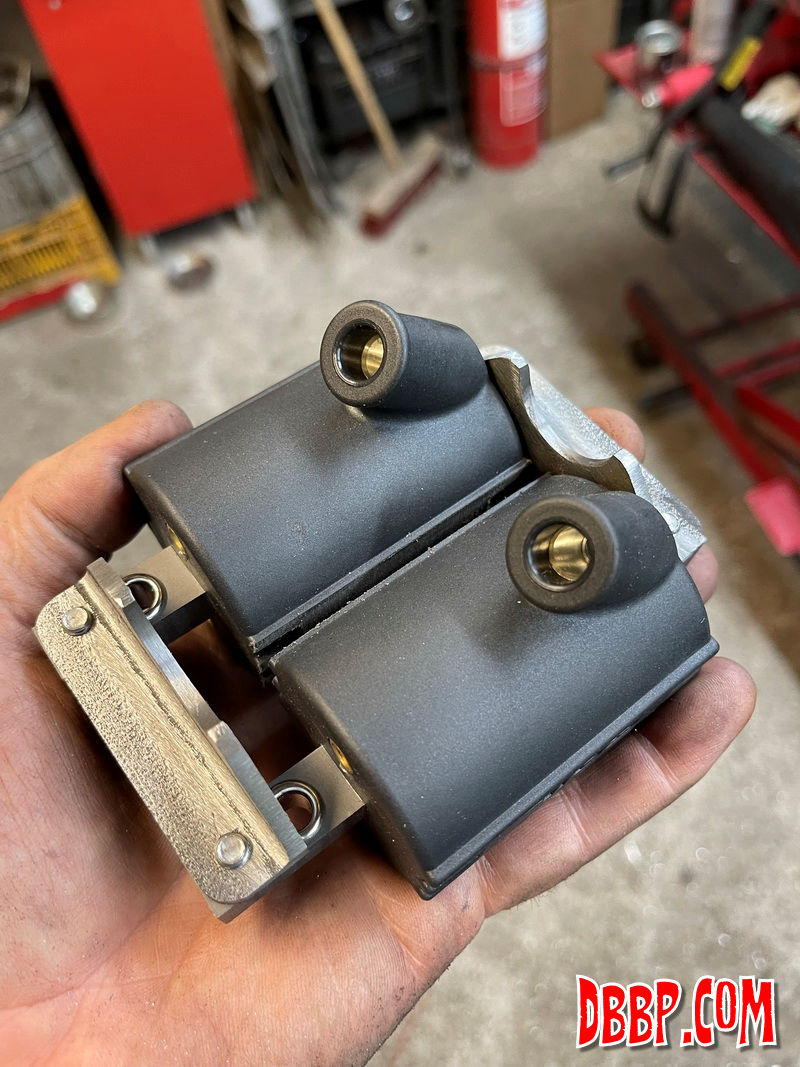

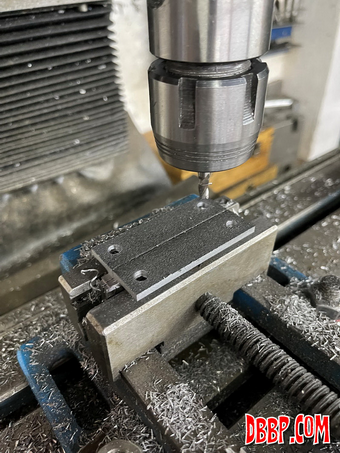

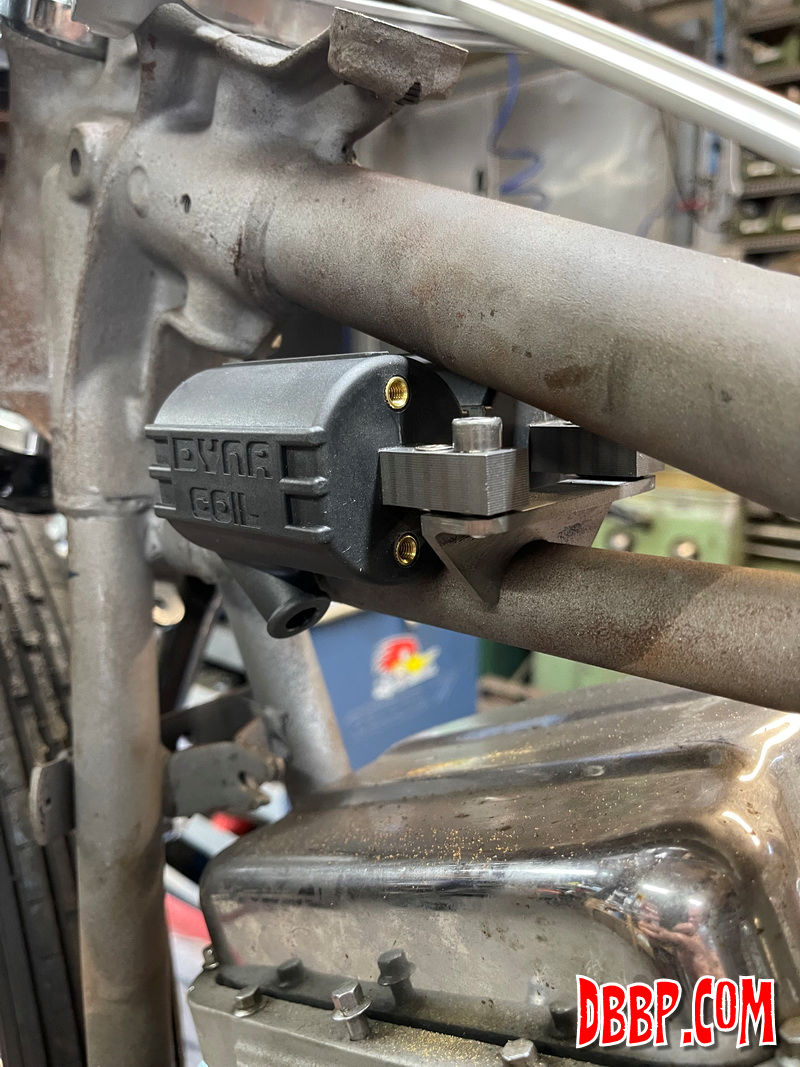

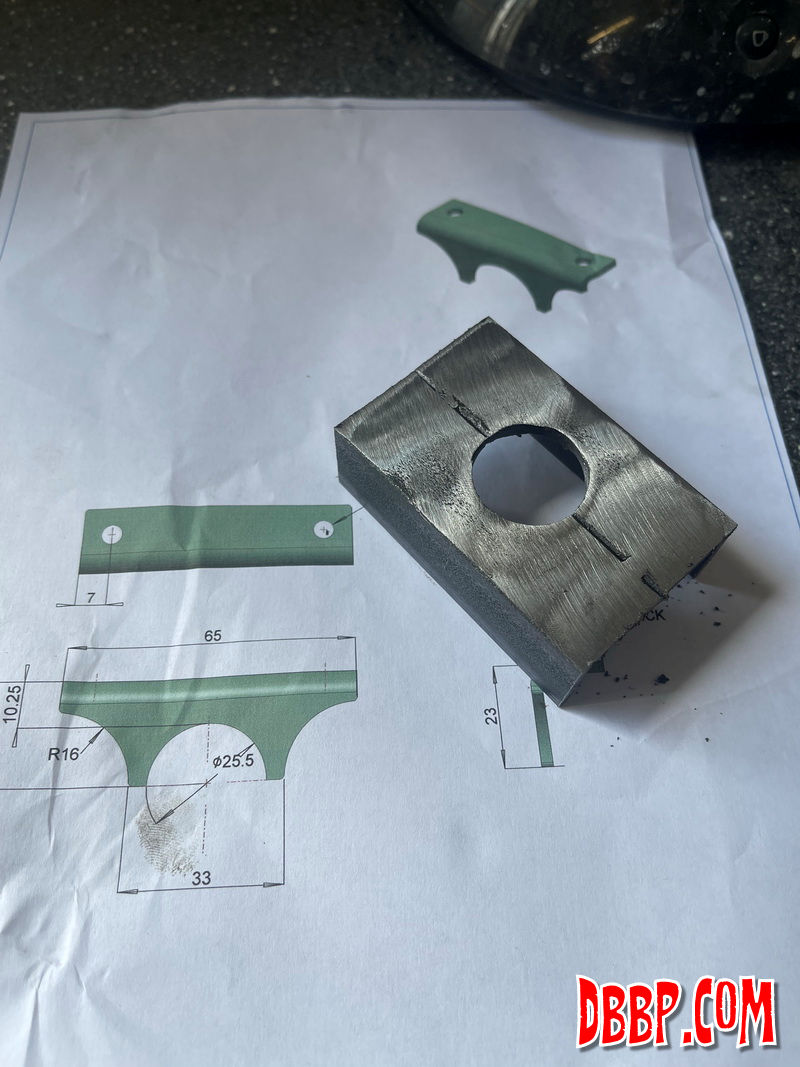

There is quite a bit of room between the tanks now so I tried hiding the ignition coil there. The stock one did not fit but 2 single Dyna coils did, so I designed and fabricated some brackets.

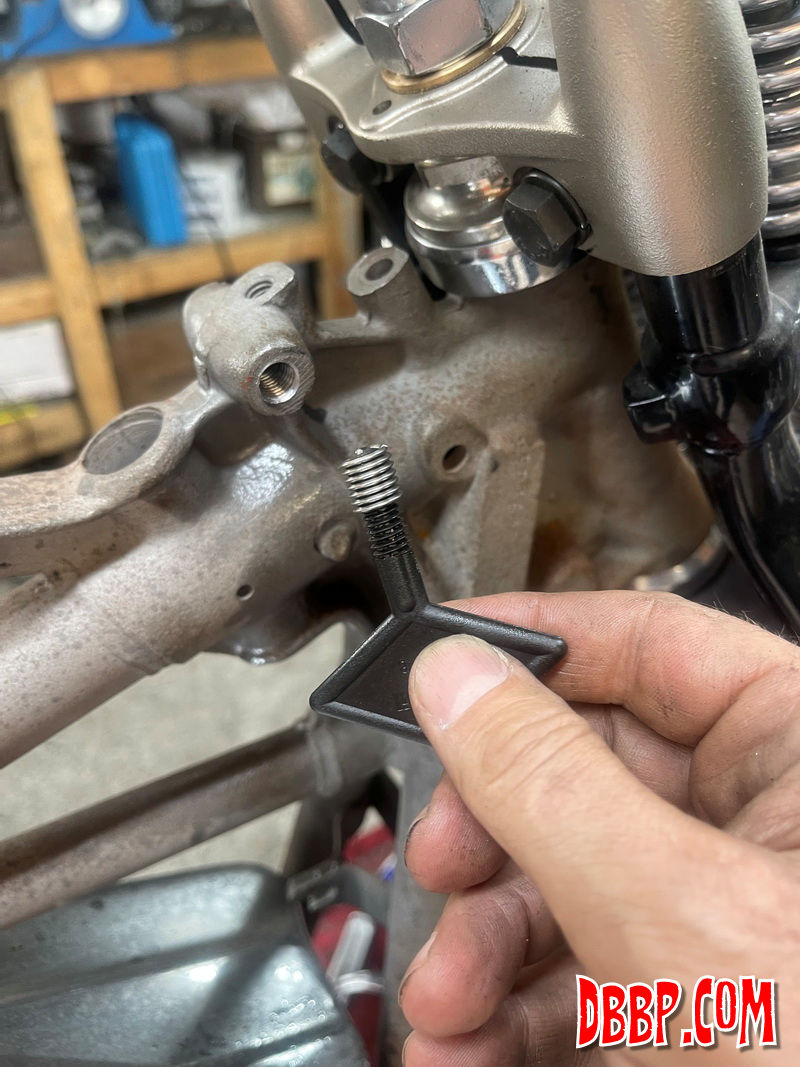

In the meantime the actual bubble for the bubbledash is being vacuumformed, I removed the stock coilmounts from the seatpost and am making a custom speedometer for under the bubble, to be continued...
