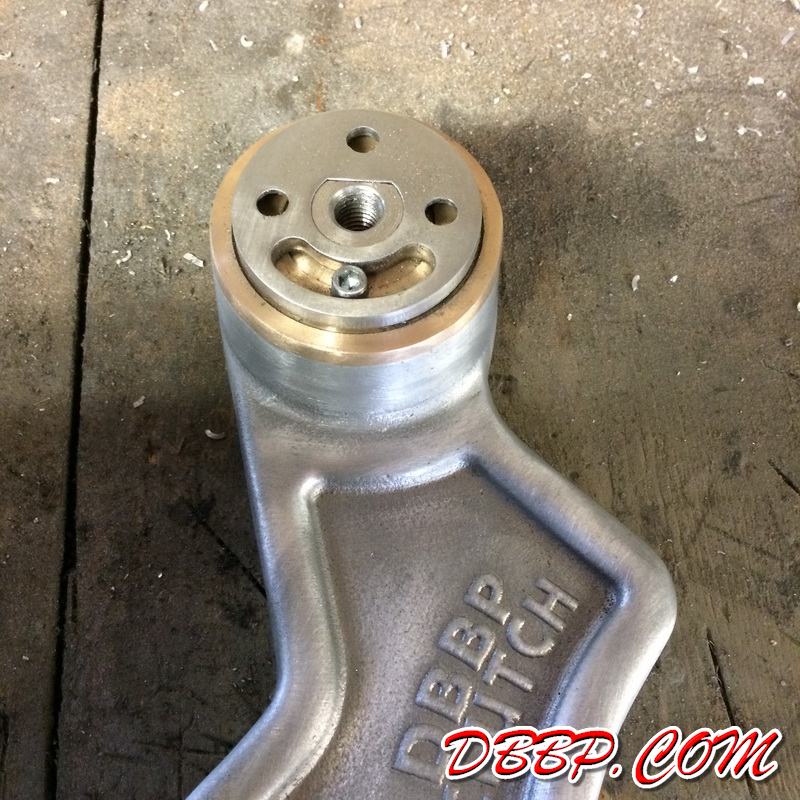

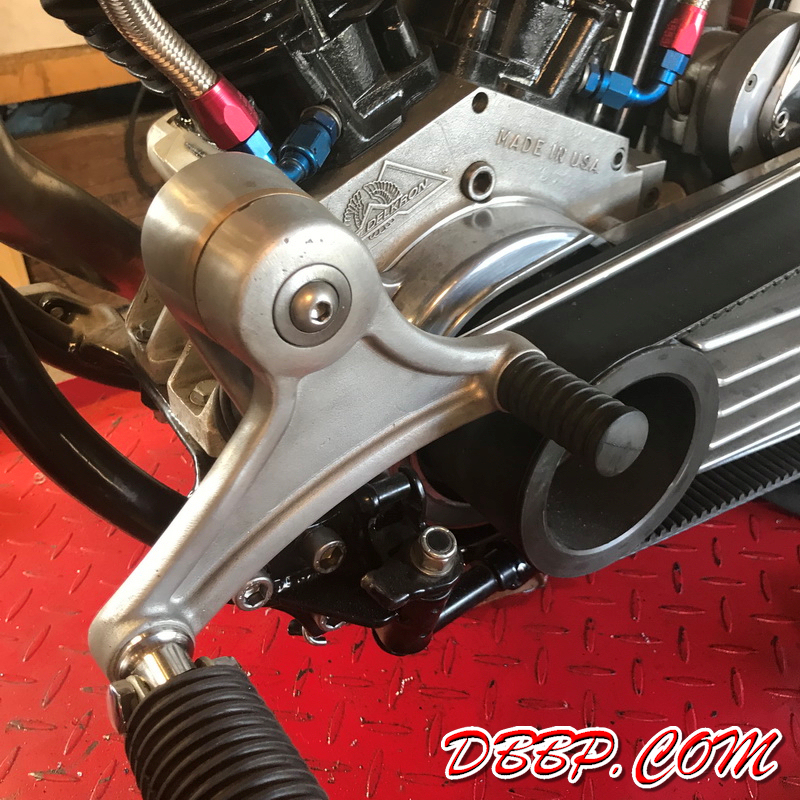

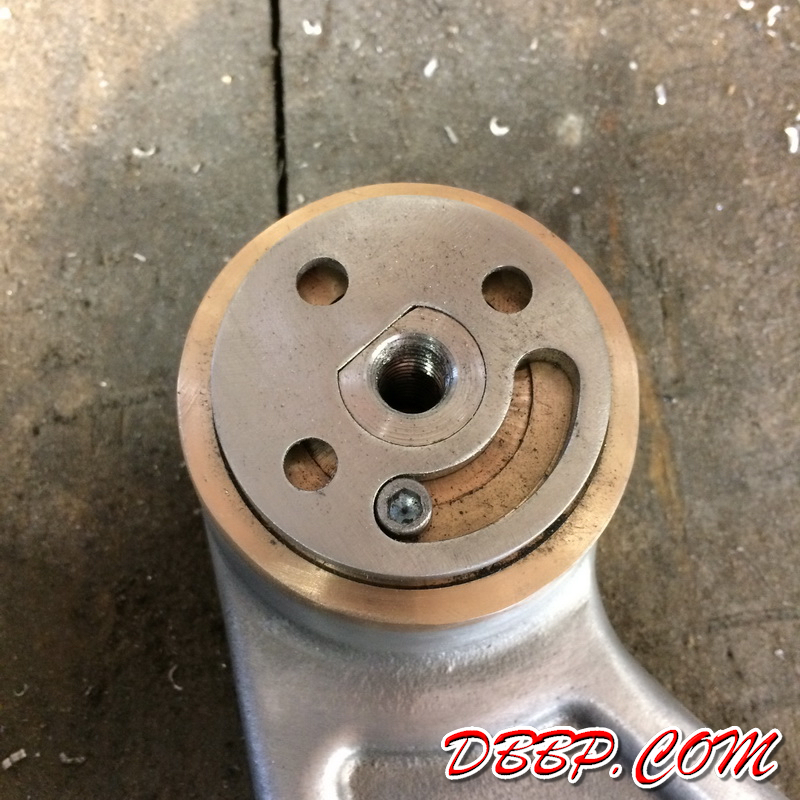

I had forgotten to show the last few pics of the cast aluminium footclutch prototype mounted on my bike so here they are. I might make a few more of these footclutches  if there is enough interest for them

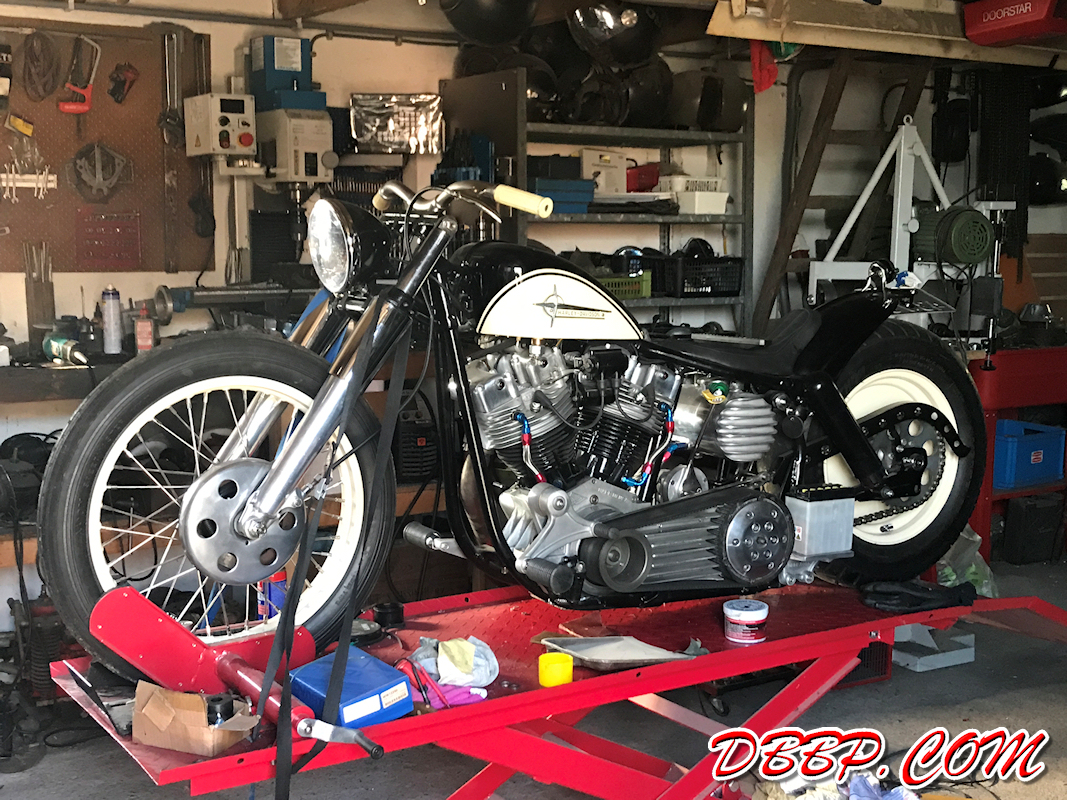

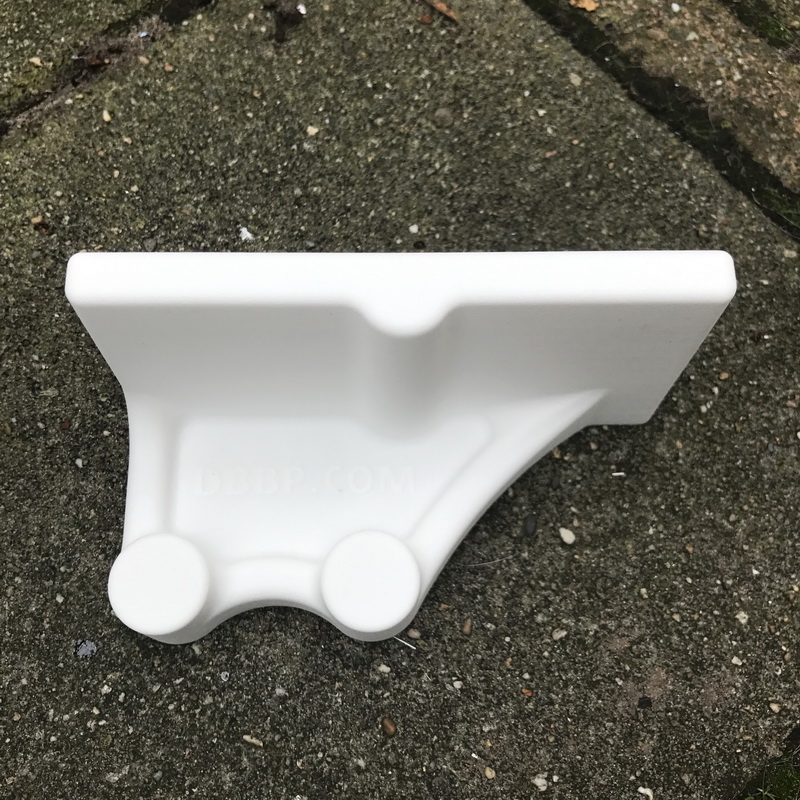

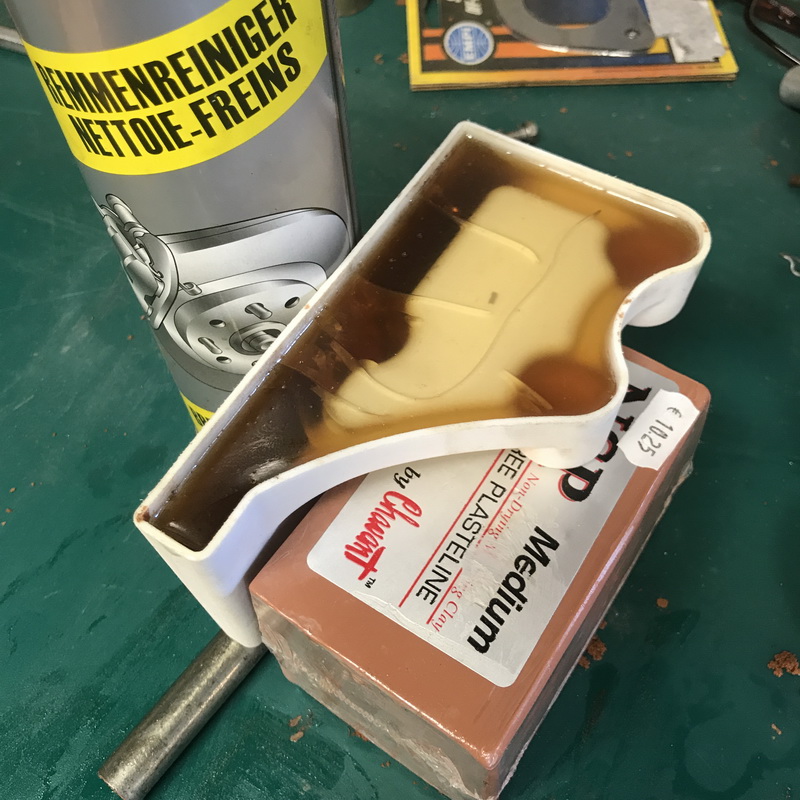

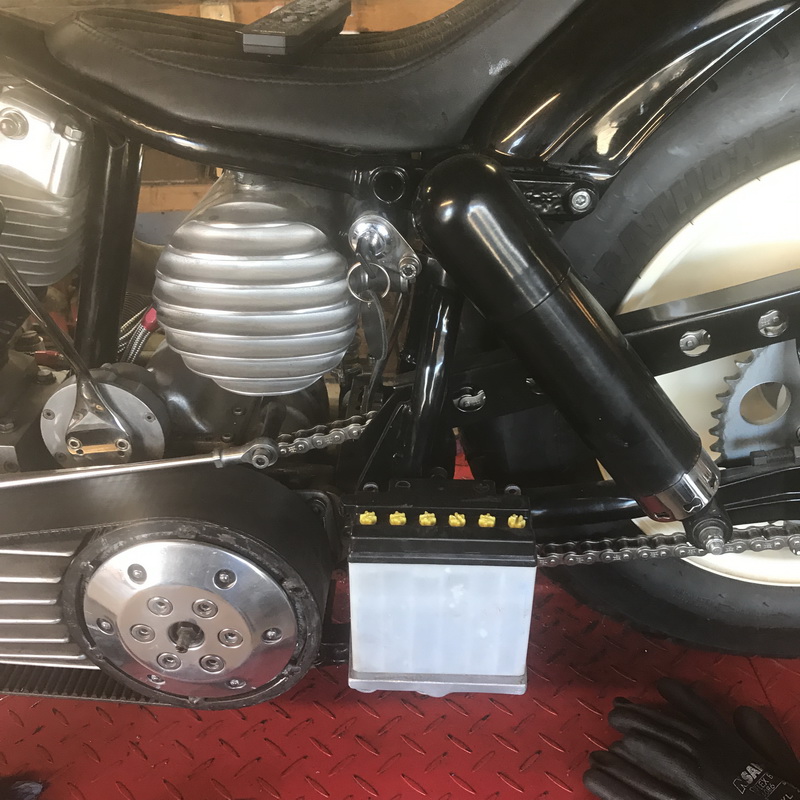

After a few test rides I decided the bike really could use a bigger battery and decided to cast a battery mount so I could hang any easily available battery on the side of the bike. I made a CAD model, printed it with thin walls to save a few bucks and then filled the hollow mold with polyester to make it stronger.

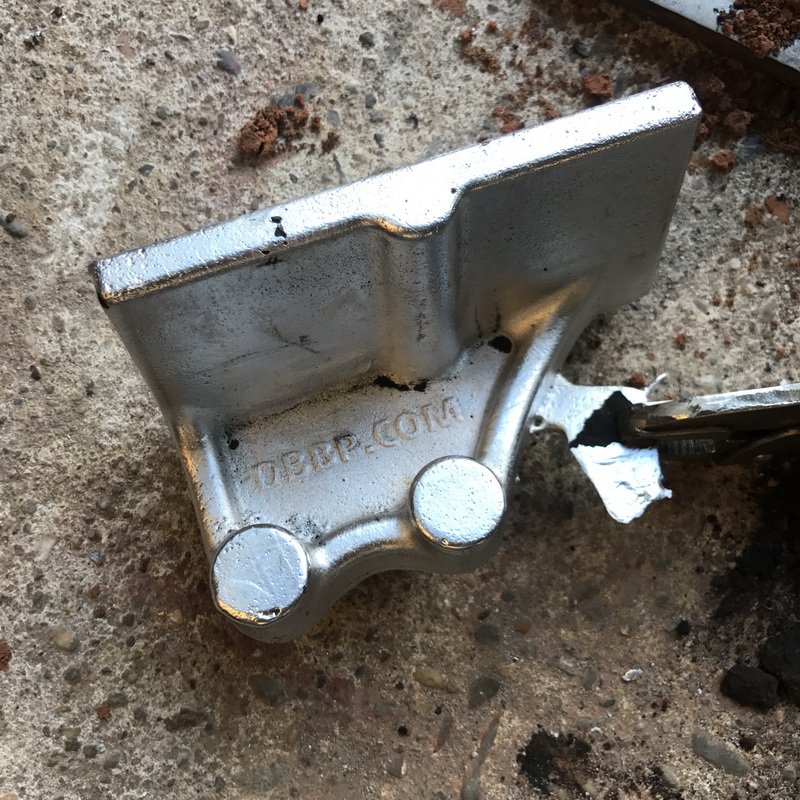

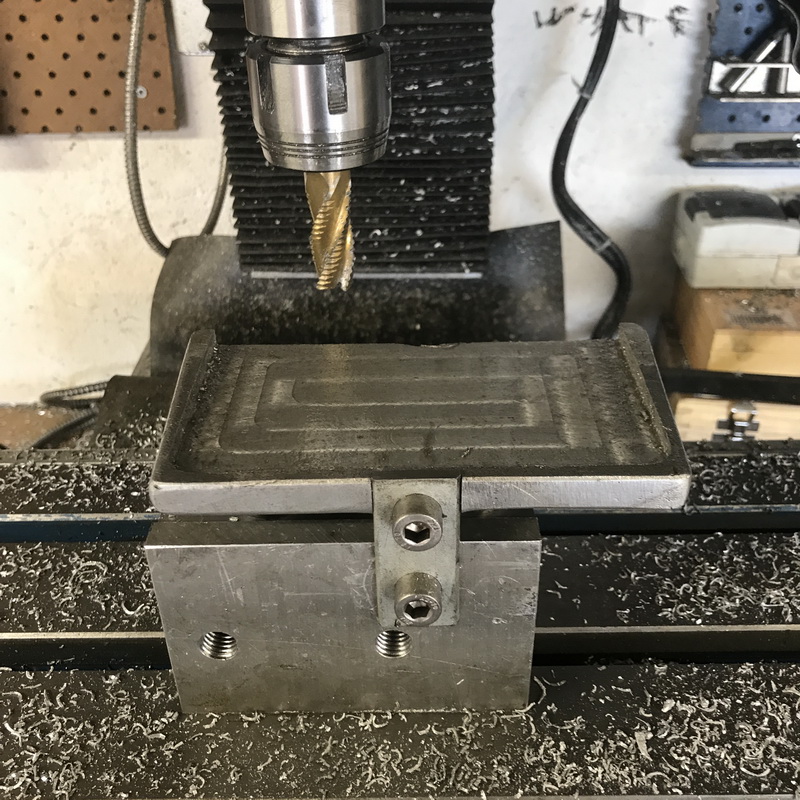

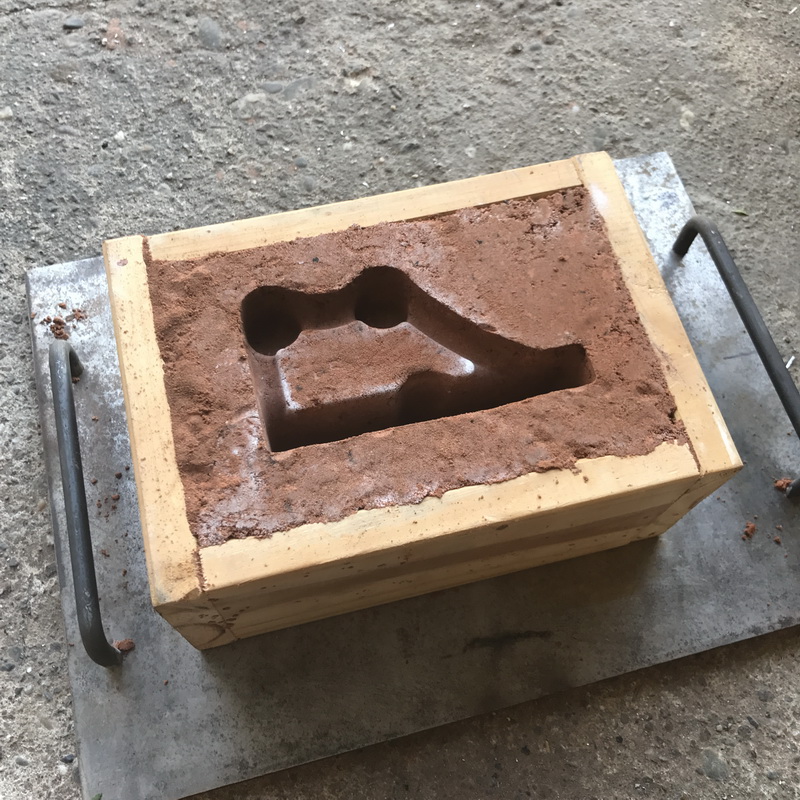

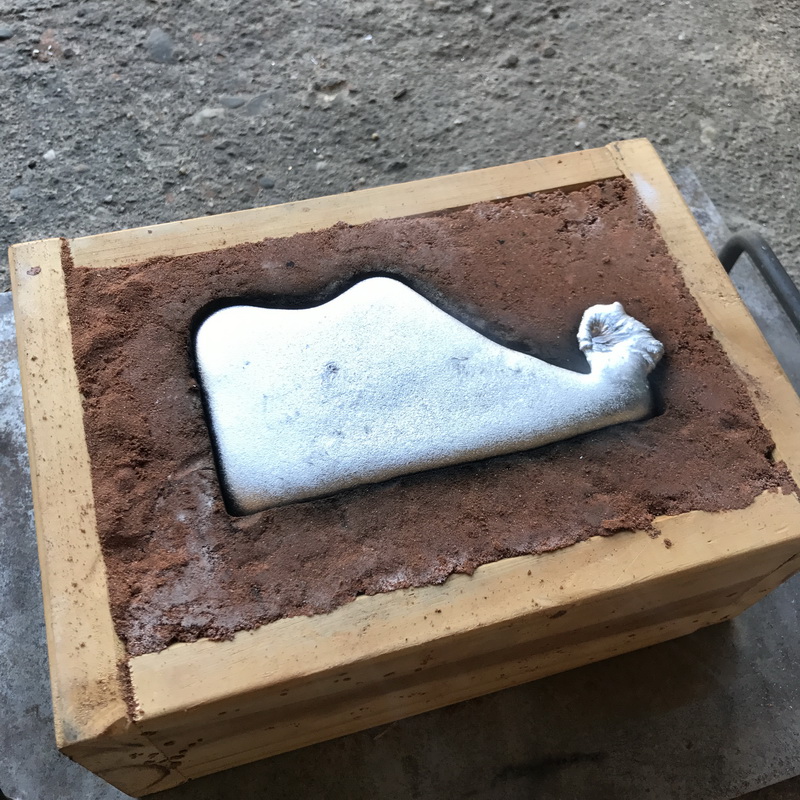

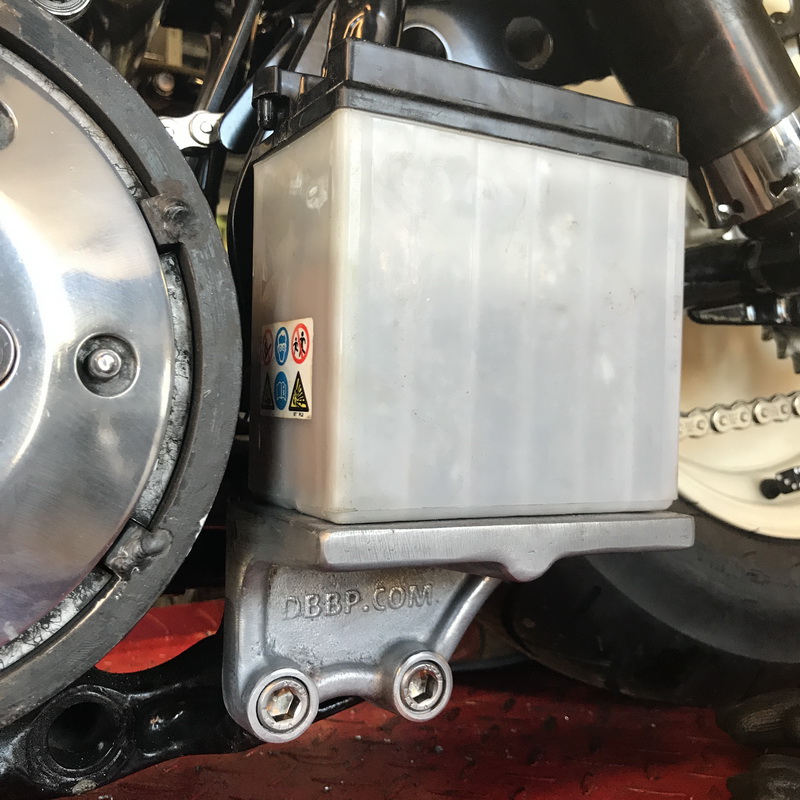

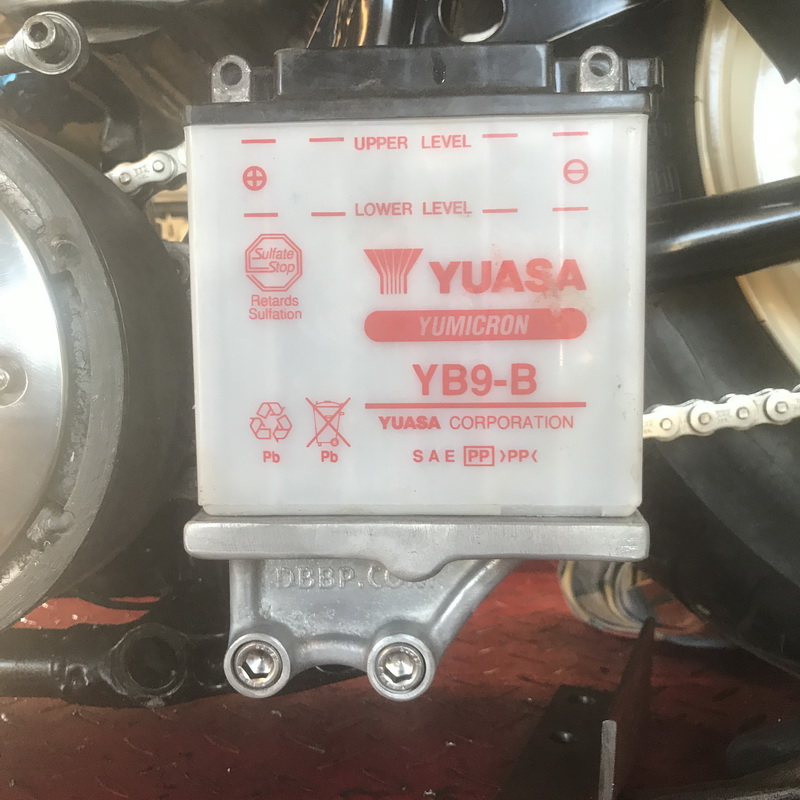

I made a sandcasting and machined it, it uses two existing lugs on the frame behind the belt. Next I will cast a top cover and probably make a sheetmetal piece to cover the sides of the battery.
