WEBER IDF 44 CARB SETUP

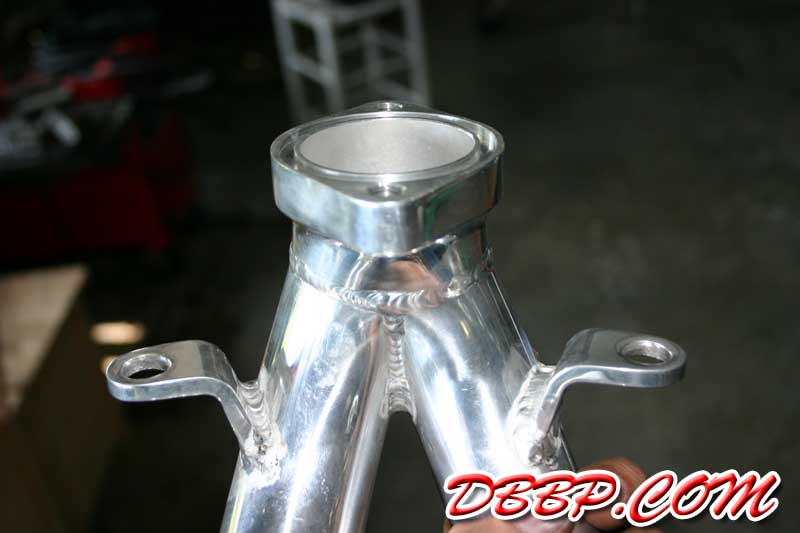

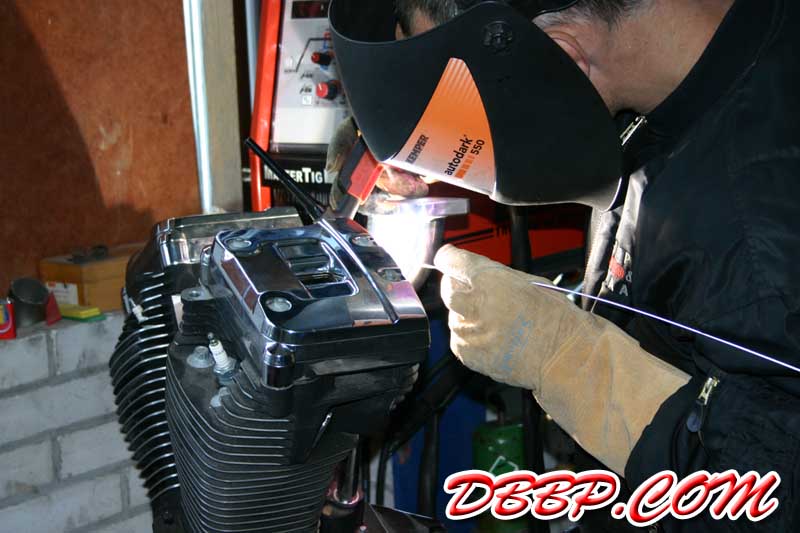

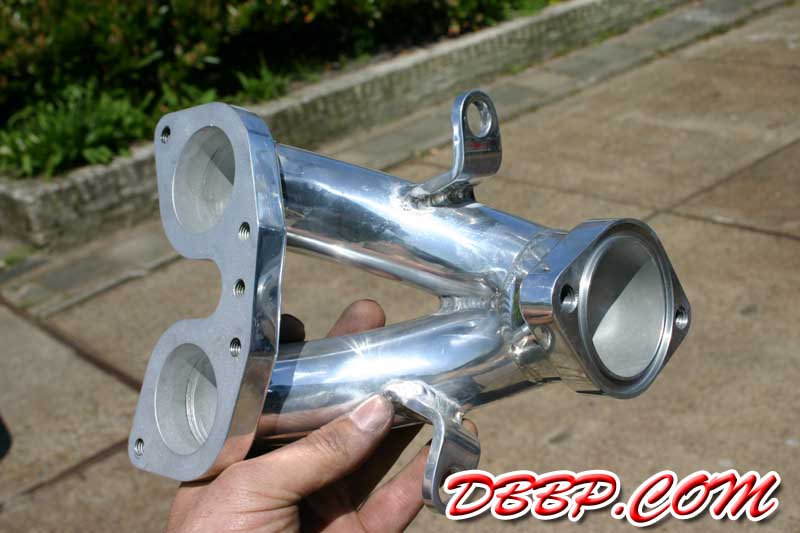

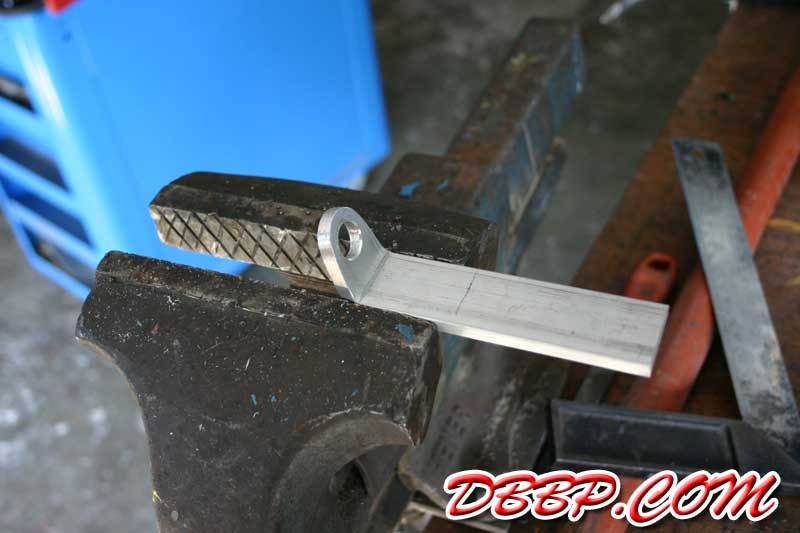

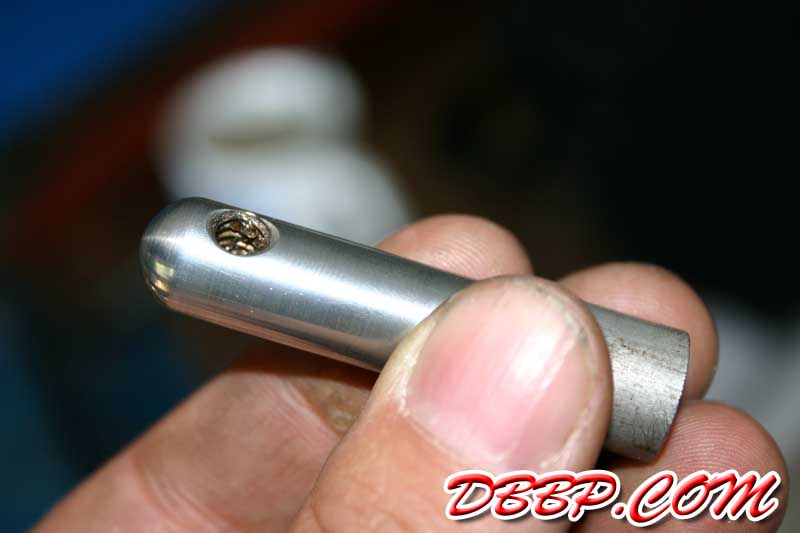

To mount the manifold on an EVO engine I decided to make 2 aluminum ears welded directly to the manifold. We hand sawed, filed, drilled and bent 2 ears from aluminum strip, the bends are to allow the manifold to expand and contract with the temperature differences in the aluminum engine without cracking. We also made the small part to hold the outer throttle cable. Before welding we pre-polished all the parts so we would be able to get in all the hard-to-reach places and to get a cleaner weld. We were lucky to have an EVO engine we could use as a template and Aad welded the ears with all the parts fixed on the engine so all would fit perfectly. We ran out of time before we could weld on the cable-holder....

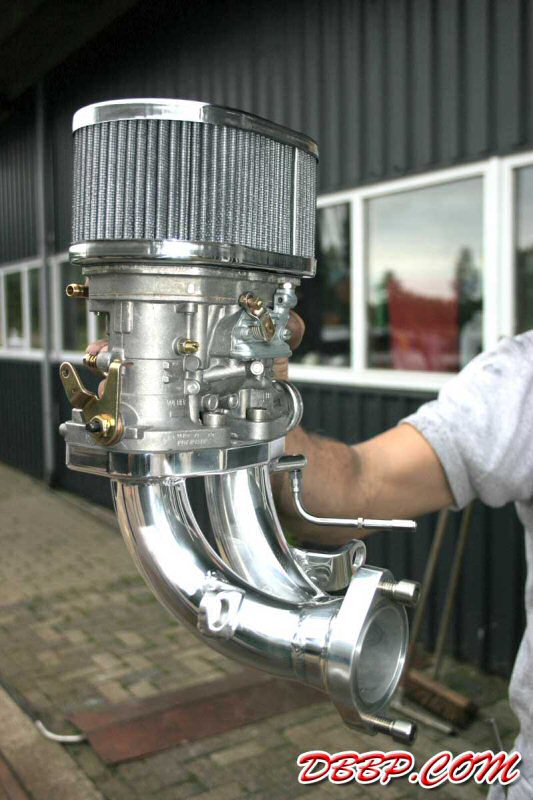

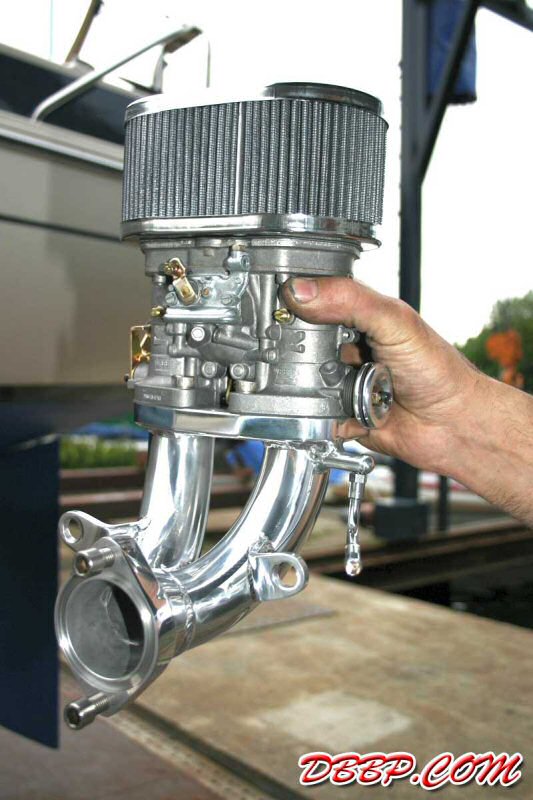

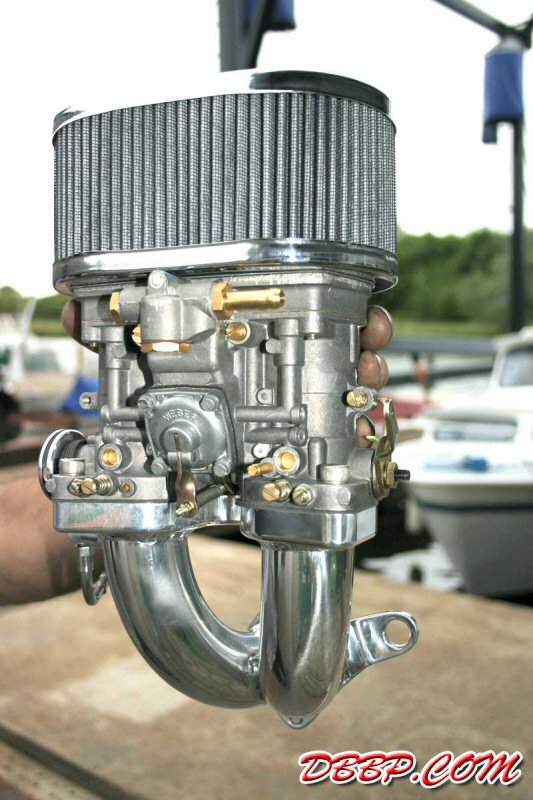

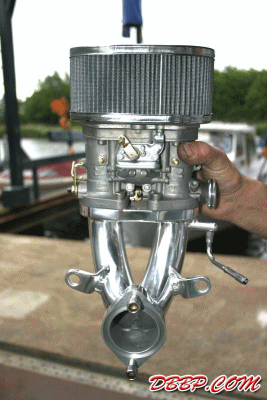

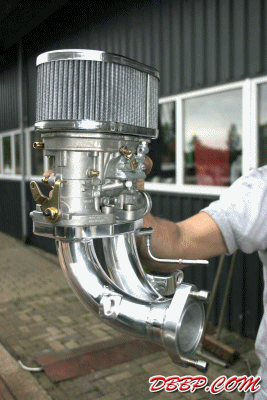

And finally, the finished set:




*=closed/open measurements

Carb Type PN	Main Venturi	Aux. Vent.	Main Jet	Emulsion Tube	Air Corr	Idle Jet	Pump Jet	Pump Bleed	Needle Valve	Float Level *	Derivation
IDF
40 IDF 18/19 18950.069/.070	28	4.5	115	F11	200	50	50	50	175	10/32.5	Special Applications
40 IDF 48/49 18950.126/.127	28	4.5	115	F11	200	50	50	55	175	10/32.5	Redline Inc. Conversion
40 IDF 13/15 18950.057/.059	32	4.5	125	F11	210	55	40	50	175	10/32.5	Fiat 124 Spy Europe
44 IDF 38/39 18990.013/.014	36	4.5	170	F11	200	50	55	80	175	10/32.5	Special Applications
44 IDF 50/51 18990.024/.025	36	4.5	170	F11	200	60	55	55	175	10/32.5	Redline Inc. Conversion
48 IDF 4/5 19030.016/.017	40	4.5	165	F11	190	65	40	100	200	22/32	Redline Inc. Conversion
48 IDF 1-100/2-100 19030.010/.011	40	4.5	165	F11	190	65	40	100	200	22/32	Fiat
