Project started
October 2023,
|

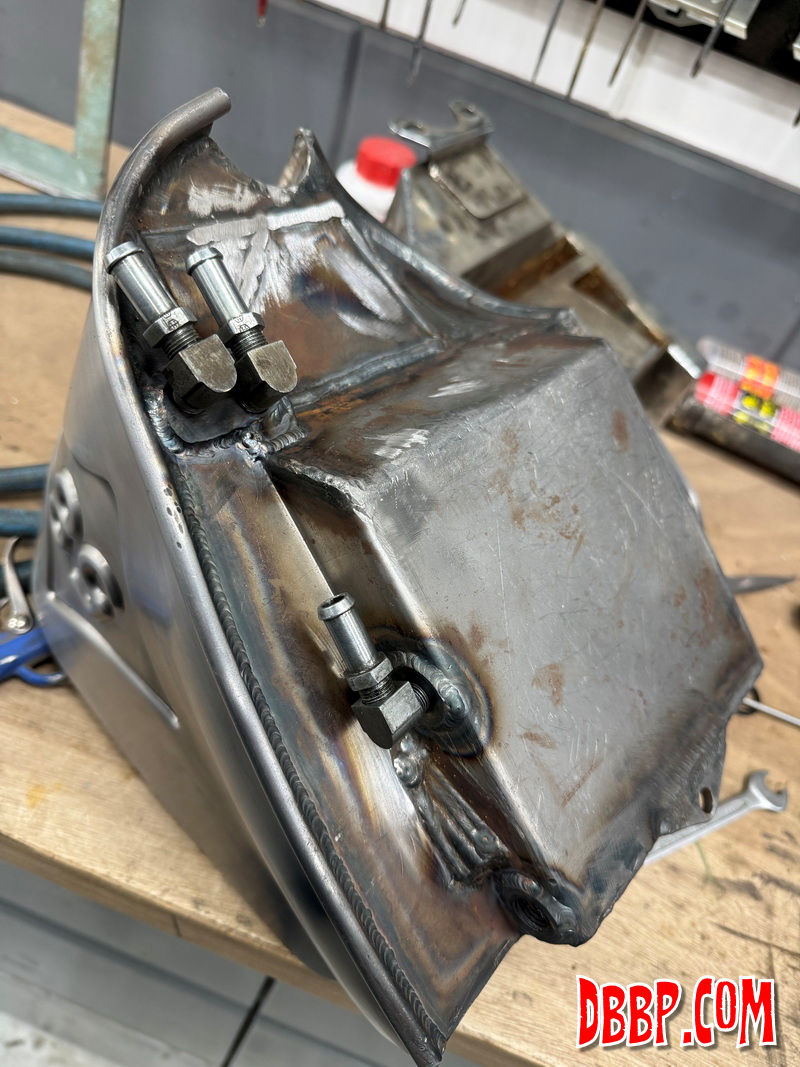

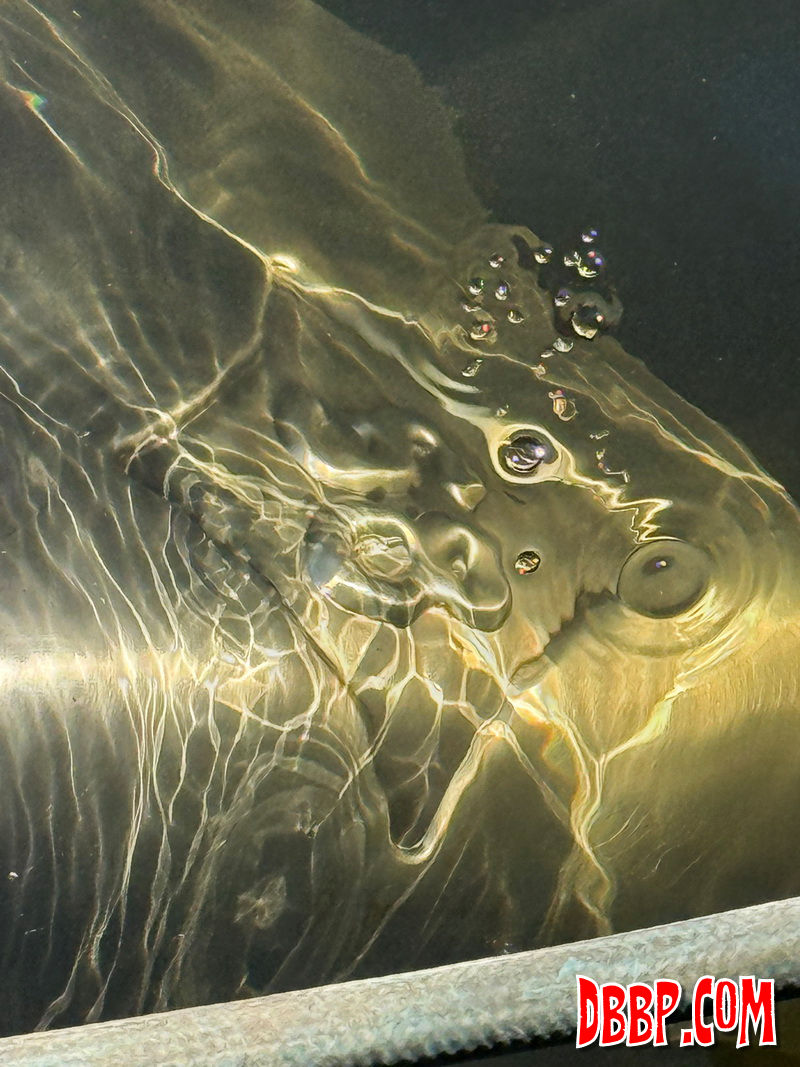

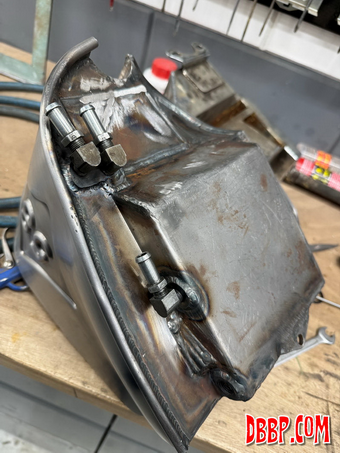

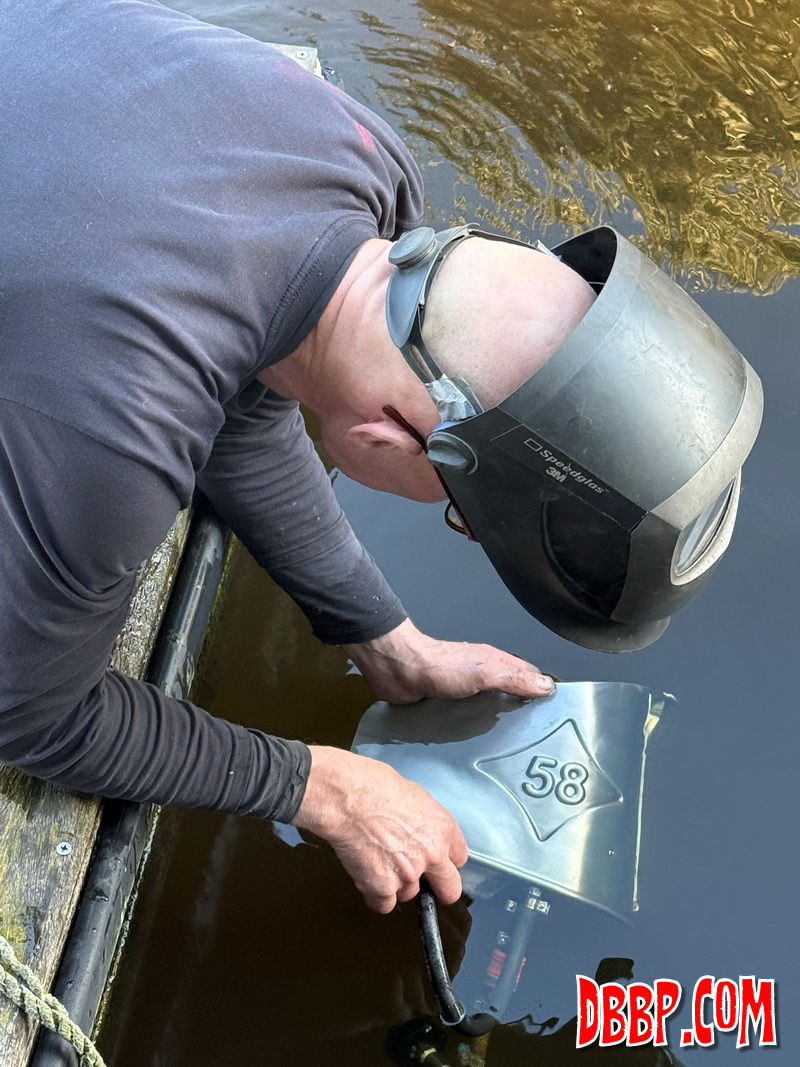

First job this week was adding oilline connections and pressure
testing the oiltank, there were a few tiny leaks but all is
fixed now.
|

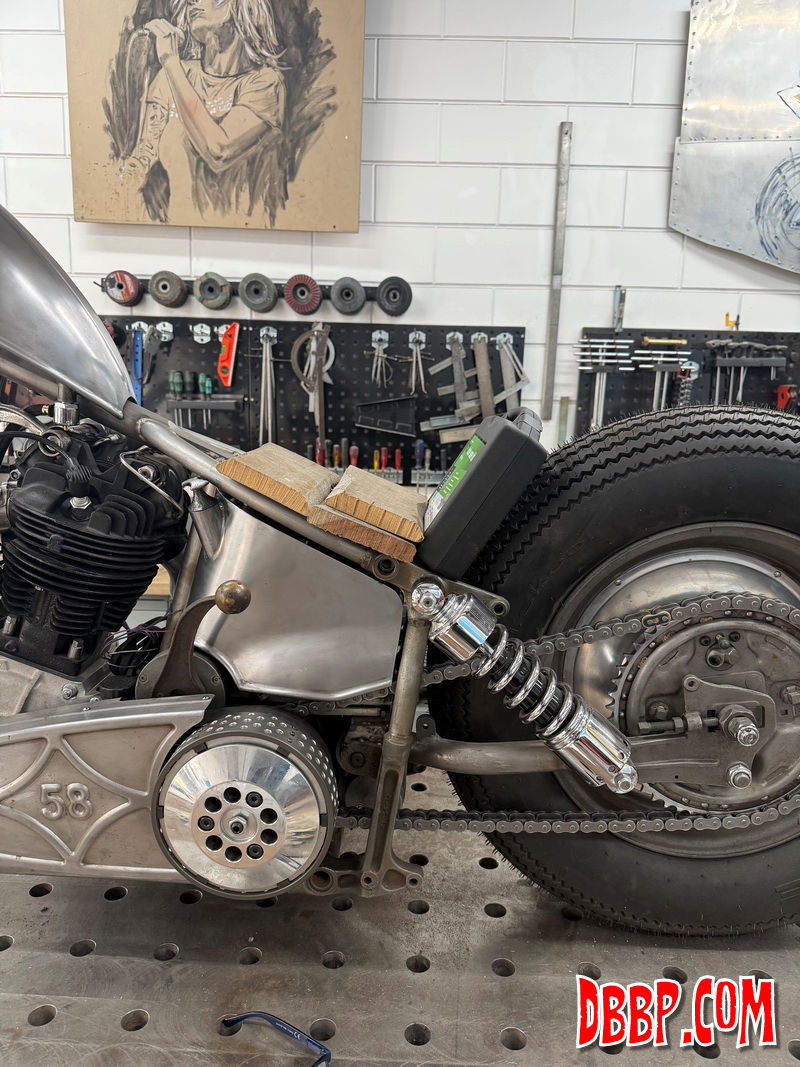

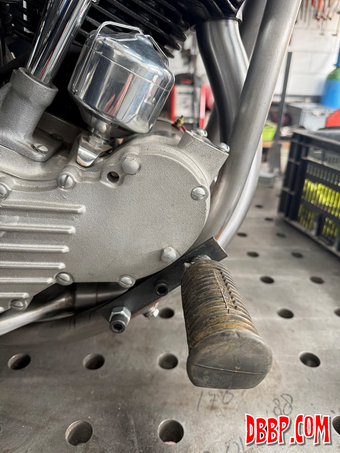

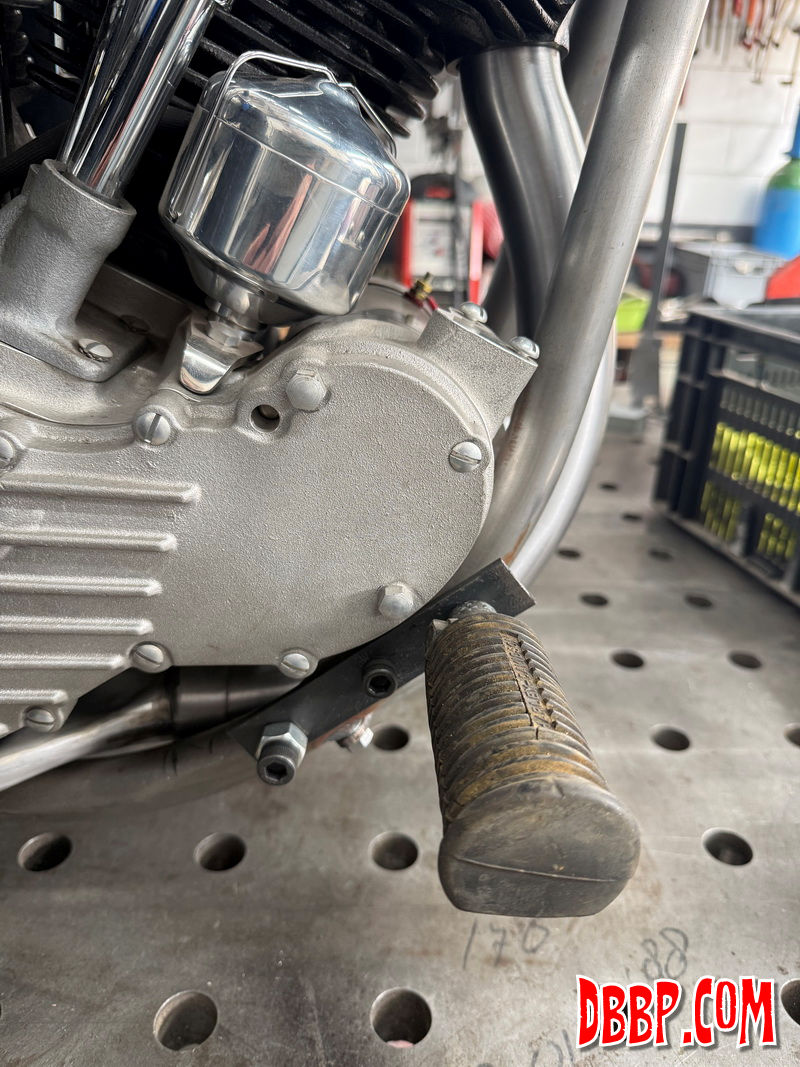

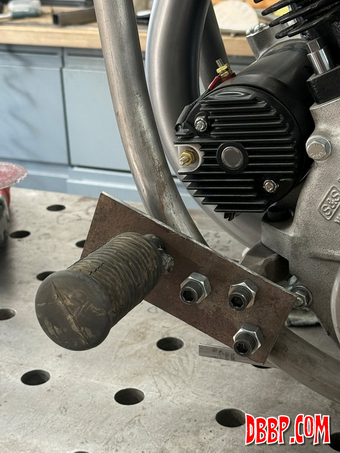

Before starting on the forward controls
we mocked up some footpegs to get the most comfortable sitting
position for Aad. We even improvised a seat, haha. It turned
out to be hard to tell without handlebars, which we had removed
to install an internal throttle, so we finished that first... |

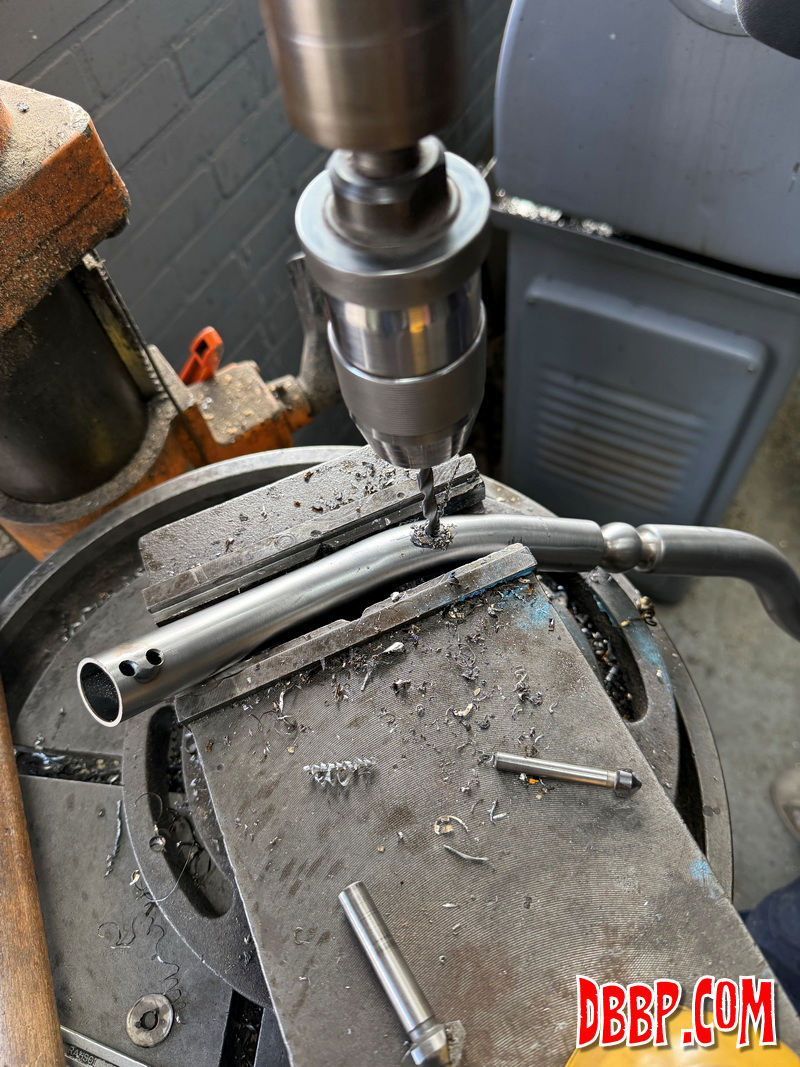

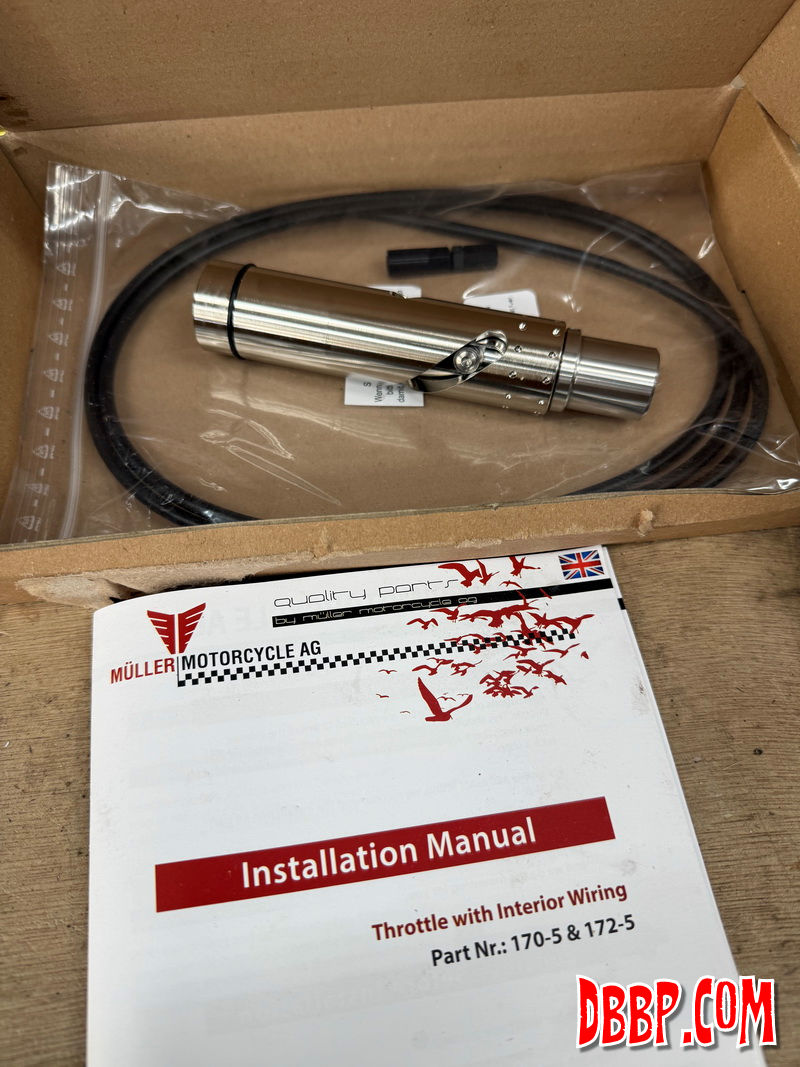

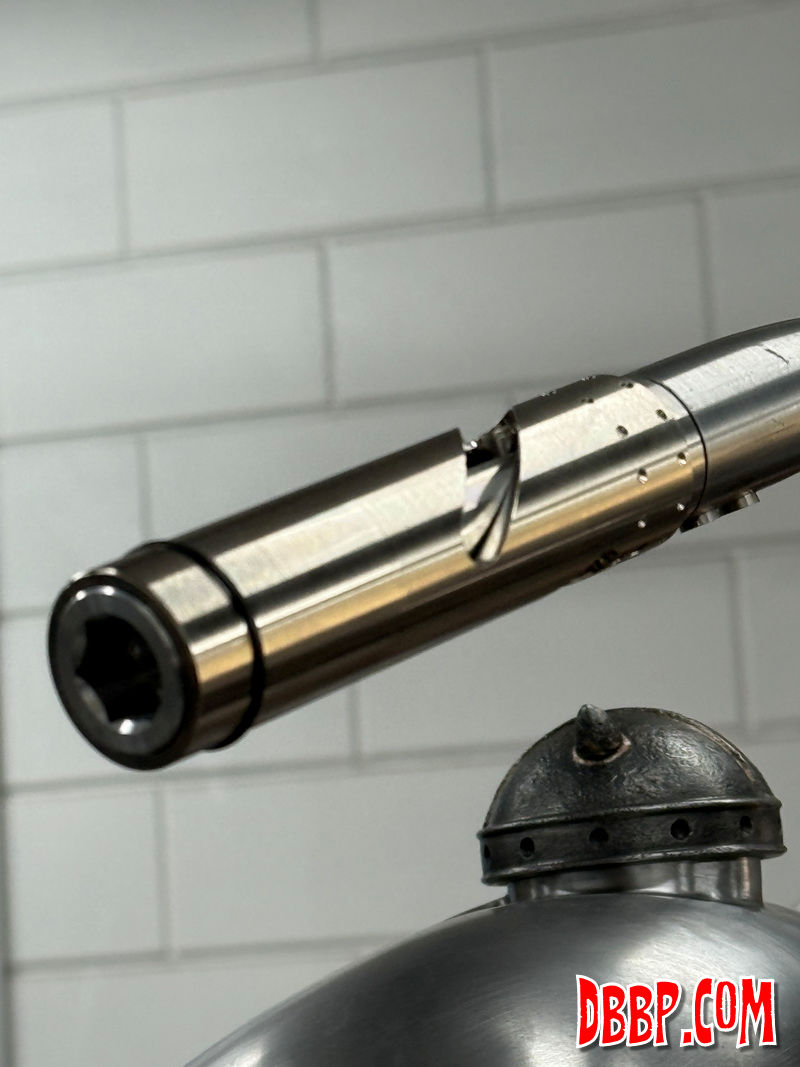

We installed a Müller
internal throttle, which in my opinion is the best quality one

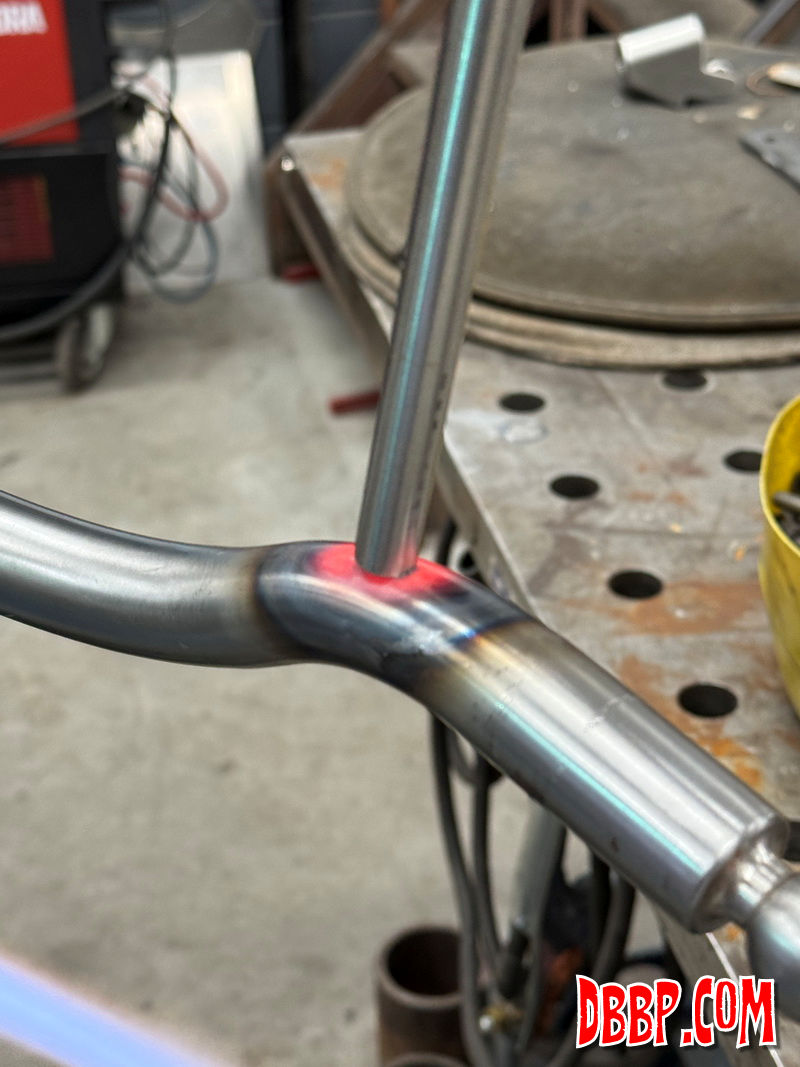

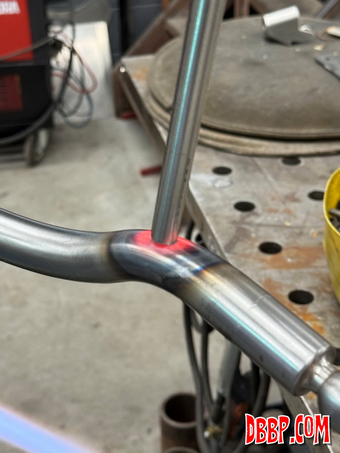

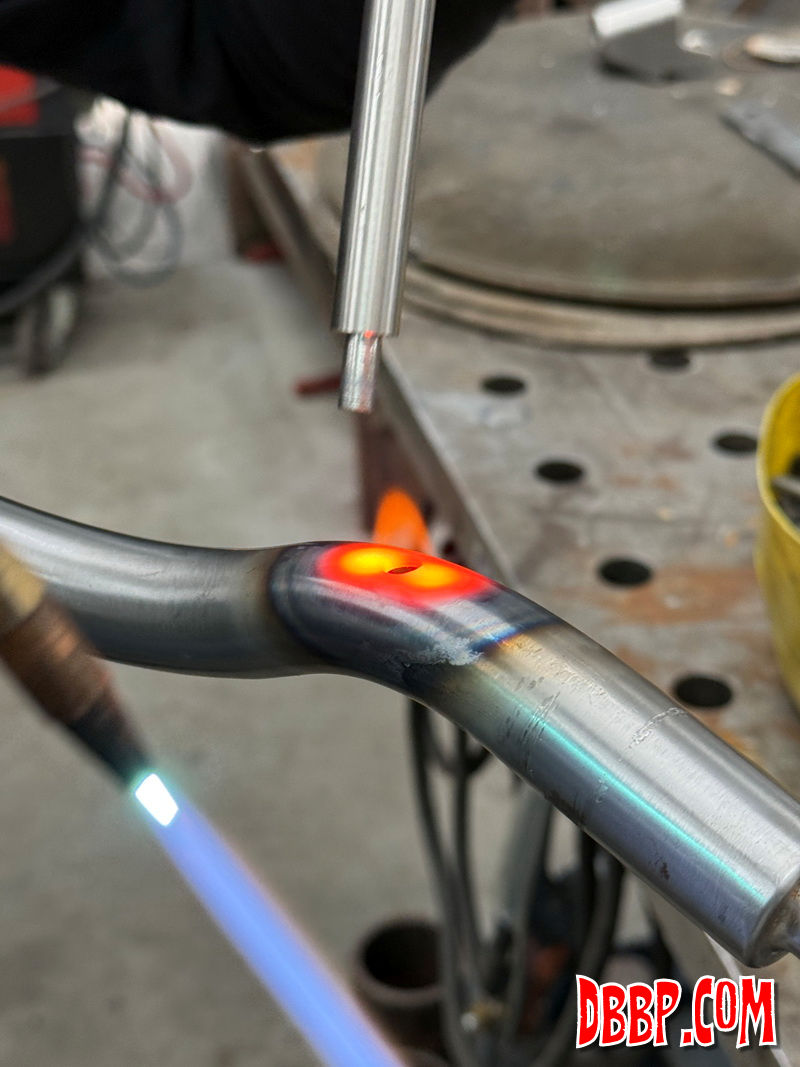

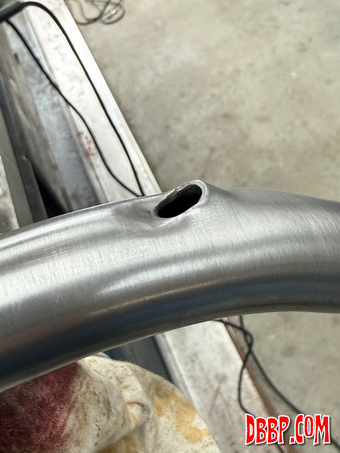

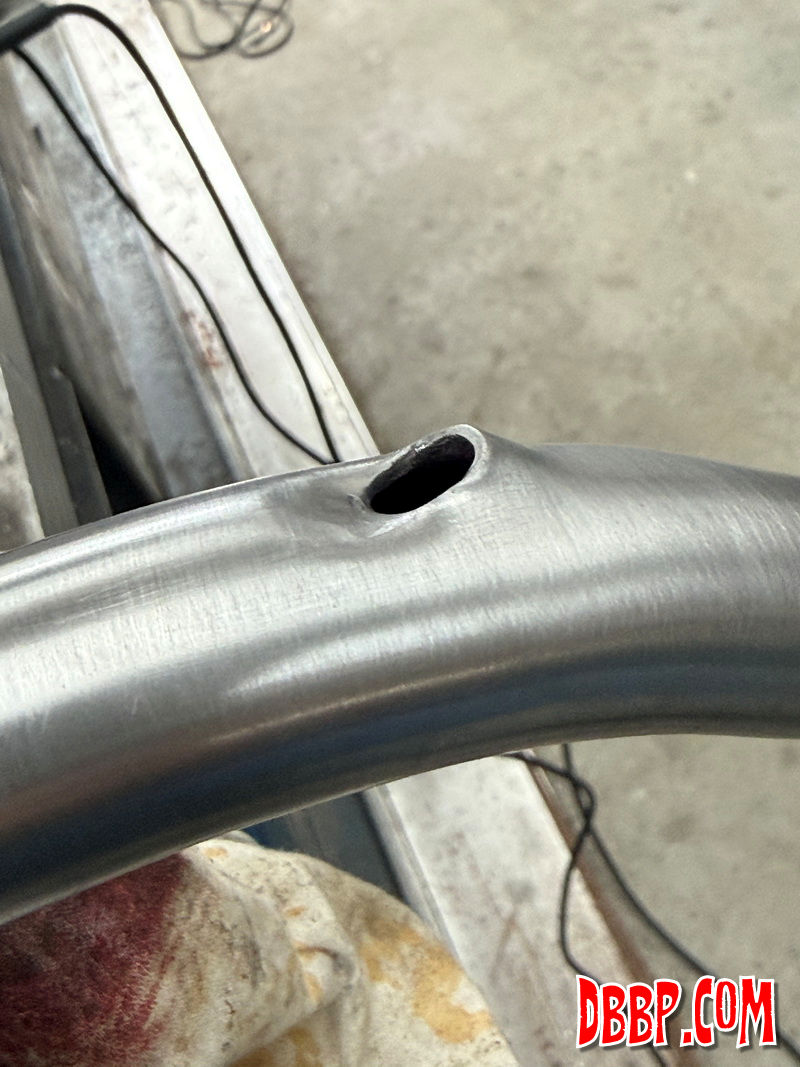

available. We made a little exit for the throttle cable by heating
and deforming the drilled hole, this way the throttle cable
will not damage and we think it looks nicer this way.
|
|

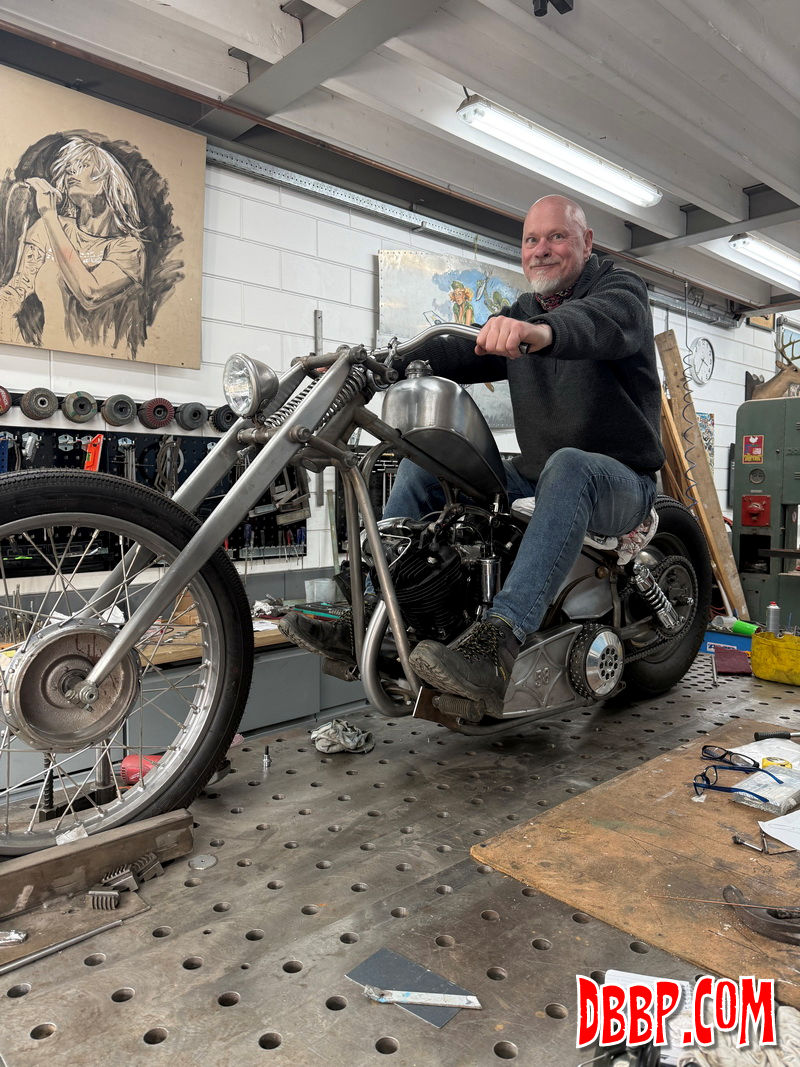

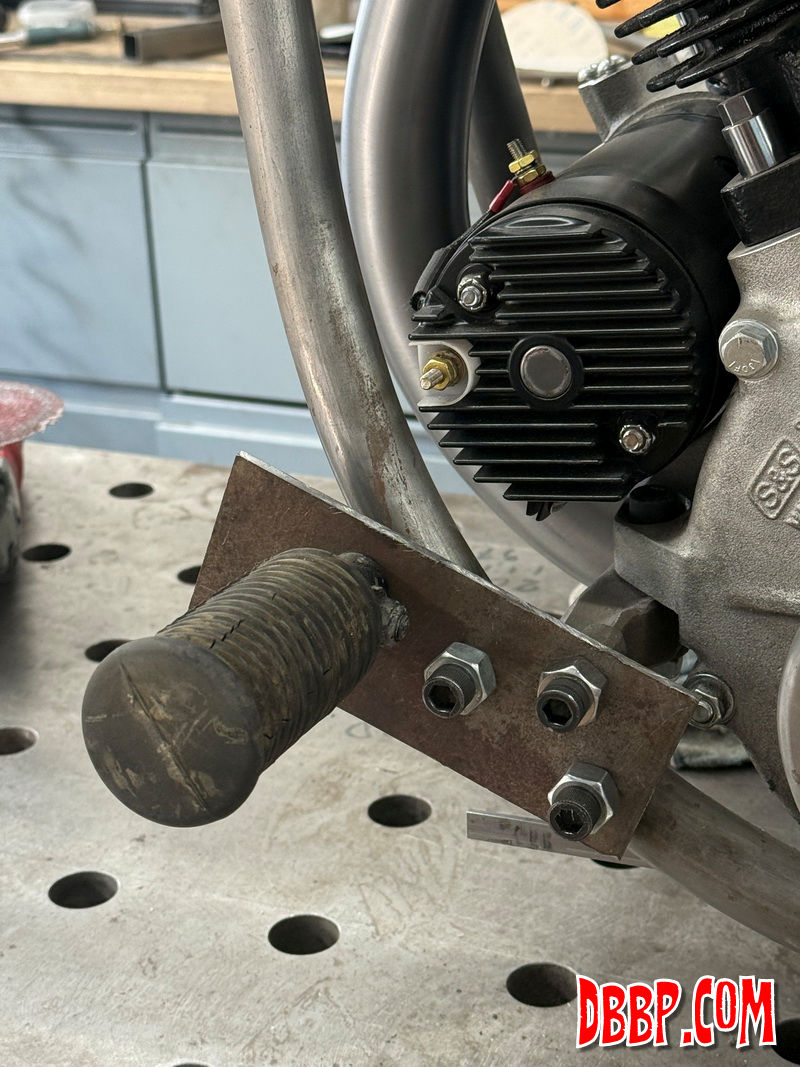

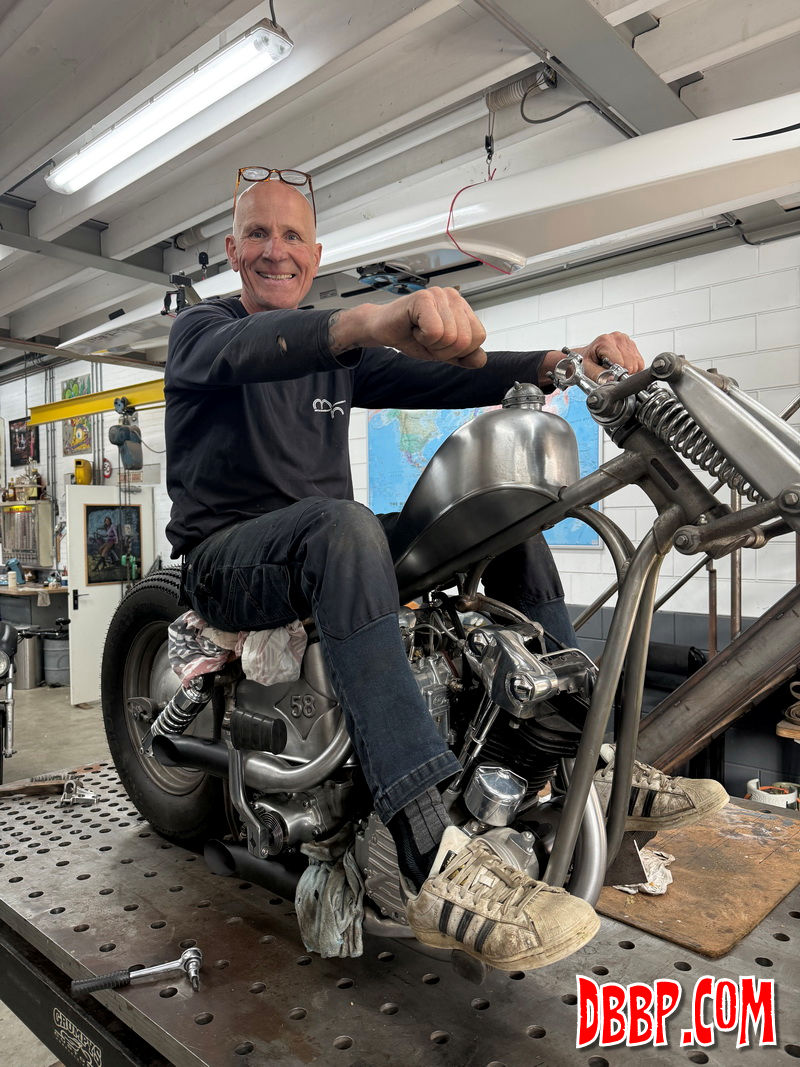

Now it was possible to properly test the seating and footpeg

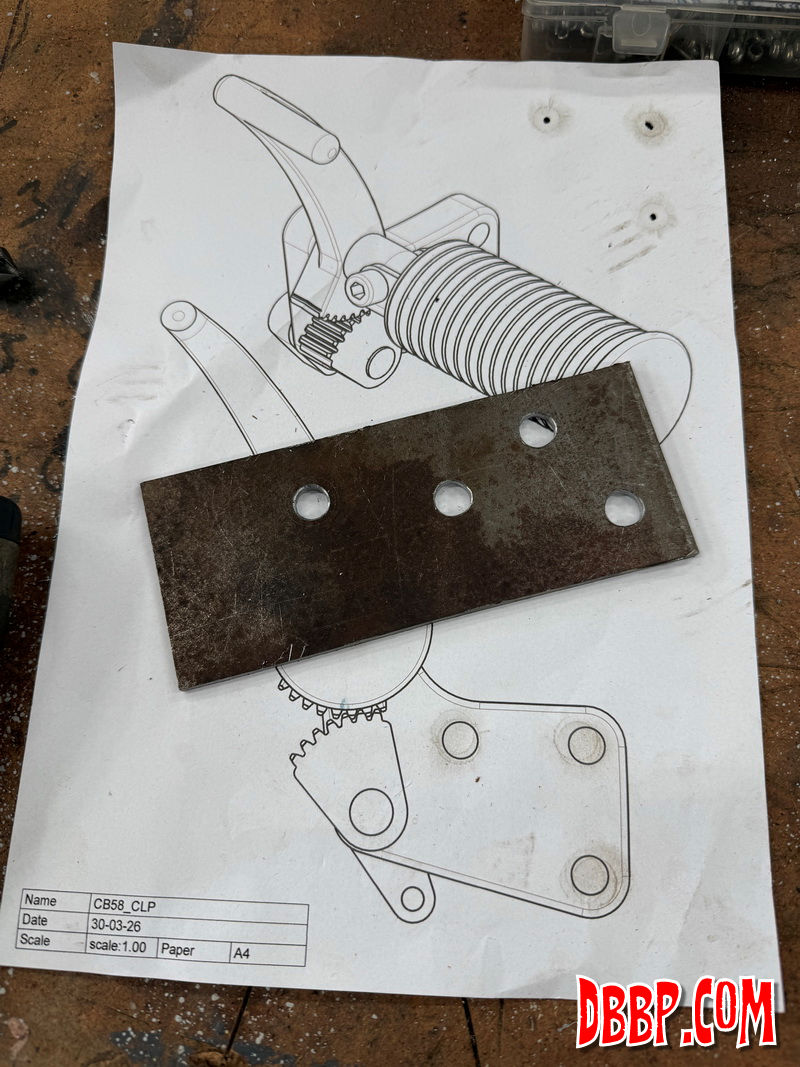

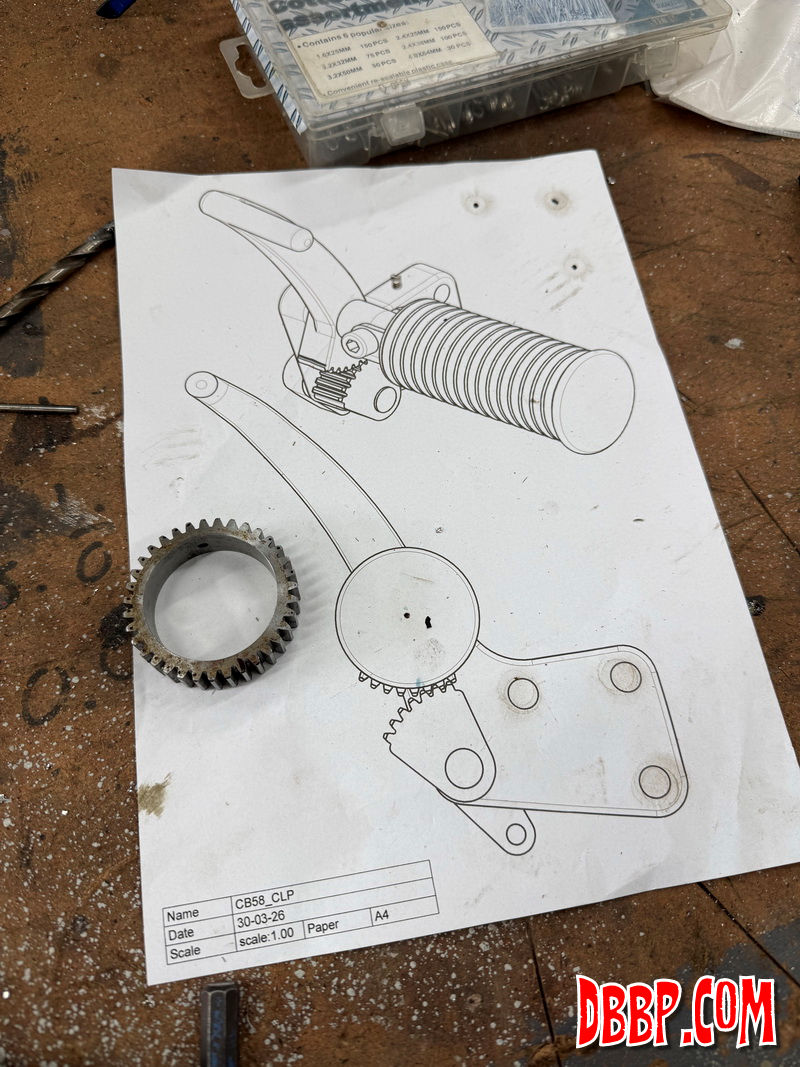

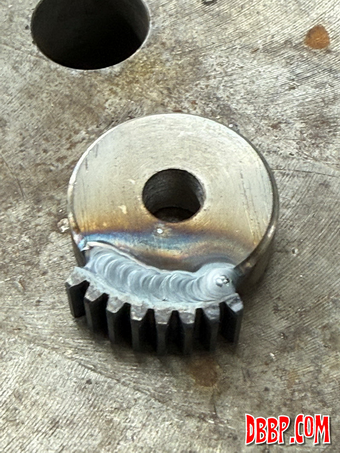

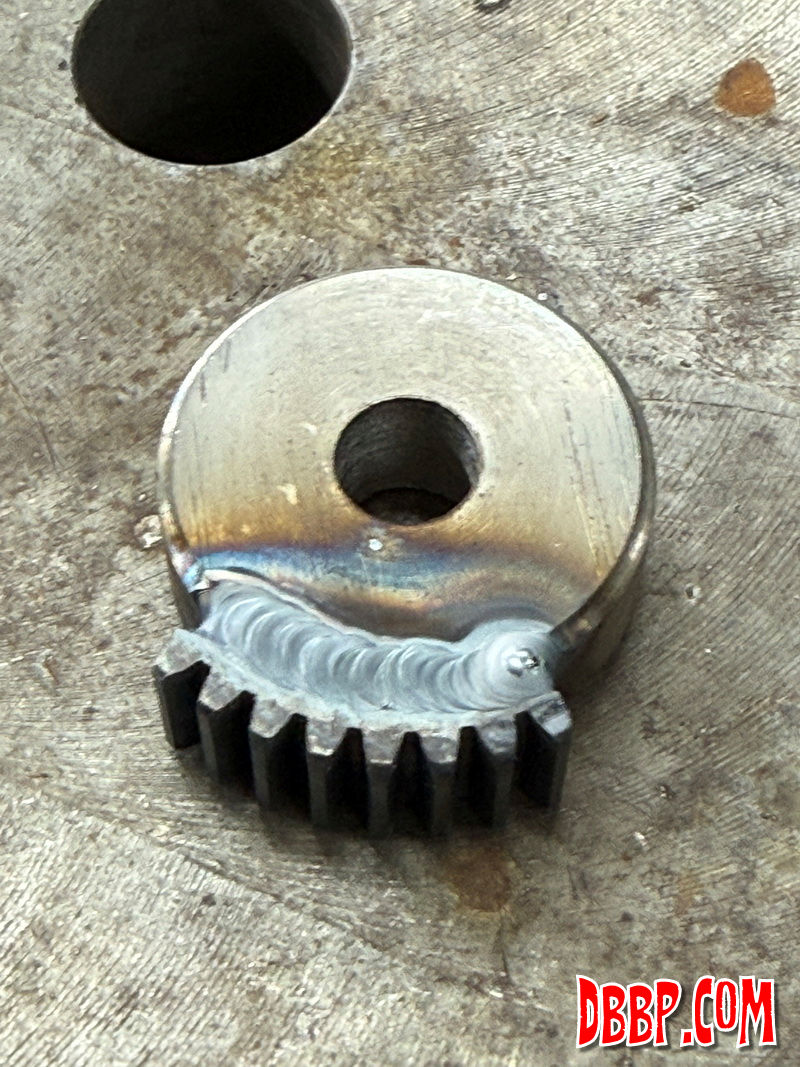

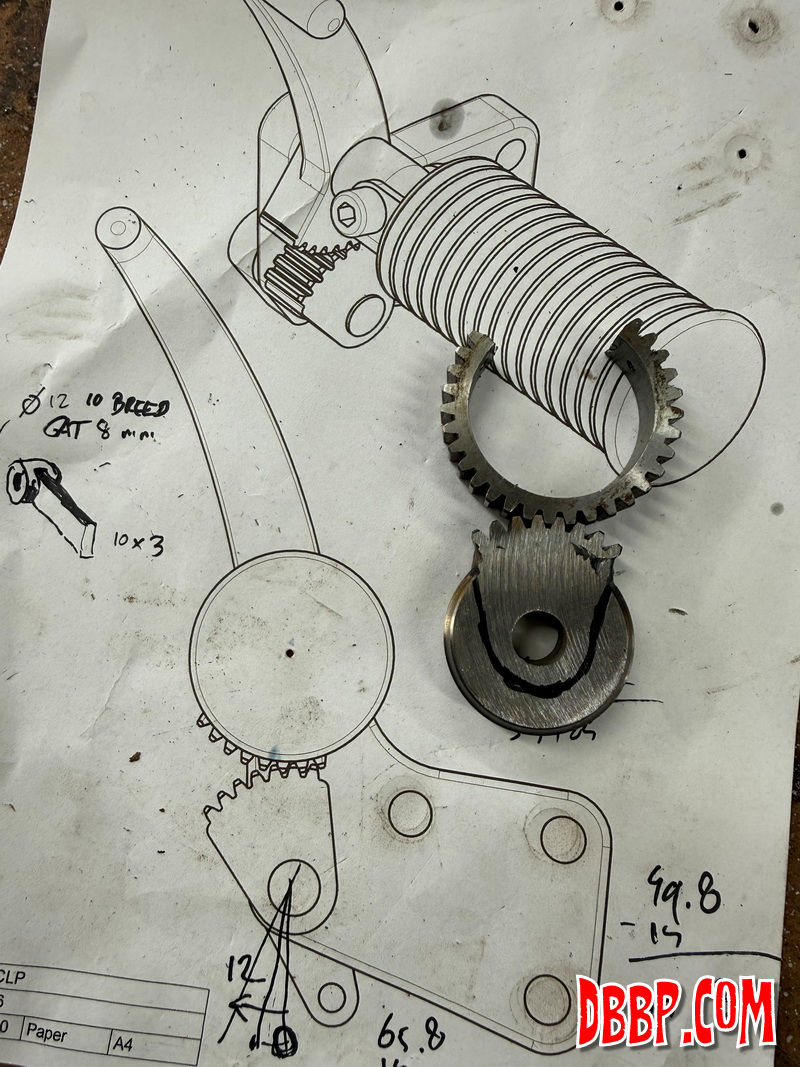

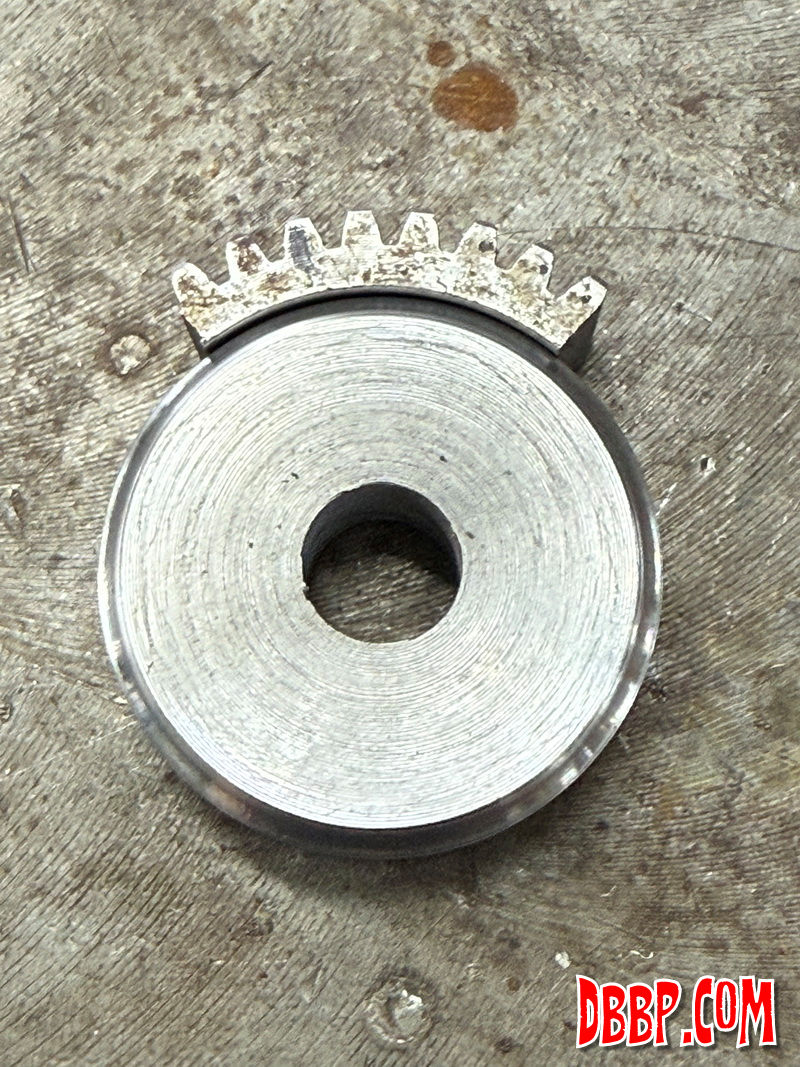

position, which I had to try myself also. We will use parts
of an old sprocket to create the clutch pedal, first we will
do a quick and dirty version to figure out the dimensions and
then a slightly nicer version.
|
|
