Project started October 2023,

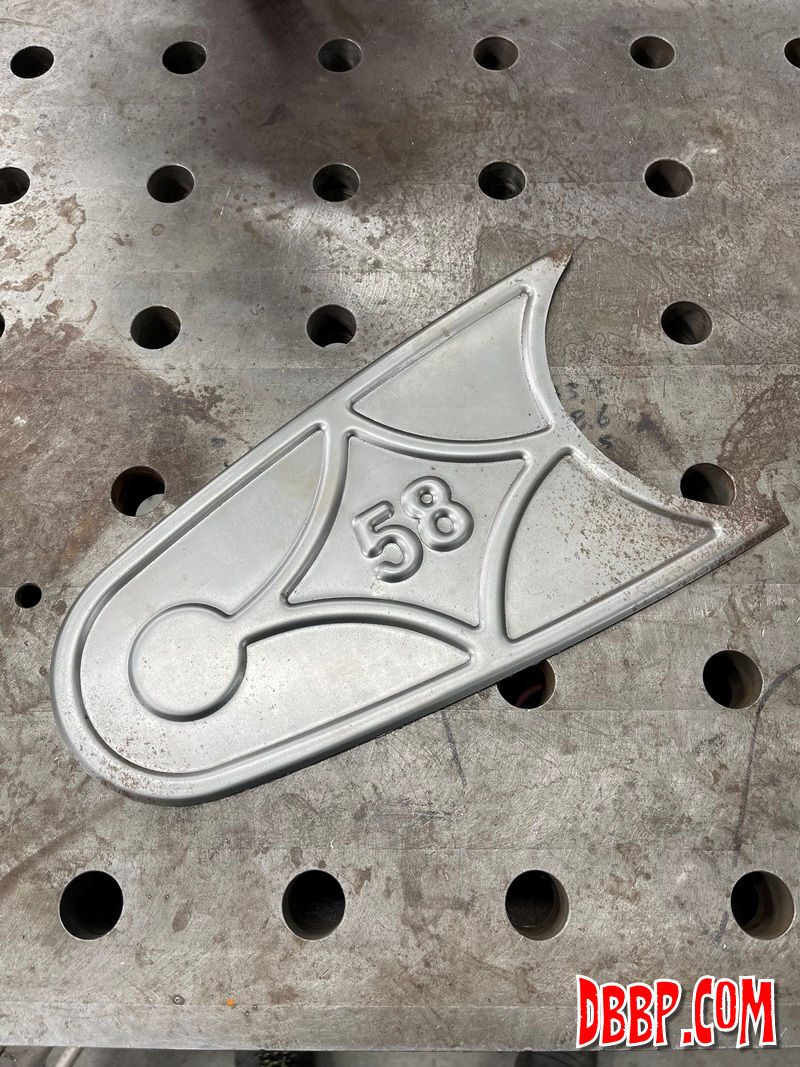

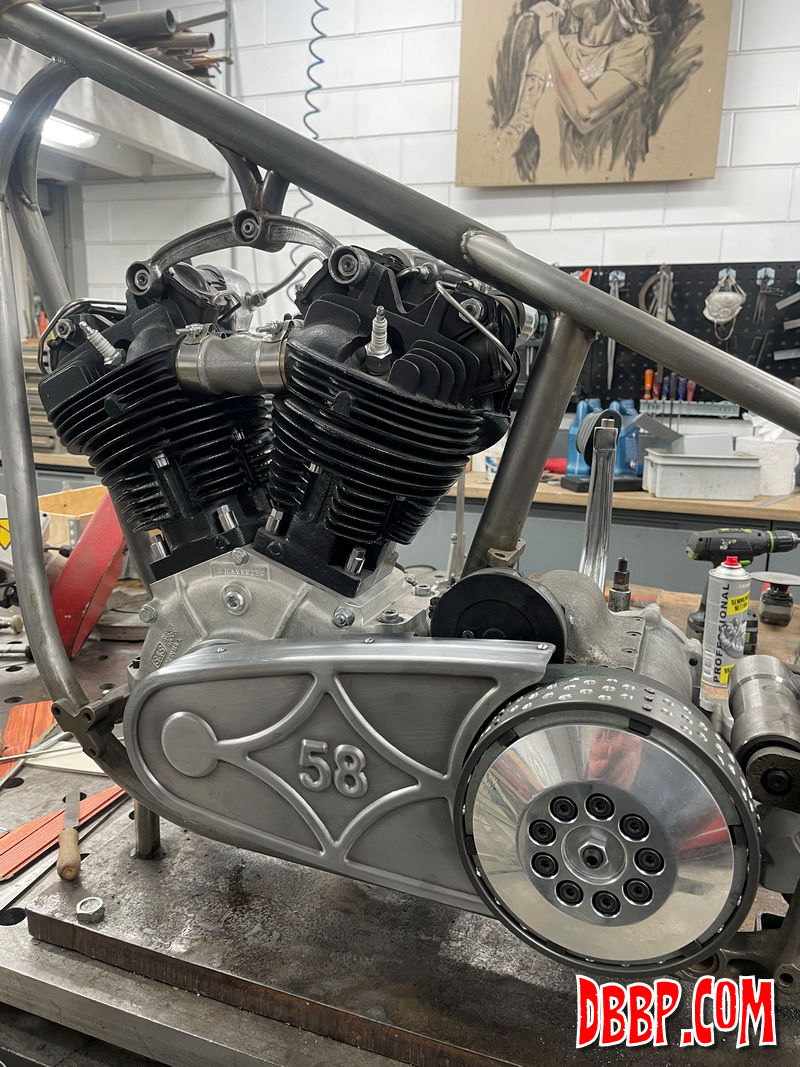

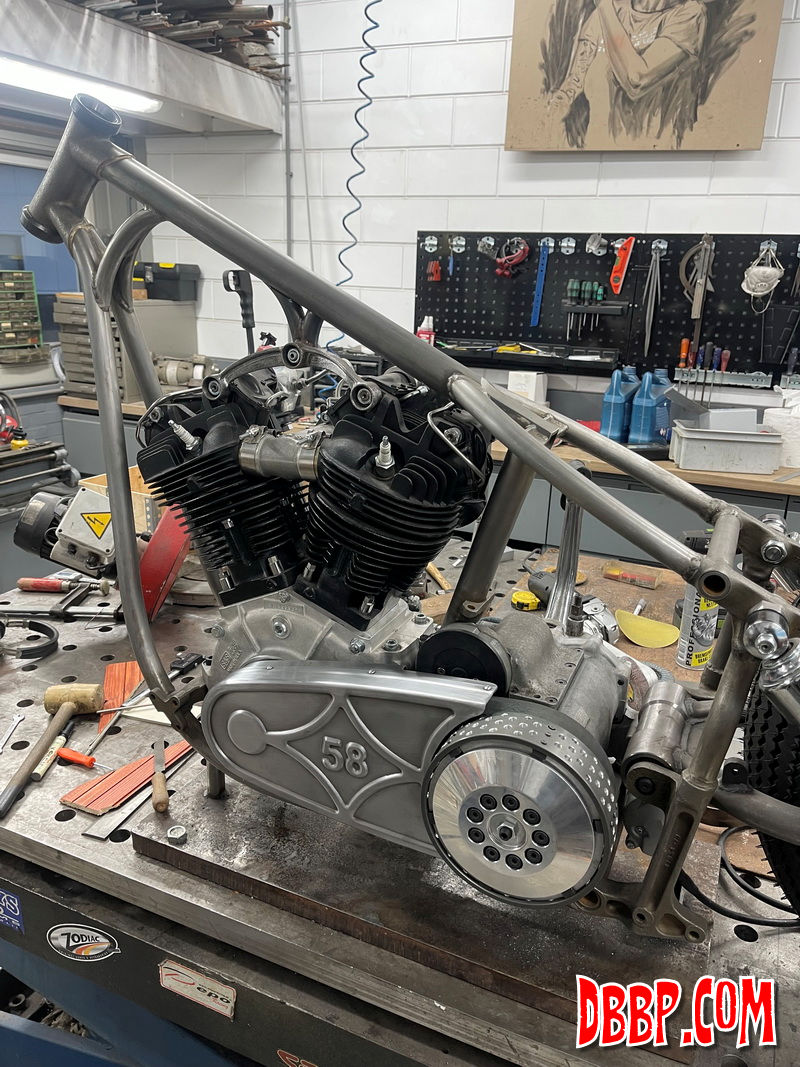

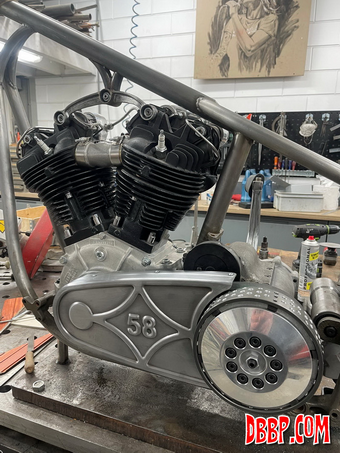

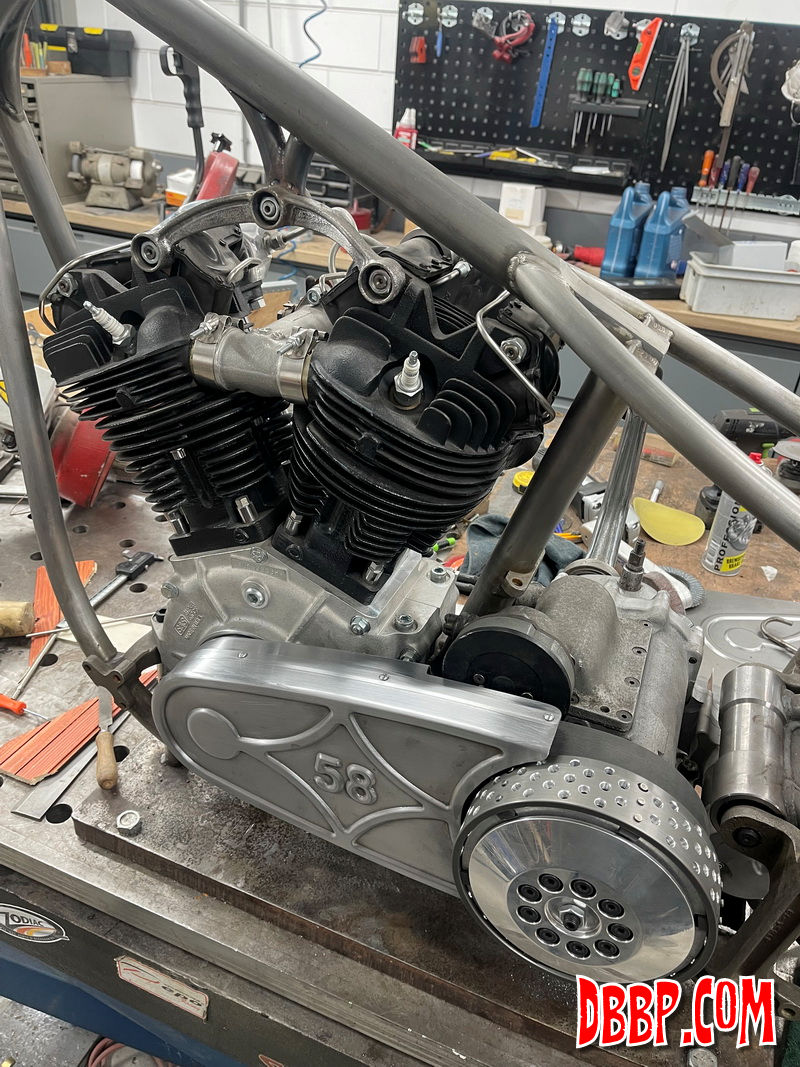

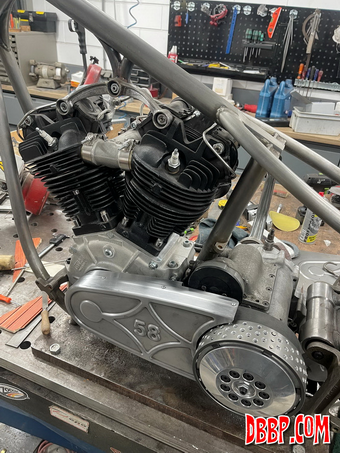

In part 38 we pressed the front and rear panels for the primary cover, this week we fabricated the sides and completed the whole inner and outer cover.

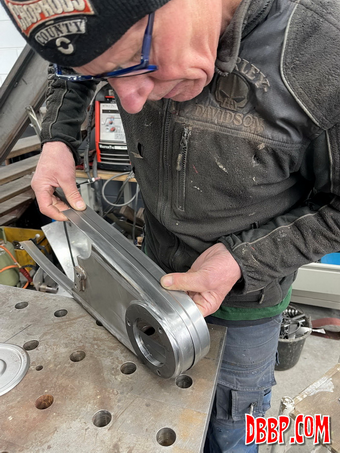

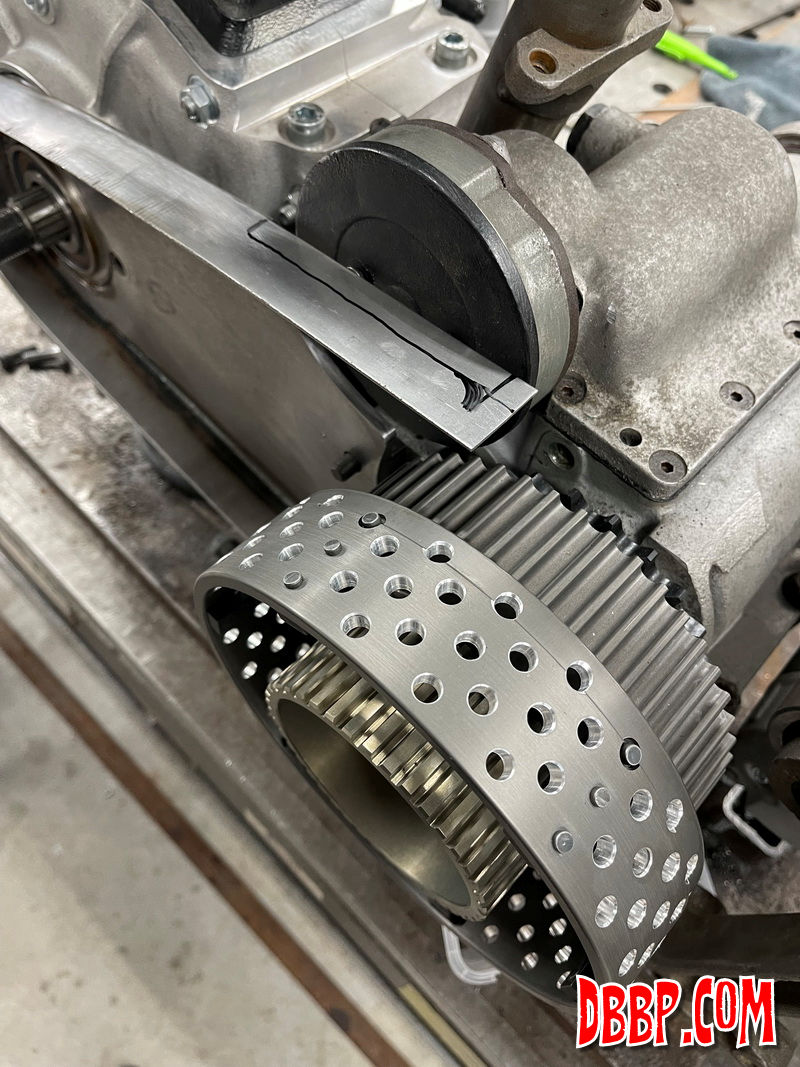

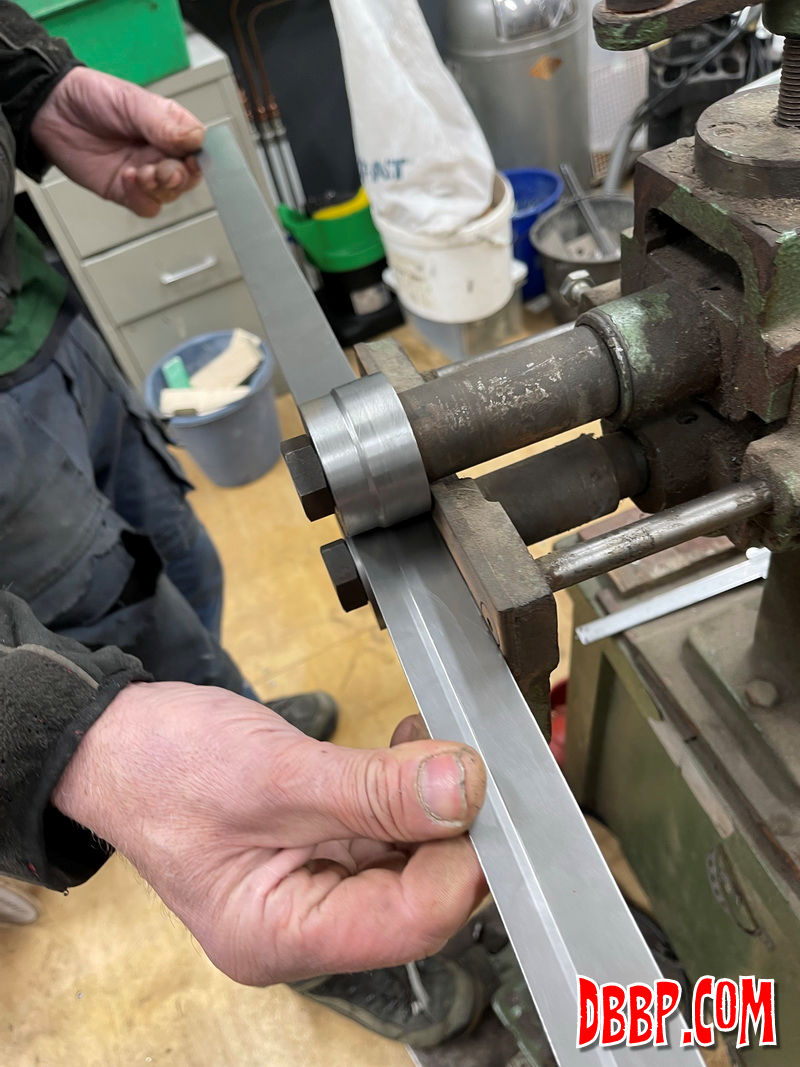

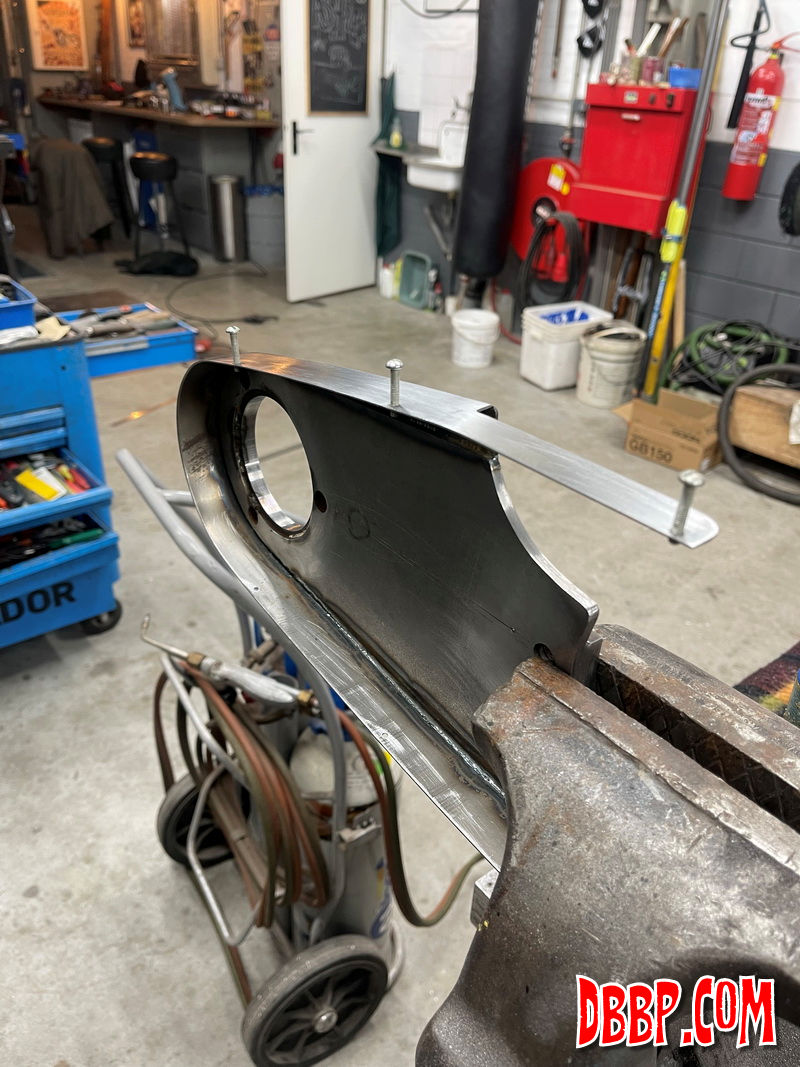

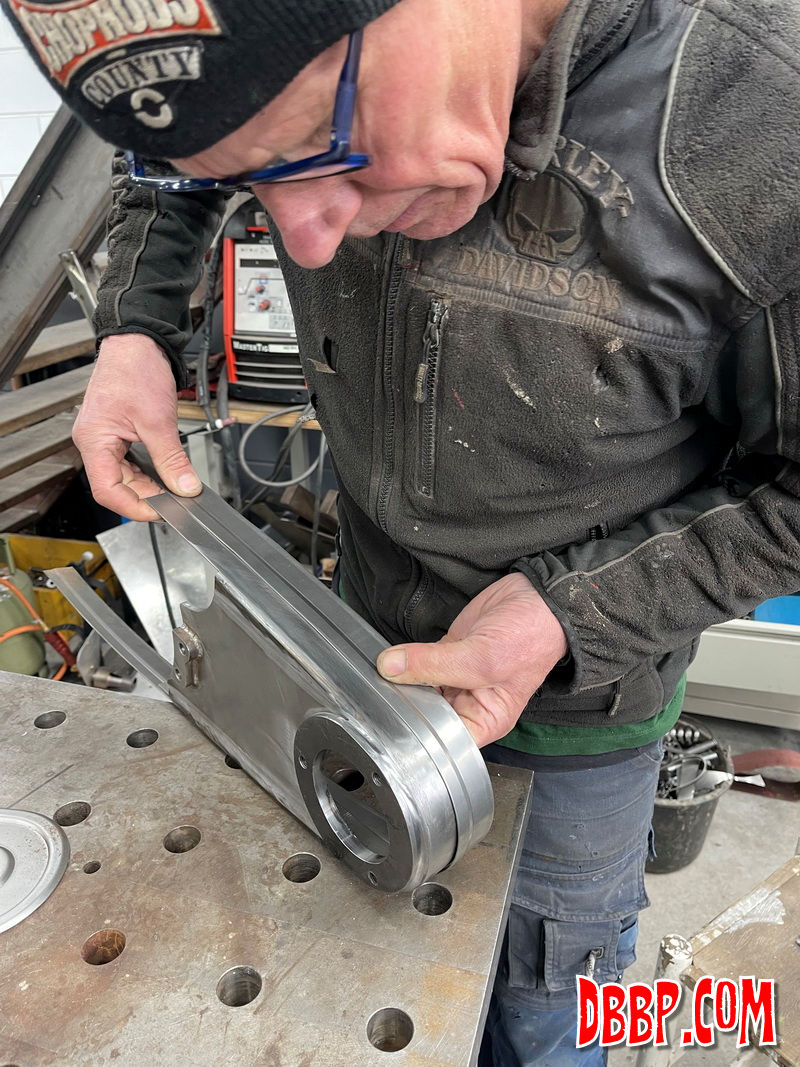

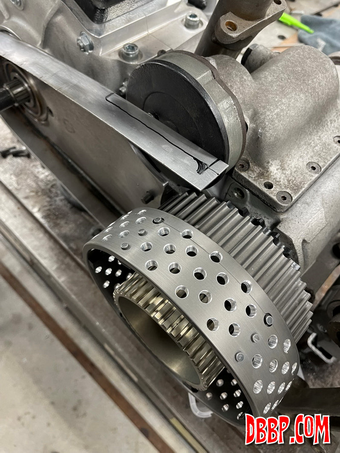

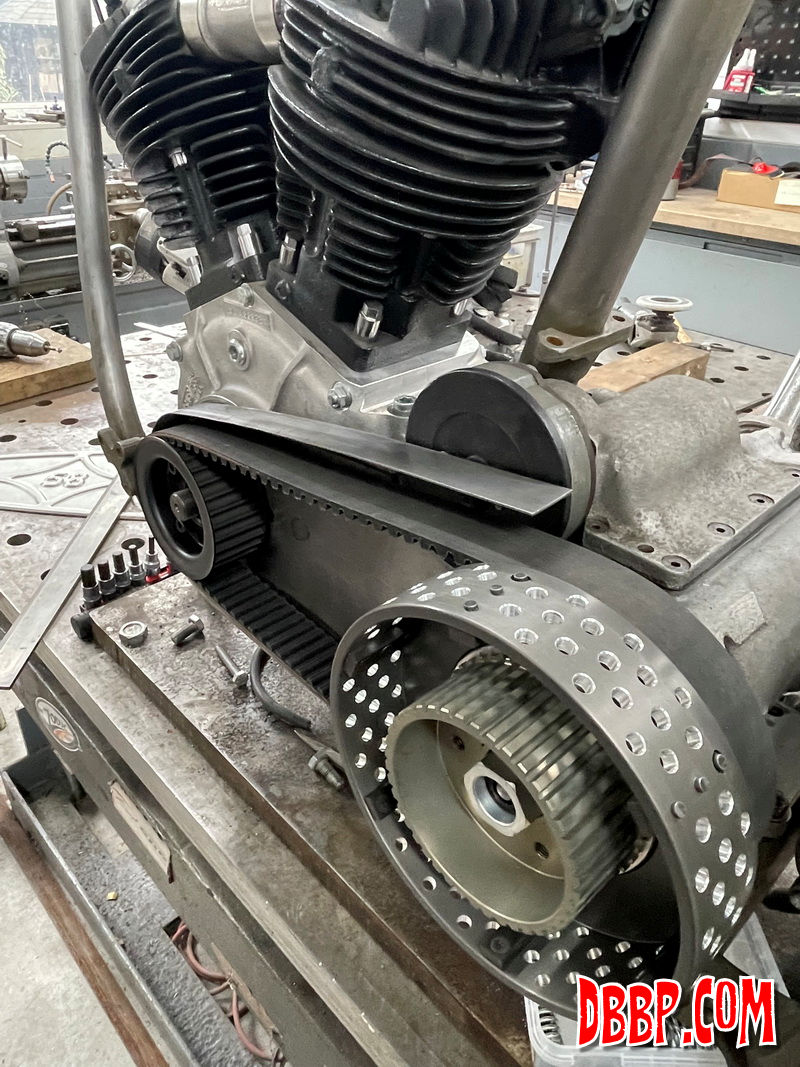

A strip of steel sheet was welded to the inner primary; for the outer primary a similar strip was made but beadrolled to create an overlap and add strength

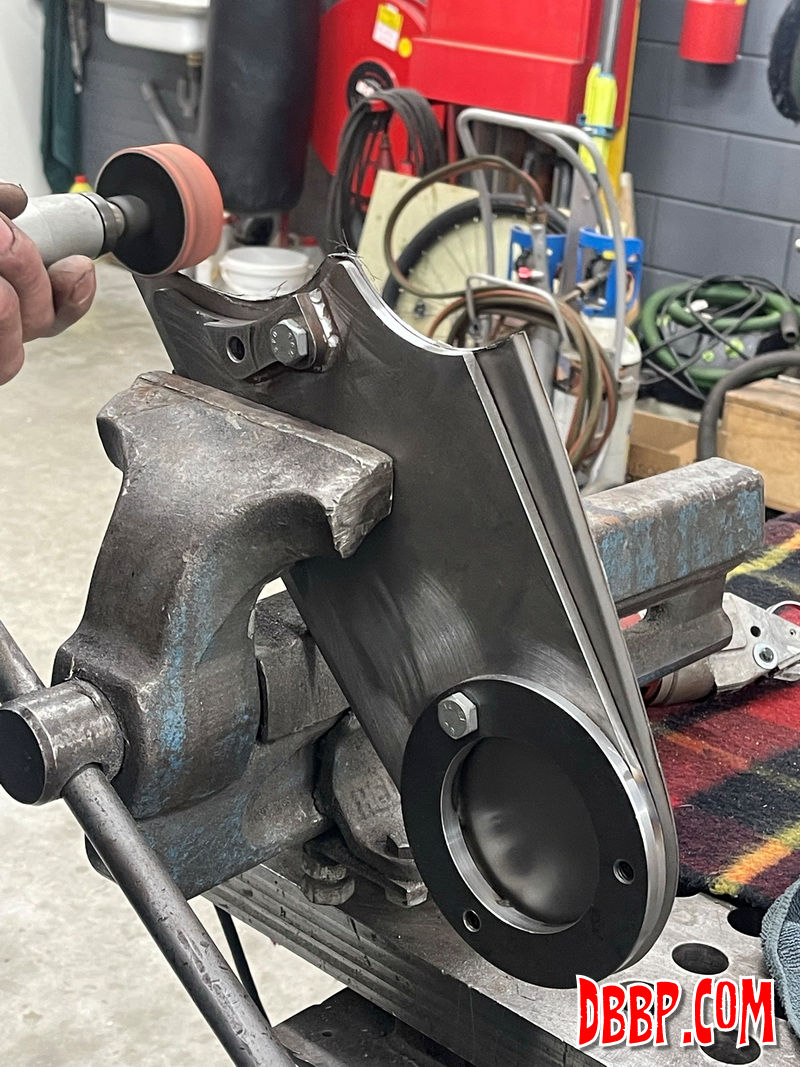

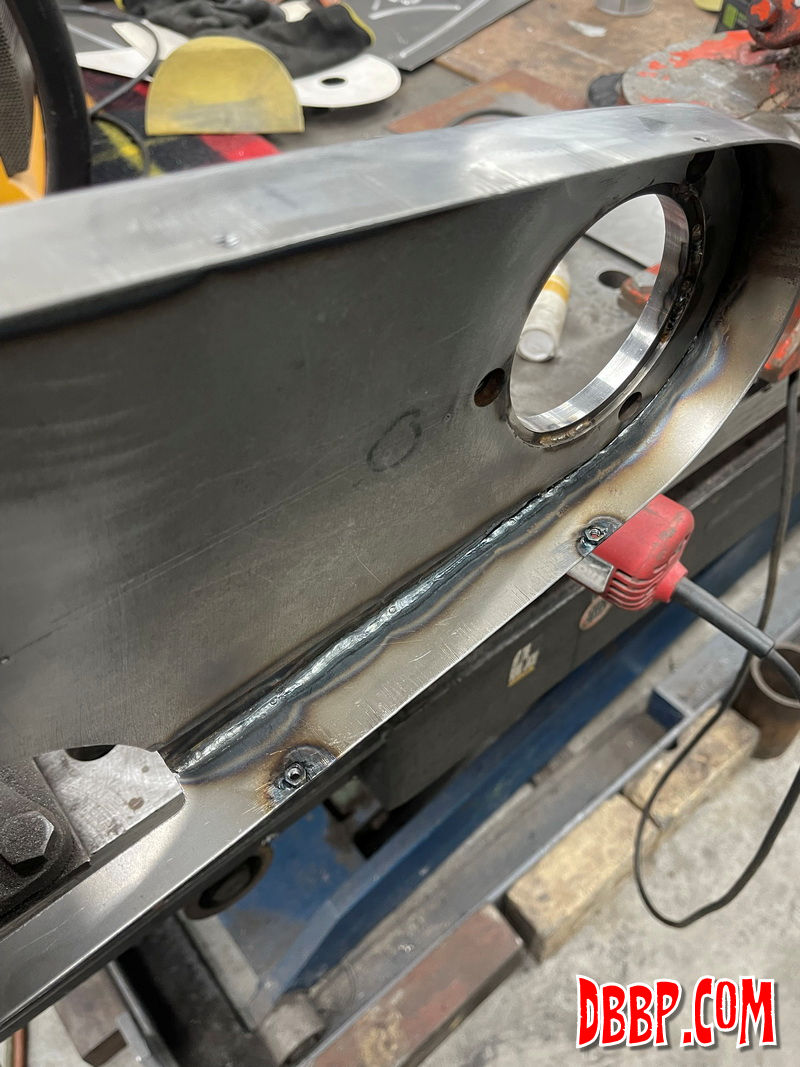

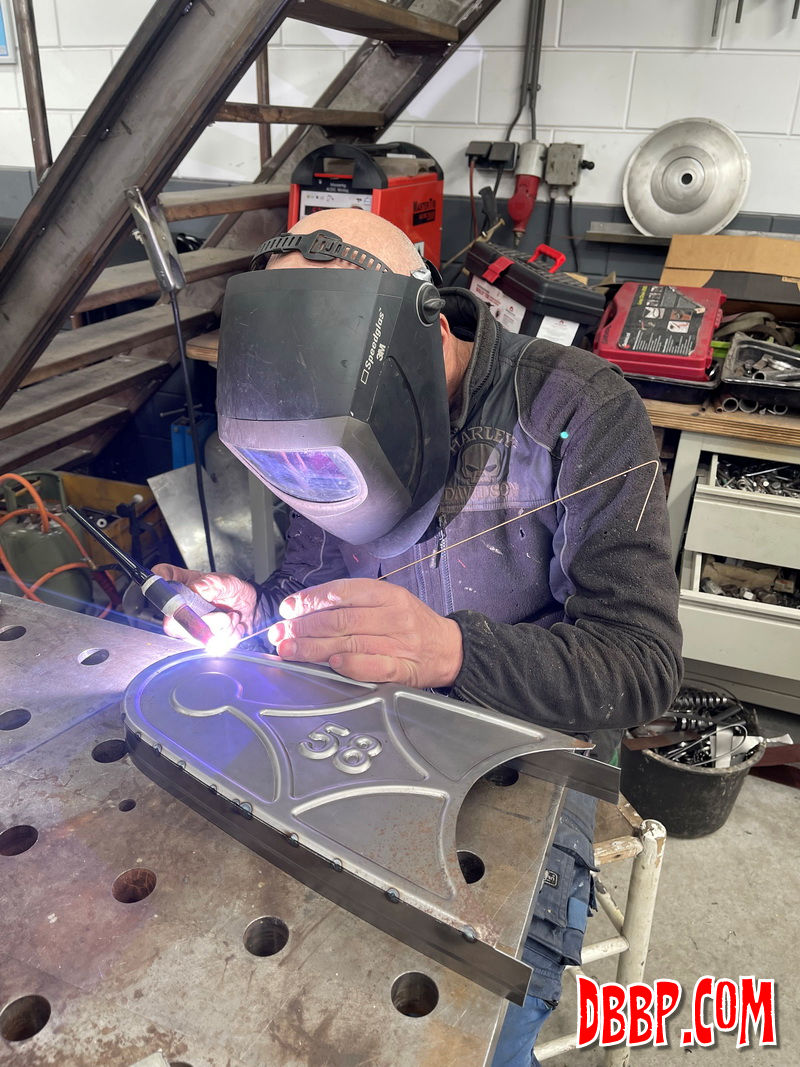

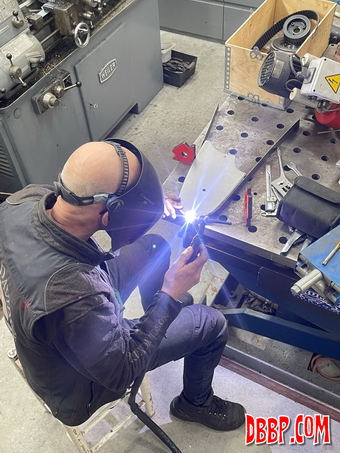

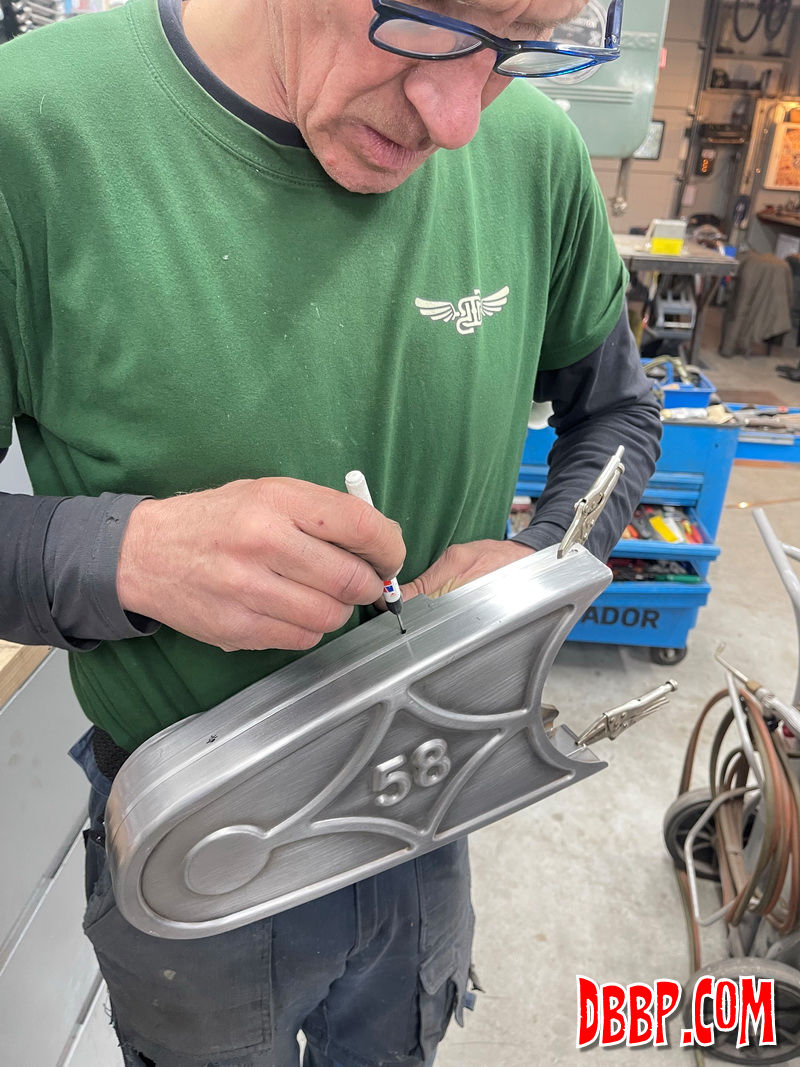

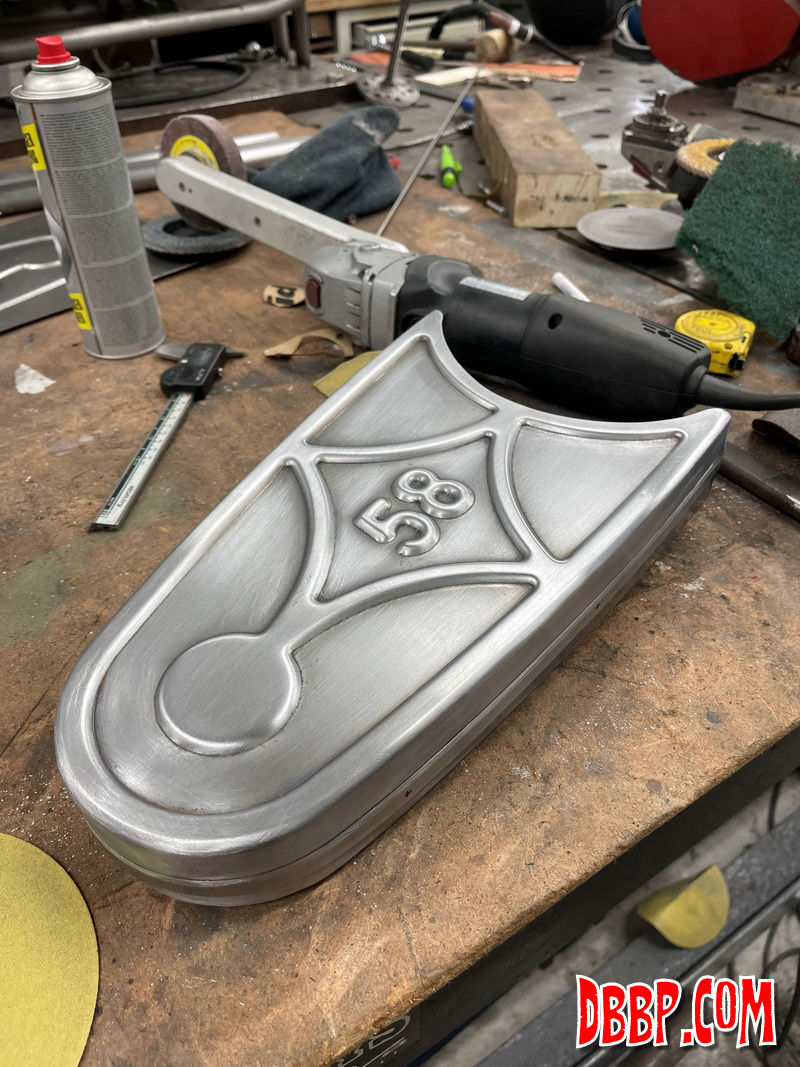

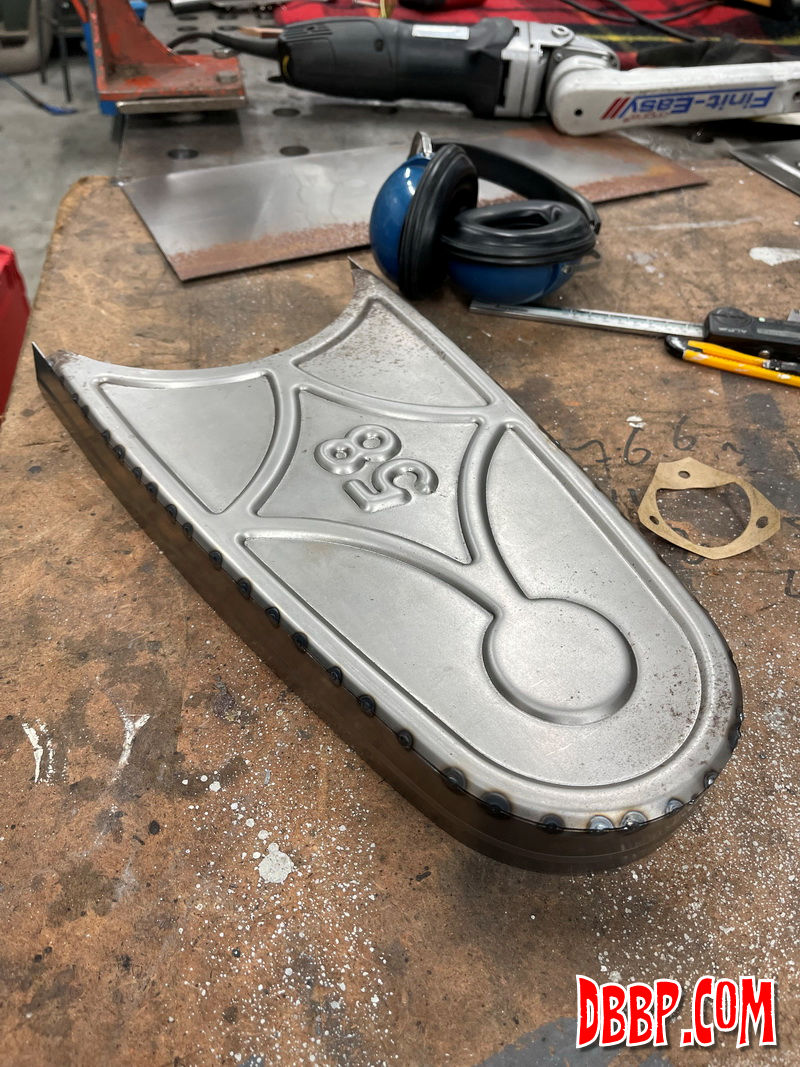

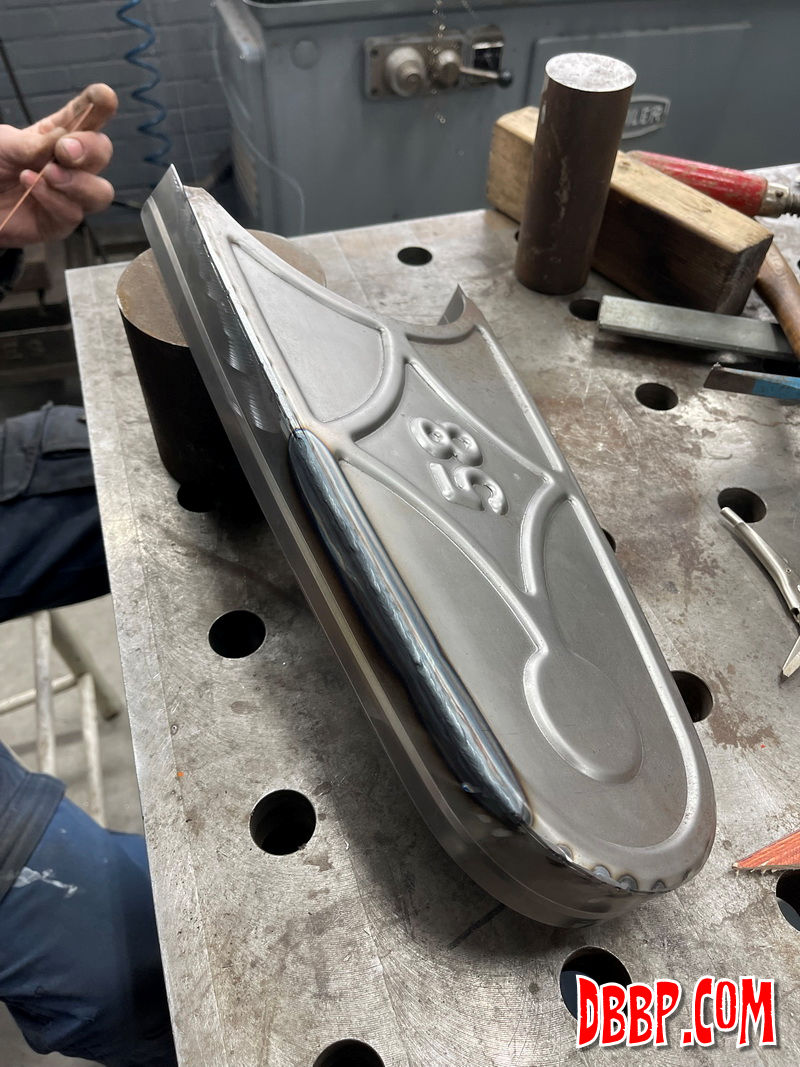

All the welds were done with TIG, adding enough material so that the corners could be filed smooth. 6 tiny nuts were welded inside the inner cover, and the outer cover is held in place with 6 screws.
