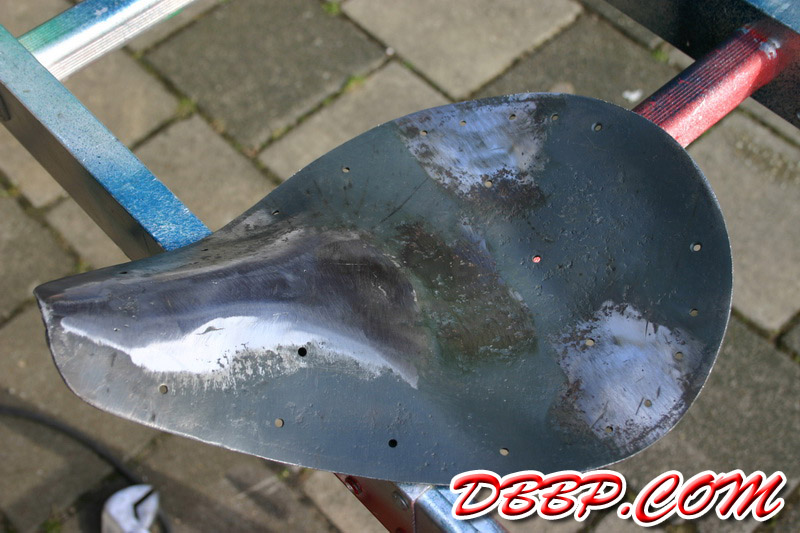

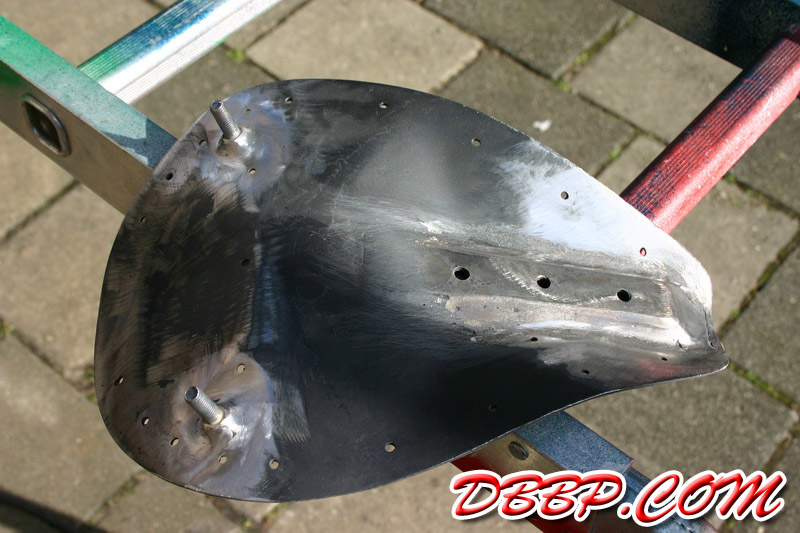

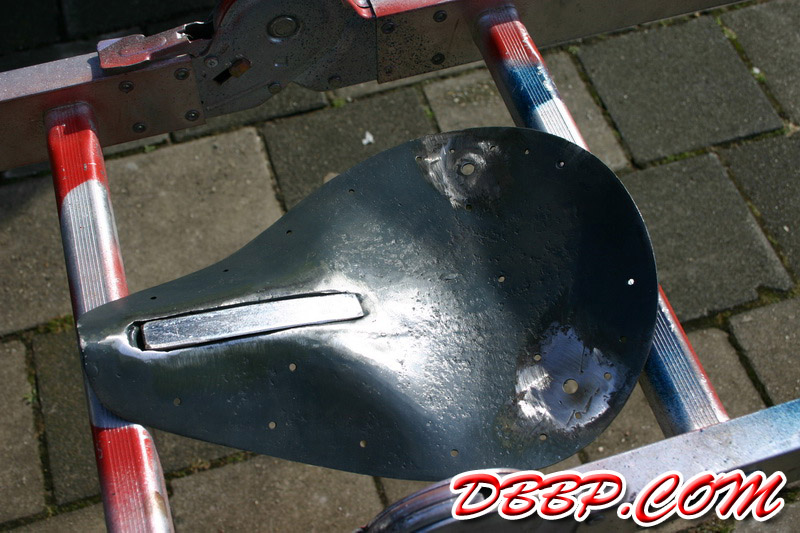

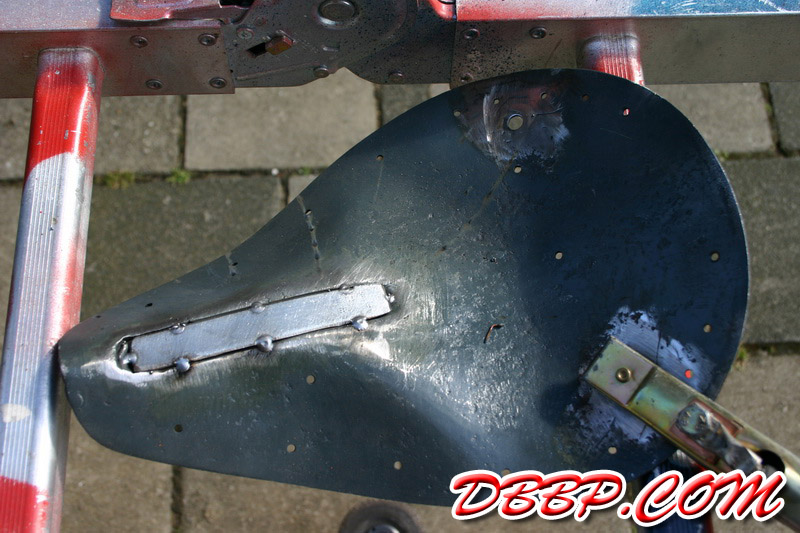

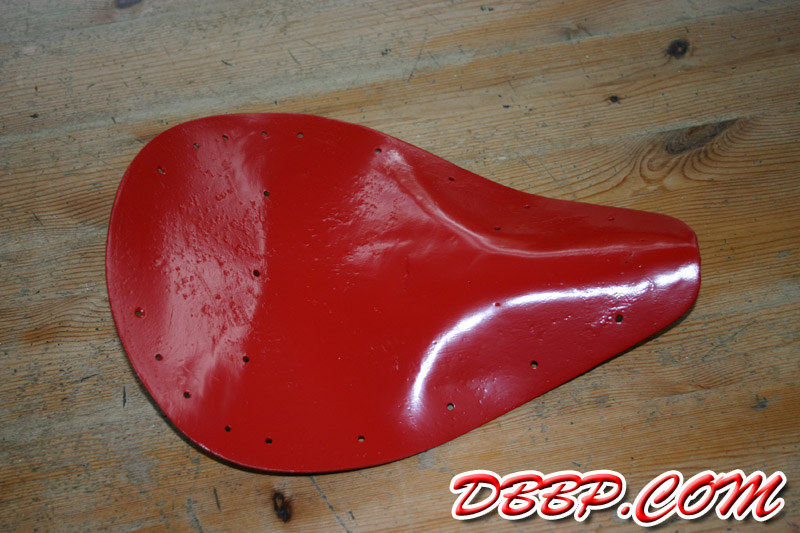

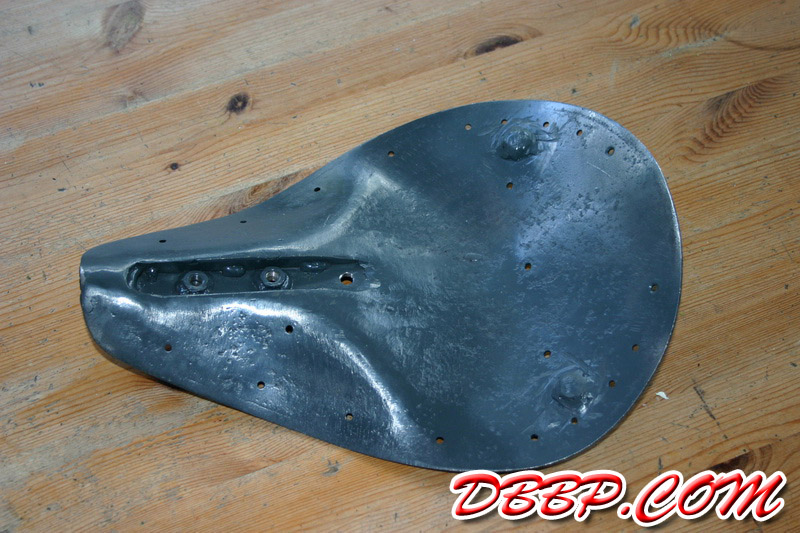

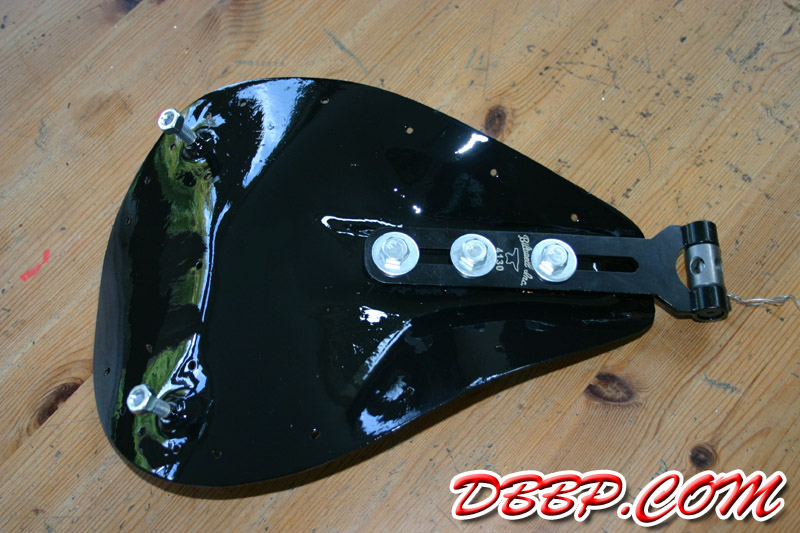

After I sent the seatpan to Peer in Amsterdam to get it upholstered he called me and told me there was a chance the heads of the springbolts and the cavity where the pivot mounts would become visible after upholstering, so to eliminate the chance of that I made some modifications.

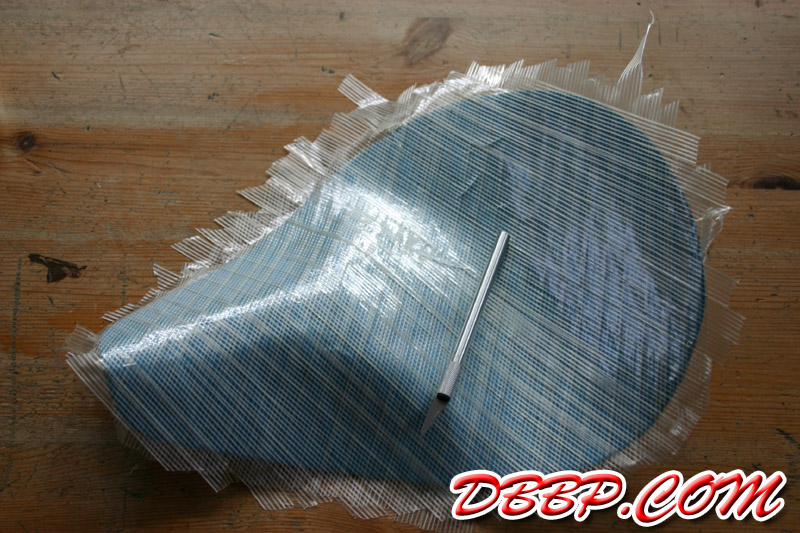

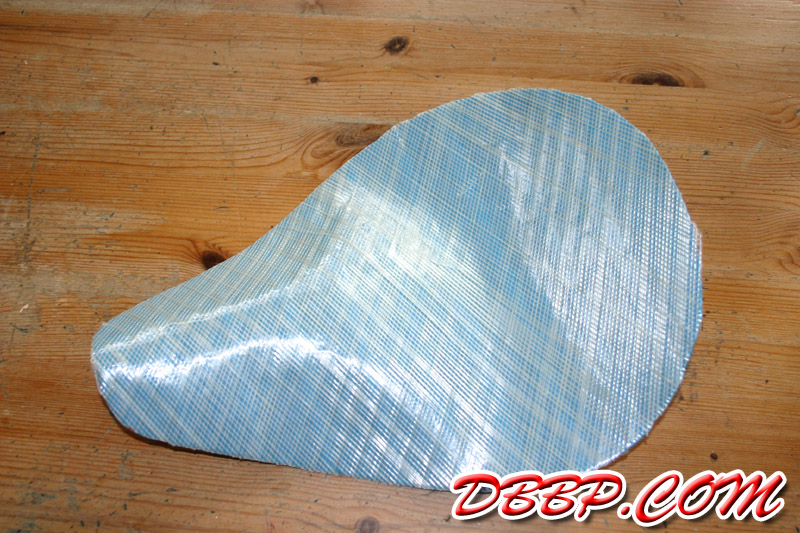

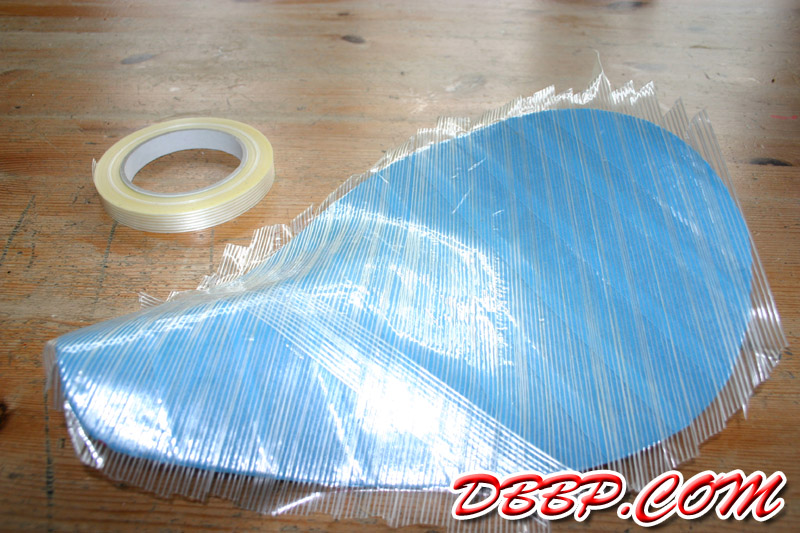

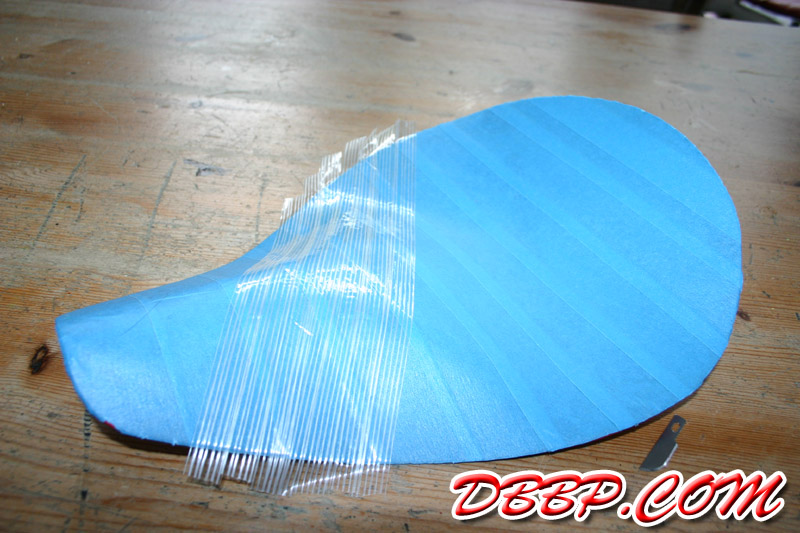

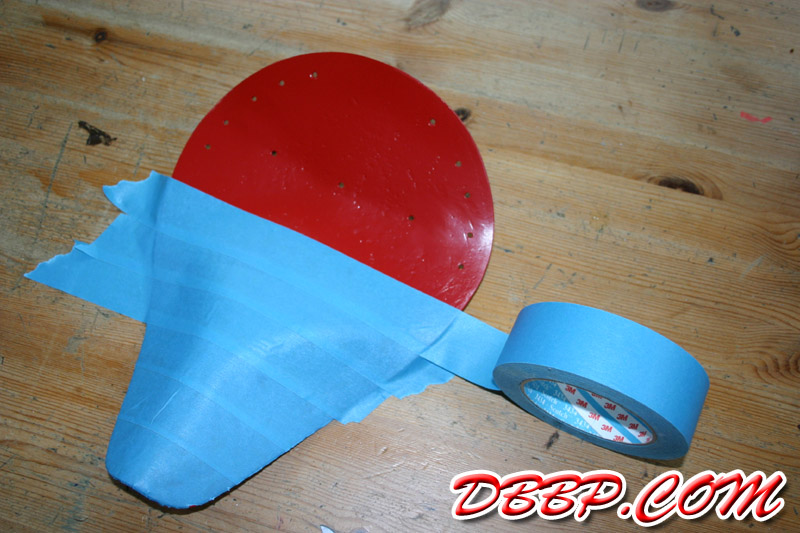

While the seatpan was back I decided to make a tape template in case I need to make more of these seatpans in the future
