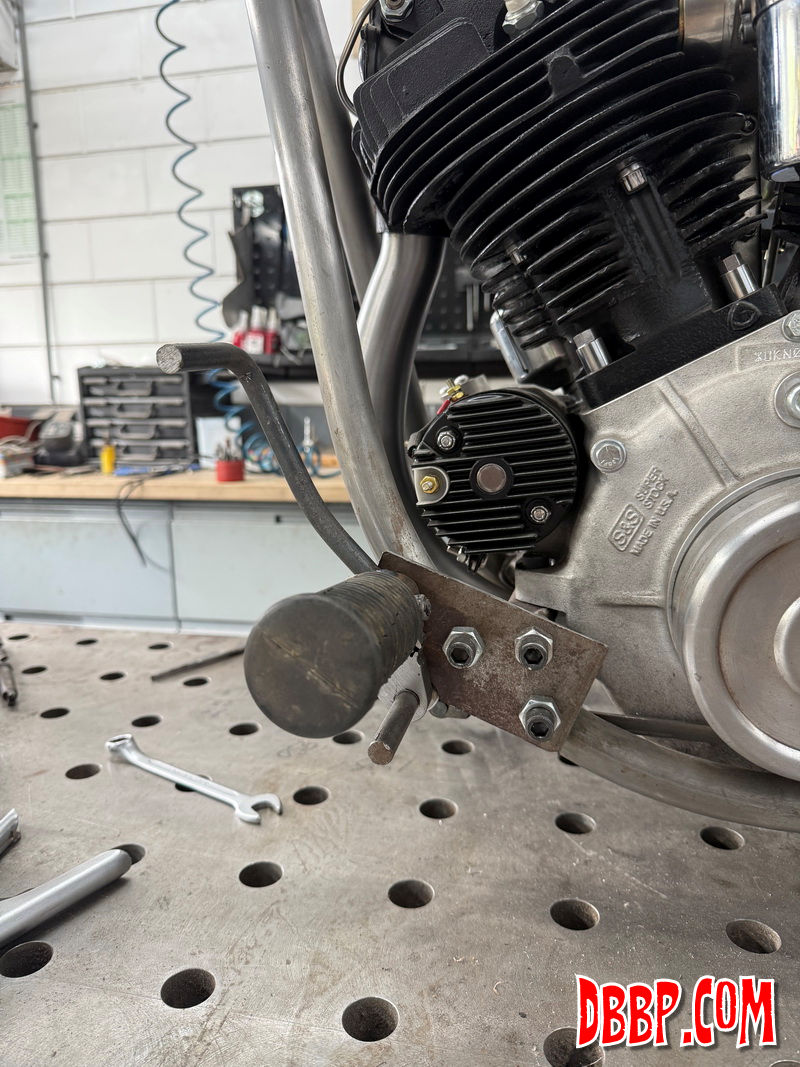

After testing the mockup for the footclutch pedal, which uses
gears to reverse the direction, we started making the final

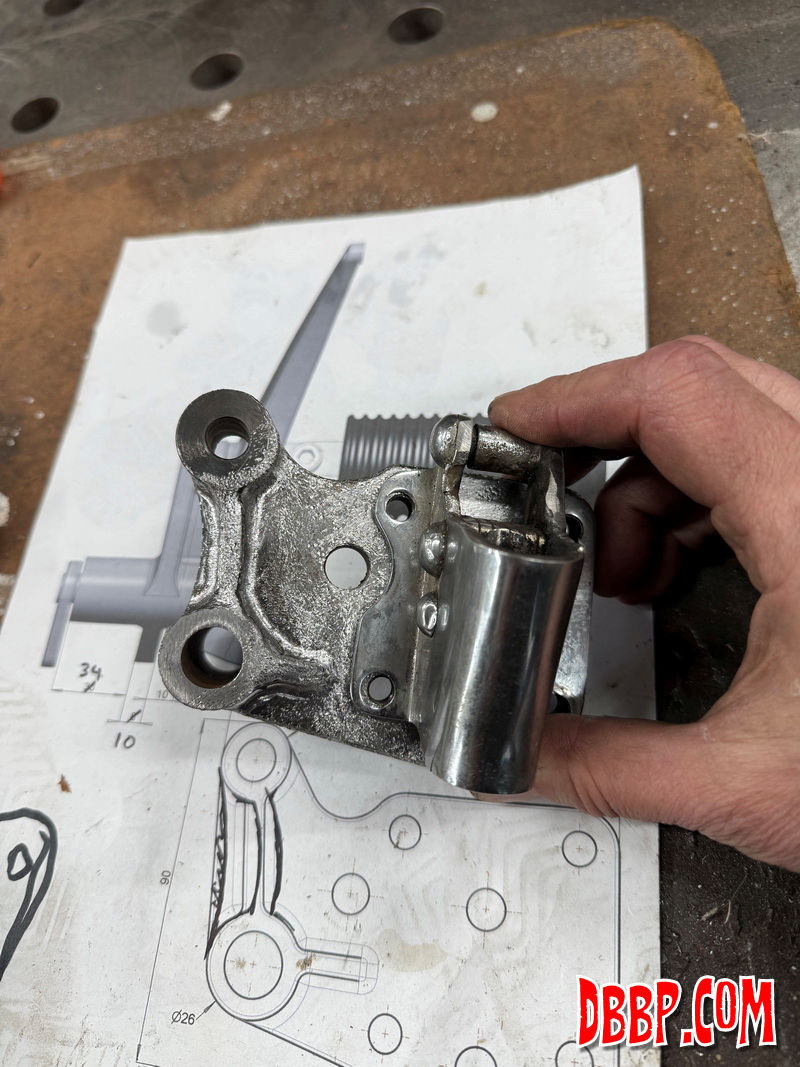

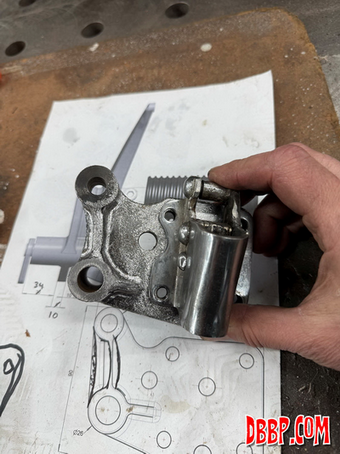

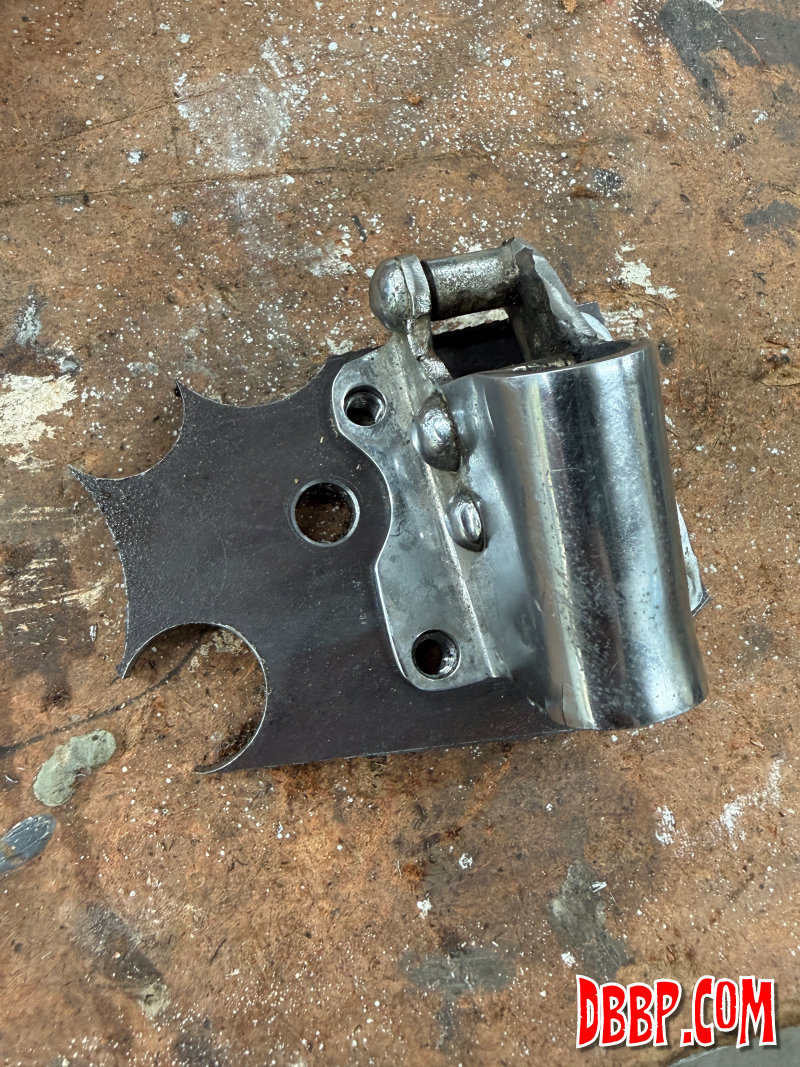

version. The baseplate will mount the pedal, gears and sidestand
and we want it to look like an old cast part

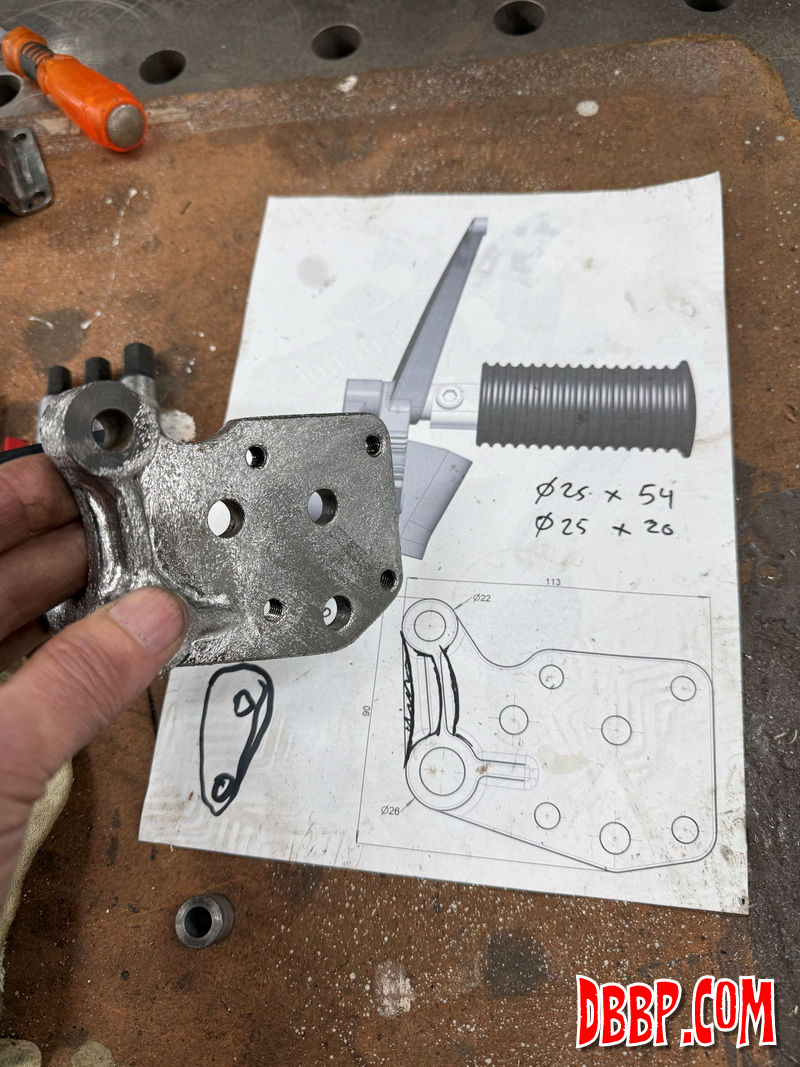

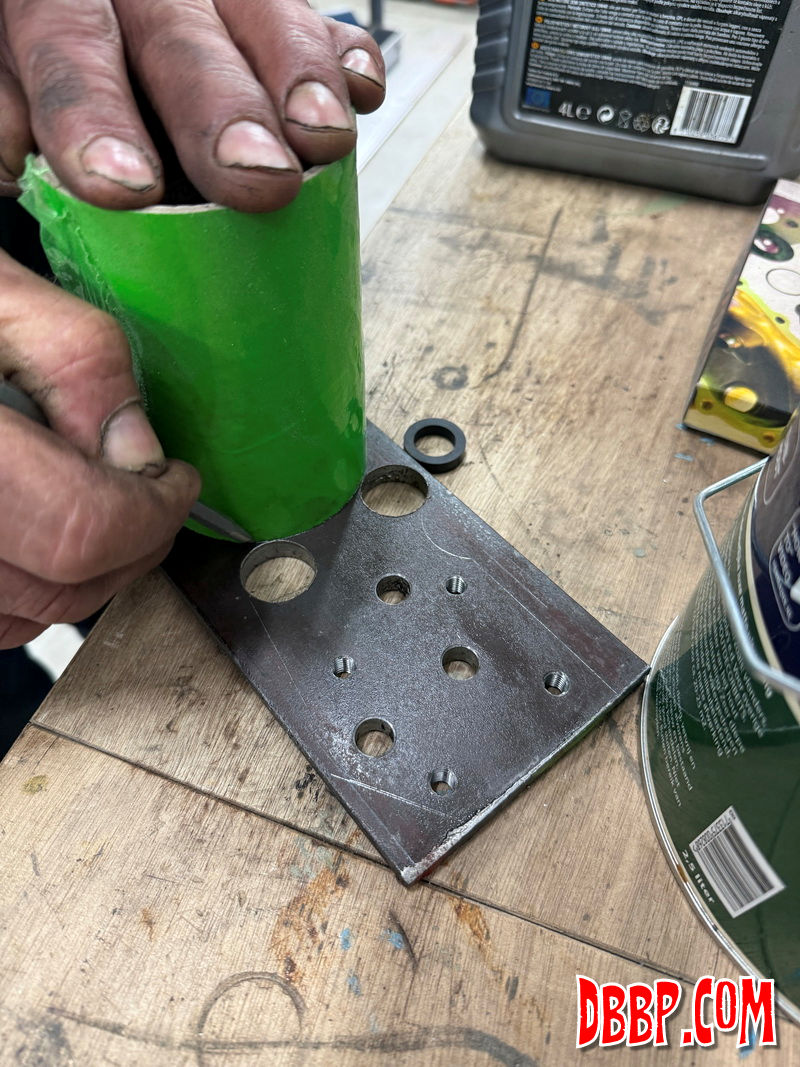

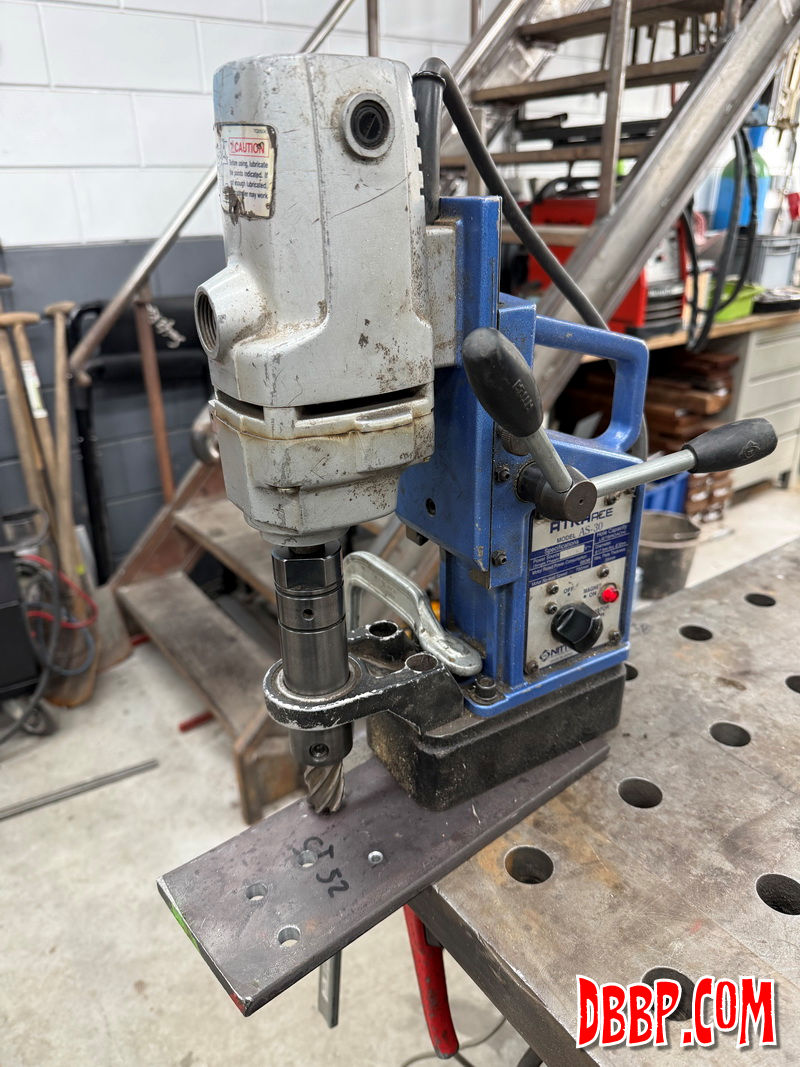

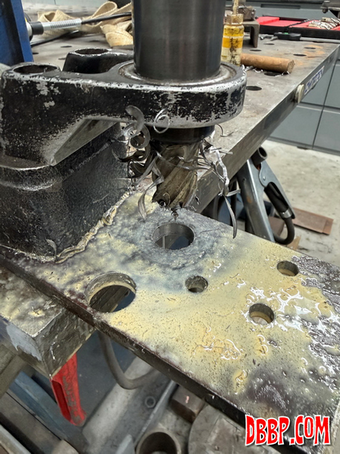

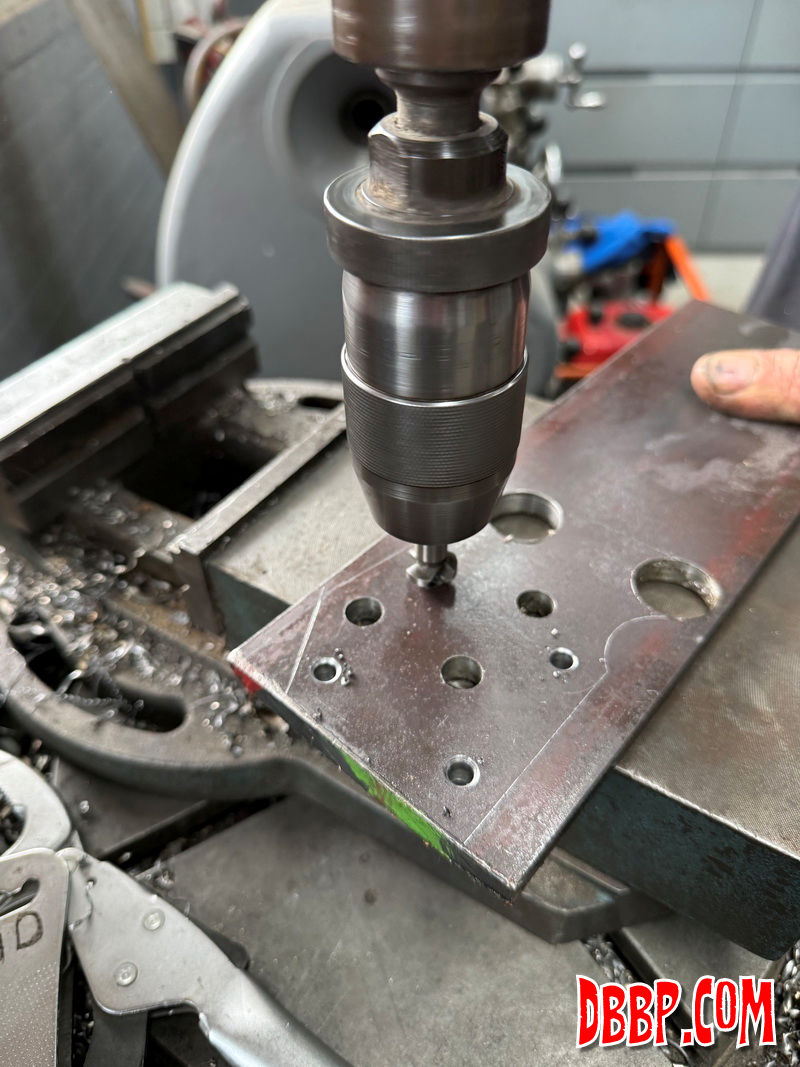

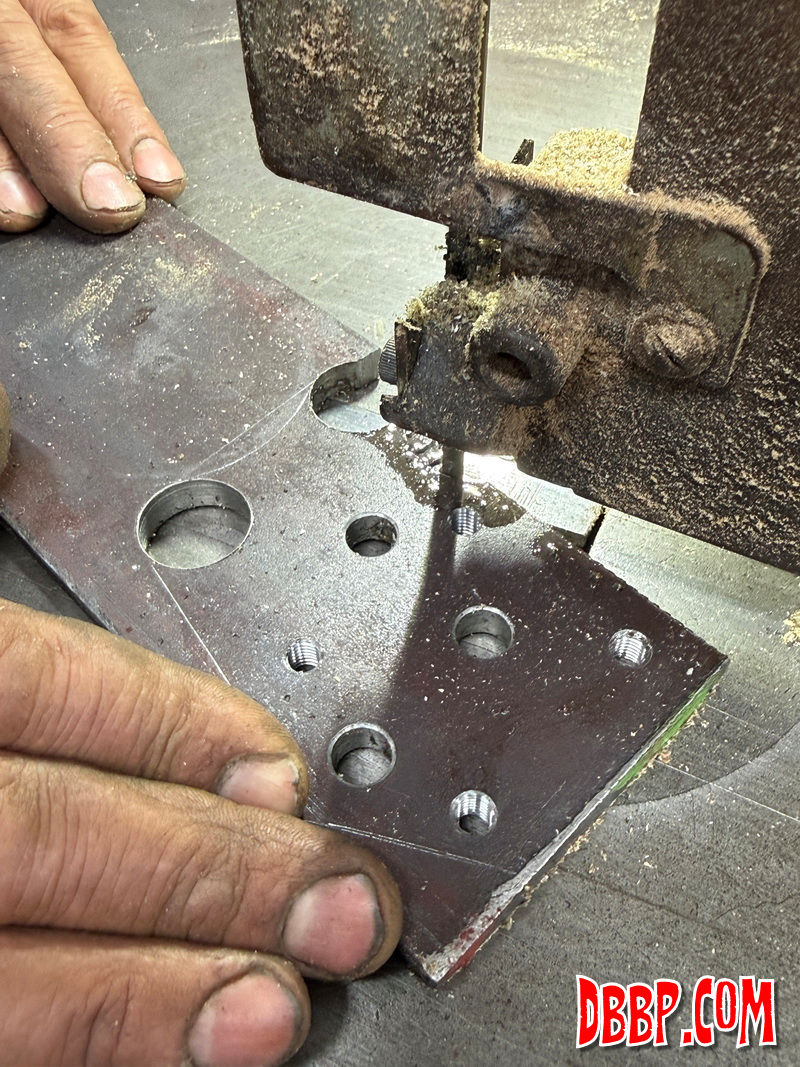

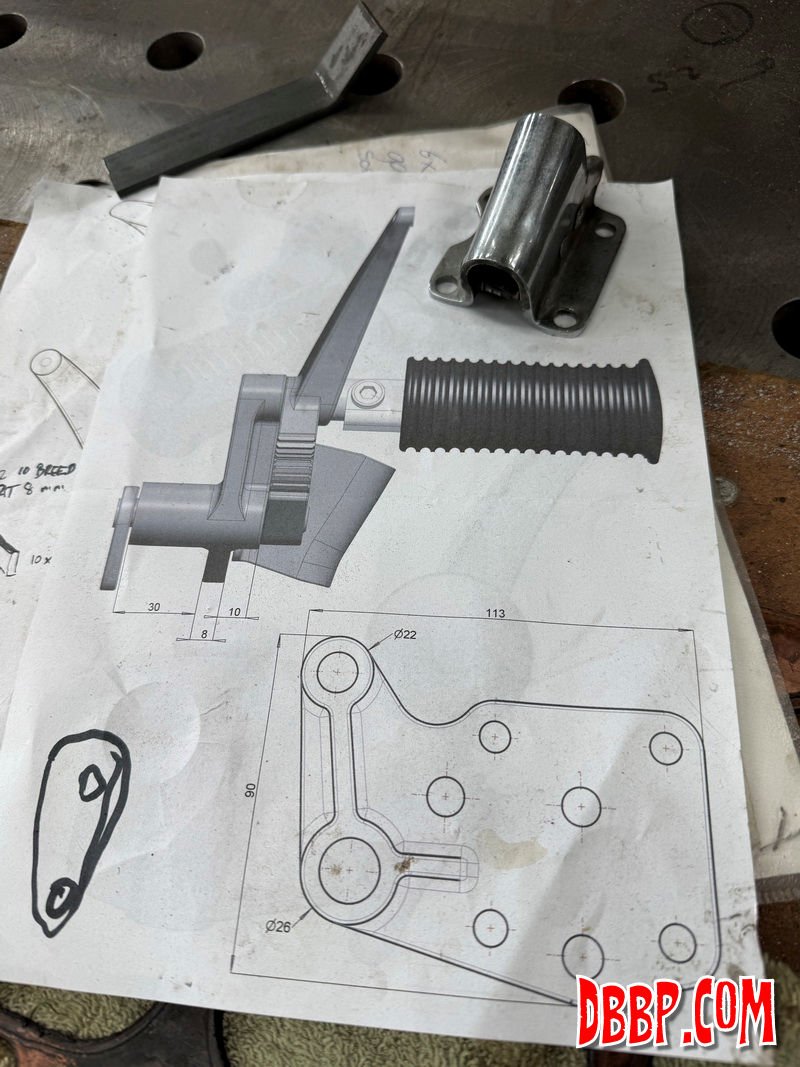

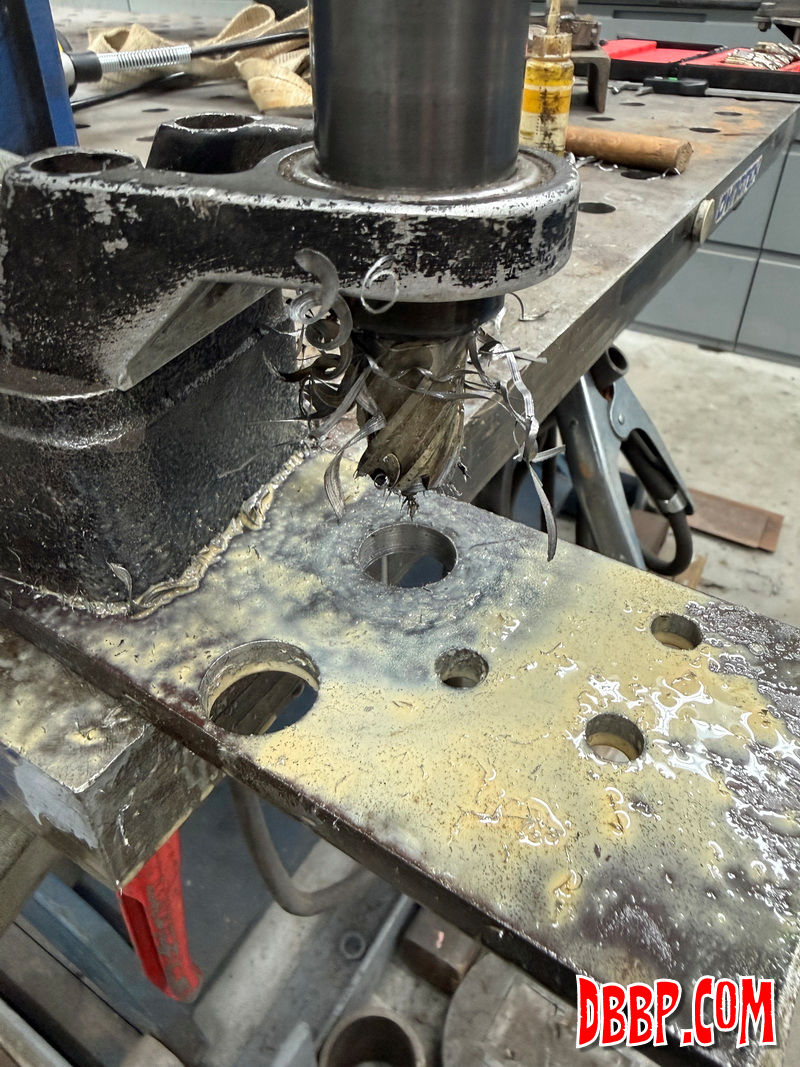

According to my drawings we

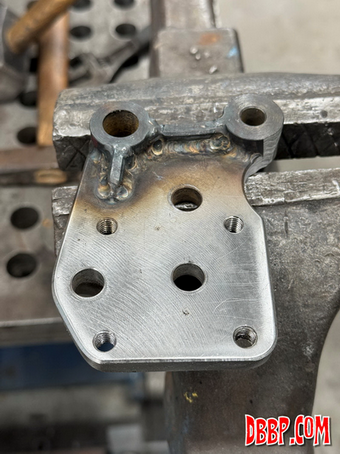

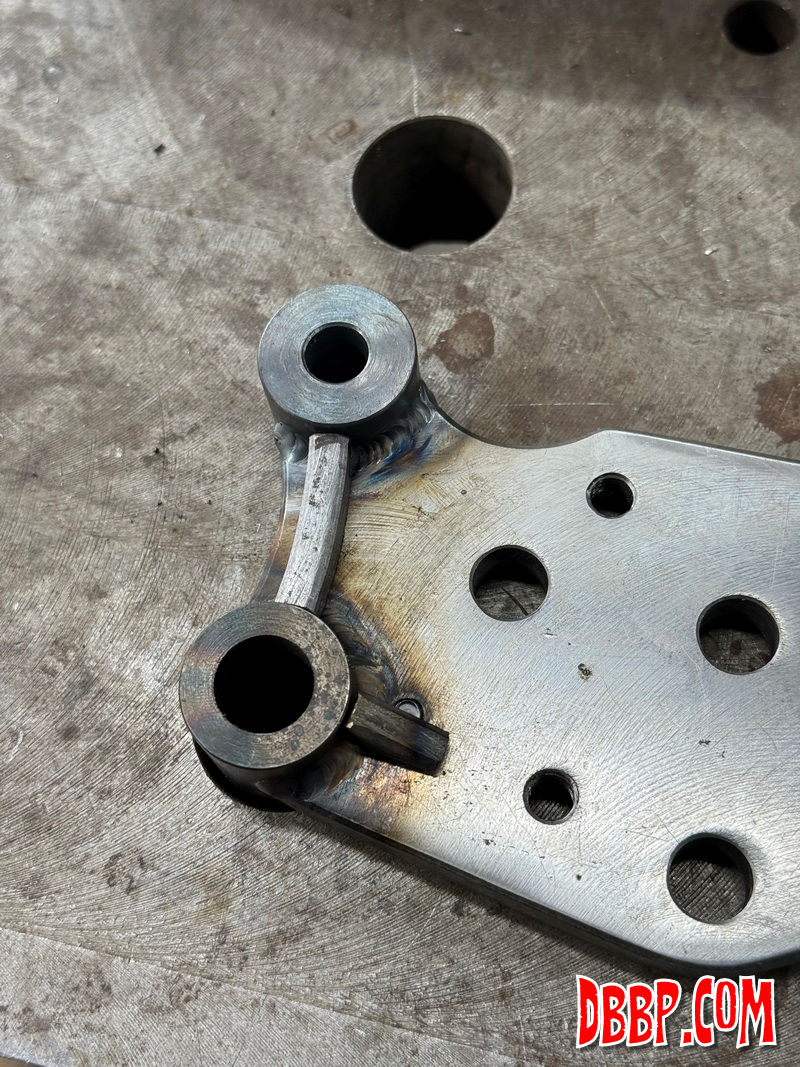

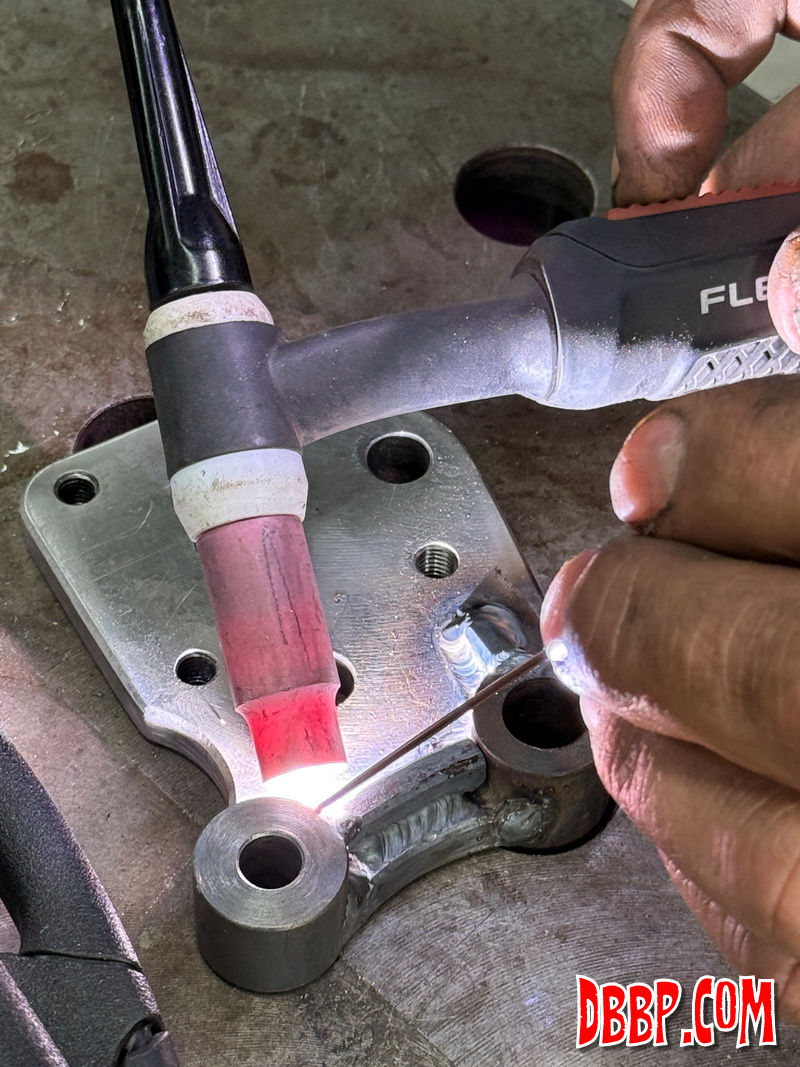

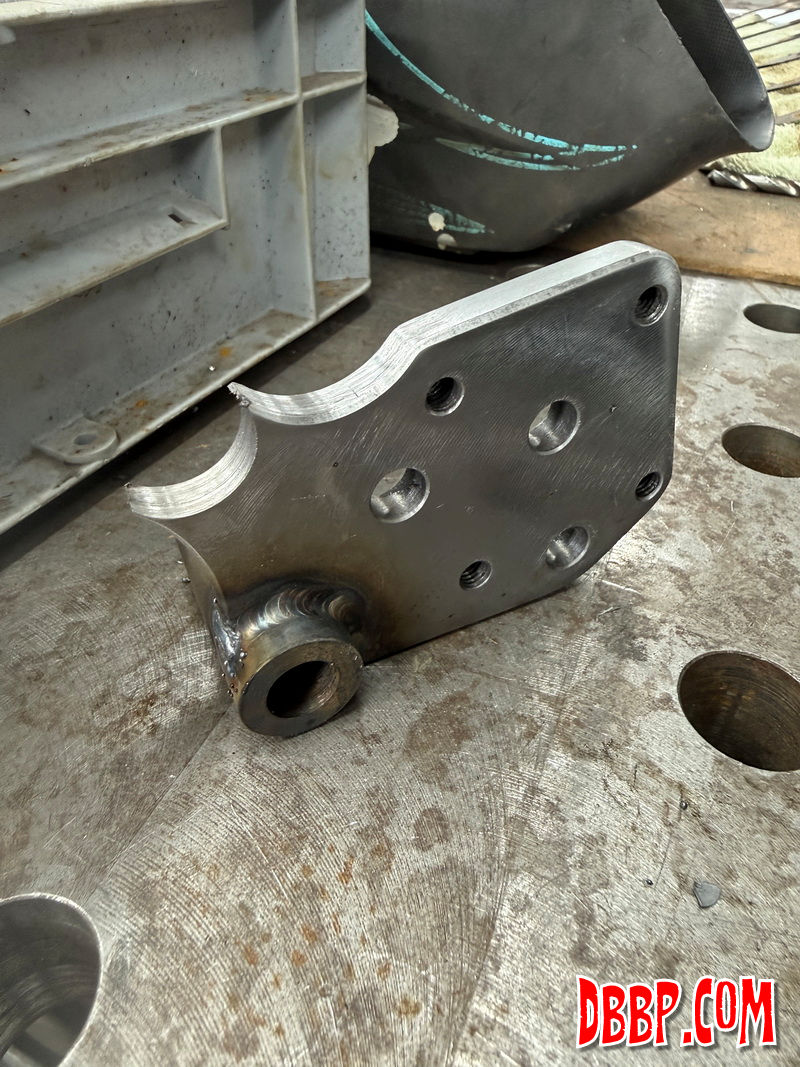

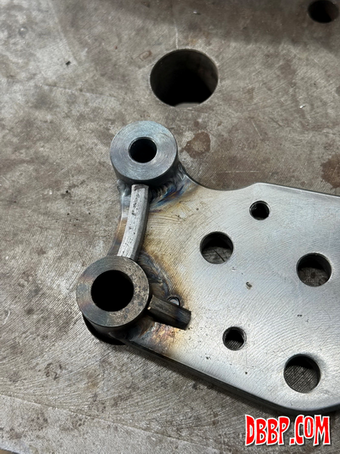

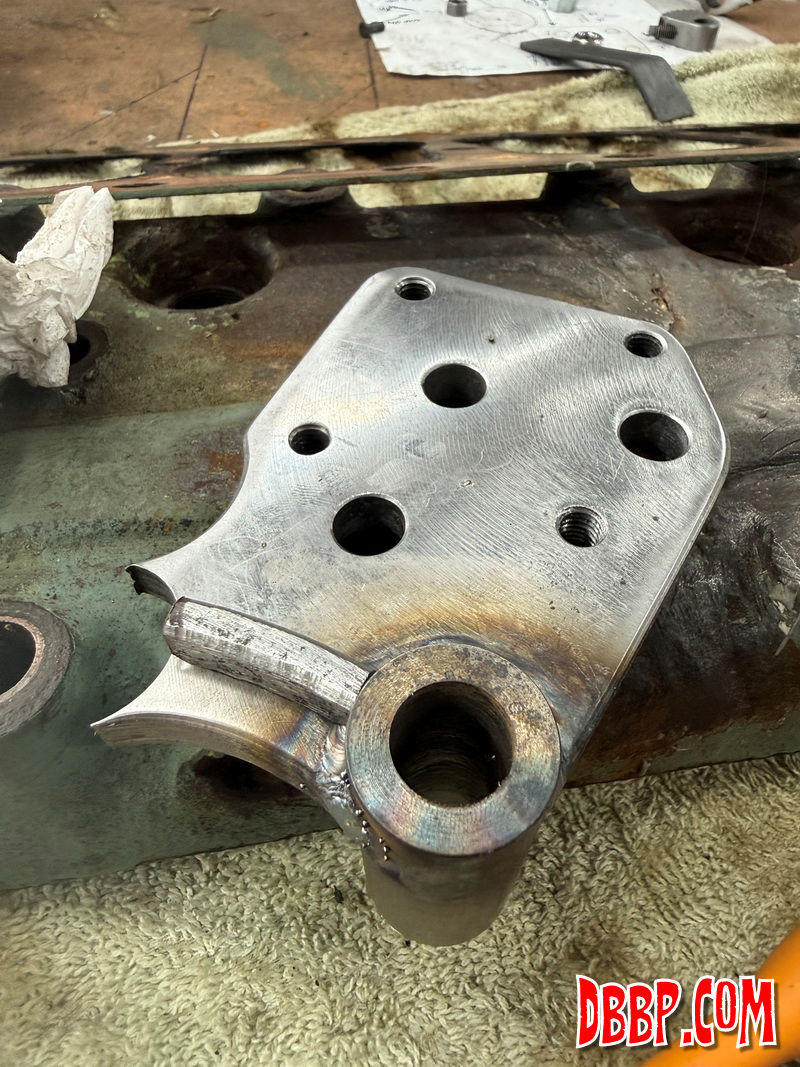

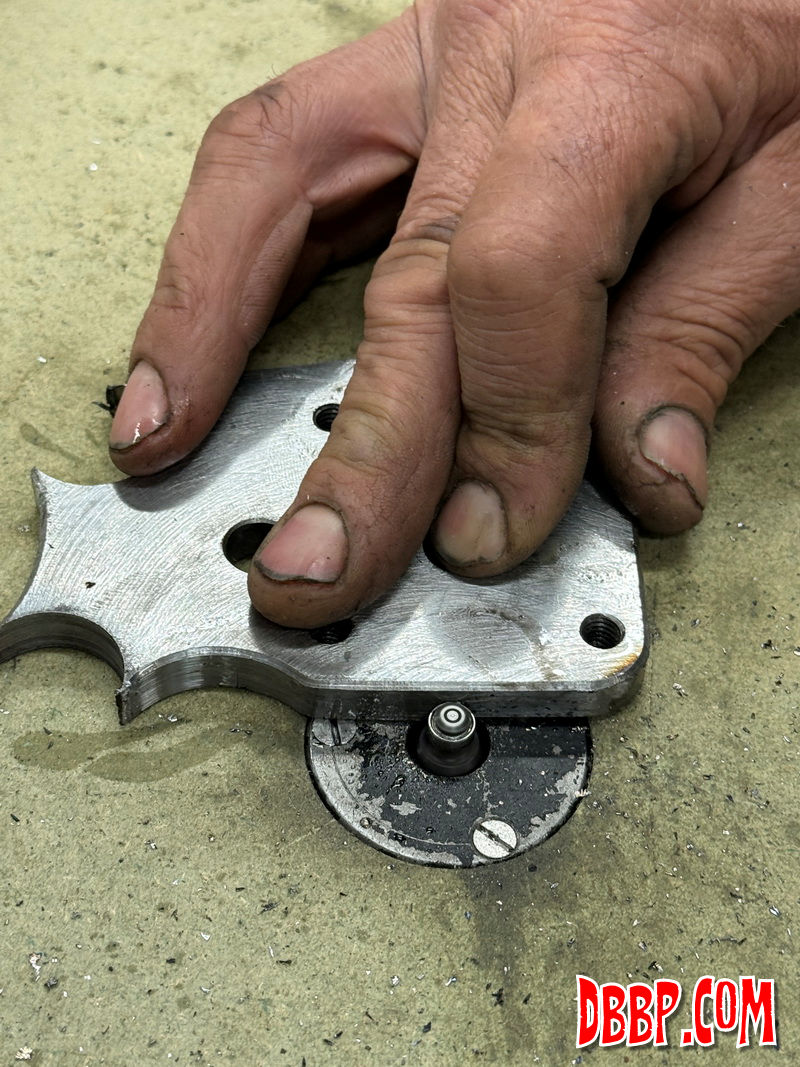

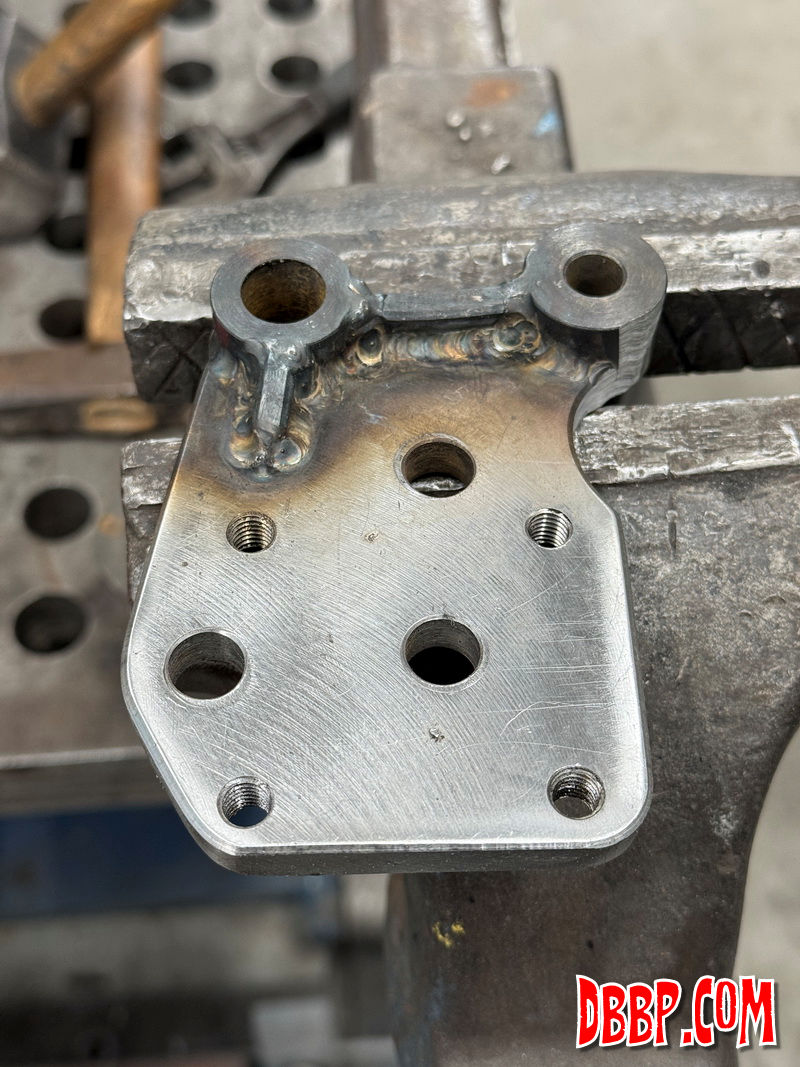

cut and drilled the baseplate, chamfered the edges and welded

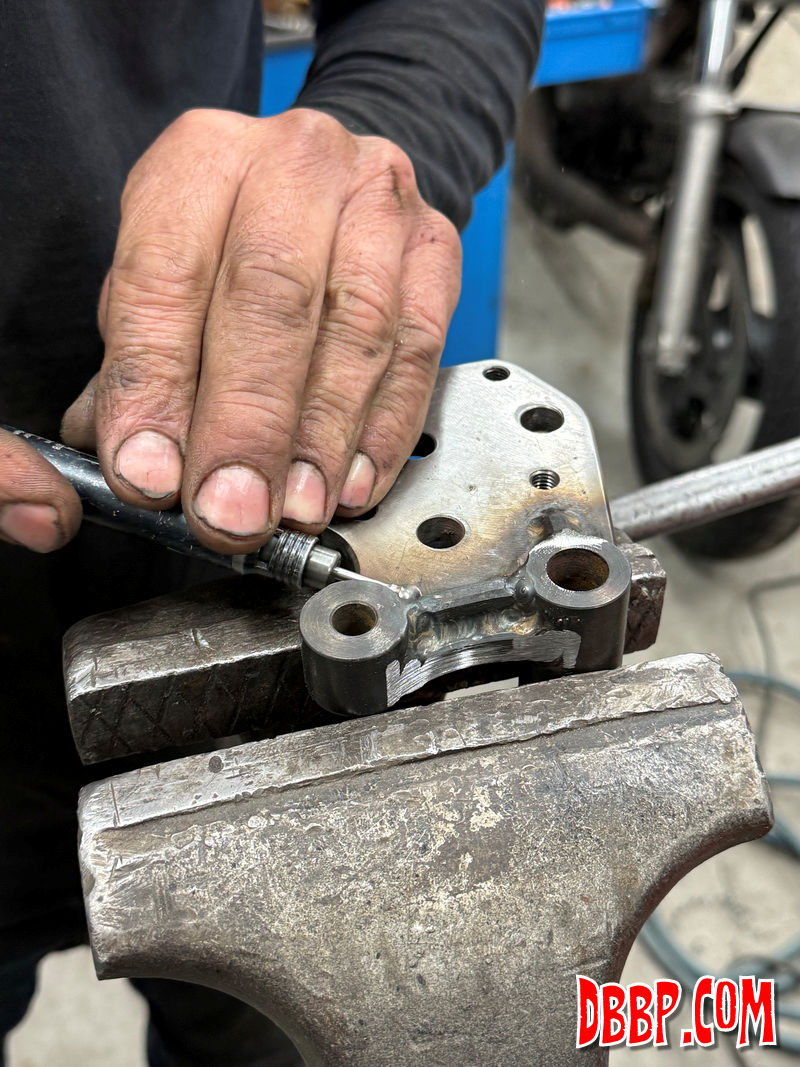

on the bungs for the pivots and some ribs. The welds were smoothed

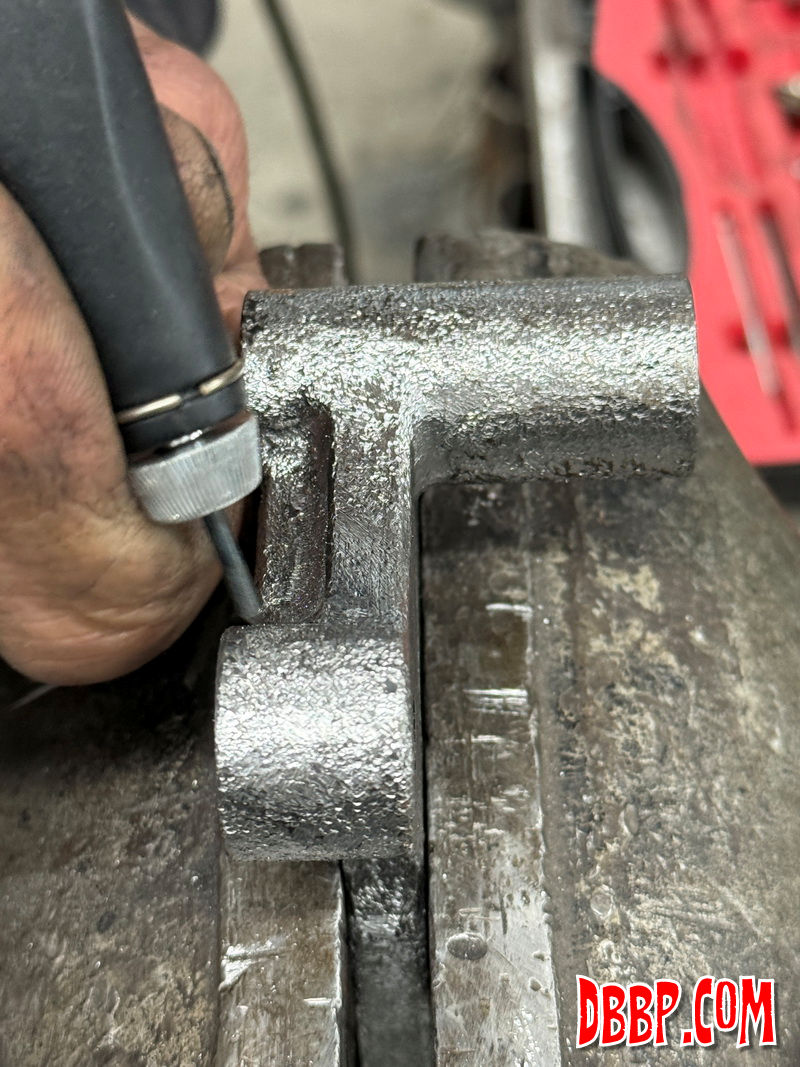

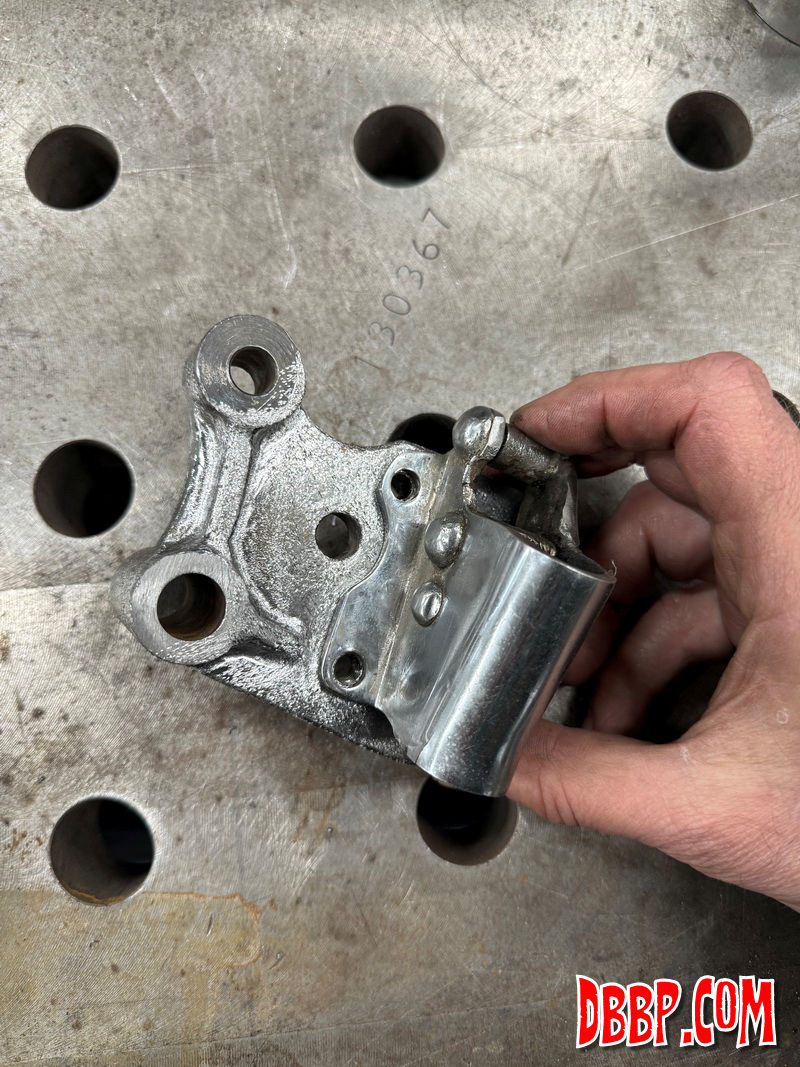

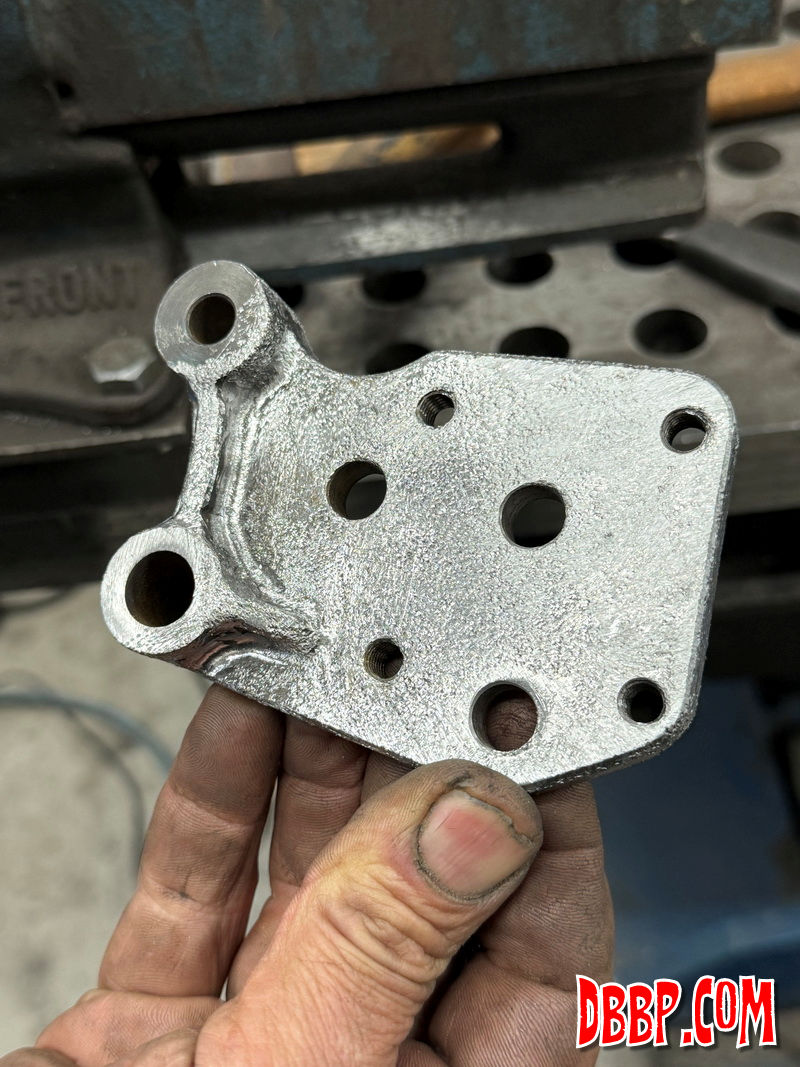

with a dremel and then the whole thing was textured. The pivot
holes for the gears will get bronze bushings with grease nipples,
and then we will make the clutchpedal
