Below is a list of the main
components of the bike so you know what is there to help you get
an idea of its value. Any parts that I have purchased brand new
for the project are indicated as “New”.
HD front guard,
New front hub, $251.41
New front rim -- 21", $265.50
New front spokes, $75.00
New speedo drive, $80.00
New front tyre -- Metzeler ME33 Laser, $160.00
FL Wide Glide forks (rebuilt)
and yokes,
Bates style head-light,
Twin 13" fully floating
discs,
Twin 4 piston P.M. callipers,
P.M. master cylinder,
Braided brake lines all round
with Custom M/C Enterprises cable clamps,
Stainless steel bars,
HD risers,
New Pat Kennedy internal throttle assembly, $460.00
HD internal clutch lever,
Bow-leg hard-tail frame,
HD kickstand,

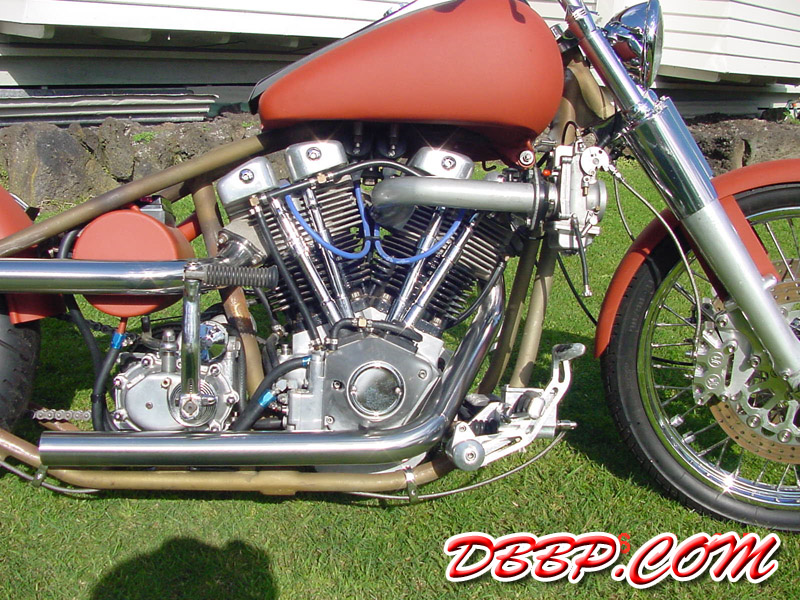

ENGINE:
The engine was rebuilt by Doug
Hayes of NO.1 Cycles. I have all the appropriate receipts,
Harman cases,
1200 shovel flywheels,
New Harman barrels,
New Jims/Harman pinion shaft, $133.33
New crank pin, $115.84
Carrillo rods,
New Pistons,
New Wiseco gudgeon pins & retainers,
New Oil Masters rings,
New Crane 320 B cam, $360.00
New Cam gear, $129.94
Velva Touch lifters & pushrods,
New Crane tappet roller kit, $90.00
New Late model Harman heads,
New Revtech decompression valves, $201.39
Crane roller rockers,
New Axtell/ Baisley 2-1 high volume / high pressure oil pump, $220.00

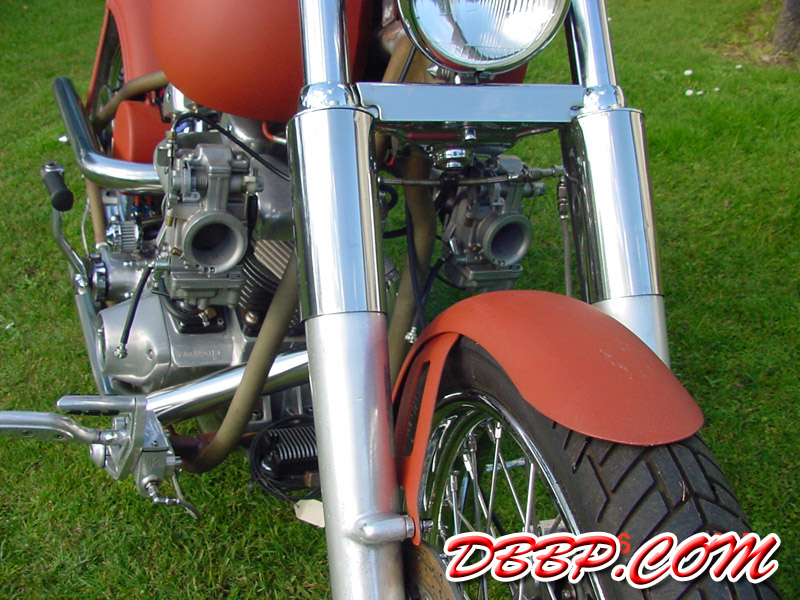

2 x Mikuni 42mm HS42 flatslide
carbs,
Crane HI 4 ignition,
2 x Revtech dual outlet coils,
New 4 x Nippon Denso spark plugs
New 4 x Eagle eliminator 9mm high temp silicon spiral core H. T. leads,
Harley Davidson regulator /
rectifier,
Harley Davidson alternator rotor
& stator,
New Custom M/C Enterprises crankcase breather, $40.00
2" stainless steel drag
pipes,
New Battery, $41.95

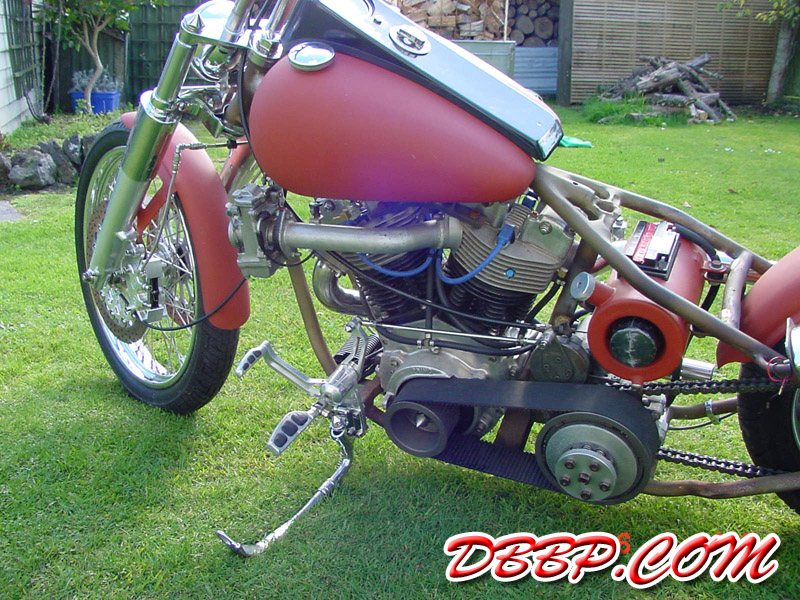

PRIMARY:
2 x Primo 3 inch pulleys,
New 3 inch belt, $260.00
5 stud clutch centre,
New Big fix kit, $45.00
New Tamer Enterprises " The Tamer", $195.84
New Tamer Enterprises super spring collar, $145.78
New 4 x anti-rattle steel clutch plates, $86.40
5 x clutch friction plates,
Clutch centre lock nut and washer,
Clutch pressure springs.
4-speed ratchet-top gearbox
(rebuilt) with aluminium mainshaft bearing support bracket,
New CCI 5 gal fatbobs, $
New CCI petrol caps, $61.24
New Flatside tank mount kit,
$150.00
New Rick Doss custom dash panel, $124.71
New Dash panel base plate, $139.83
New heavy duty ignition switch, $70.00
New Pingel twin outlet fuel tap, $269.86
New CCI electronic speedo and tacho, $1250.00
Barrel style oil tank with built
in oil filter mount,
New oil filter, $30.00
New Custom M/C Enterprises oil line clamps, $100.00
P.M. forward controls,
New chain guard, $83.59
16" rear wheel,
HD rear guard,
10" rear disc,
4 piston P.M. rear calliper,
HD rear sprocket,
Chromoly rear axle,
New cats-eye tail-light, $50.00
|
