Panhead project started June 2021,

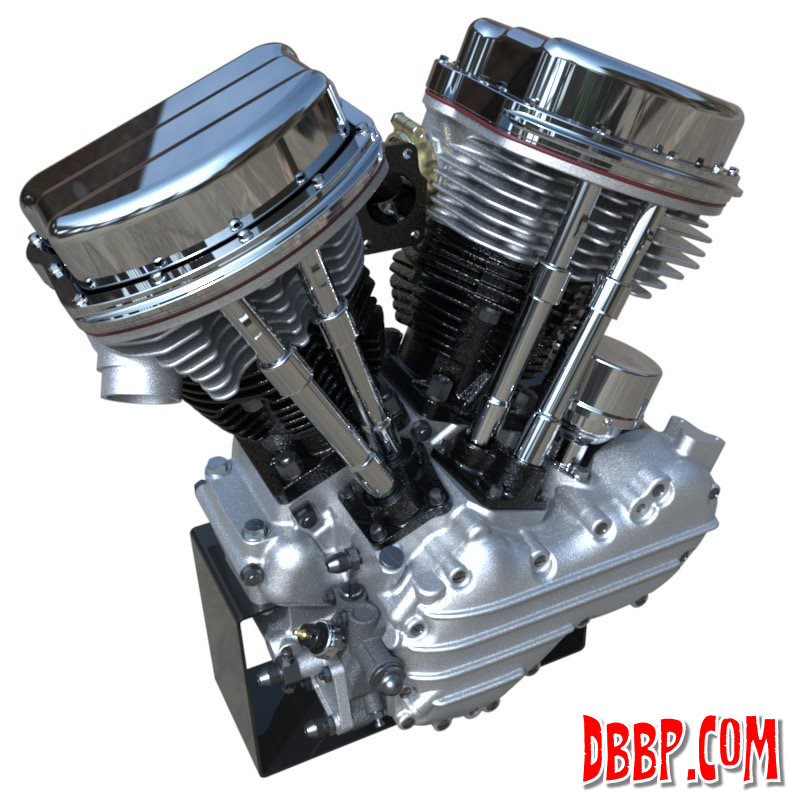

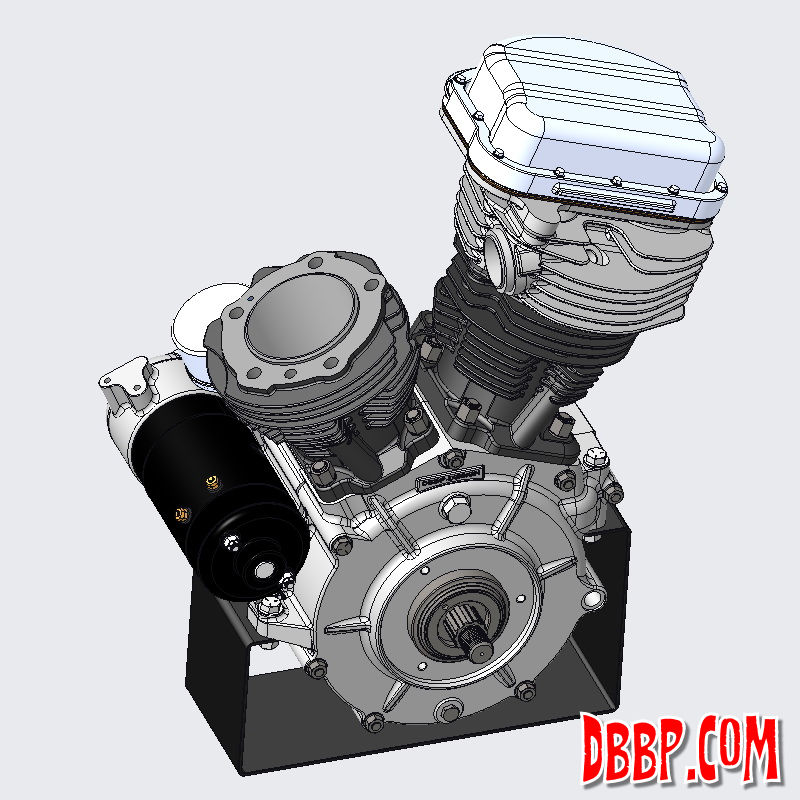

I added the cylinder heads, trying to model the internal shapes before adding the ribs. I also added the lifter blocks and pushrod covers, and even the intake manifold.





Almost ready, the last part will be the Linkert carb. After that this CAD model will be available in the webshop at dbbpshop.com
In the meantime all the scanning is done and the real engine has been mounted in the frame, you can follow the build here





To be continued...
