Project started 10 December 2003,

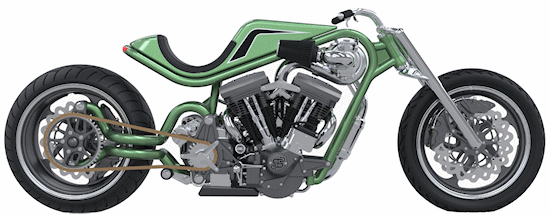

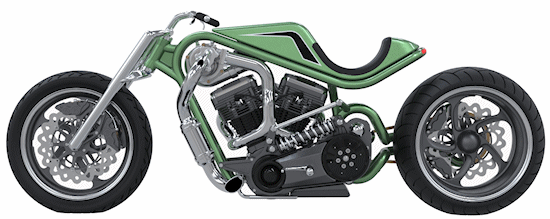

This bike is built around an EVO
engine with Garrett turbocharger
and Morris M5 magneto, Sputhe RSD gearbox, Braking wavediscs,
PM Player wheels, 280 Metzeler rear tire.

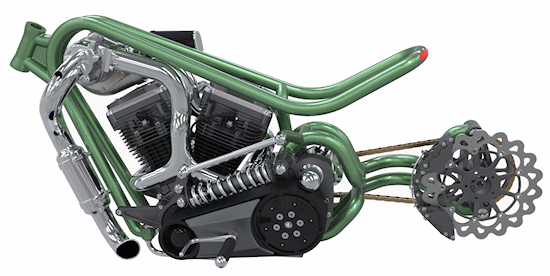

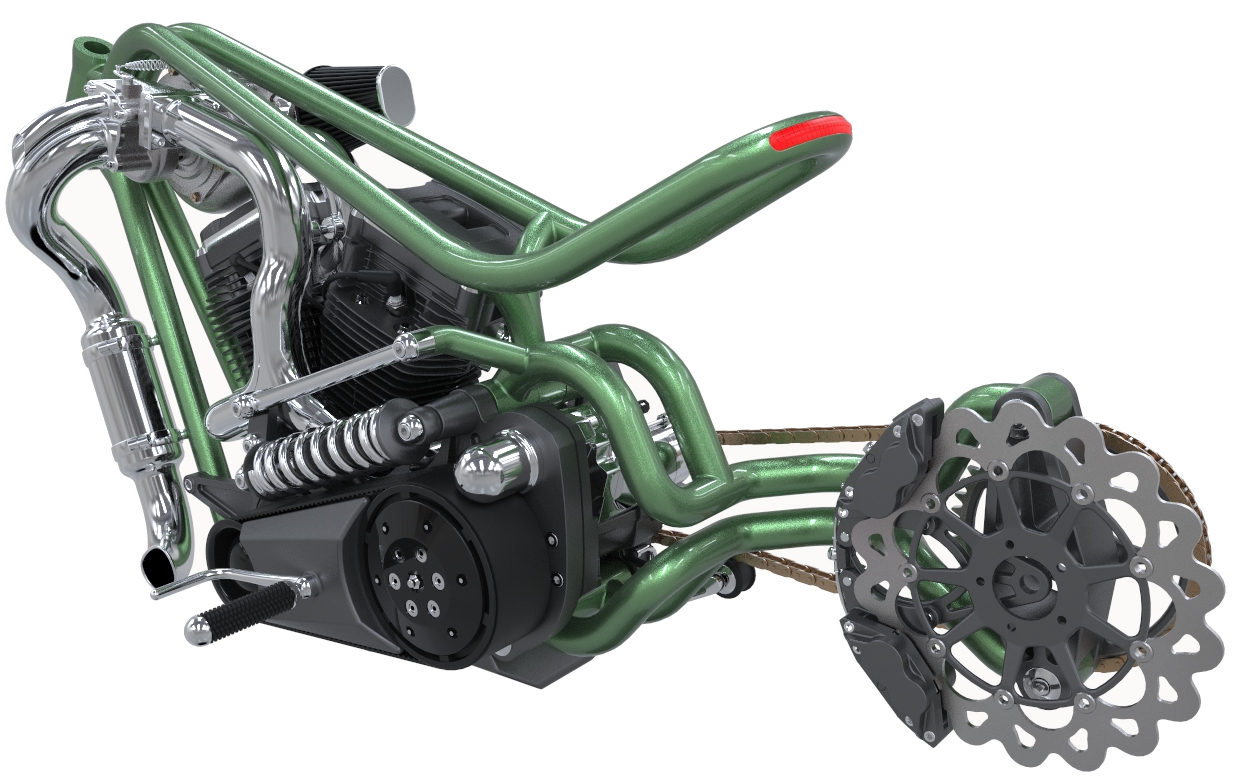

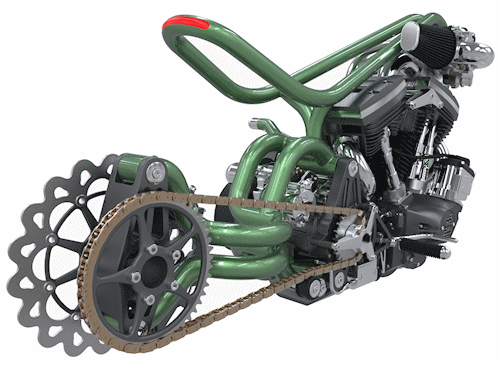

The frame, forks, front
& rear suspension and all sheetmetal are my own designs
2 March 2015
Added taillight, aircleaner, top motormount,
new pipe, new tank graphics
11 February 2015
Added new tank and seat plus more brake details
7 February 2015
Started a complete makeover, removed all the sheetmetal, changed the upper part of the frame, lowered the forks, added front brakes and changed the exhaust. Re-rendered in Keyshot.
23 June 2009
Narrowed forks, changed colours and re-rendered in Hypershot
23 August 2004
I thought the fueltank looked too empty so I tried a couple of different things and finally ended with a very simple coloured graphic that accentuates the lines of the bike without distracting
from the technical details of the bike. I completed the wastegate on the turbo and added some extra views. Don't forget to look at page 2 also!.
22 March 2004
I added a taillight in 50's car-style and a side stand that is integrated into the front motormount.
Old ugly version is on page
