Wheels
& Brakes
Wheel weights in
Kilograms
|

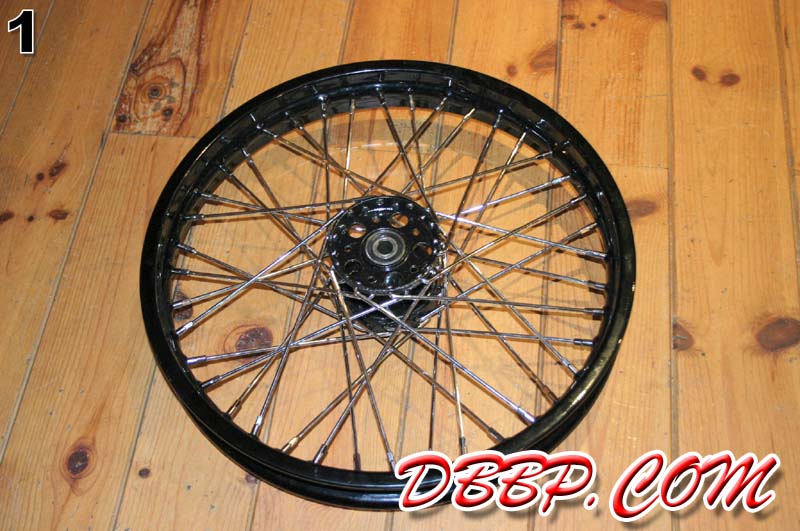

1
|
40 spokes and nippels |
1.2 |
|
Starhub |
1.8 |
|
19" x 1.85" rim |
2.7 |
|
19" 40 spoke
wheel without brake:
|
5.8 |

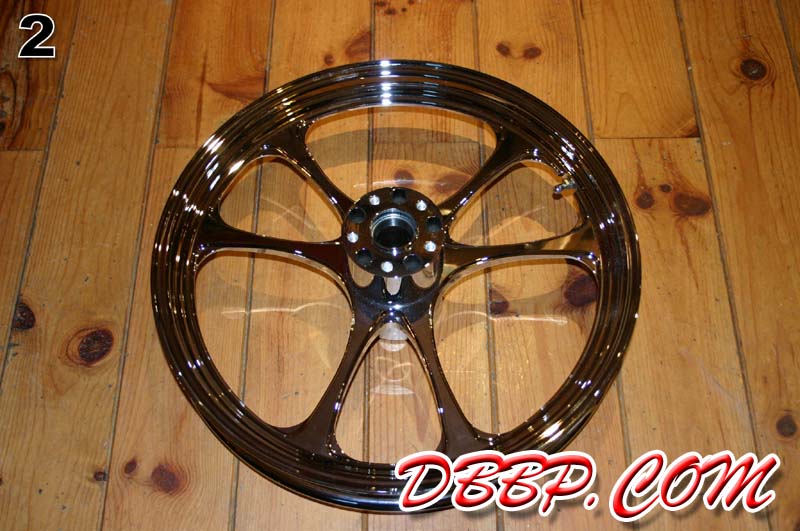

2
|
19" x 1.85"
PM Player wheel without brake:
|
7.3 |

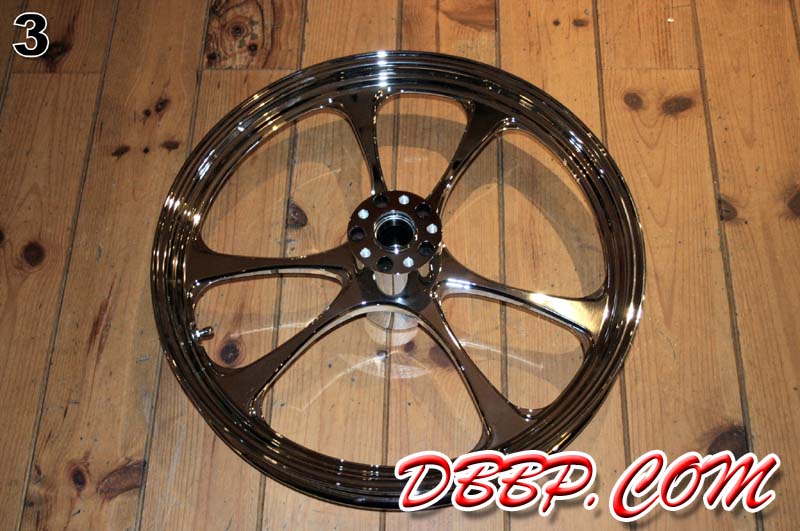

3 |
21" x 1.85"
PM Player wheel without brake:
|
7.7 |

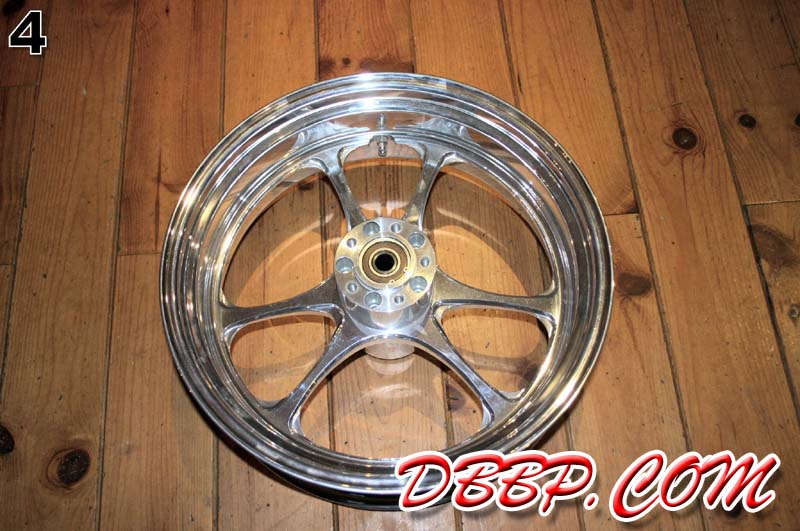

4 |
17" x 6"
PM Player wheel without brake:
|
8.8 |

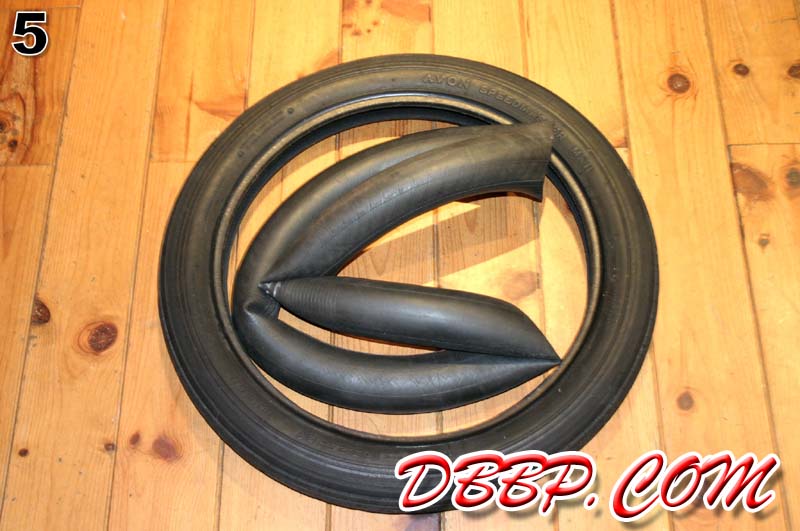

5
|
19" Avon Speedmaster
tire + inner tube:
|
4.2 |
6 |
18" x 8.5"
PM Player with 240 Metzeler tire:
|
18.6 |
To my surprise, it turns out that my 1955 front hub with spokes and
a
19" black rim is about 20% lighter than a modern billet wheel!
Good, because I prefer the looks of the old wheel also. The drum
brake is a different story, not only is it heavy, it doesn't brake
very
well either so it will soon be replaced with the BRAKING disc.
Brake weights in
Kilograms
|

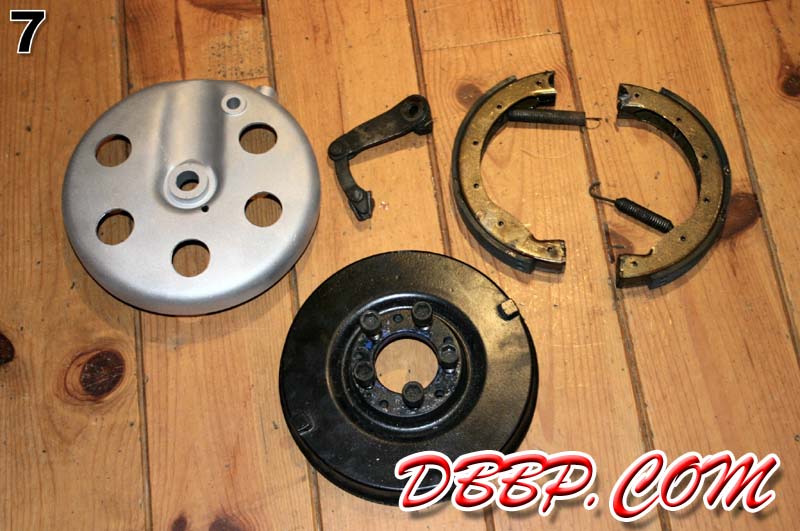

7
|
Brake drum |
2.5 |
|
Brake backing plate |
0.6 |
|
Brake shoes and brake arm |
1.1 |
|
Drumbrake complete:
|
4.2 |

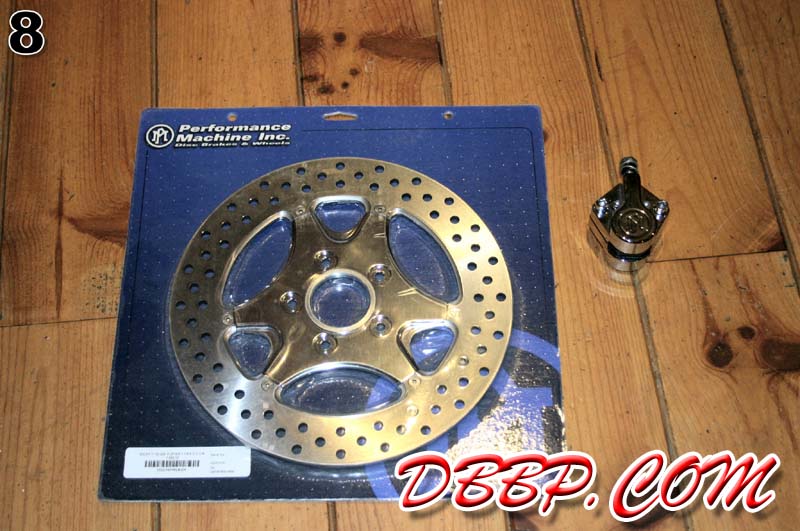

8
|
PM Player 11,5" Brakedisc |
1.6 |
|
PM 125x2 dic brake caliper |
0.4 |
|
PM Discbrake complete:
|
2.0 |

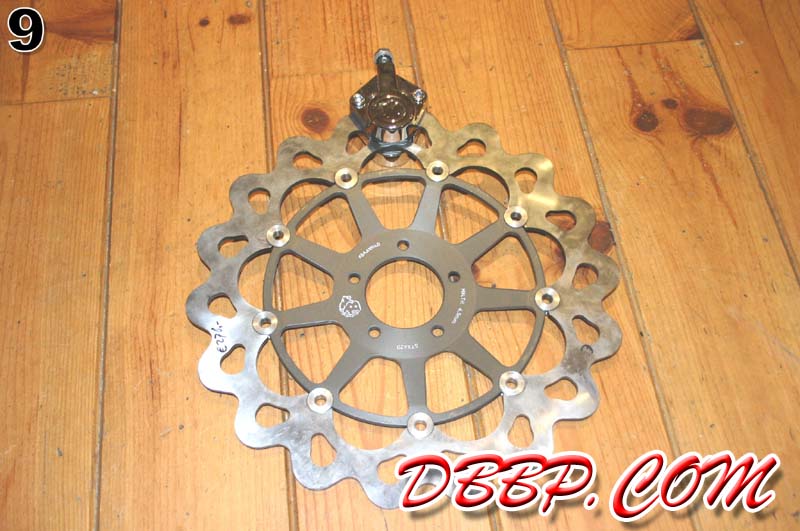

9 |
Braking 13" Wavedisc |
1.4 |
|
PM 125x2 dic brake caliper |
0.4 |
|
Braking Discbrake
complete:
|
1.8 |

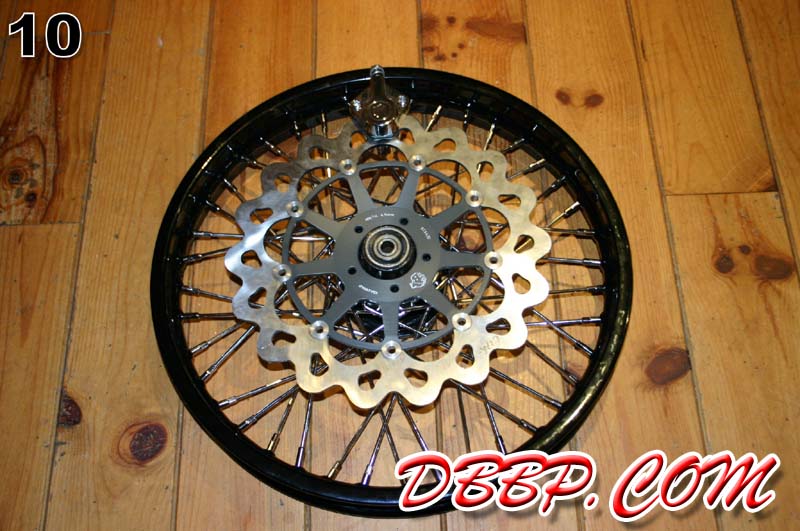

Lightest combination
|
10
|
19" 40 spoke wheel without brake:
|
5.8 |
|
19" Avon Speedmaster tire + inner tube:
|
4.2 |
|
Braking Discbrake complete:
|
1.8 |
|
Wheel & Brake
complete:
|
11.8 |
|
