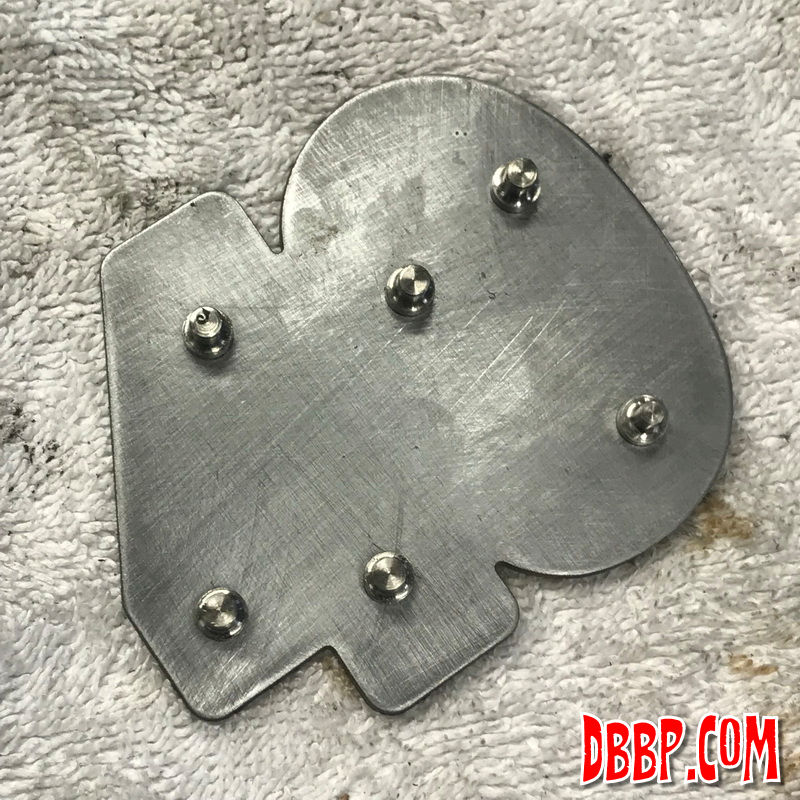

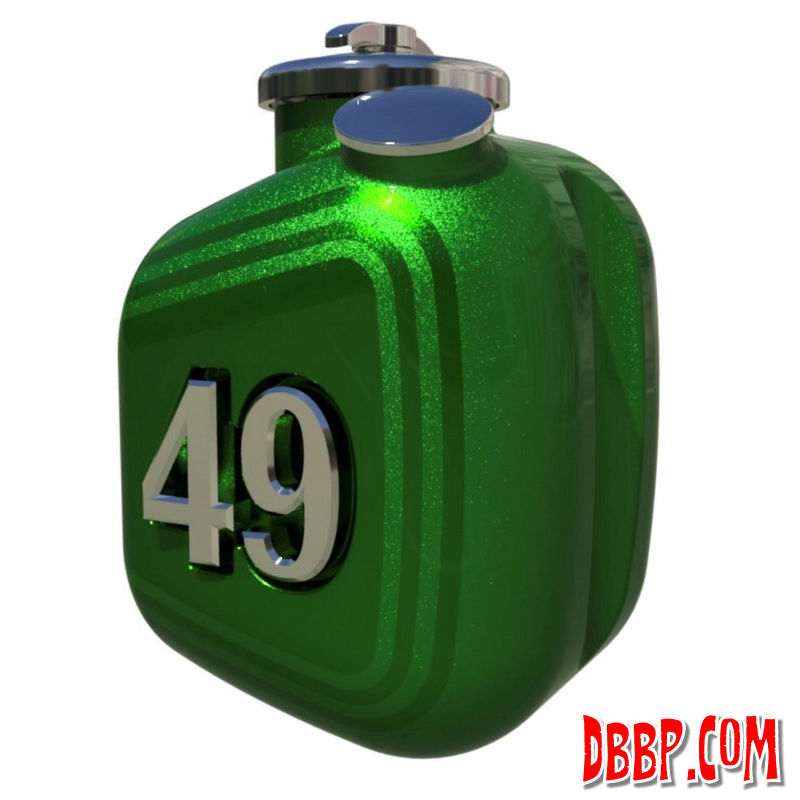

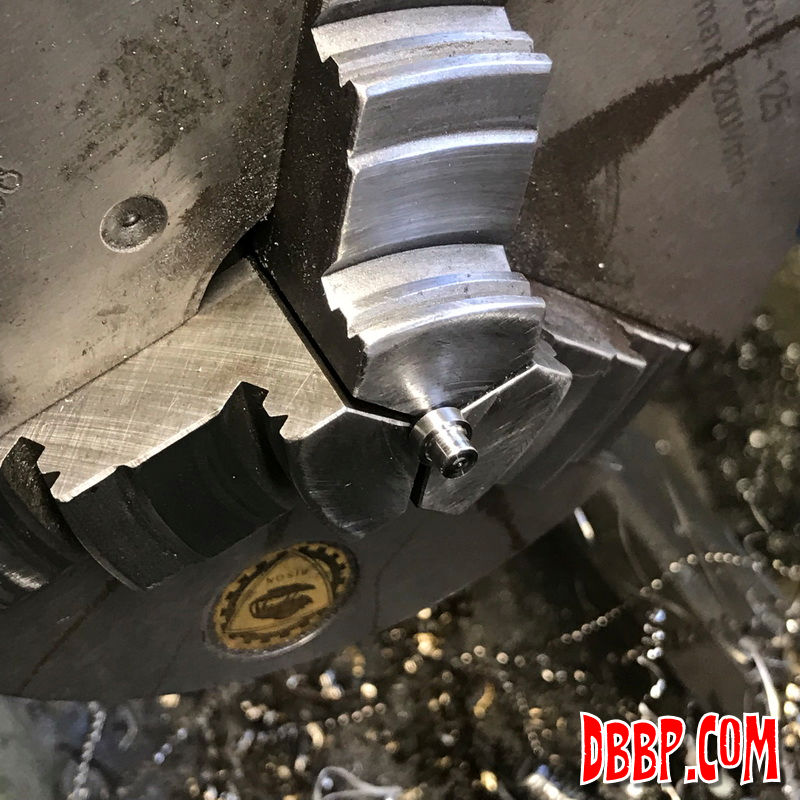

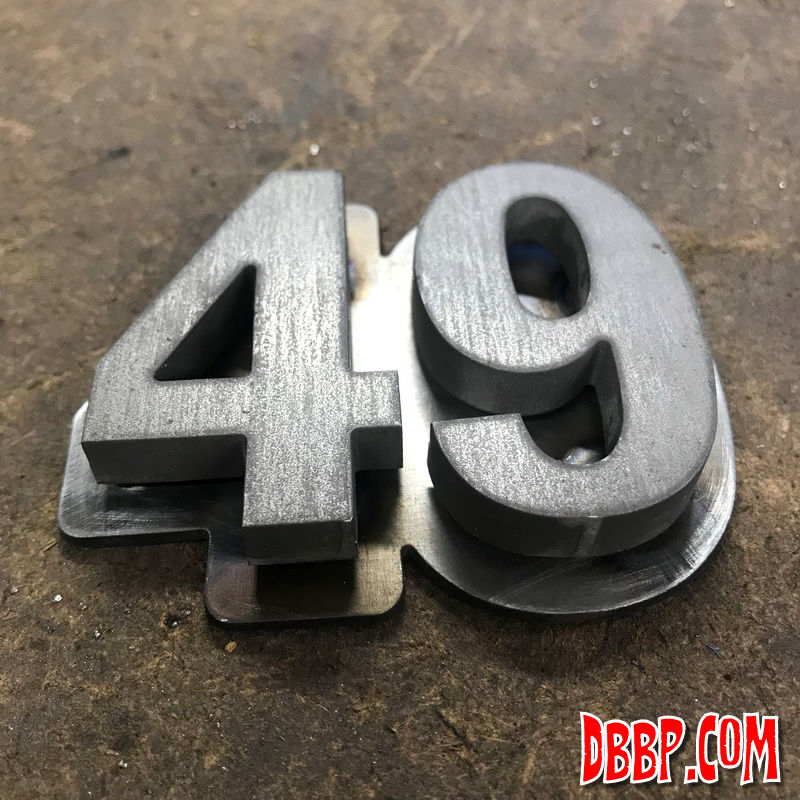

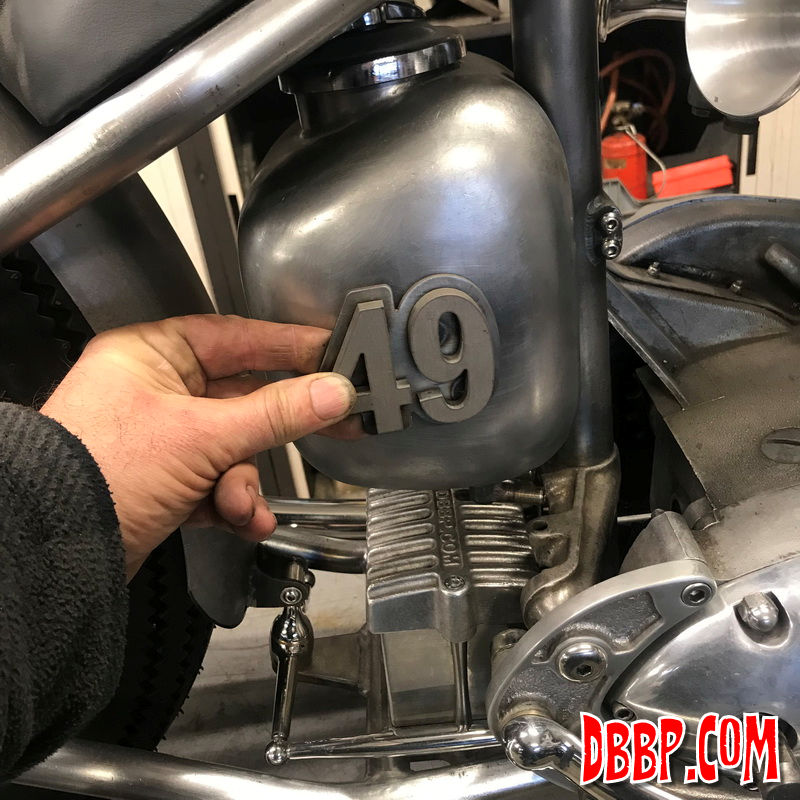

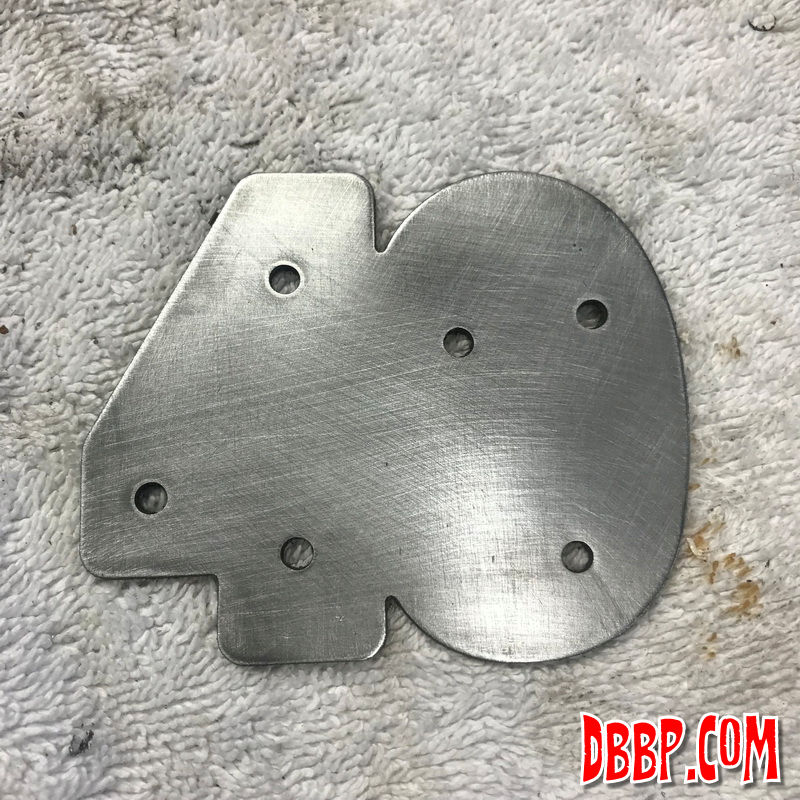

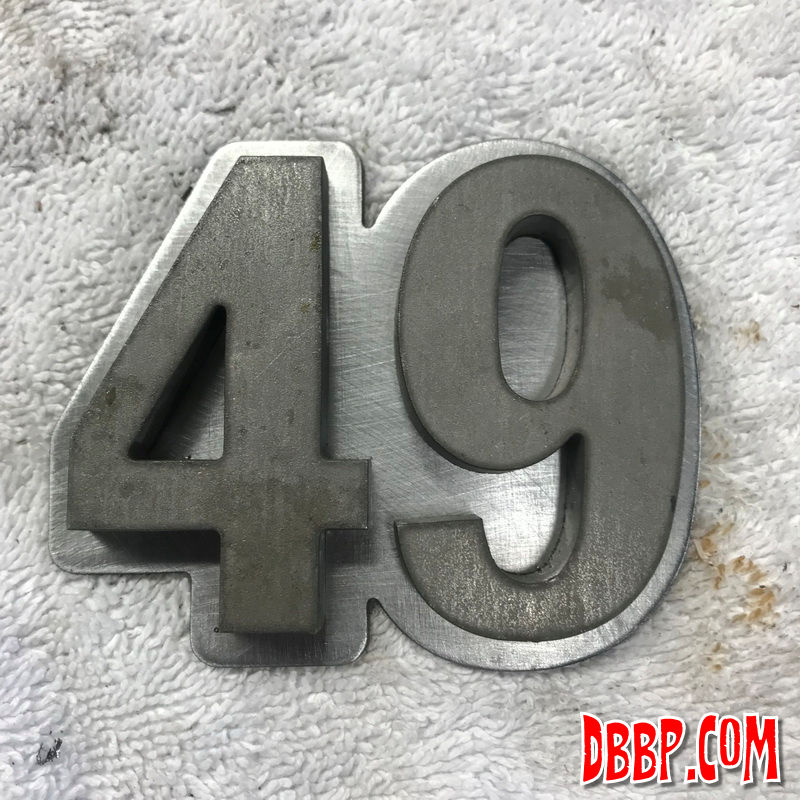

We decided to put the number 49 in polished stainless "floating" in the oiltank, so I made some CAD drawings and had the number 49 waterjet cut in 8 mm thick stainless steel plate, and the background in 1.5 mm mild steel. Aad machined some little standoffs to create a bit of distance between the 49 and the background

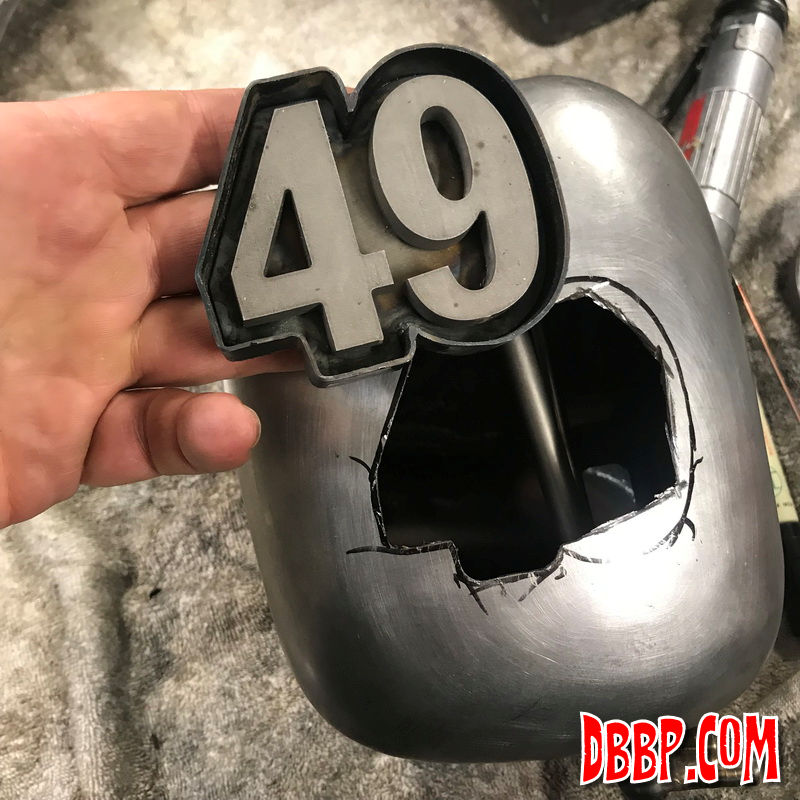

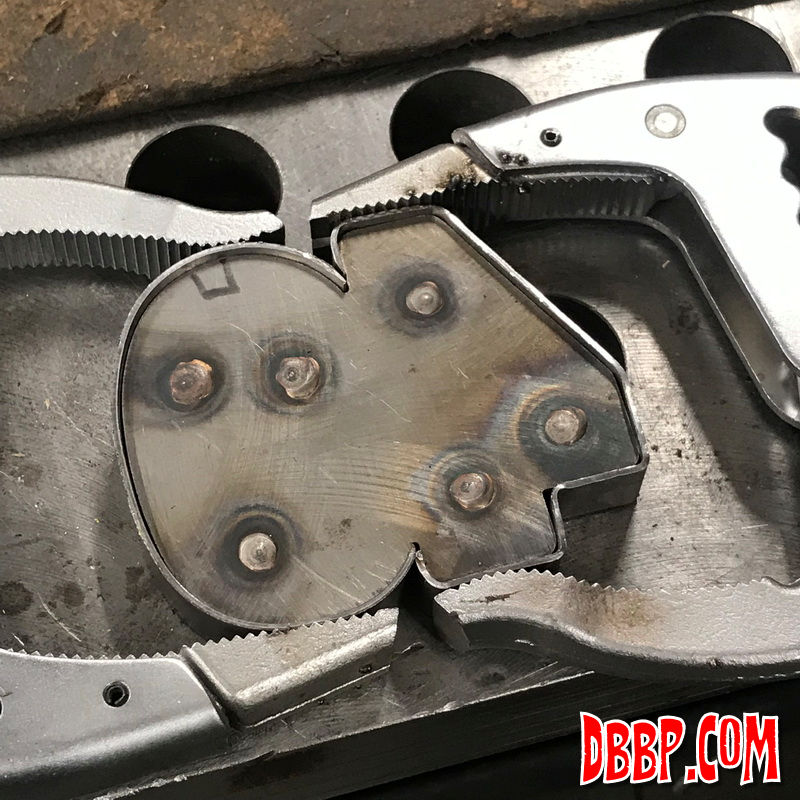

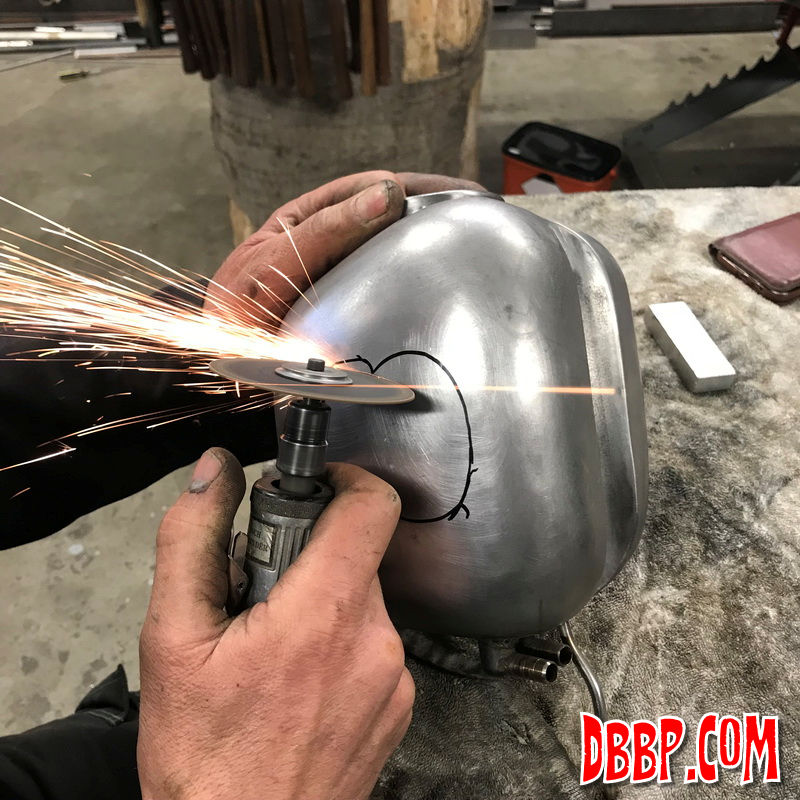

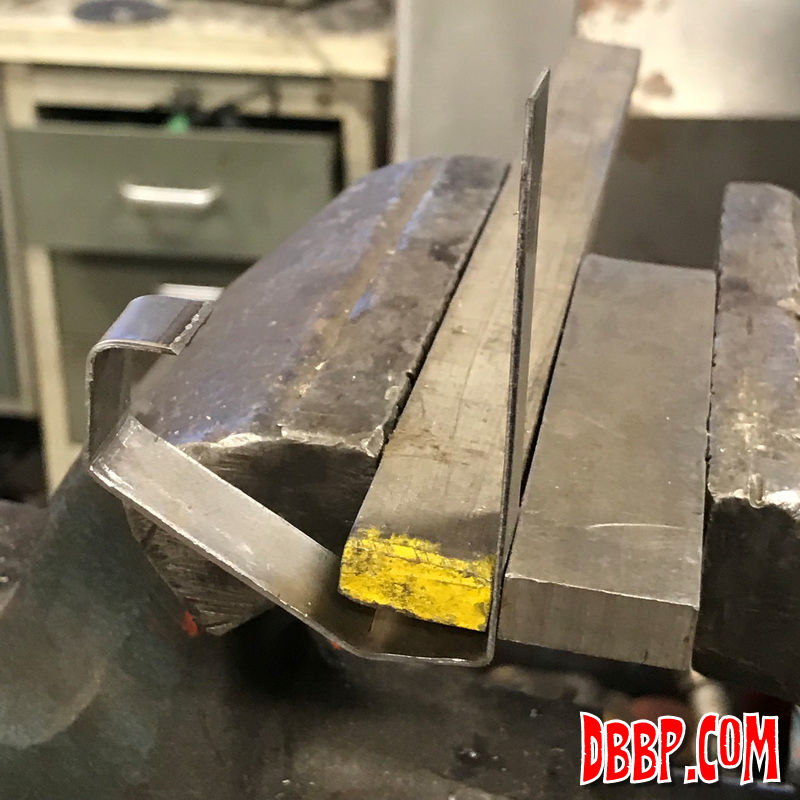

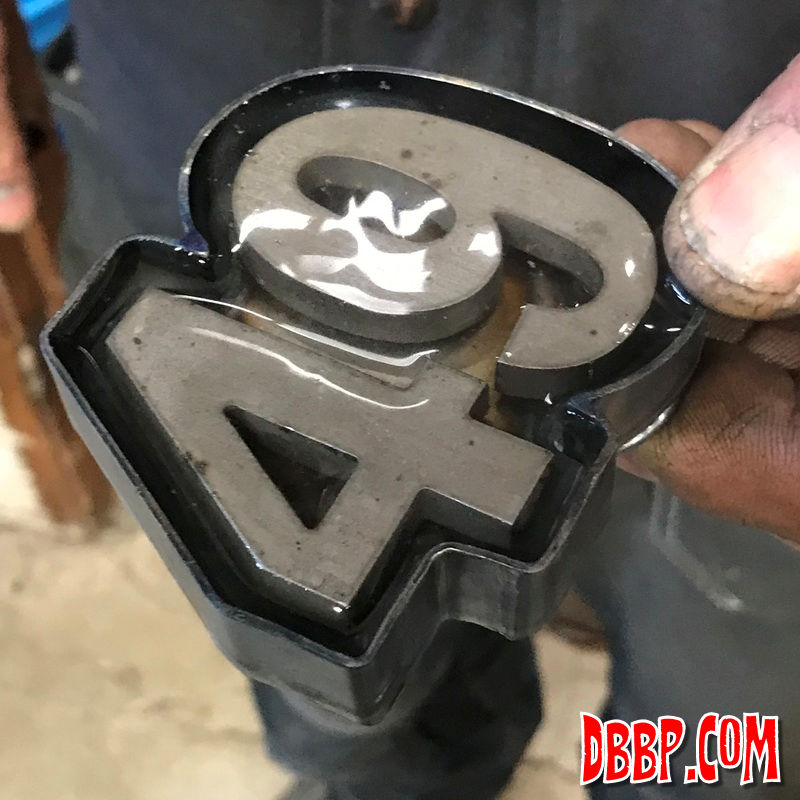

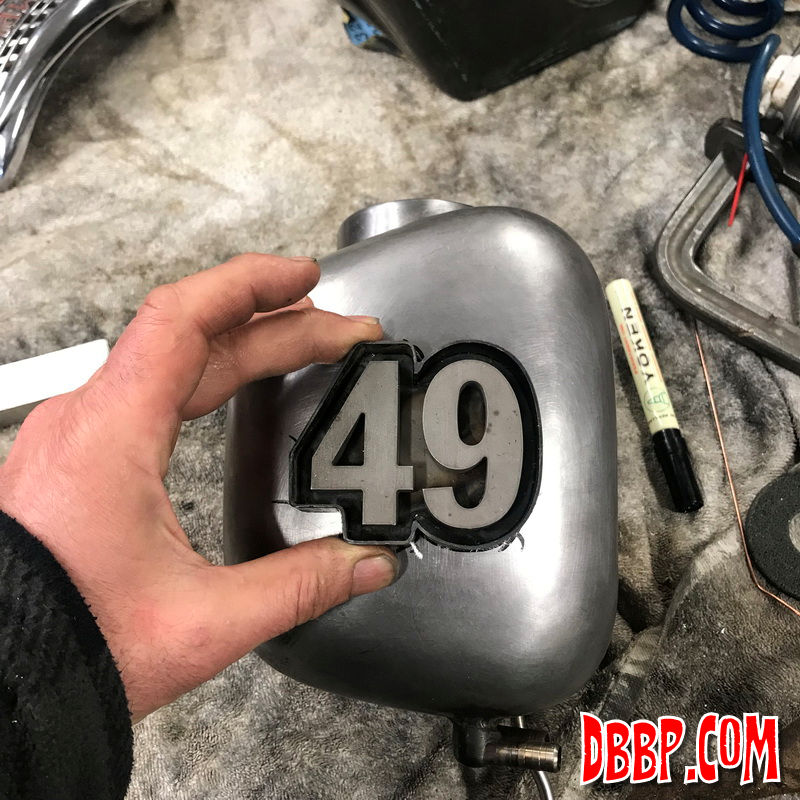

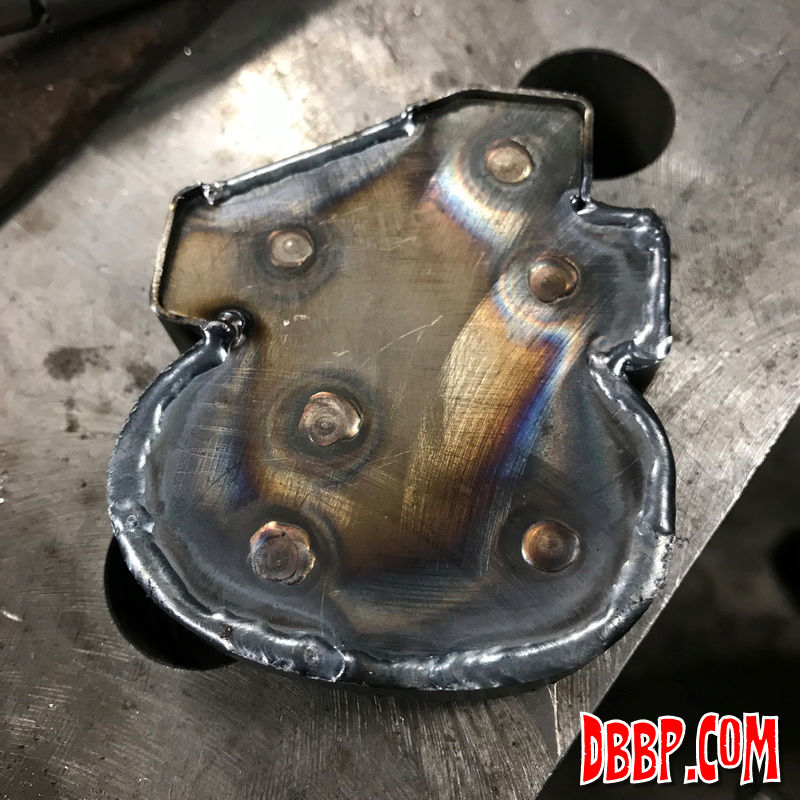

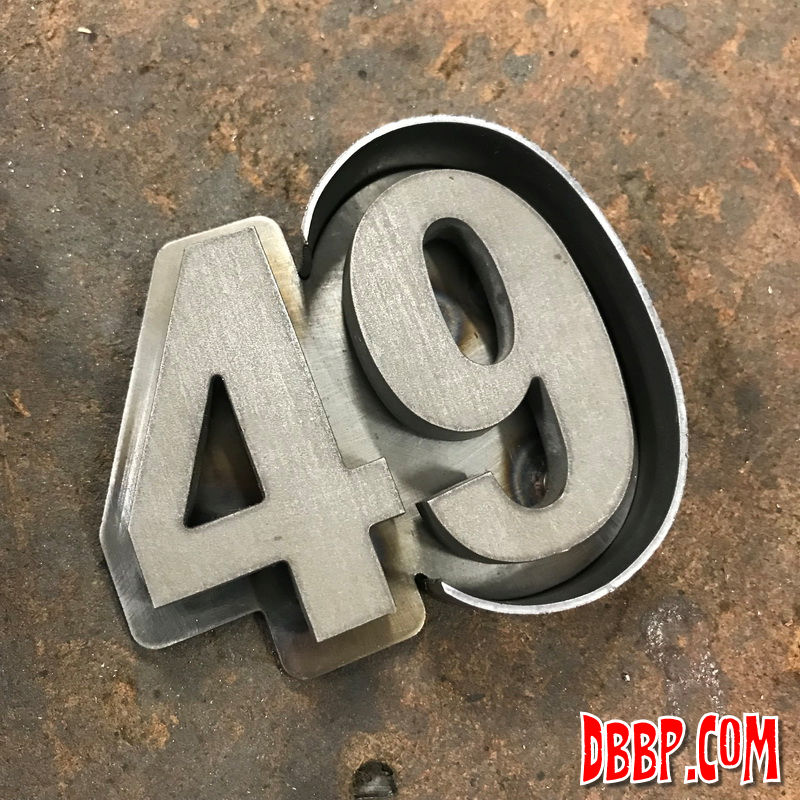

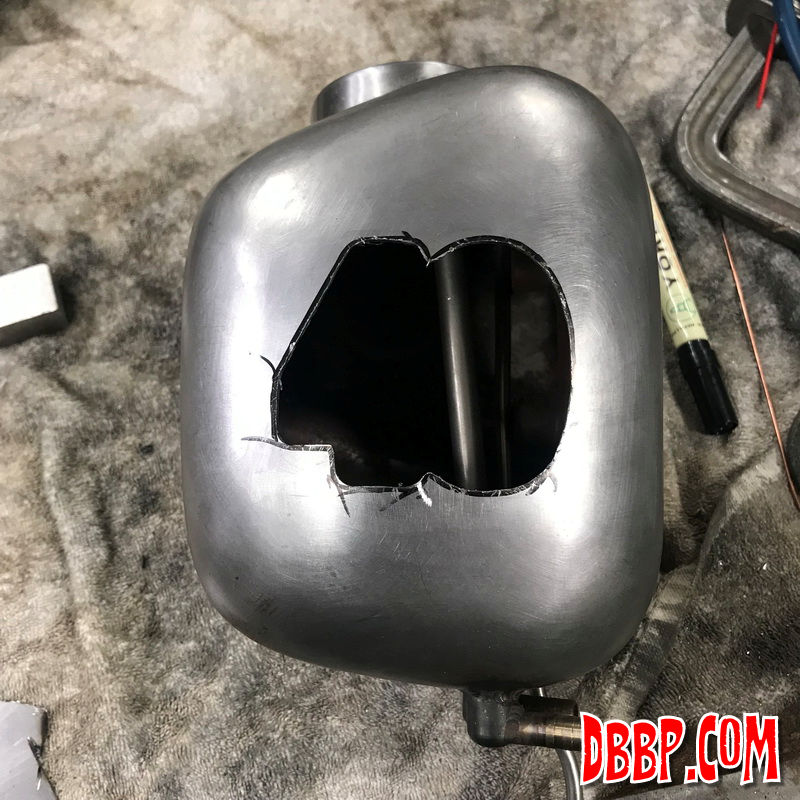

Aad shaped the sides of the cavity in 12 mm wide strip and after welding and testing for leaks cut a big hole in the side of the oiltank. Still a lot of cleaning up and polishing to do, next week we continue!
