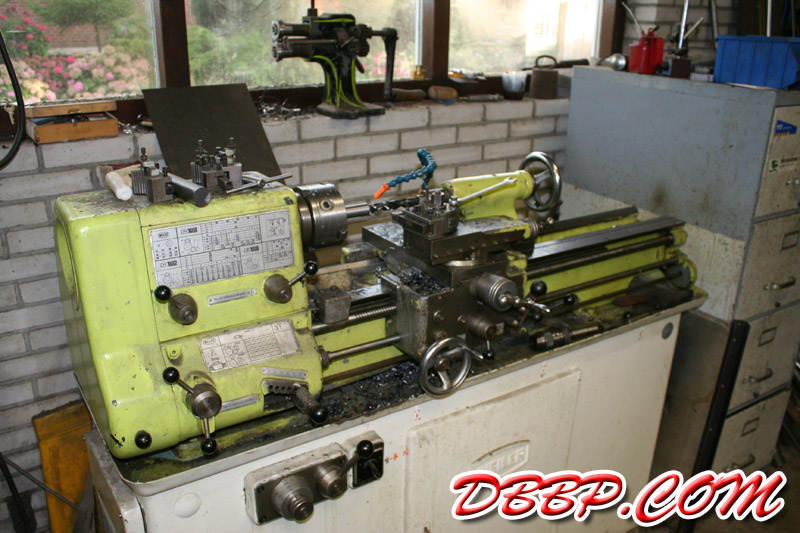

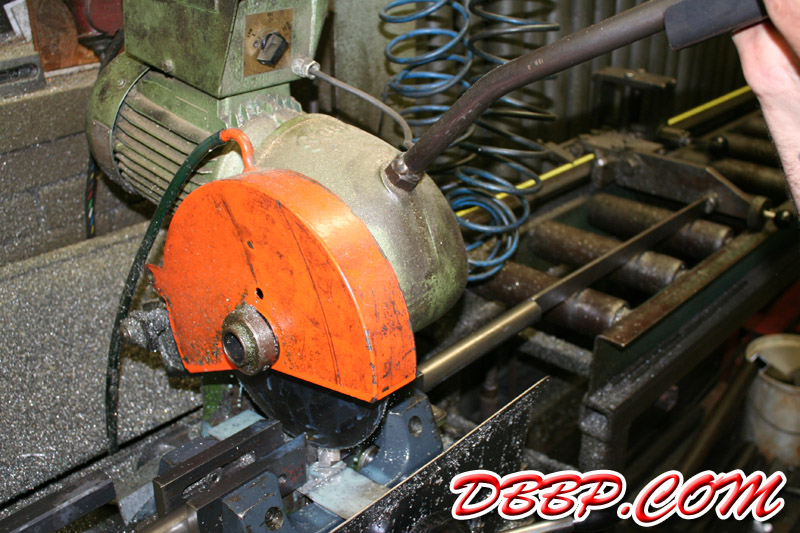

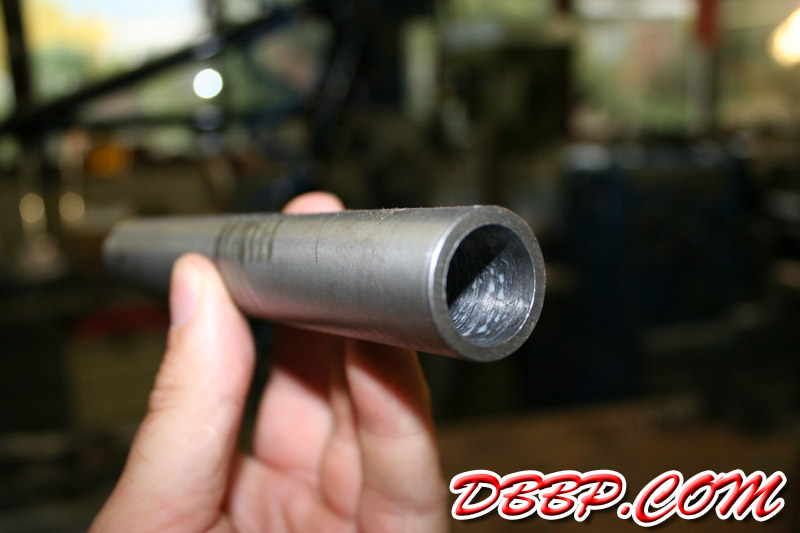

As we did not have 1" pipe in stock, Aad machined 2 plugs from 30 mm solid bar.

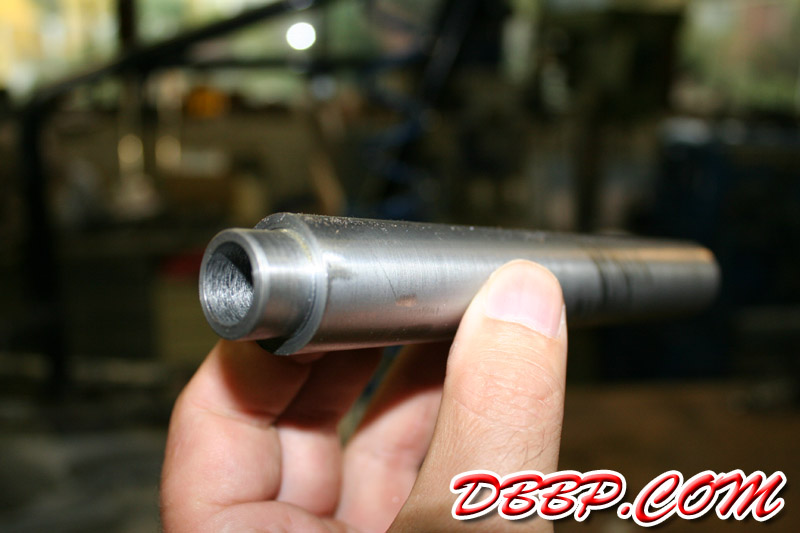

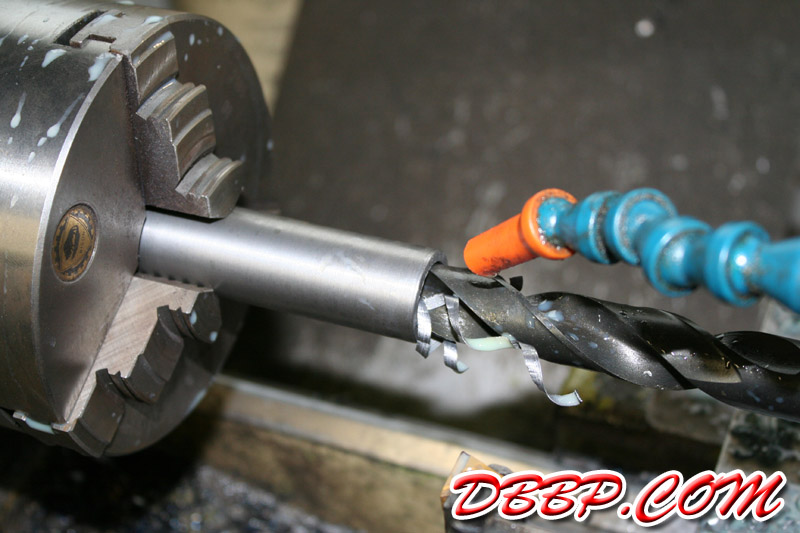

The parts were hollowed out to the same wall thickness as the existing tubes, but
with a stepped end that could slide into the existing frametubes.

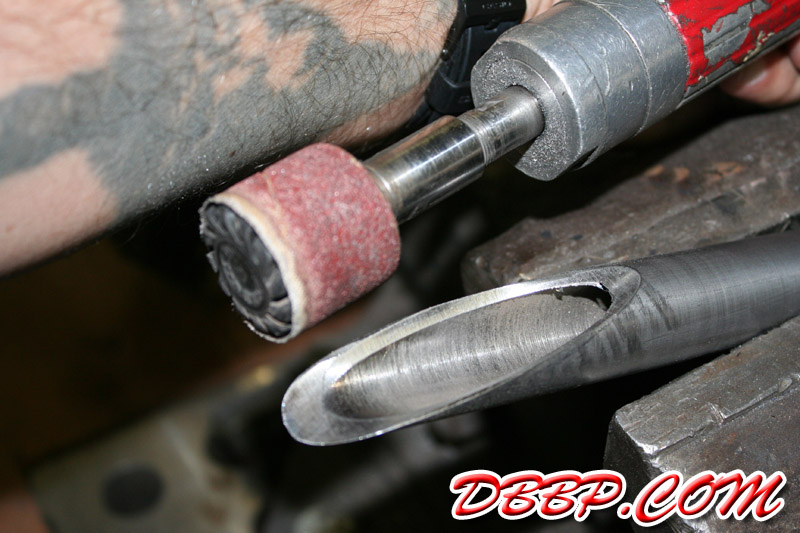

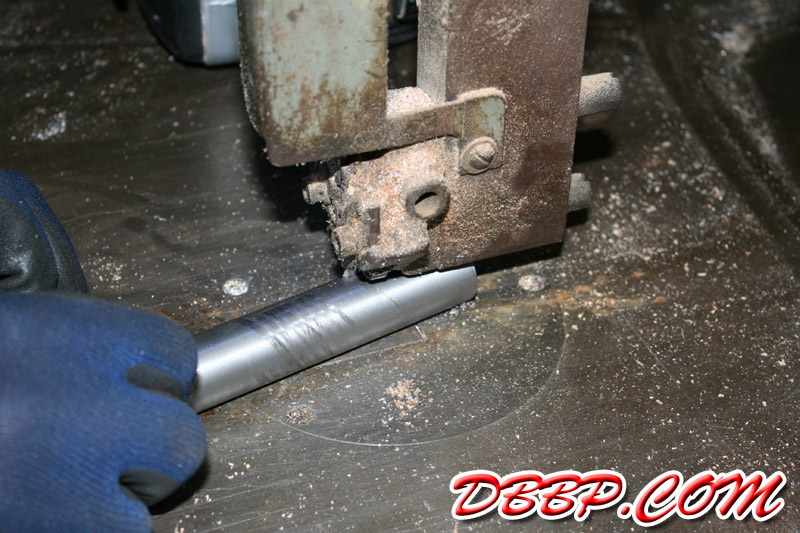

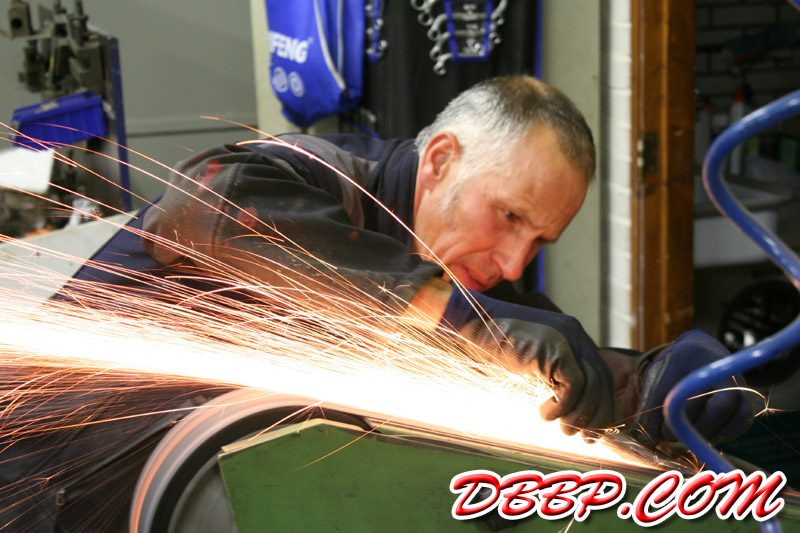

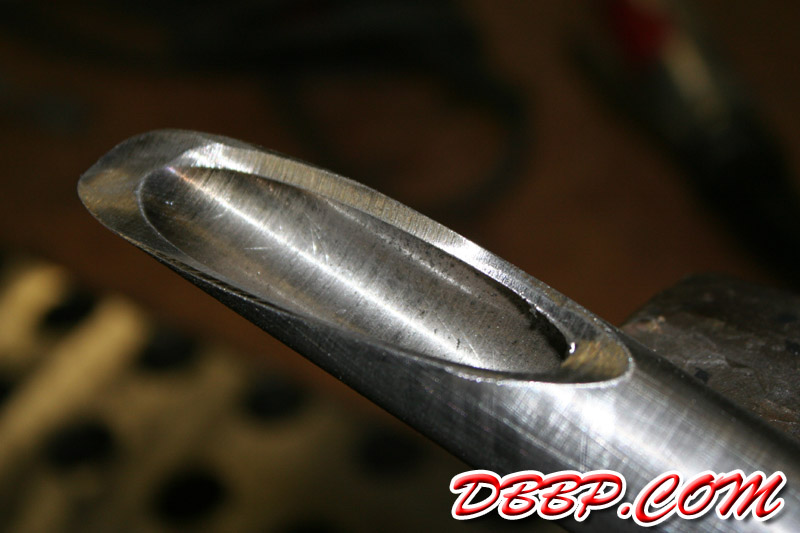

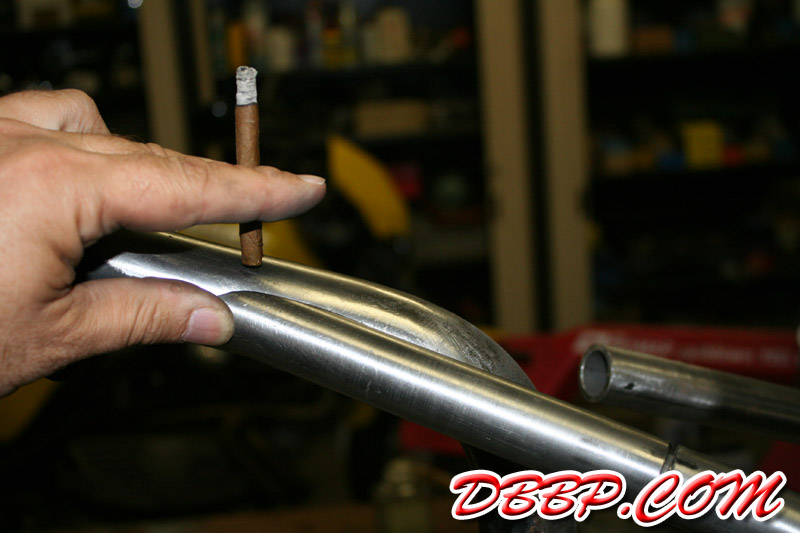

We cut the angles on the tubes with a bandsaw, then used belt sander and a small

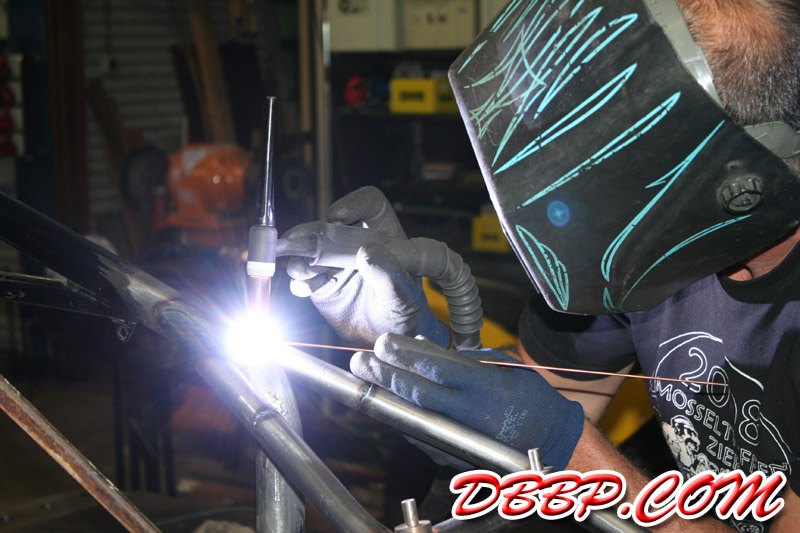

pneumatic sander to cope the ends so they would fit nicely, and then Aad started

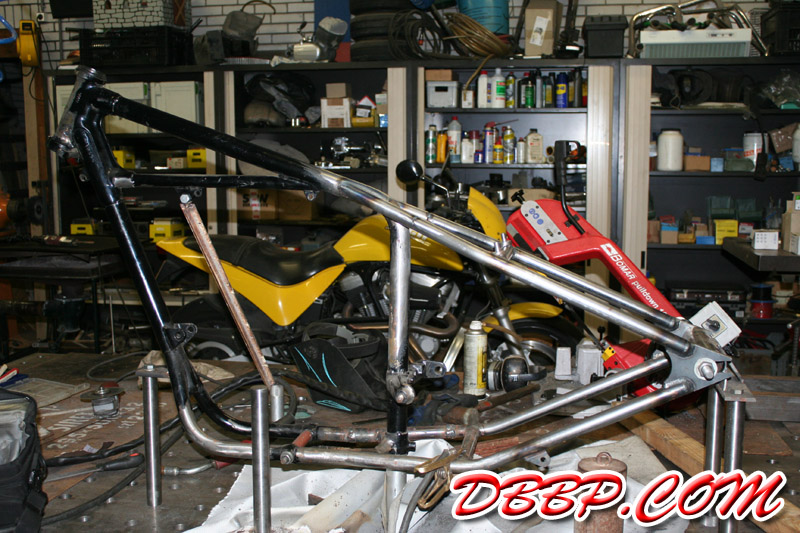

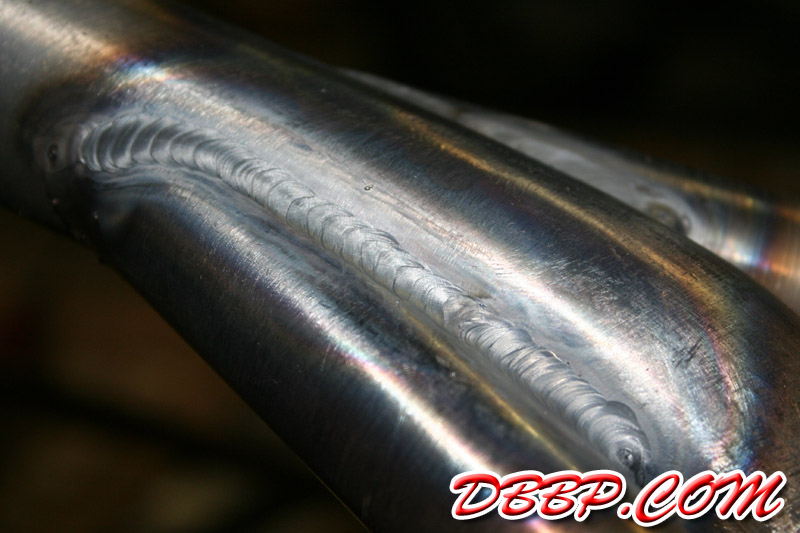

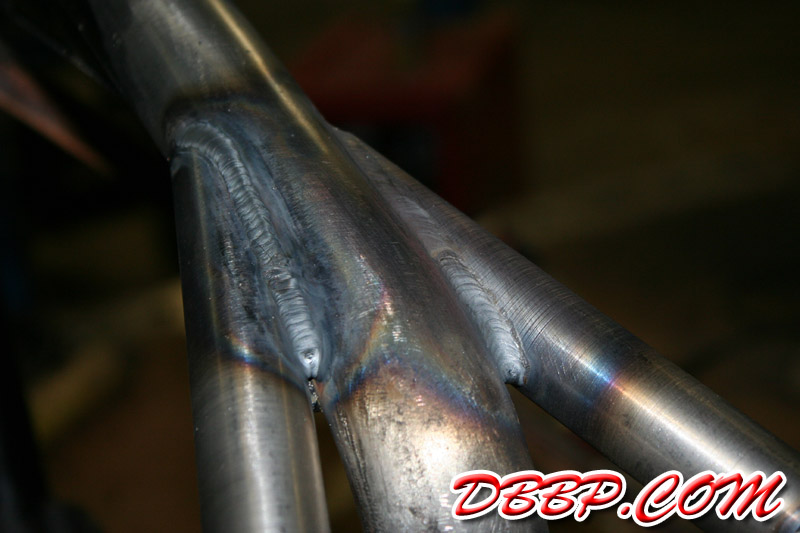

TIG-welding it all together. We think the lines of the frame are looking a lot
better than when we started! To be continued..
