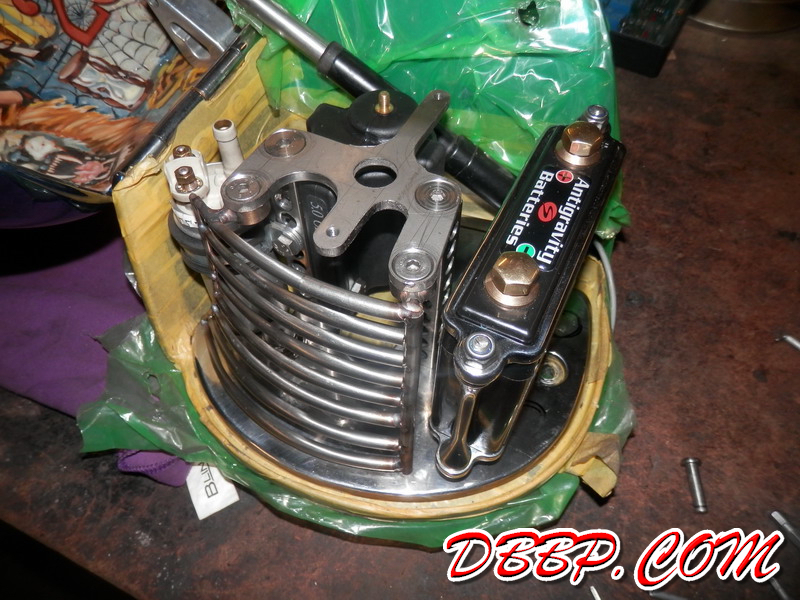

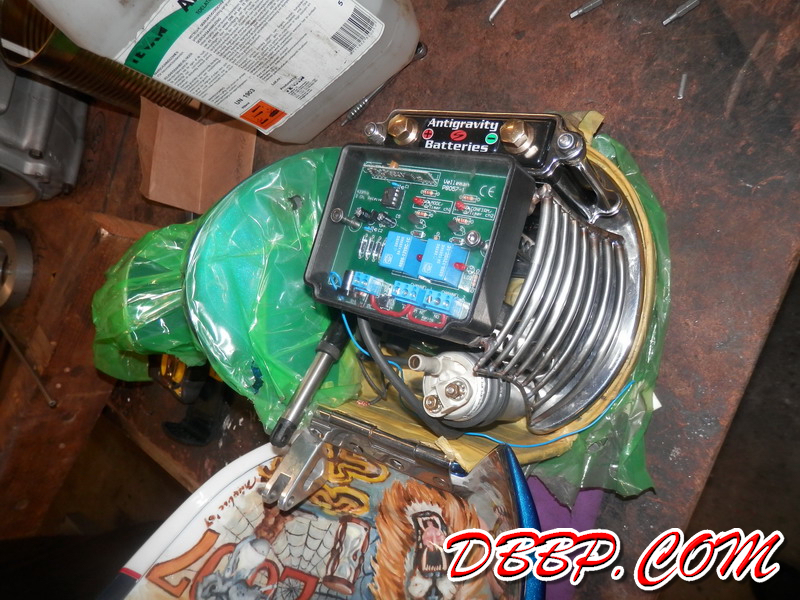

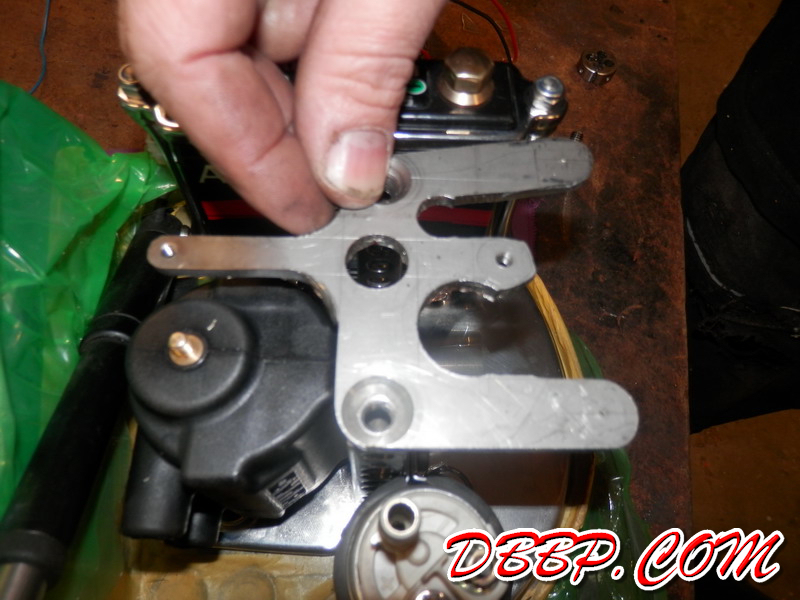

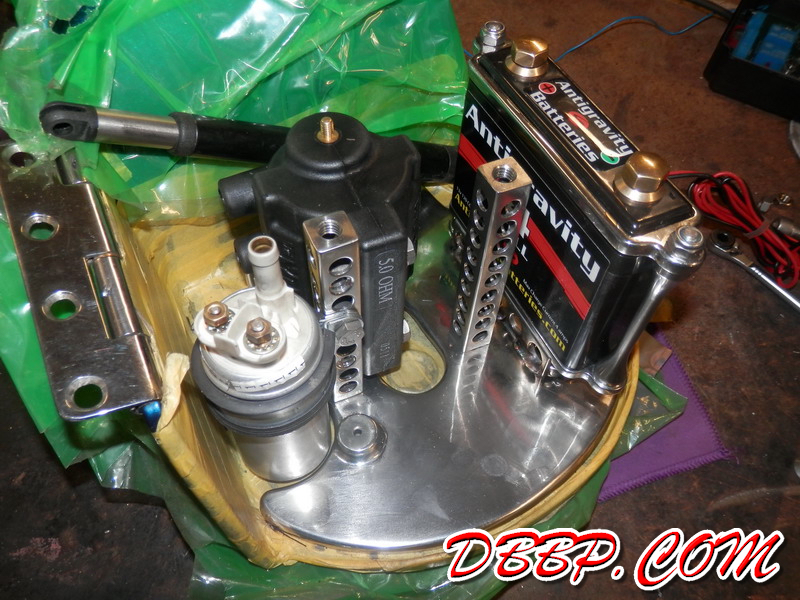

The 4 little bumps in the top 2 pictures contain small rubbermounts, so the whole plate with electronics is mounted vibration free in the tank. Aad fabricated 2 hollow rectangular spacers that will mount all the parts and all the extra holes will allow the wiring to be neatly attached.

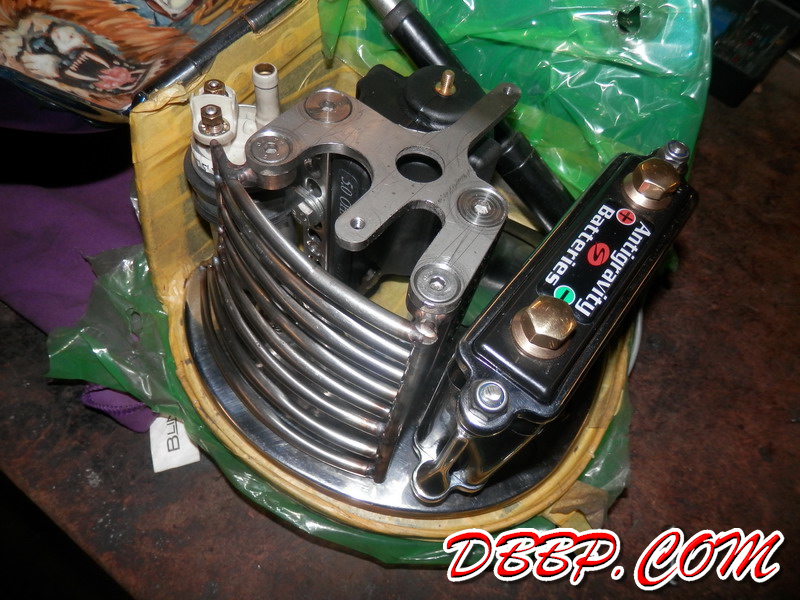

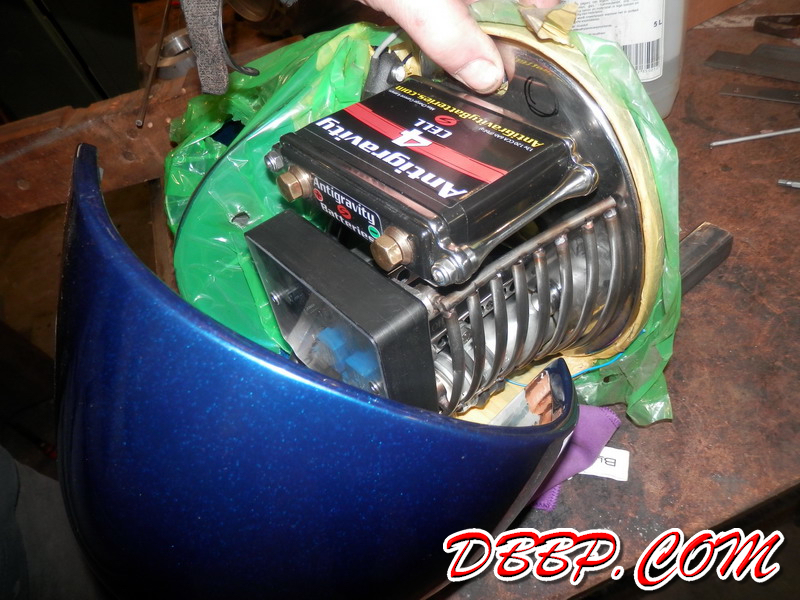

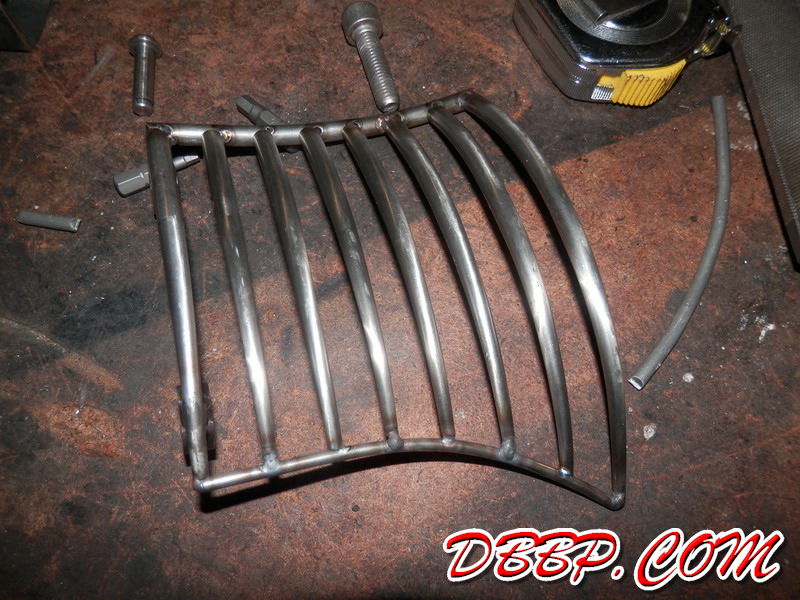

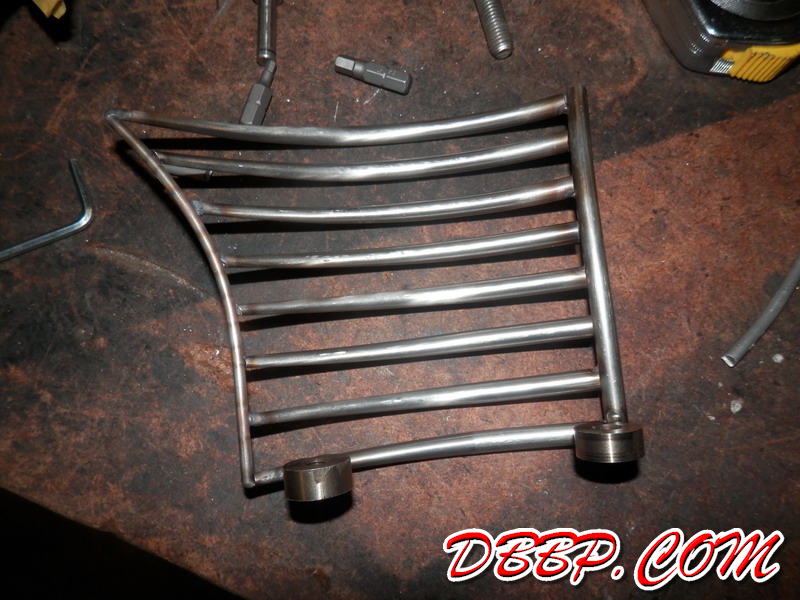

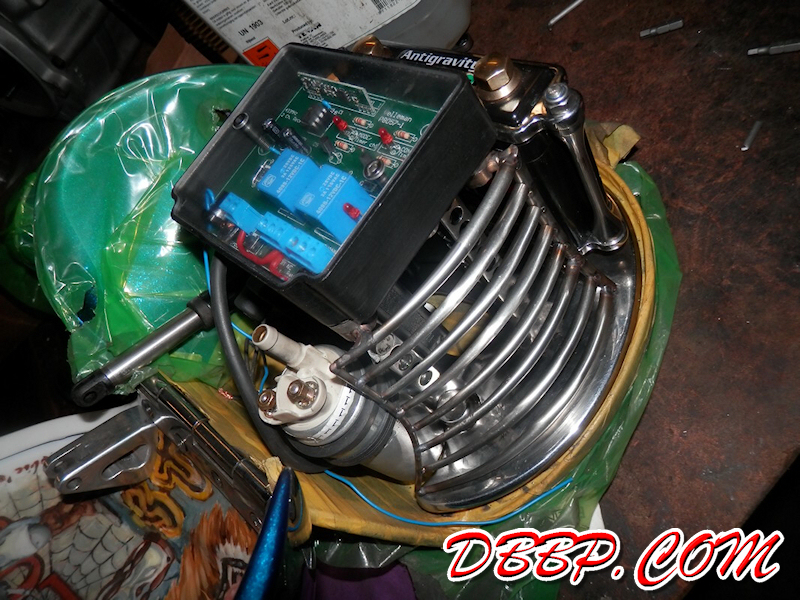

To avoid looking directly at the wiring with the tank open, we came up with the idea for a little stainless steel grille that follows the external shape op the tank. Aad machined each tapered bar of the grille on the lathe aand then tack-welded it all together. It will be a hell of a job to clean all the welds and polish the grille
