Aad's bike, Cadbike 31


CAD version here

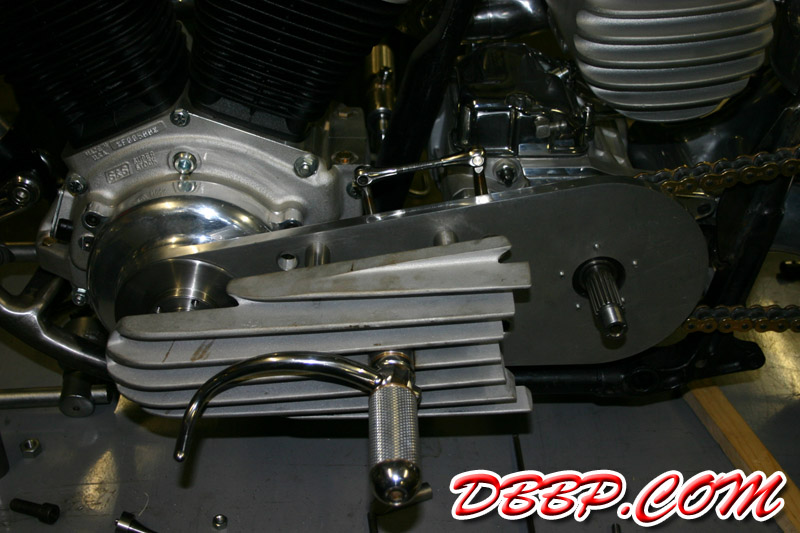

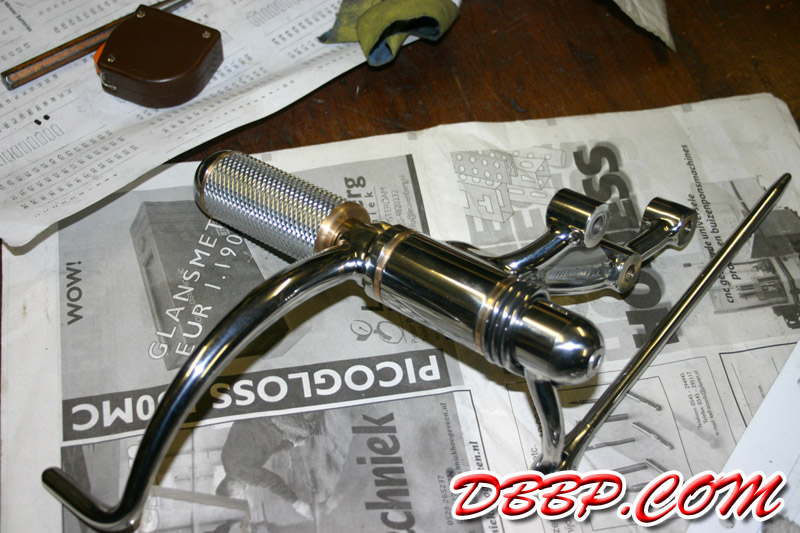

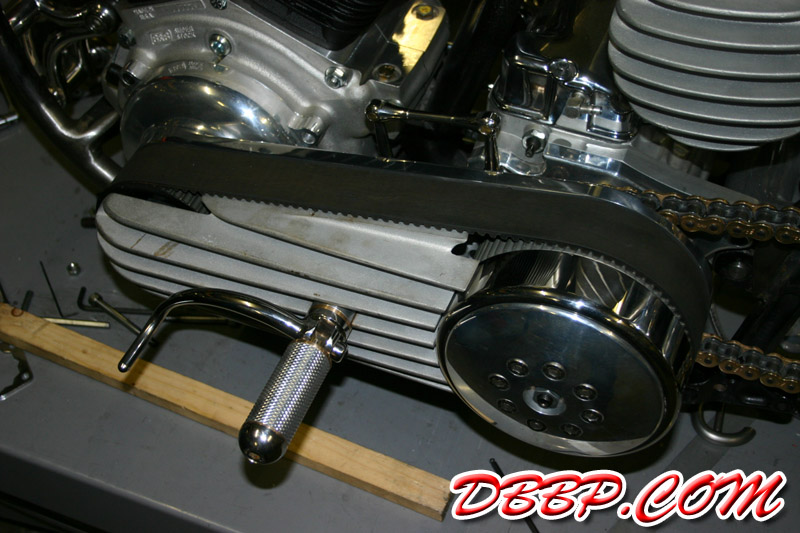

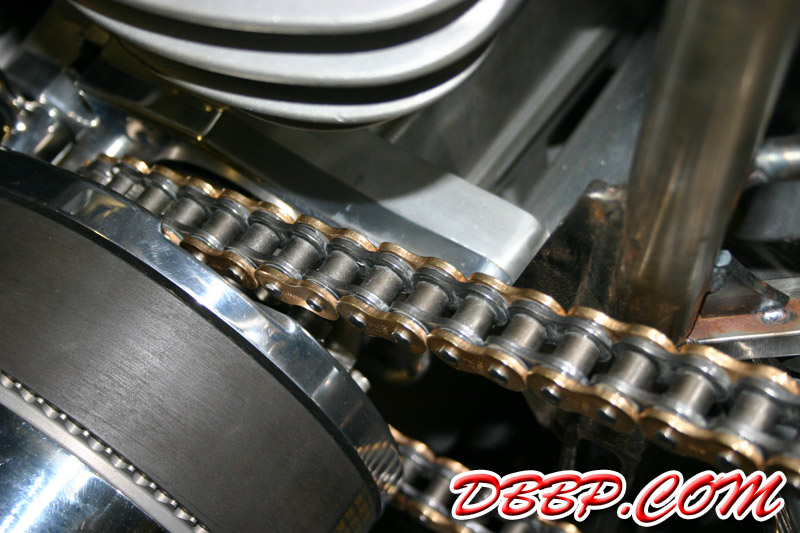

Aad completed the shift linkage, all parts made in 316 stainless steel and aluminum- bronze. To get some more clearance between chain and frame the chain was moved out a few millimeters. The beltplate was machined out to give chain clearance.

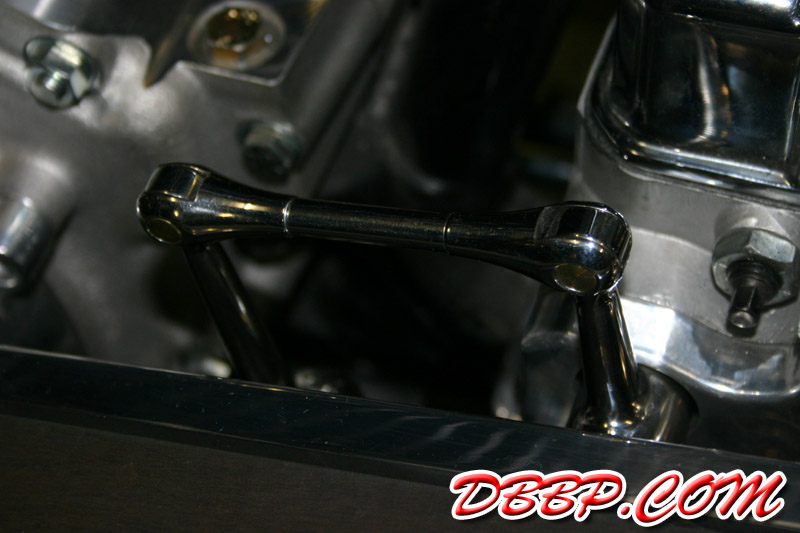

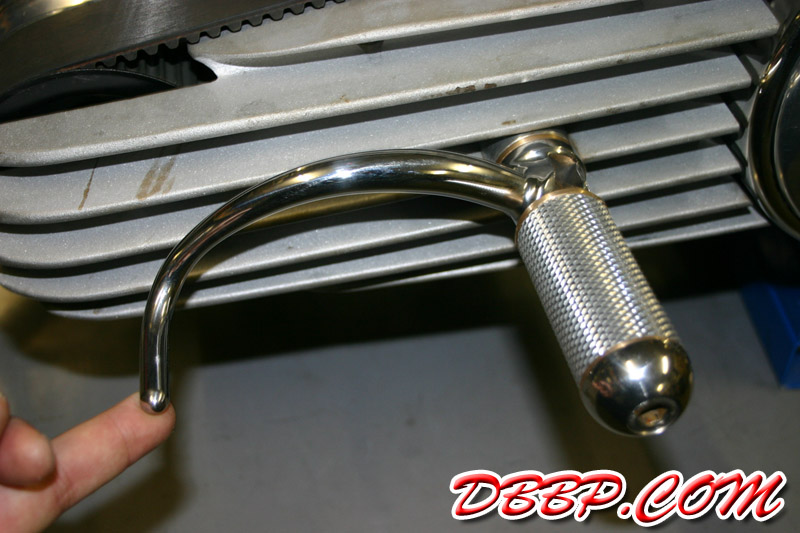

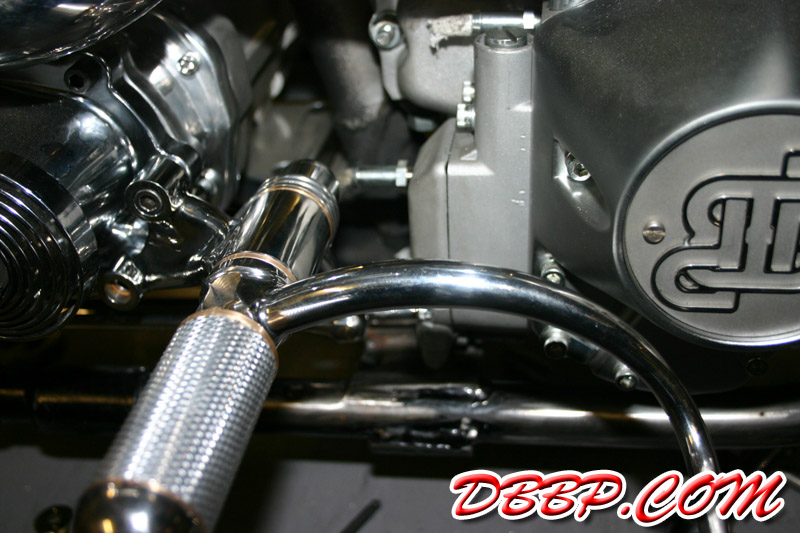

On the shifter side we deliberately exposed the linkage instead of hiding it,
we think the moving mecahanism looks cool!

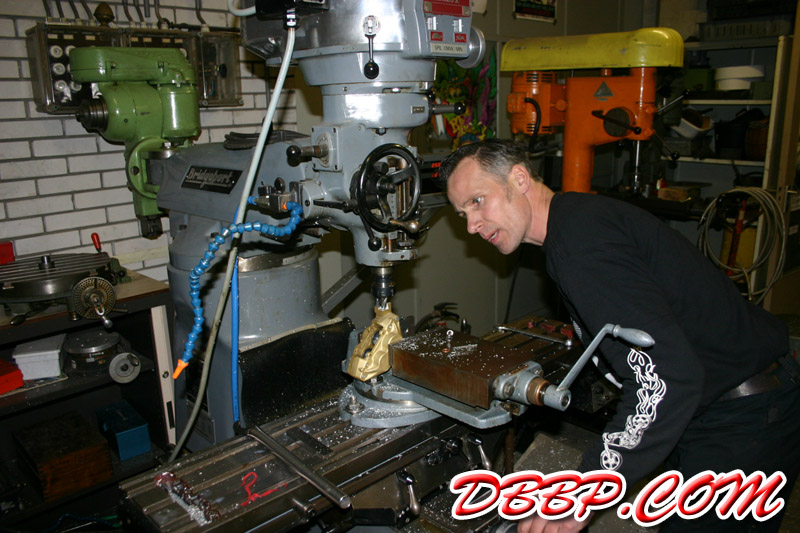

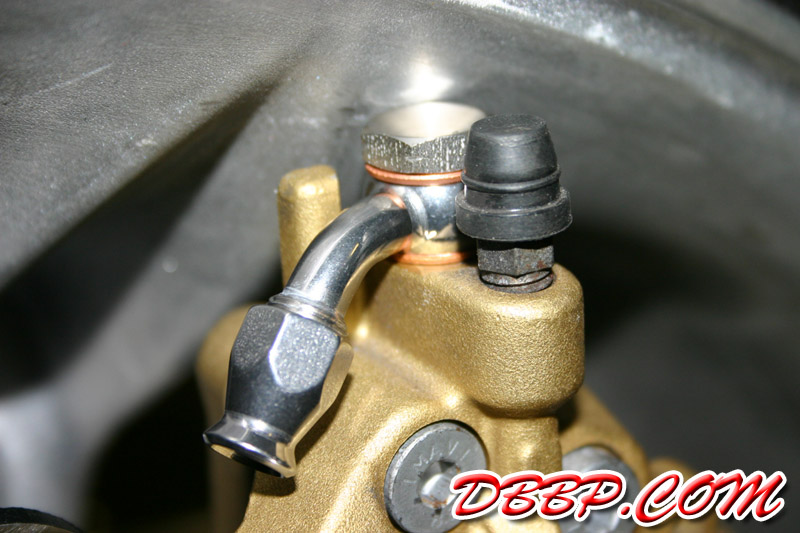

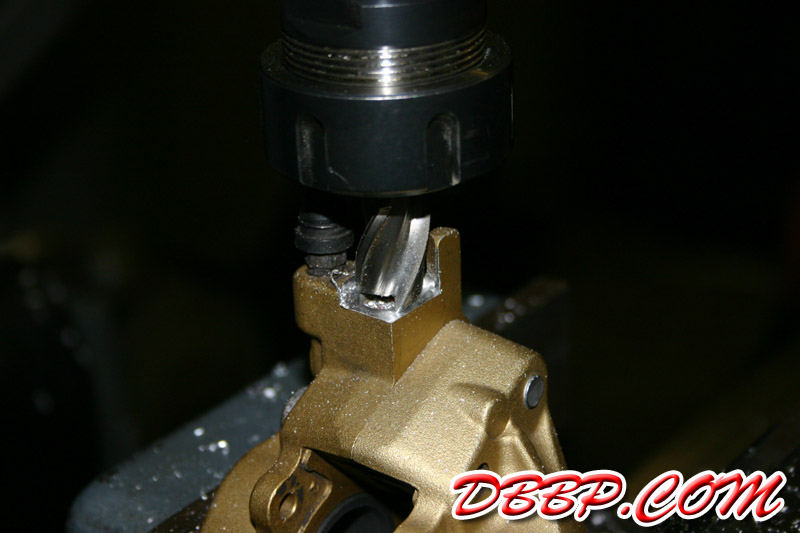

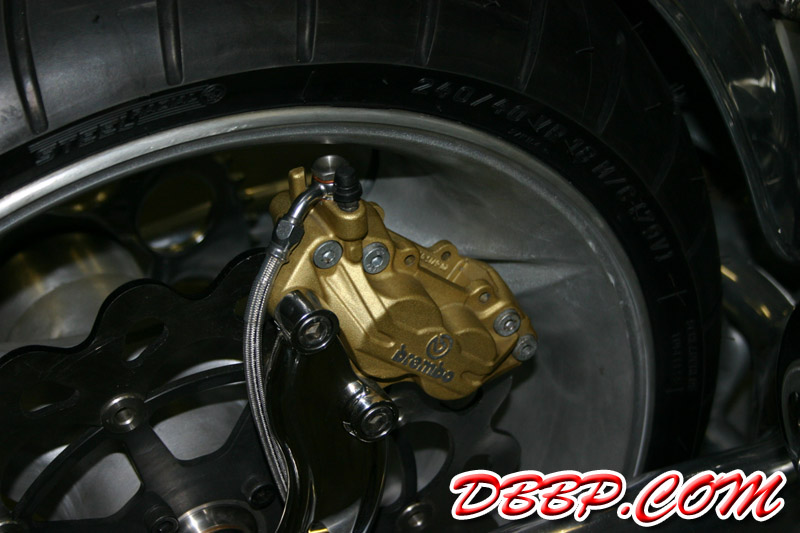

There was not enough room for the brakeline so Aad machined a few millimeters off the Brembo brake caliper, now it fits perfectly.
