Aad's bike, Cadbike 31


CAD version here

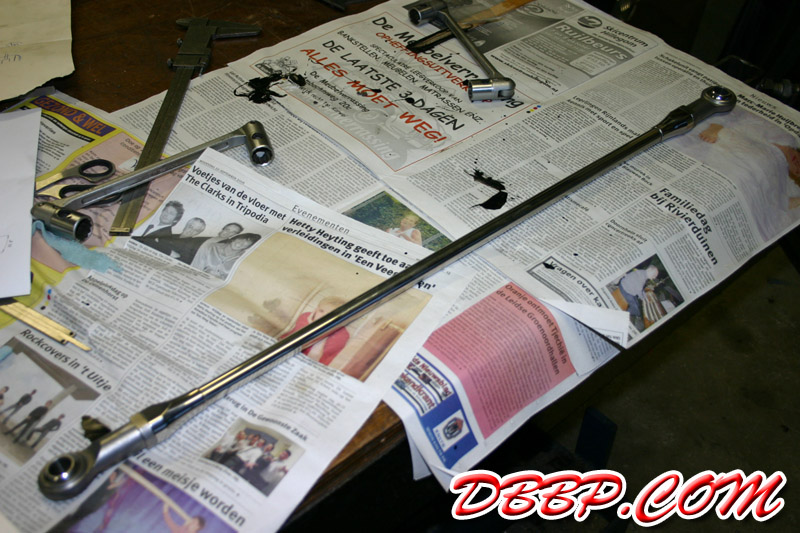

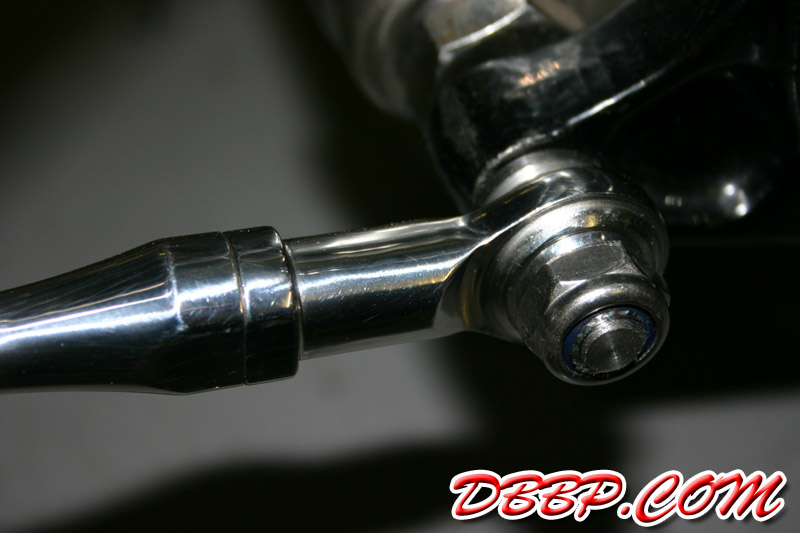

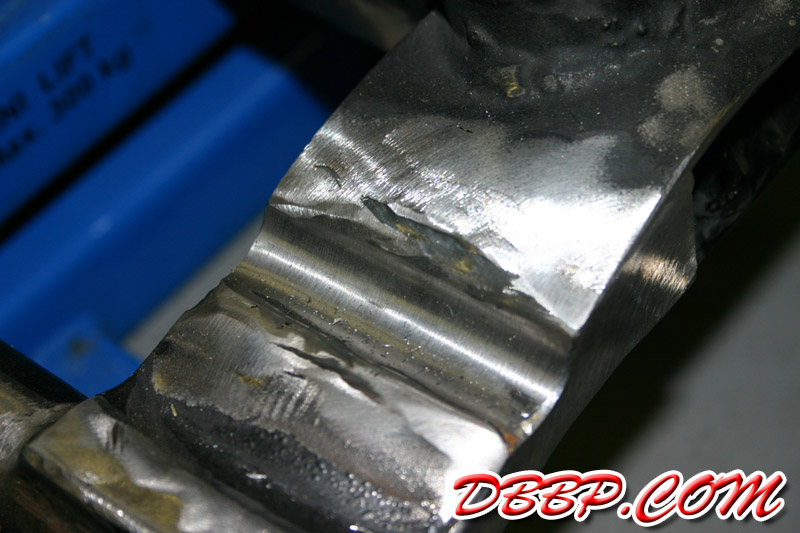

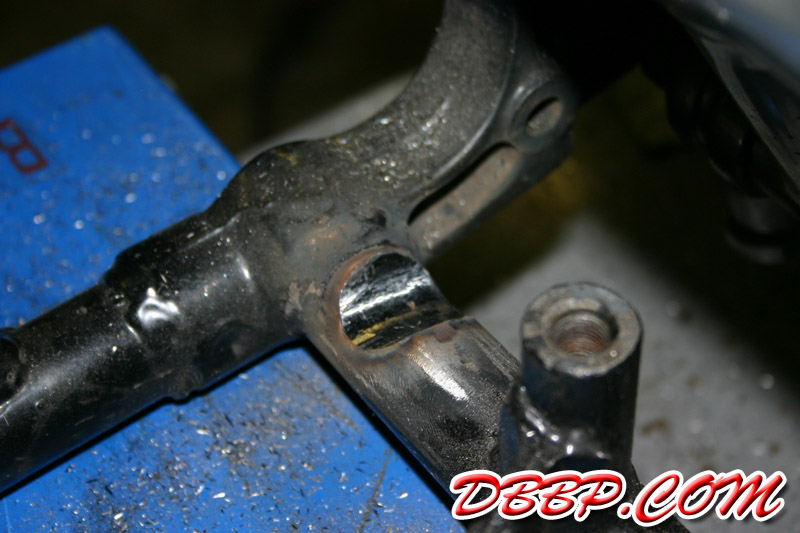

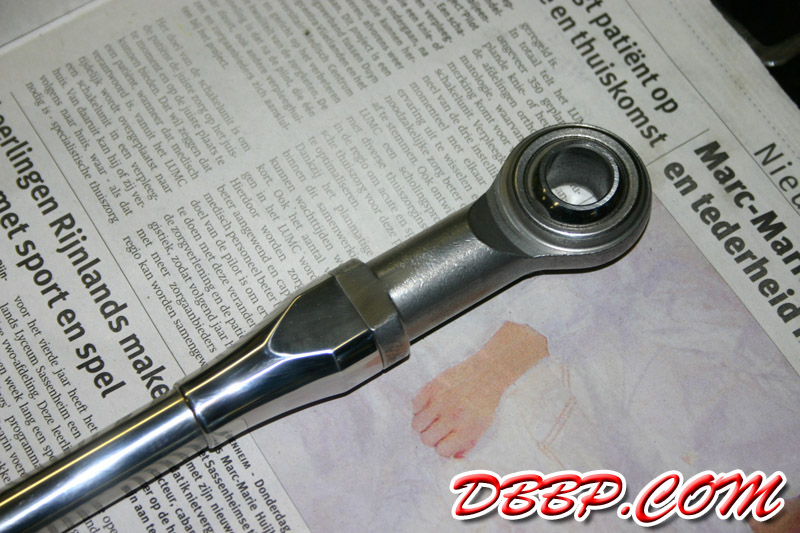

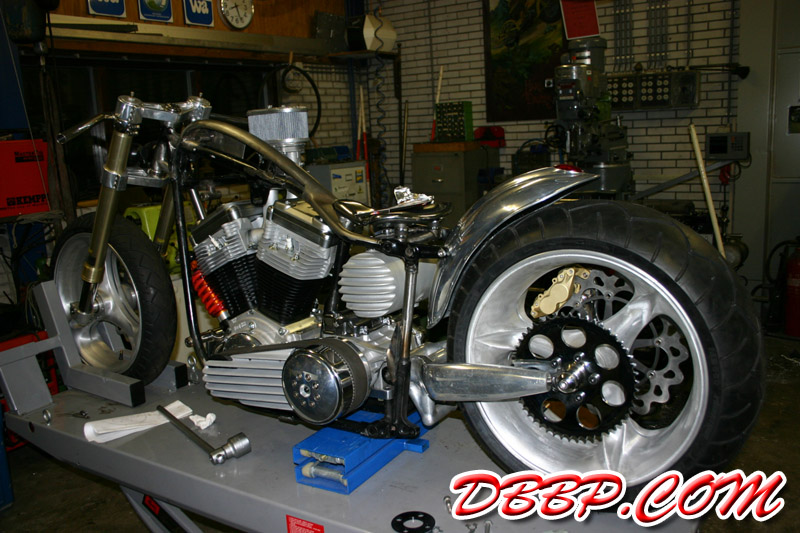

The frame needed to be notched for the "Britten style" rear suspension so Aad welded in some reinforcements. The swingarm pulls on the rod in the pics below, which pulls on a "rocker" near the front motormount, which compresses a single shock that is mounted on the front downtubes.

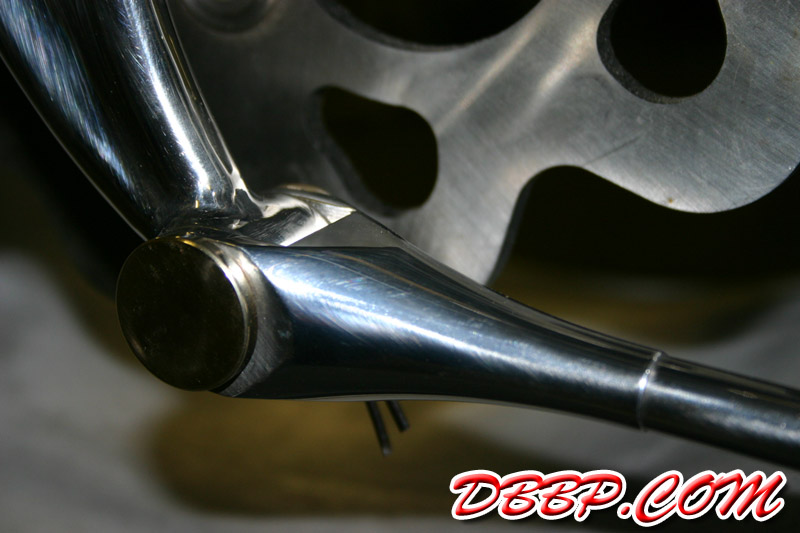

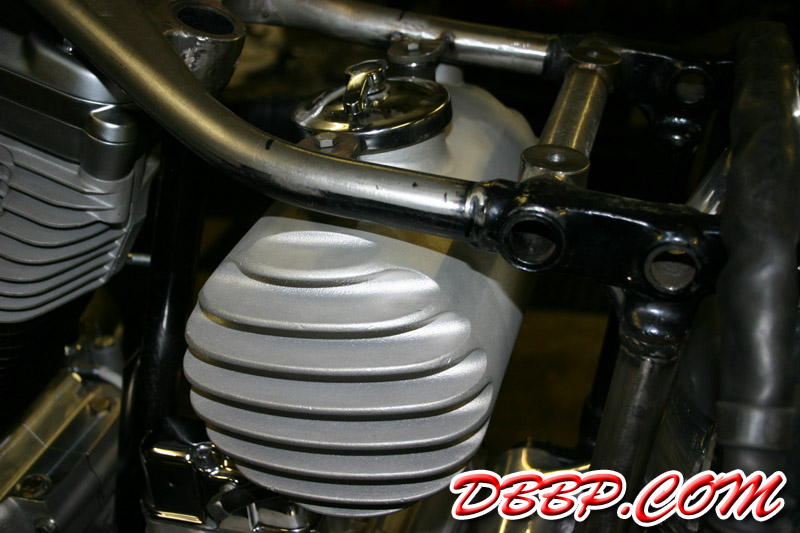

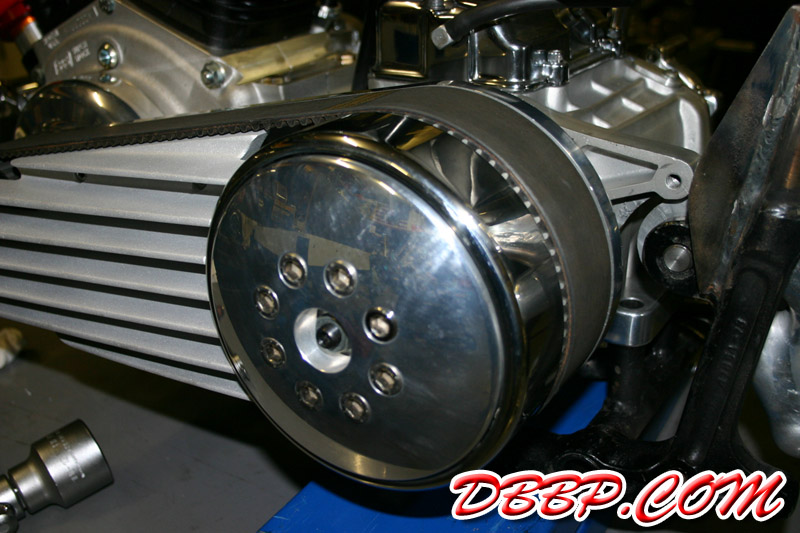

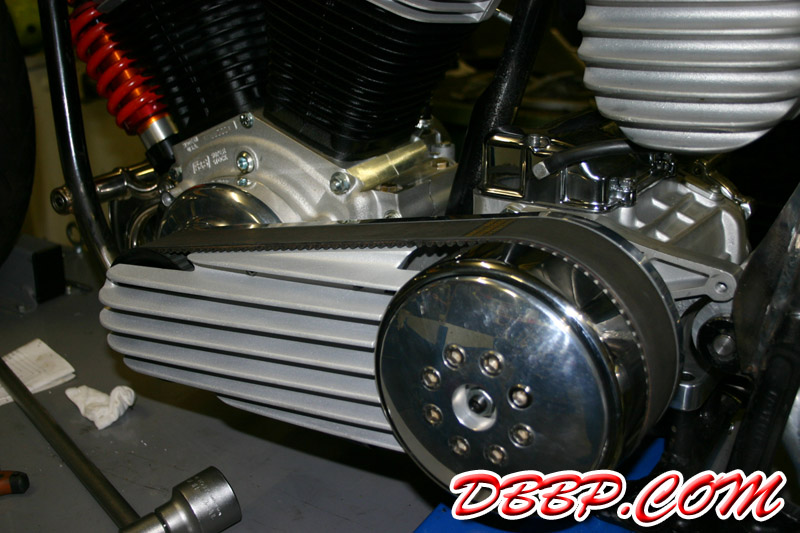

Aad completed the clutchplate I designed to replace the ugly Rivera item. He also fabricated a stainless steel rod that connects the rear brake to the frame instead of the swingarm, to reduce the reaction forces from the rear brake. The oiltank was moved forward a little bit 'cause it looks better that way....
