Aad's bike


CAD version here

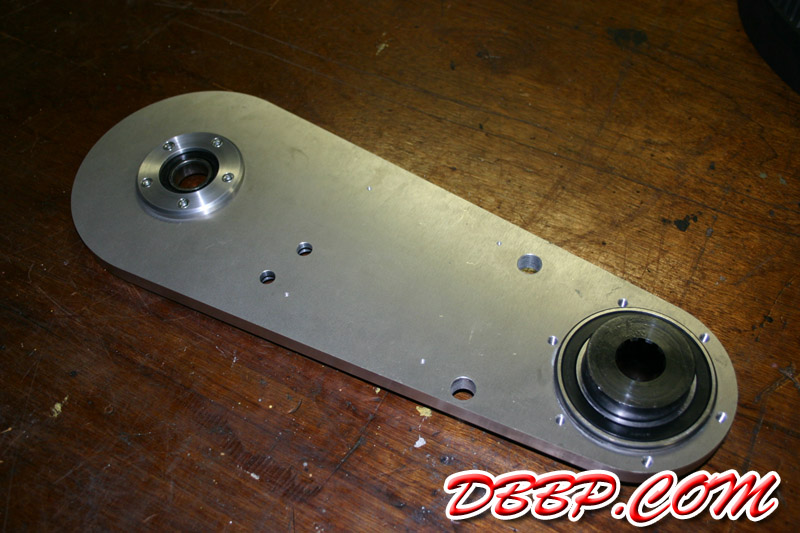

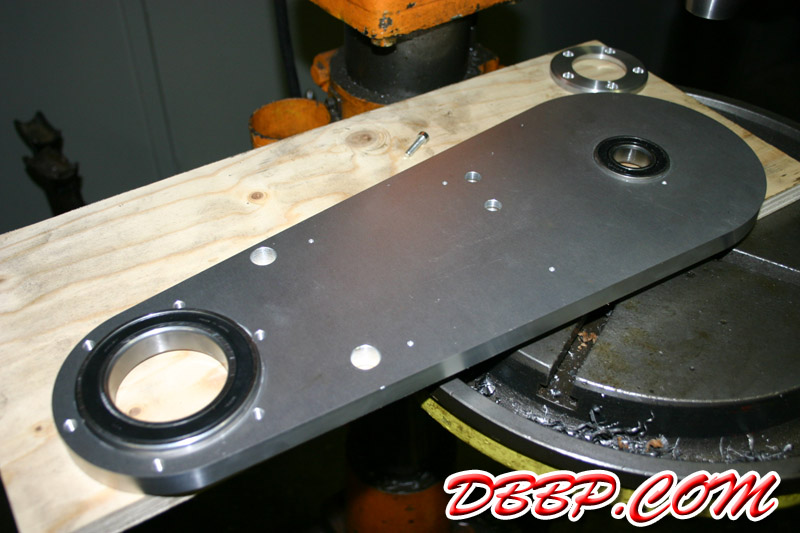

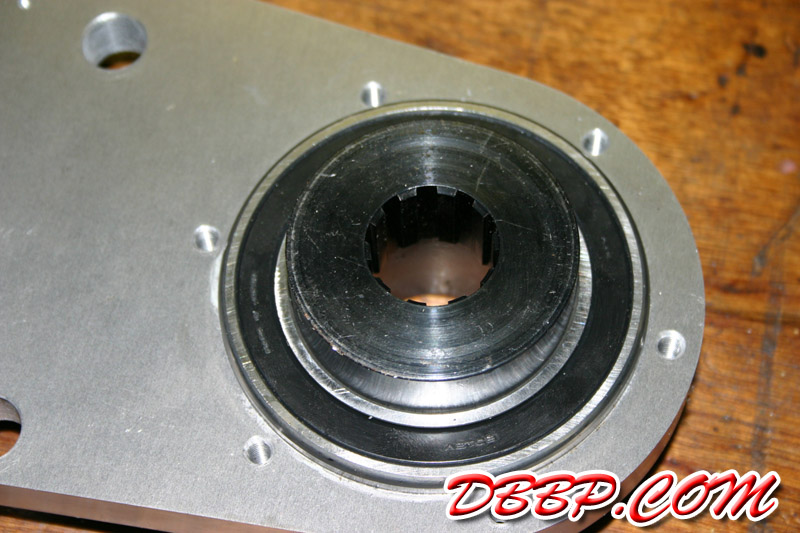

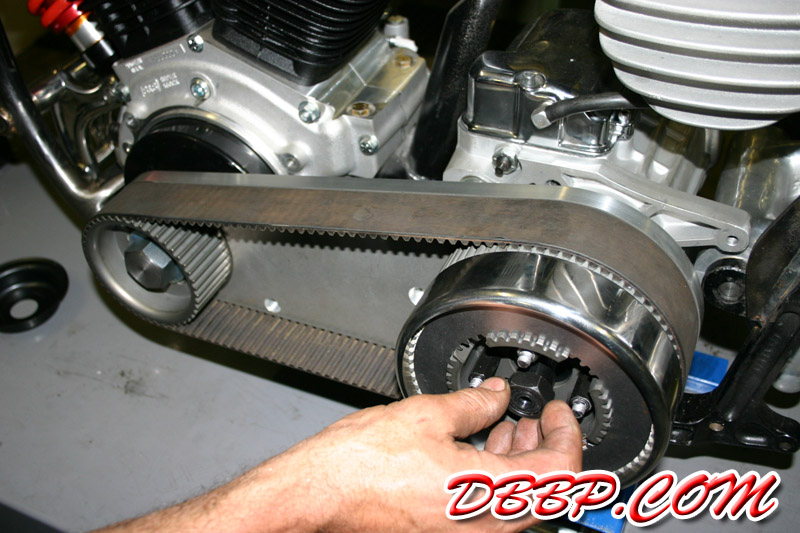

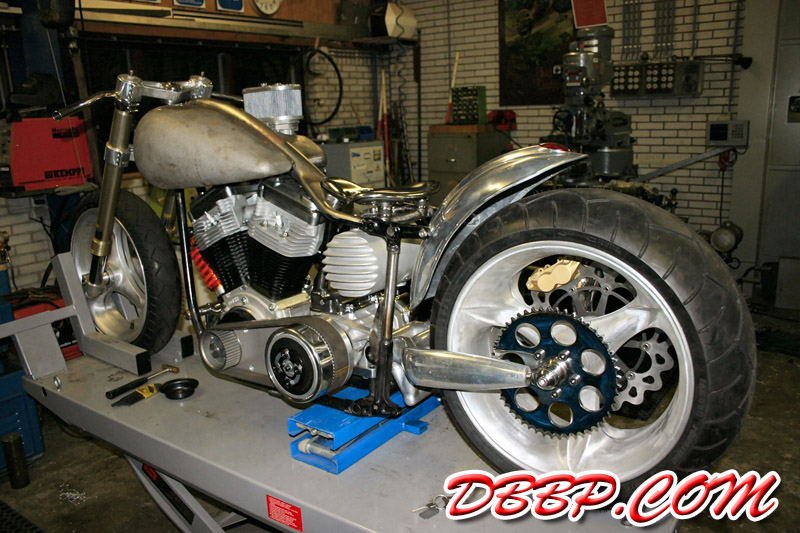

Because the whole belt and gearbox have been offset 0.810" we decided to put an extra bearing behind the front pully. This bearing is mounted around the offset spacer and sandwiched between our new beltplate and the alternator cover that Aad is machining.

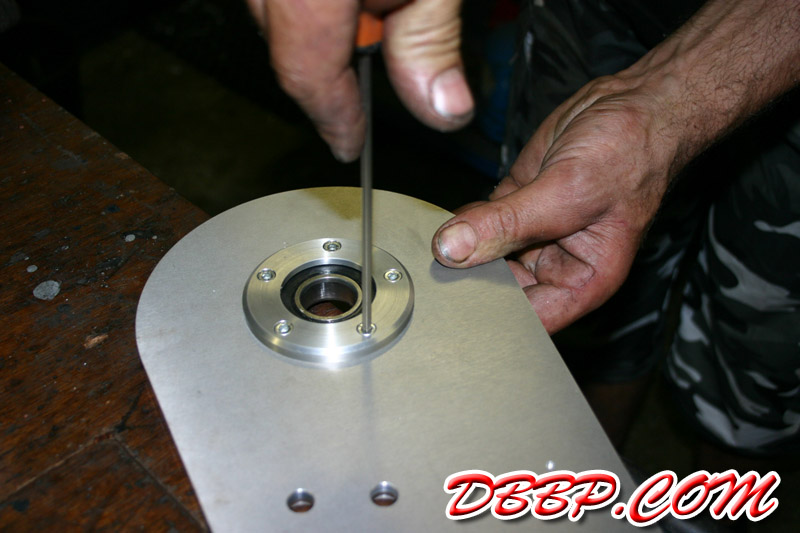

The rear pully bearing is also mounted in the beltplate, and held in place by a little cover.
