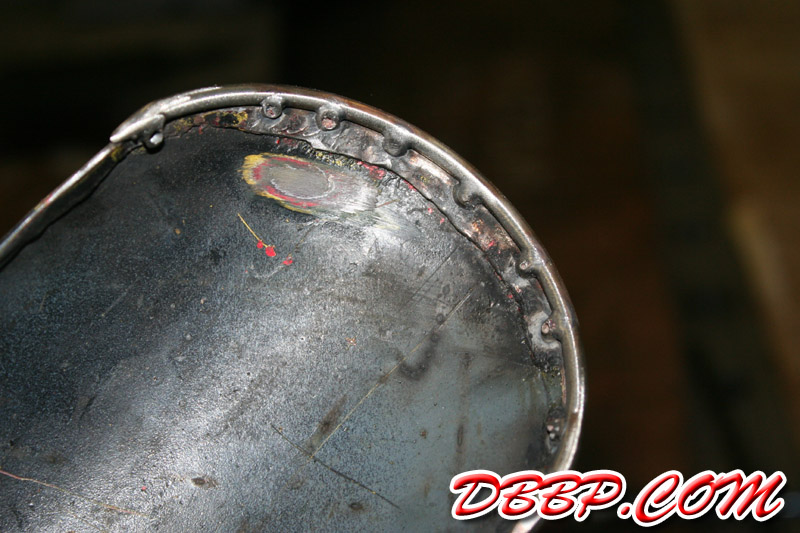

Added the mandatory round front edge to the frontfender, ready for paint again.

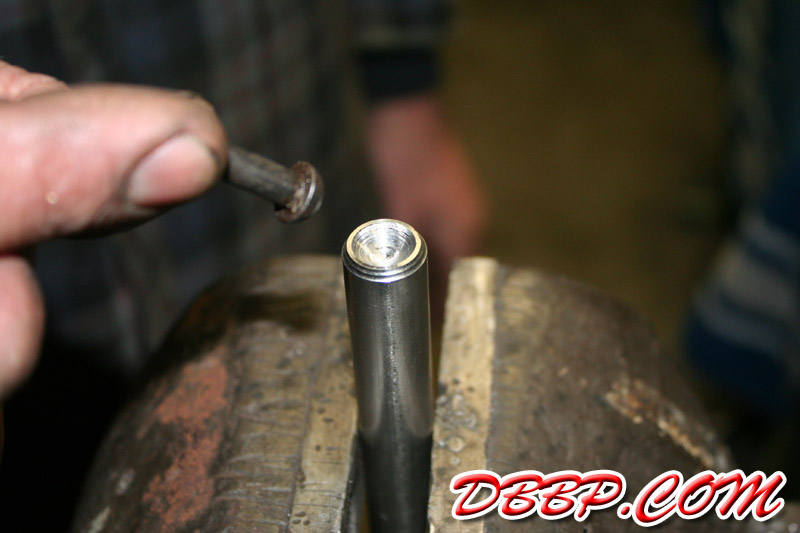

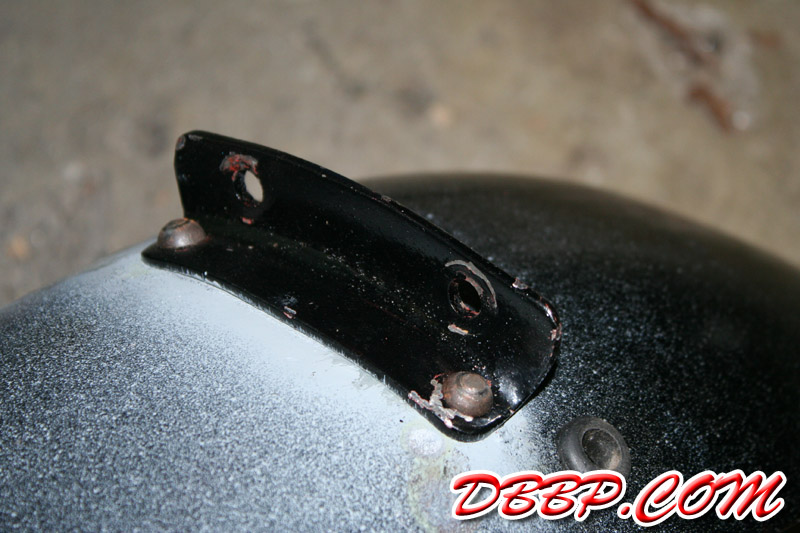

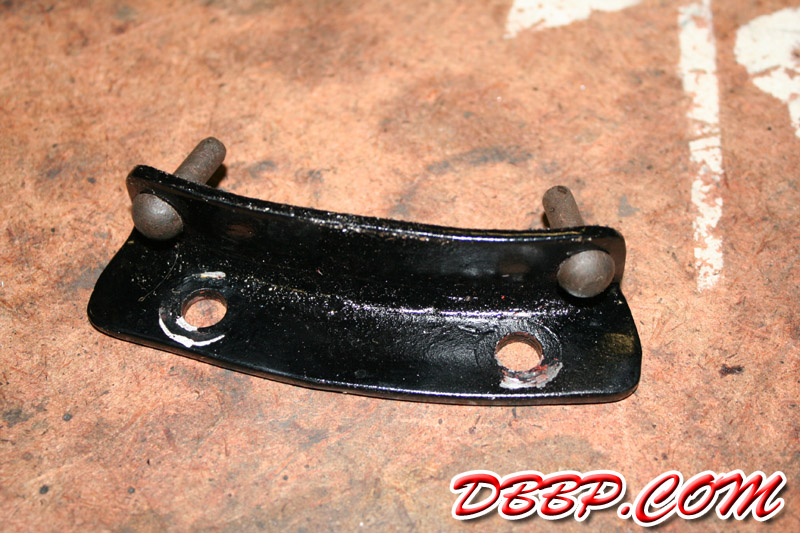

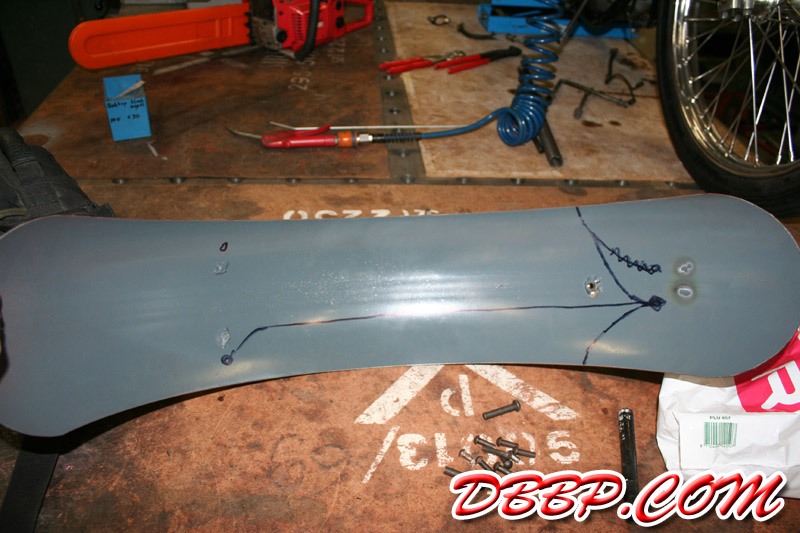

Aad riveted the rear fender bracket on, I like the look of rivets and they will definitely

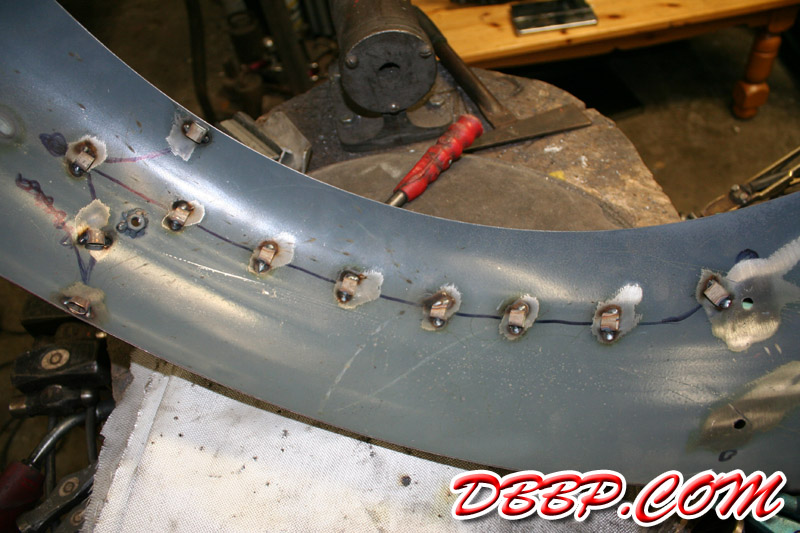

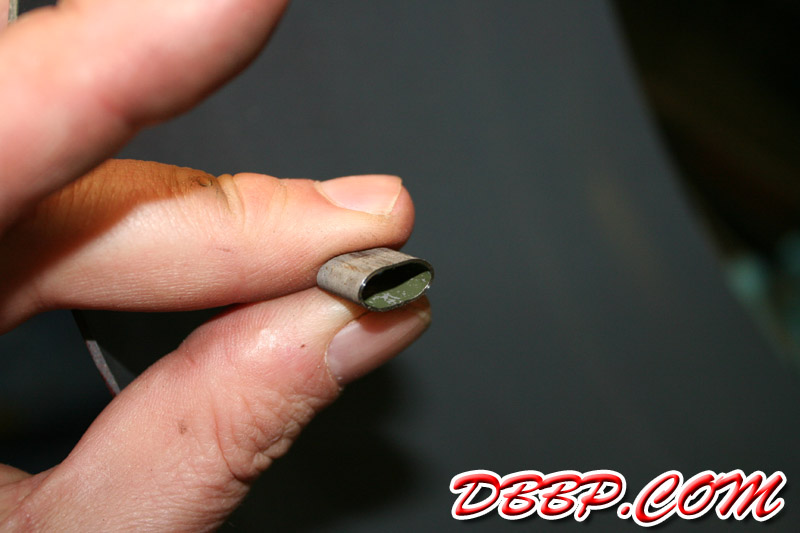

not vibrate loose! We cut about a dozen short pieces of thin stainless tube, and Aad
tackwelded them in the inside of the rear fender. The wiring is my job.

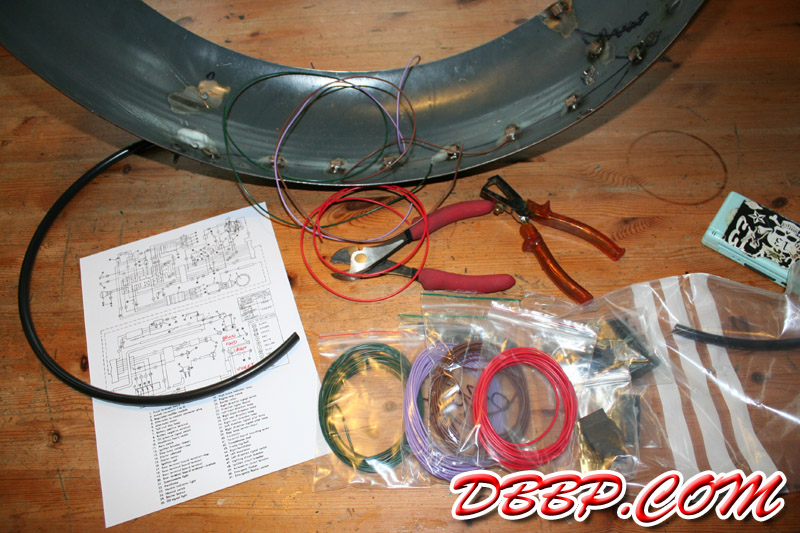

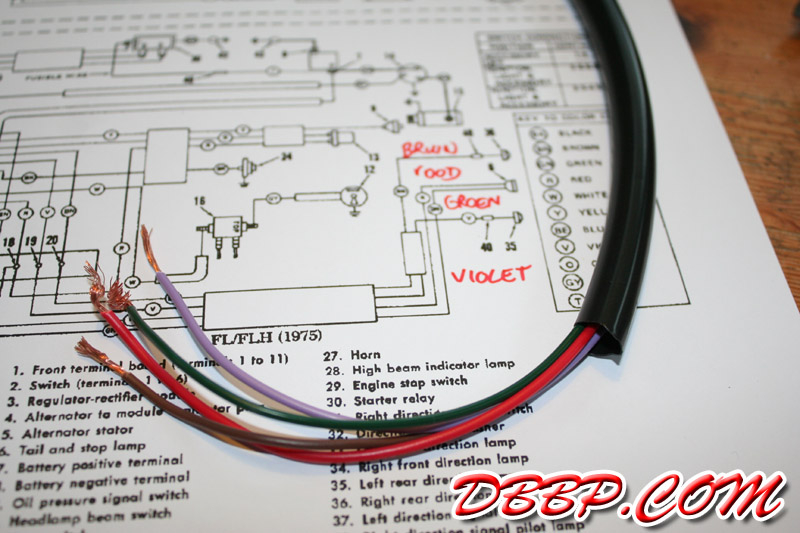

I am making a simplified version of the stck wiring loom, using the stock wire colors

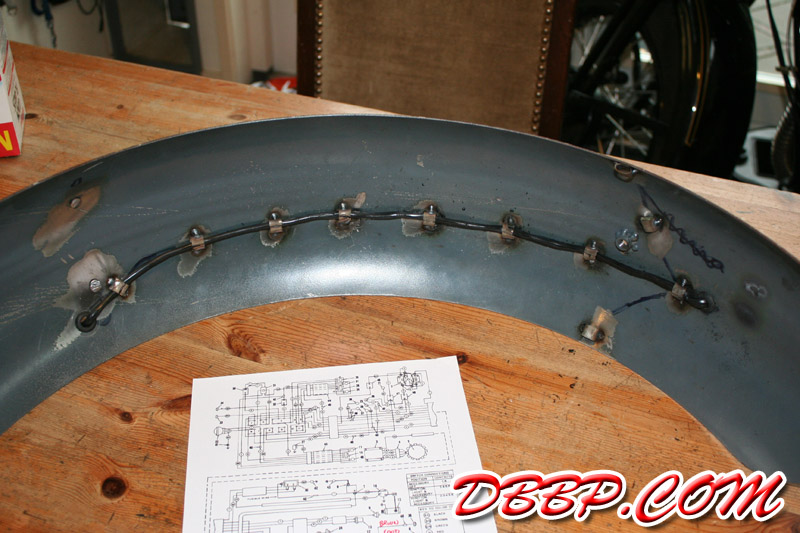

so in future it will be easier to figure out what is what. The wires for taillight, brakelight
and rear indicators are shrinkwrapped together and installed through the stainless tube
sections in the rear fender. Then the tube sections are flattened a bit more to hold

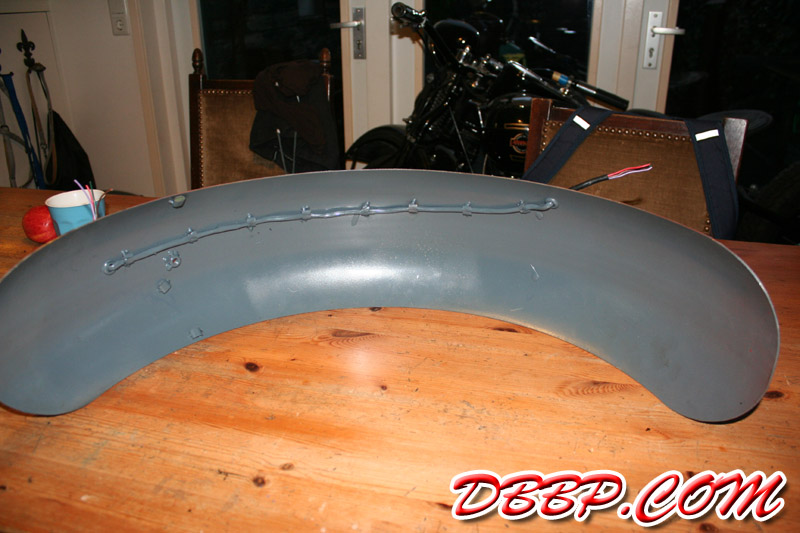

everything in place and for maximum tire clearance. Rear fender is also ready for paint.
