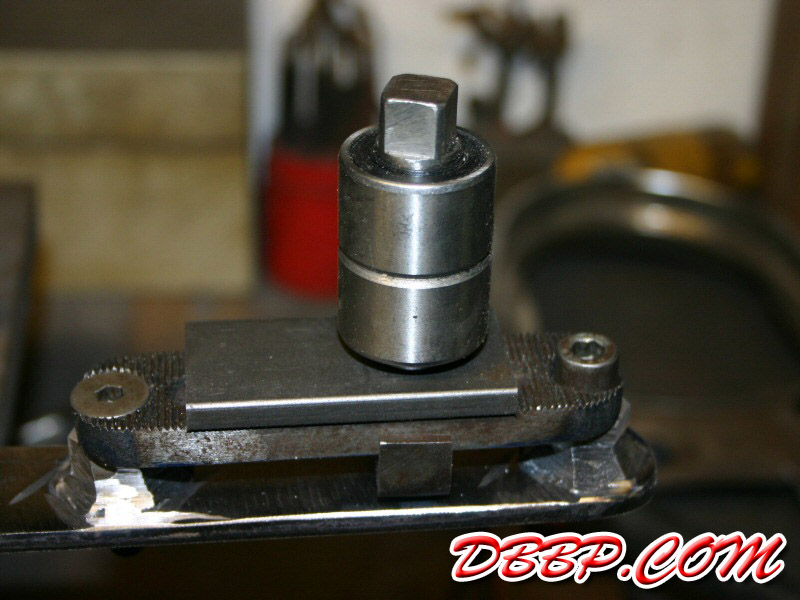

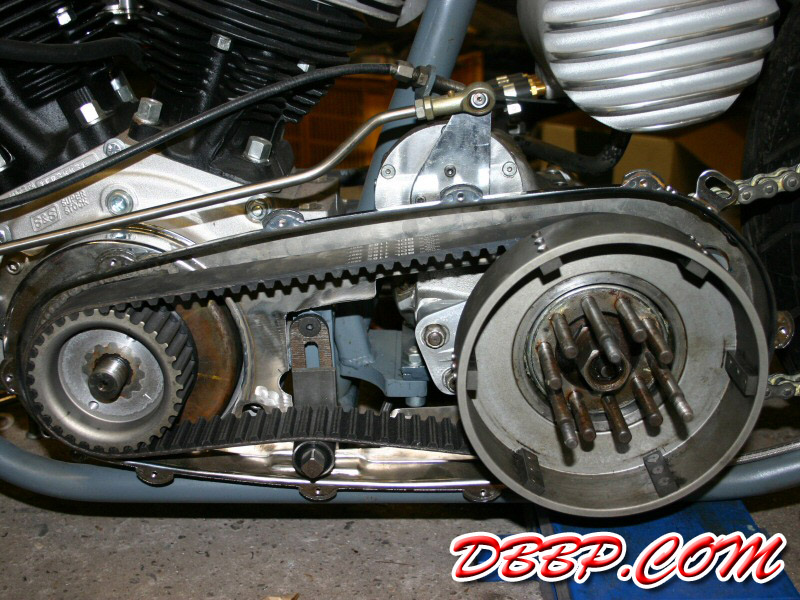

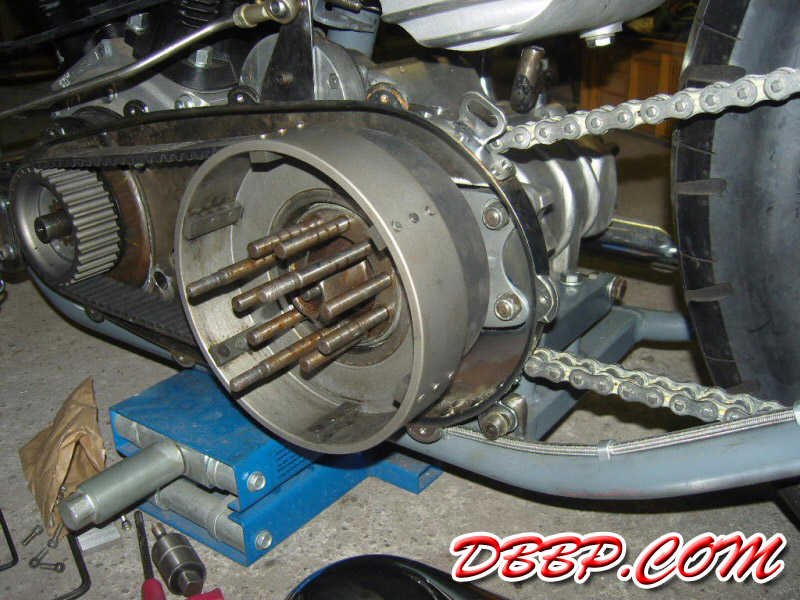

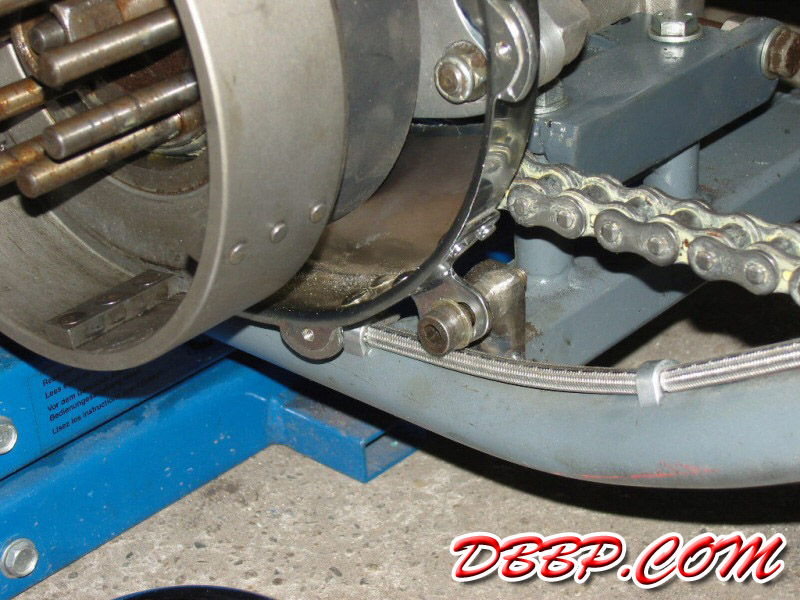

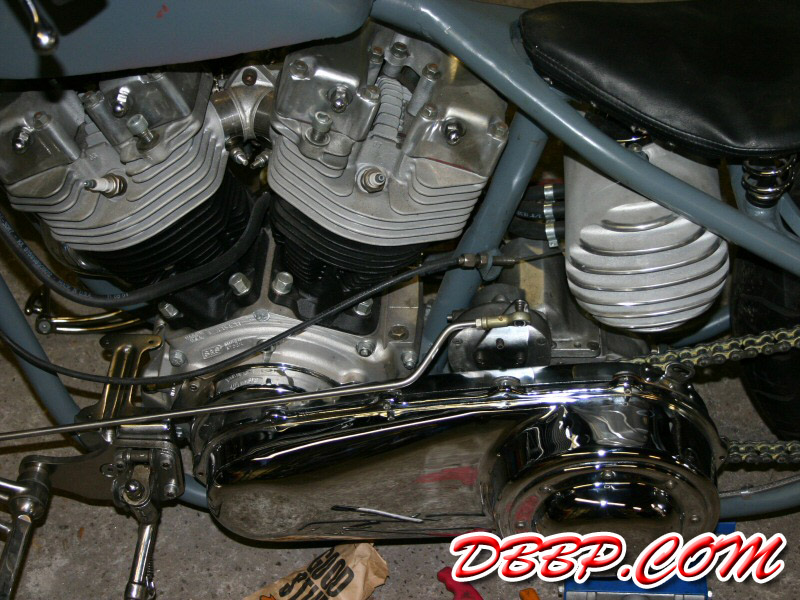

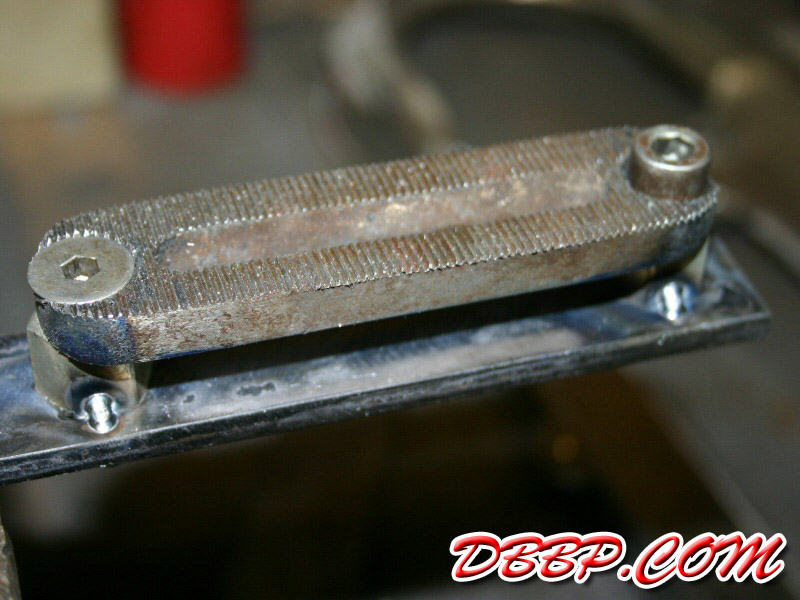

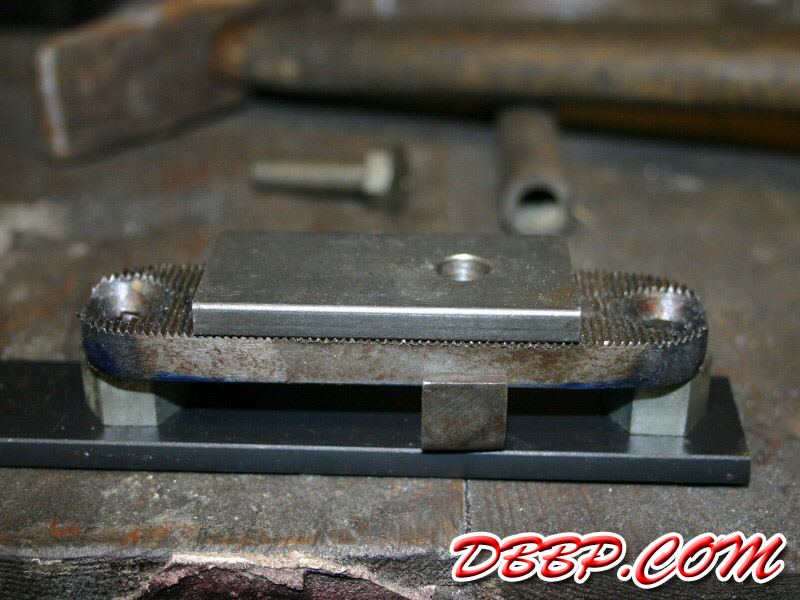

Added an extra mounting point between rear of inner primary cover and frame. Started fabricating a support for the primary belt tensioner. The inner primary is way too thin to support the belt tensioner, so I mounted the tensioner directly to the frame. It is difficult to see in the pics but the mounting bracket for the tensioner is welded to the lower frame tube and the rear motormount so it cannot flex. (This bike has no rear chain tensioners; the chain can be adjusted by moving the transmission, that is why I use a primary belt tensioner)

BEFORE   AFTER
