My BMW Bobber, part 47
CAD version here

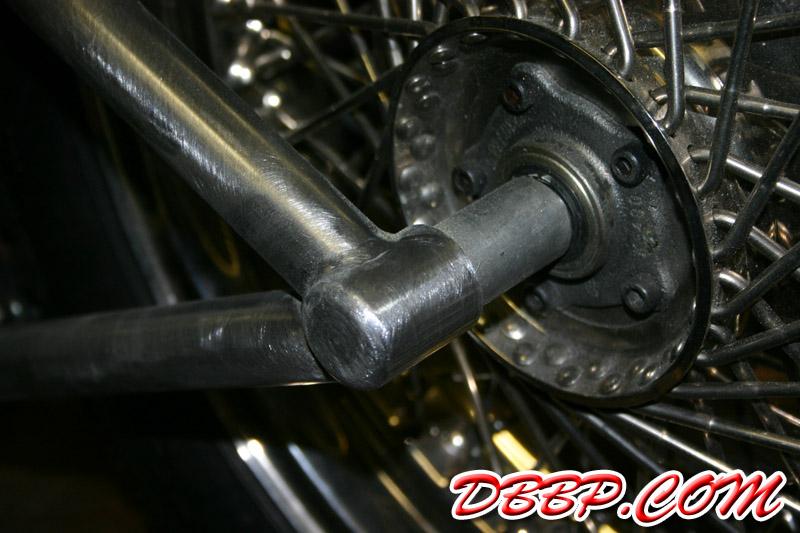

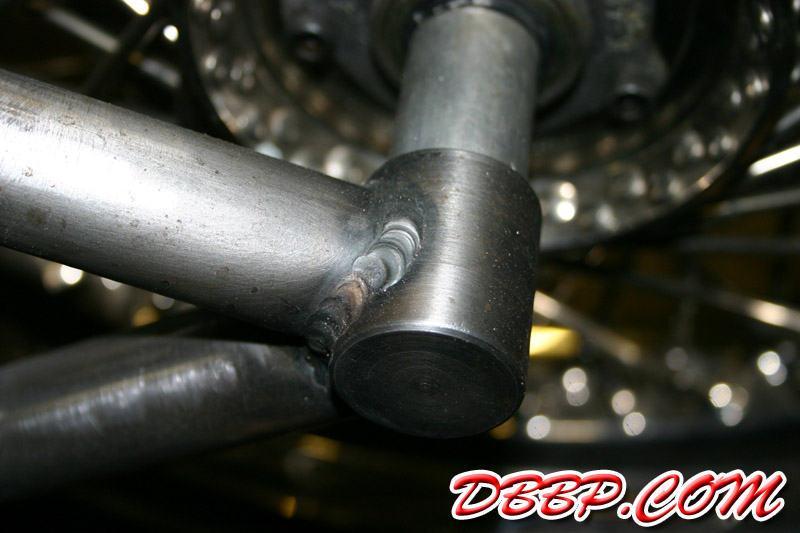

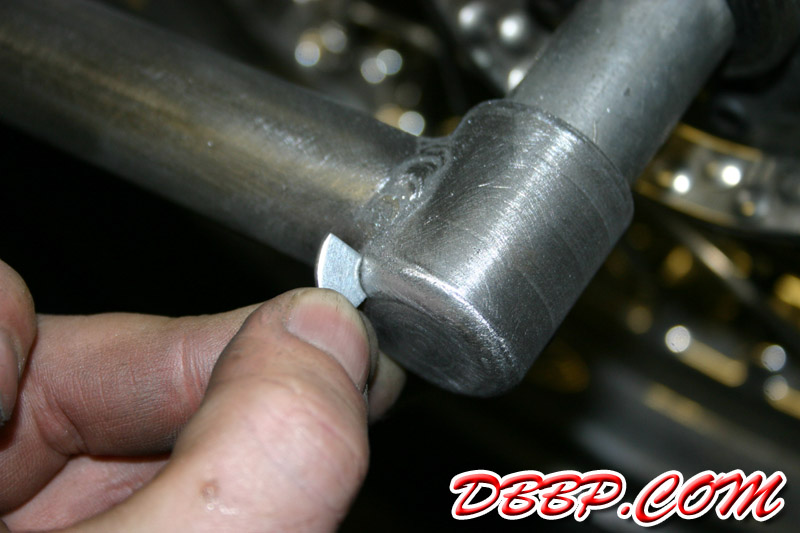

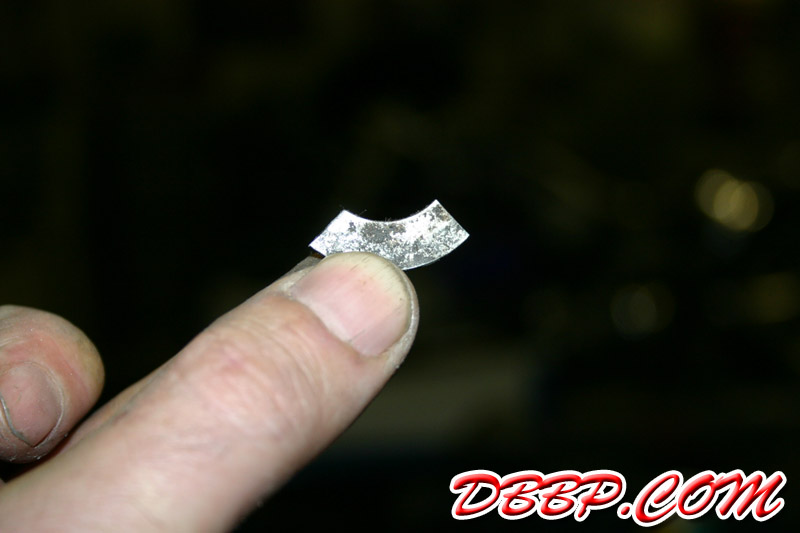

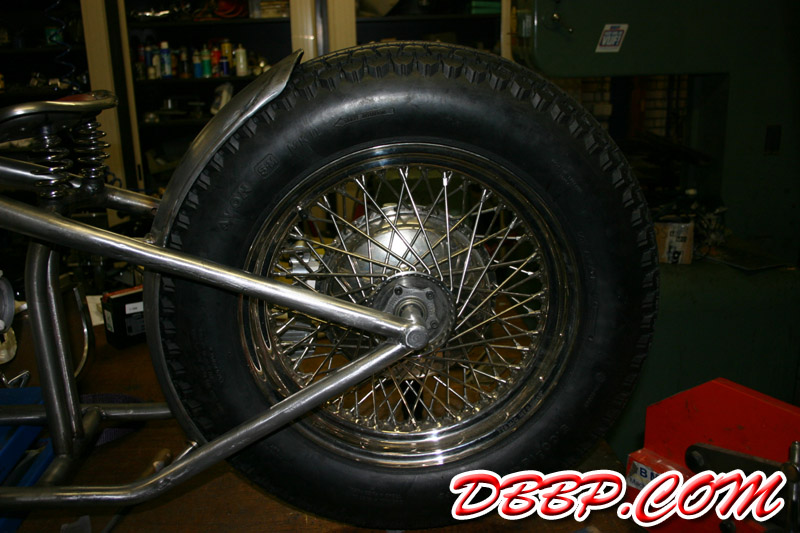

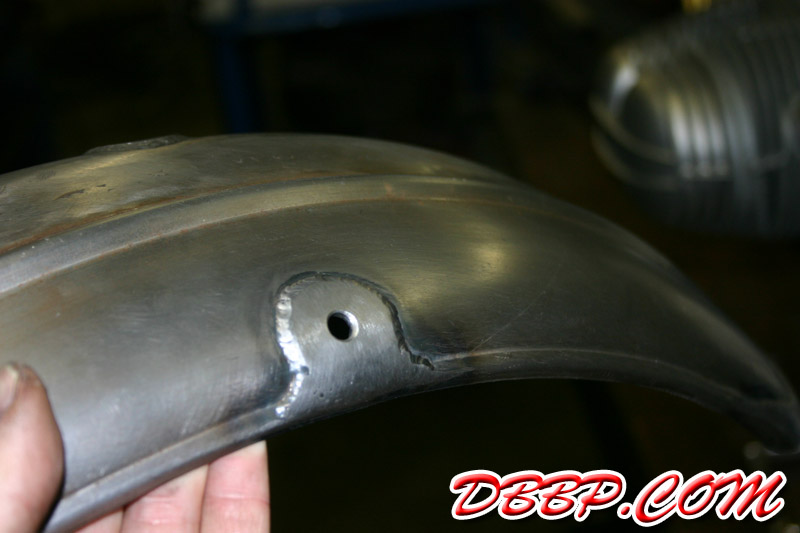

Allthough we are spending most time getting Cadbike 31 ready for the European Championships in Mainz, we have done some small things for Cadbike 33 in between too. The fendermounts have been completed, and I spent some time filing and sanding the rear axle mount on the frame, using a section of a washer as a template.

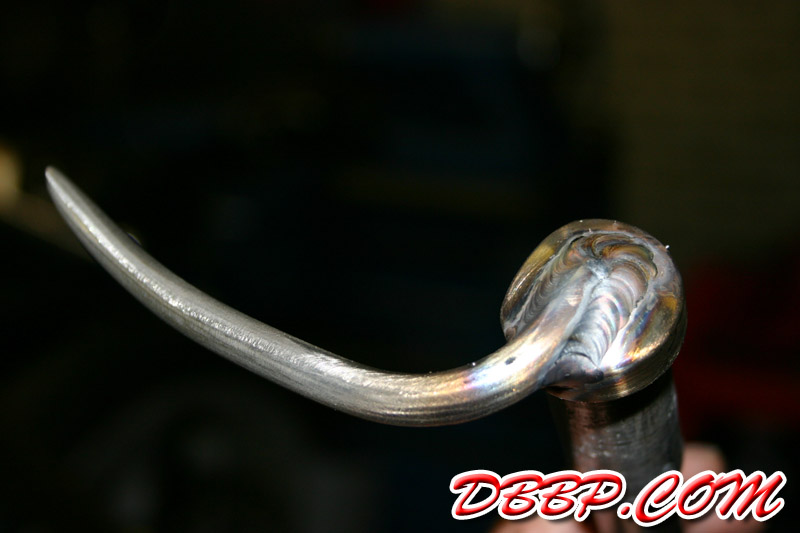

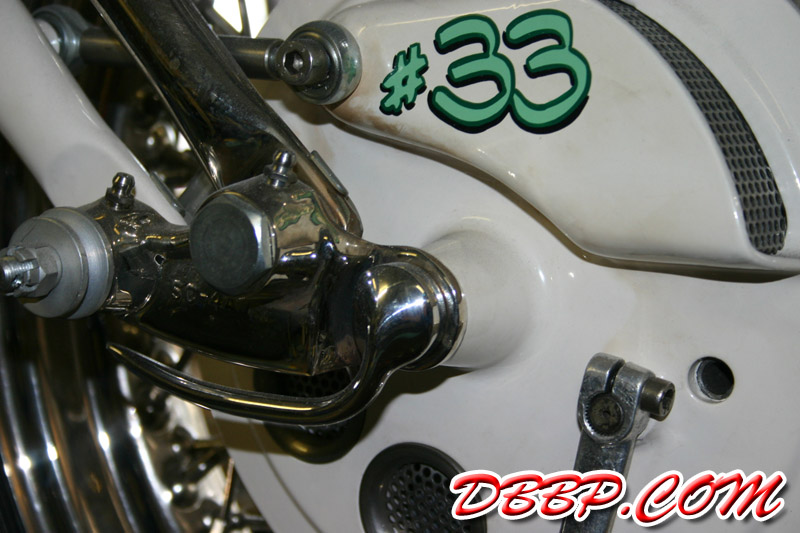

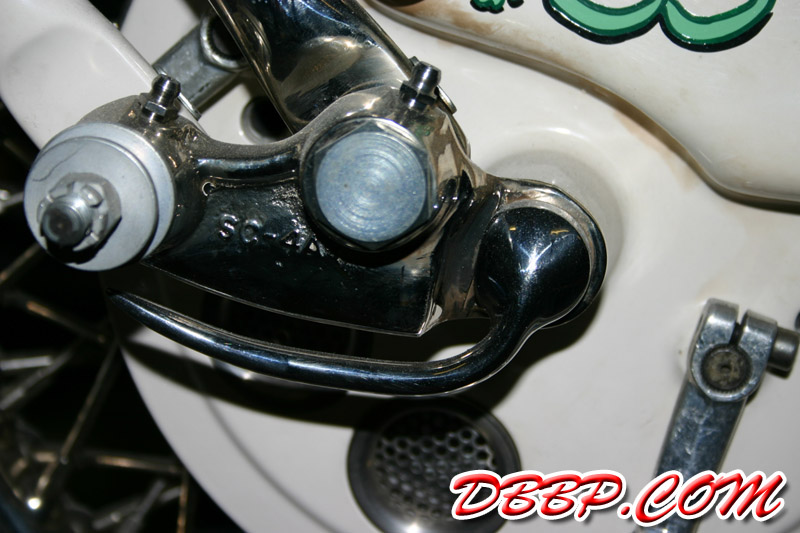

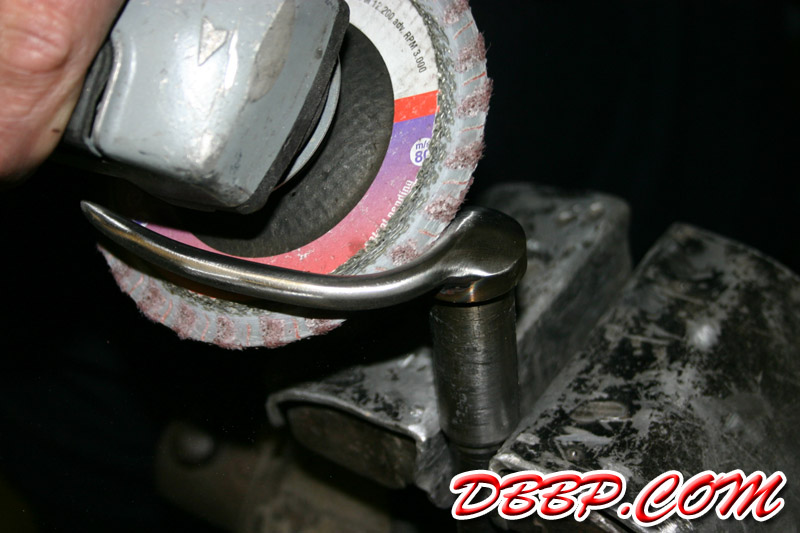

I bent and sanded a piece of round steel for the frontaxle ( to help mounting and removing the axle) and Aad did the welding and polishing.

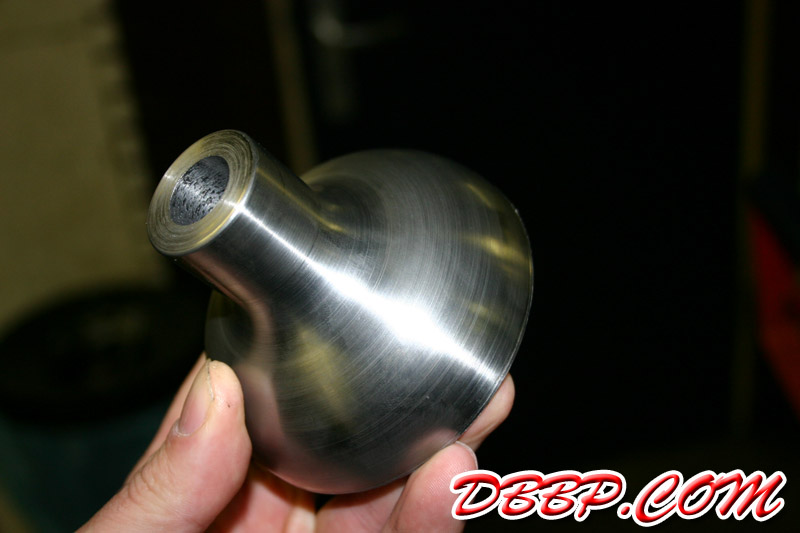

I made a CAD drawing of the front and rear wheelhub covers and Aad cut them in the CNC lathe, next week they will be polished and nickle plated.
