My BMW Bobber, part 32
CAD version here

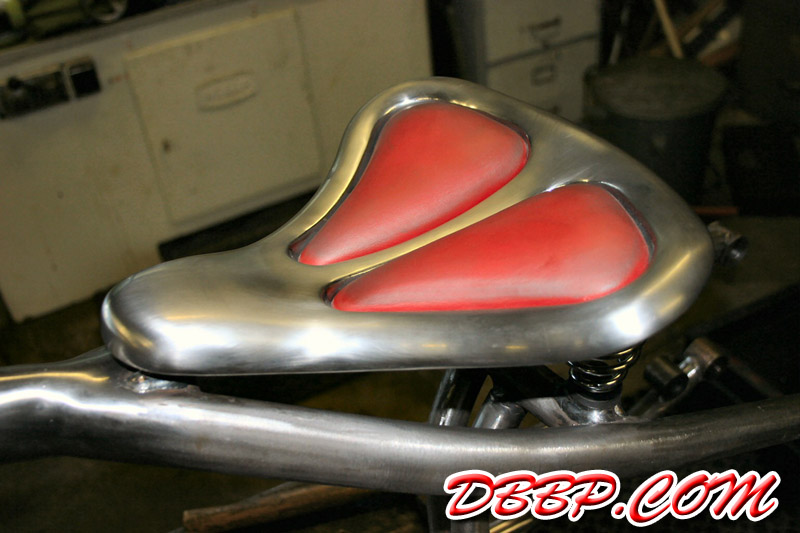

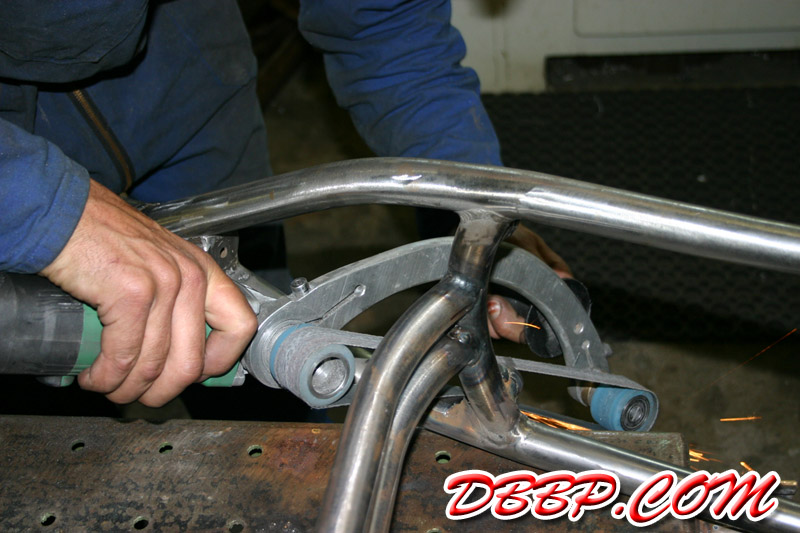

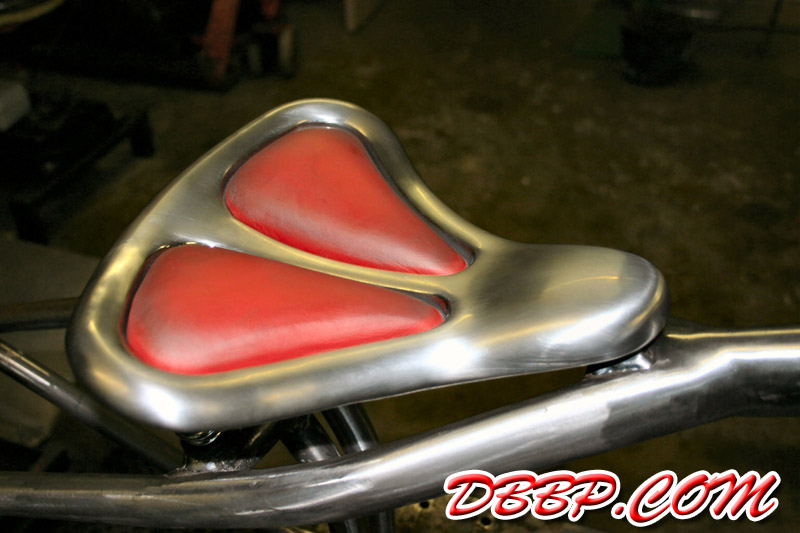

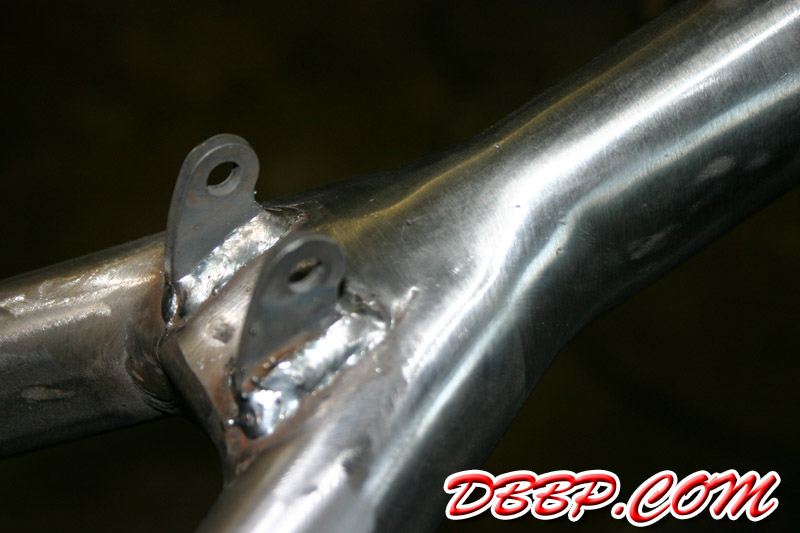

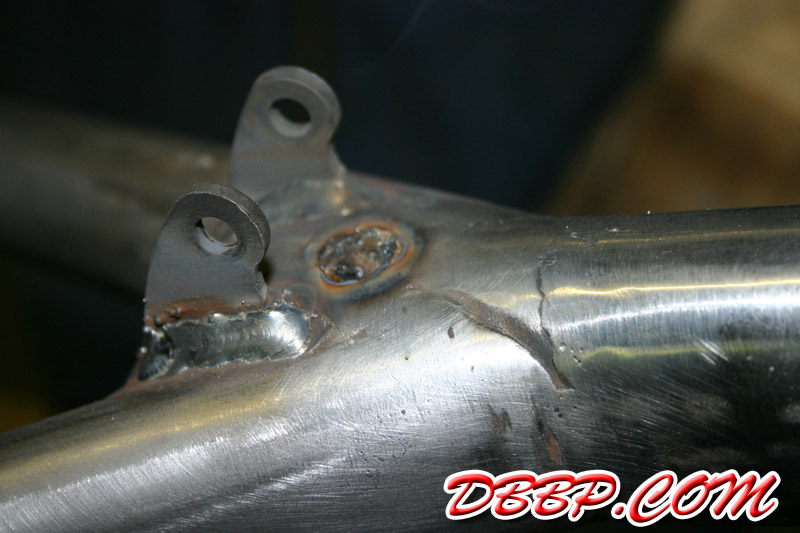

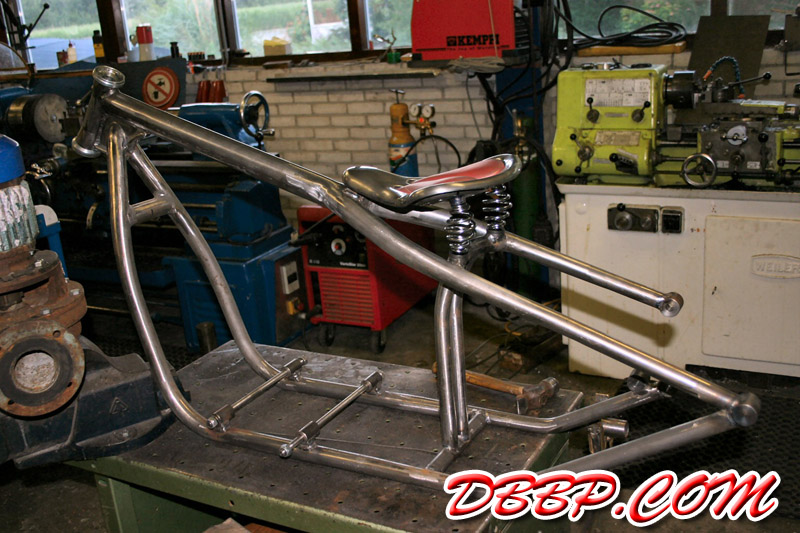

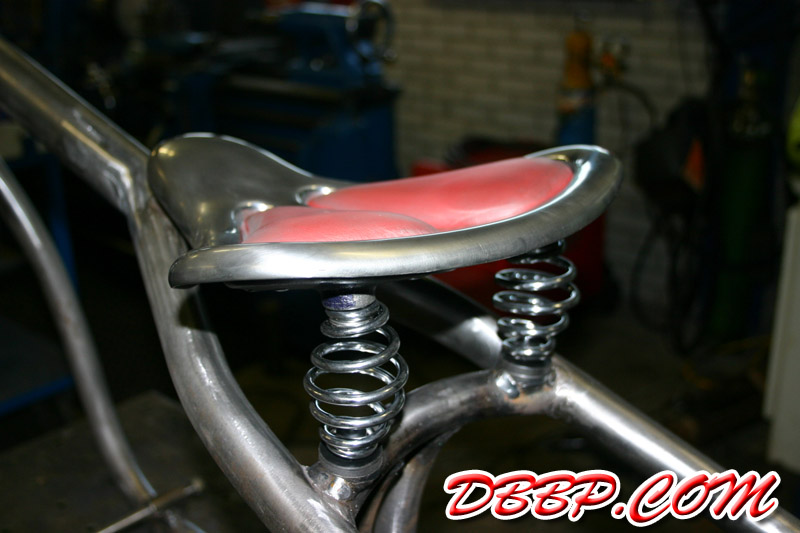

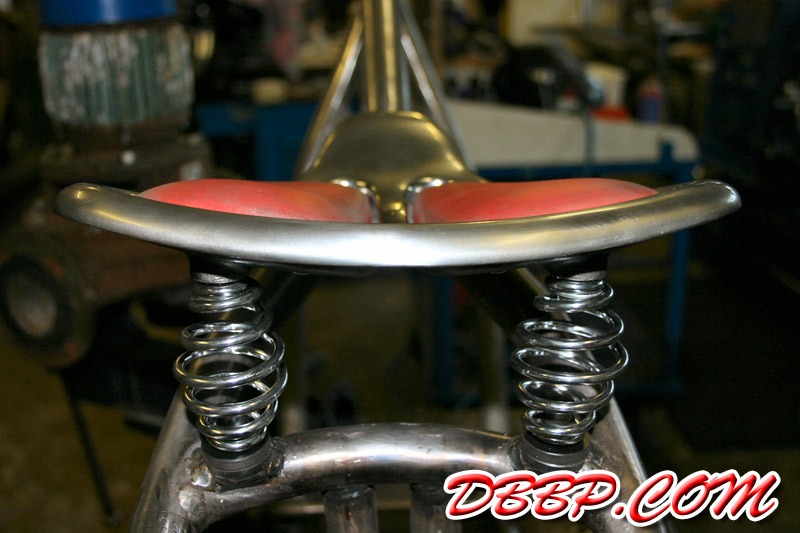

We cleaned up the frame around the seat pivot and machined some delrin studs that "click" into the seat springs and will protect the paint. I could not resist scotchbriting the polished stainless steel seat, I like this look better...

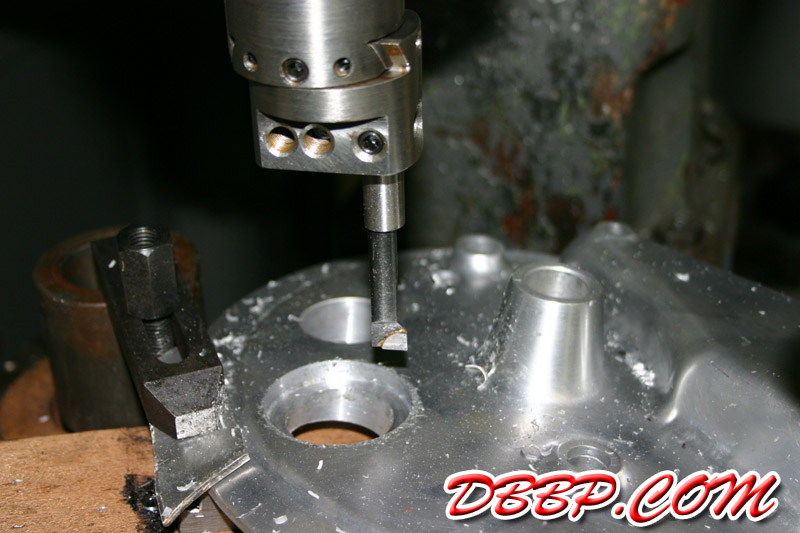

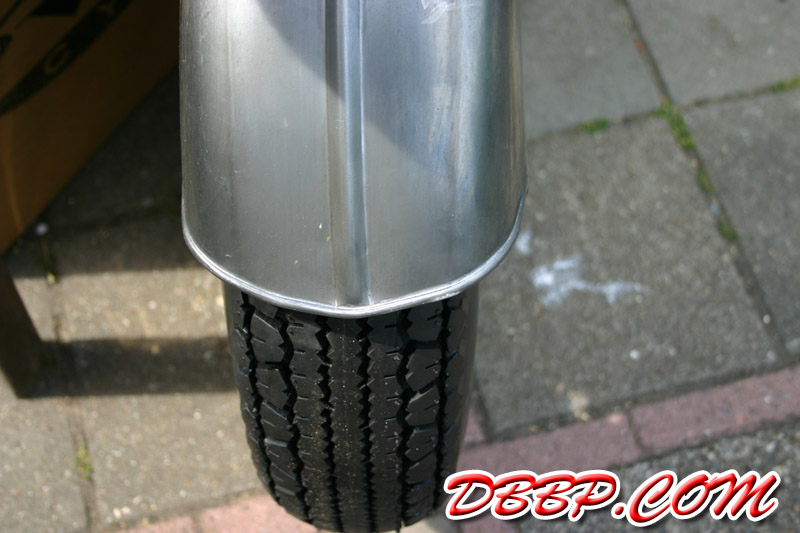

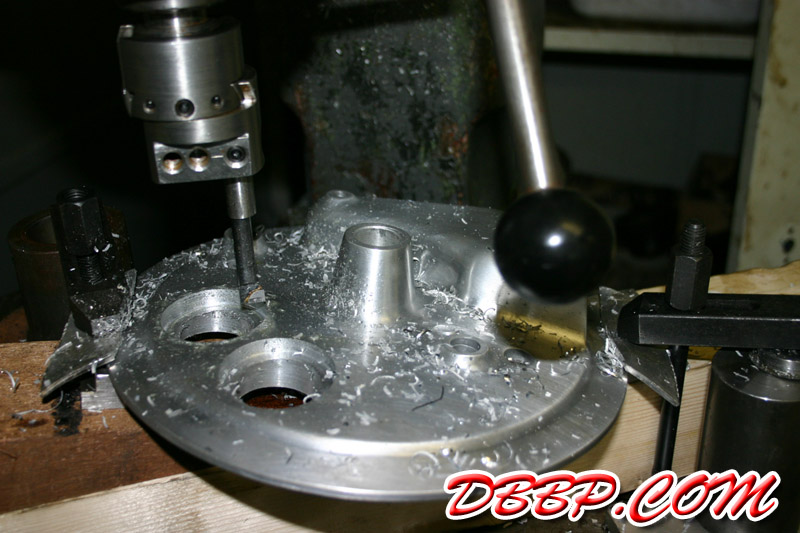

I machined a pocket around each vent hole in the front brake plate, here I will screw some stainless or brass rings that hold the mesh in place. My ribbed rear fender arrived but it is wider than I expected and the radius does not match the wheel. We can narrow it and change the radius or maybe I will try a front fender off an old E-glide....?
