My BMW Bobber, part 21
CAD version here

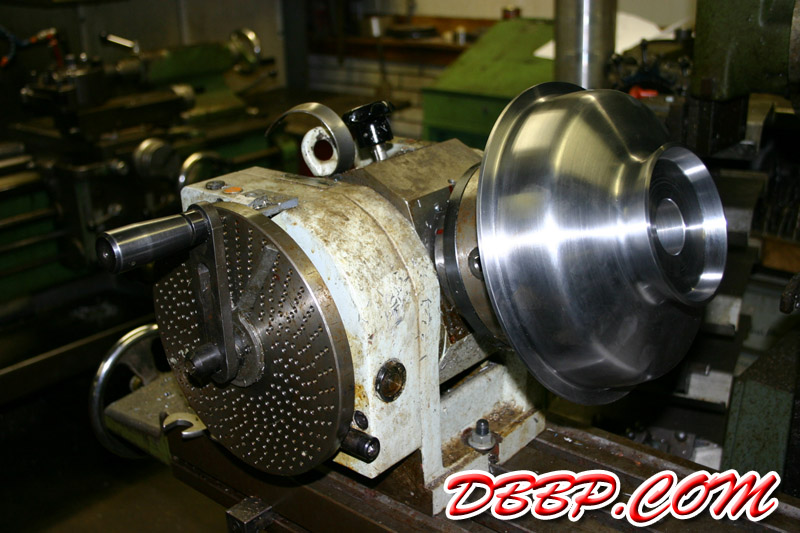

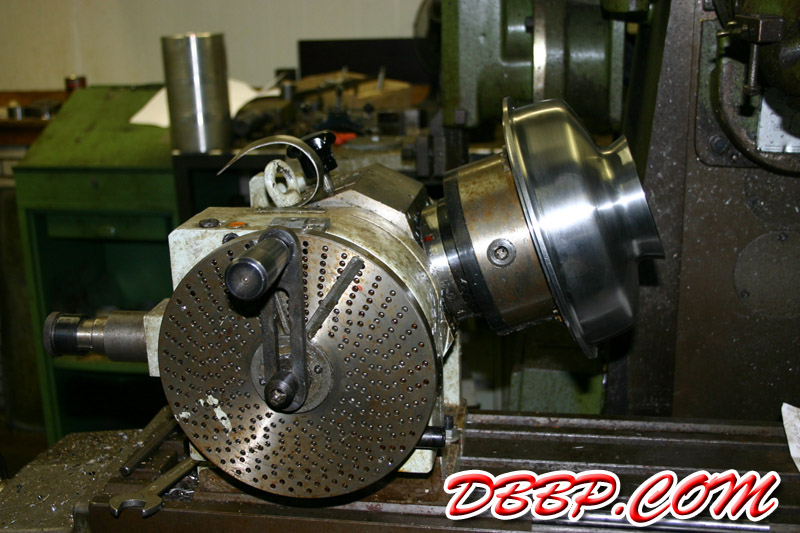

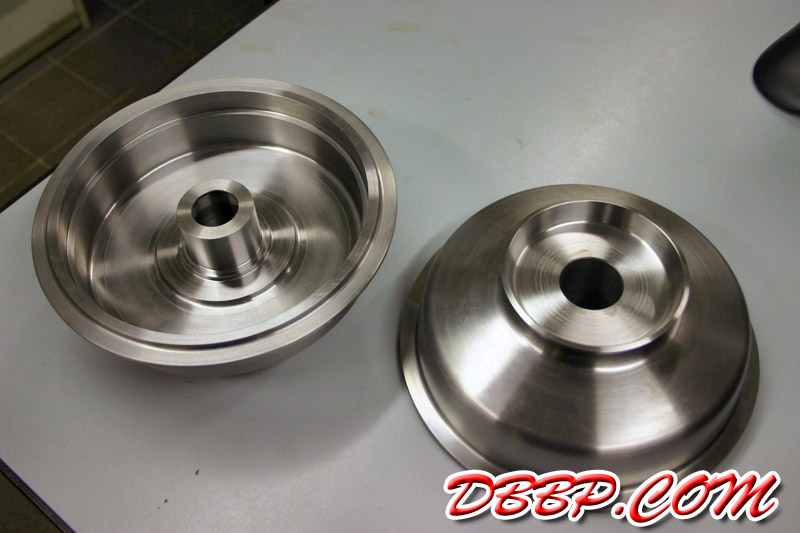

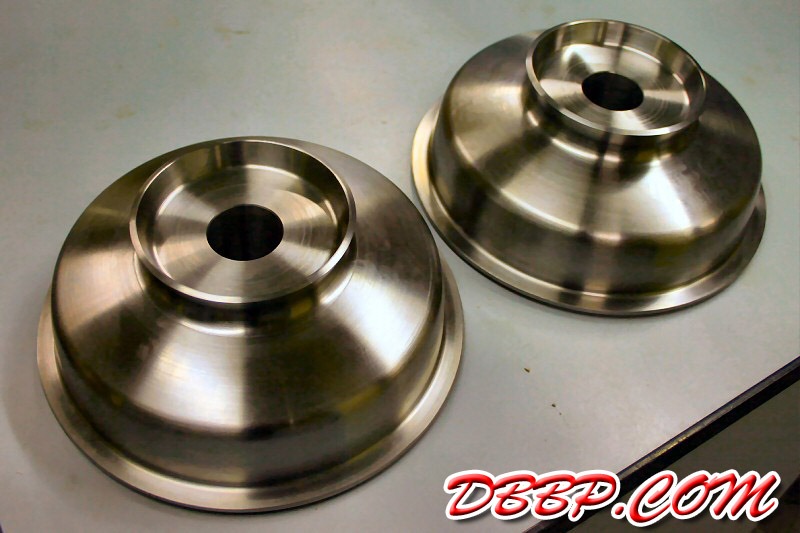

Both the wheelhubs have been machined and when the spoke holes have been drilled (80 spokes for each wheel) they will go to Haan Wheels in Schijndel where one-off spokes and rims will be made.

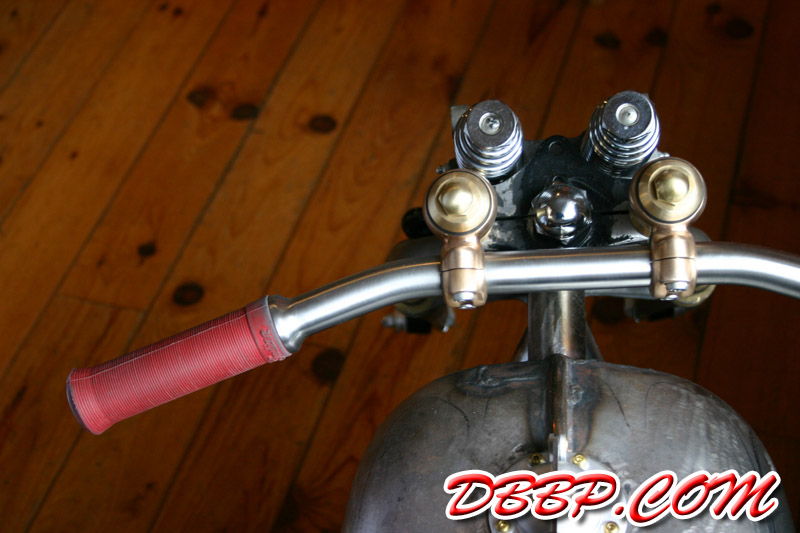

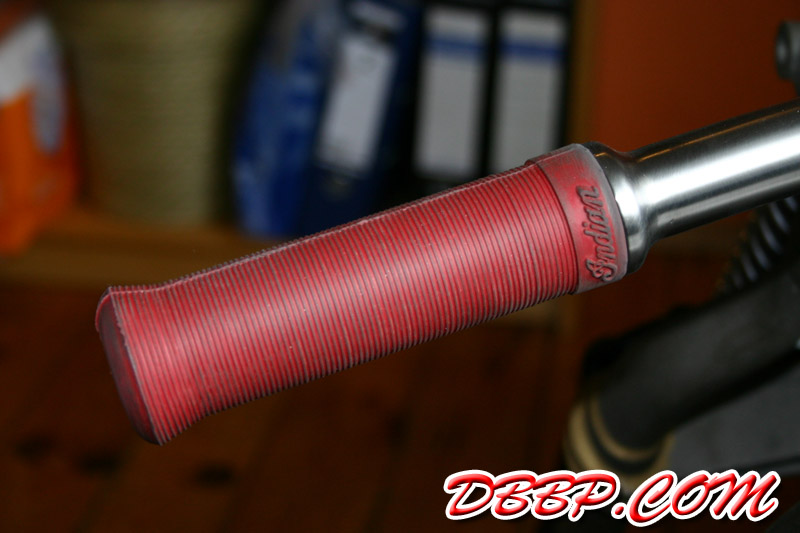

We added a little rib on the leftside of the handlebars to accent the red Indian grips.

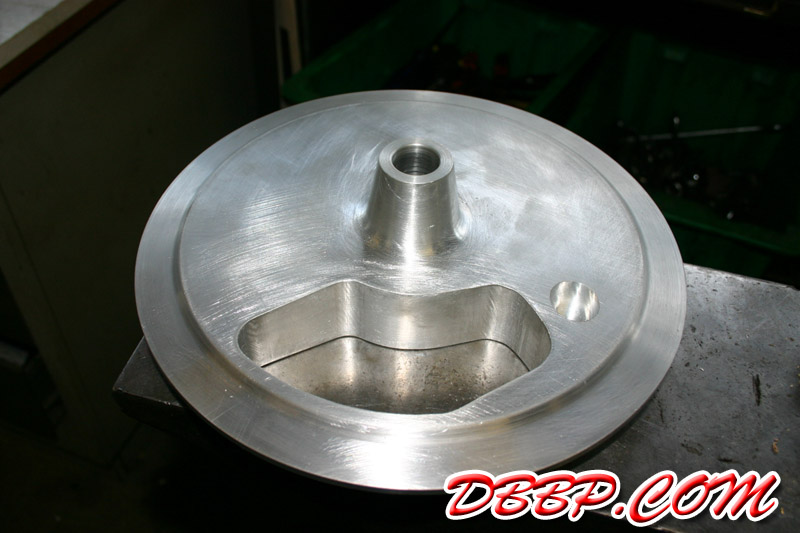

I machined a hole in the new front brakeplate where the airscoop will be welded on, because if I am going to have an airscoop on my frontbrake it better be a funtional one.

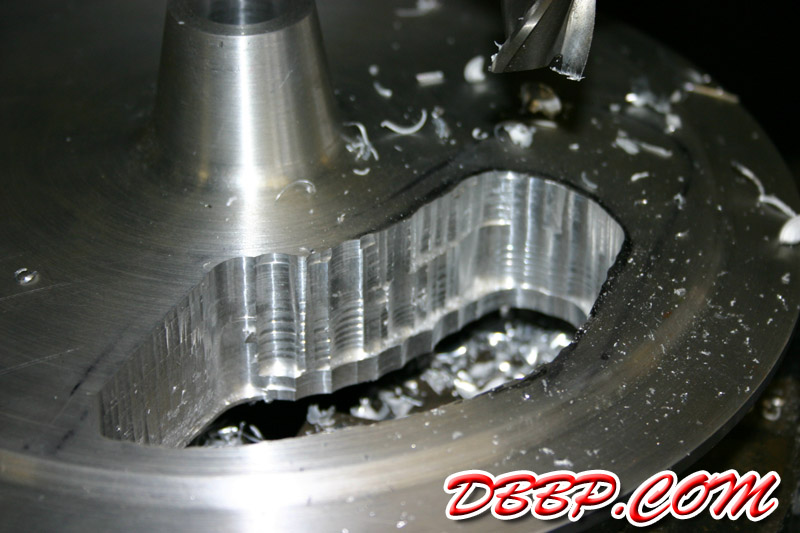

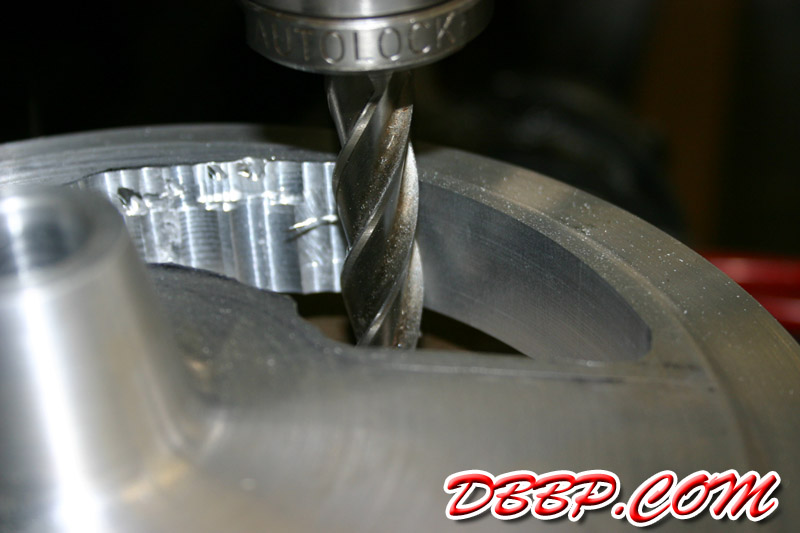

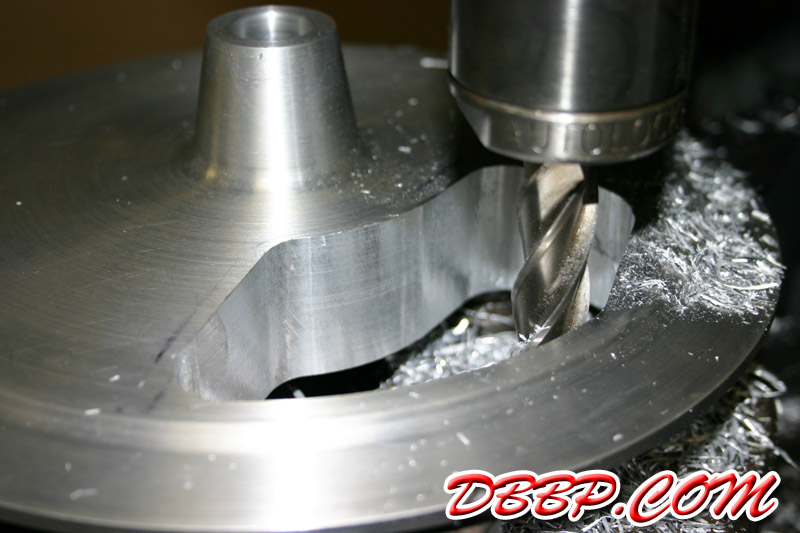

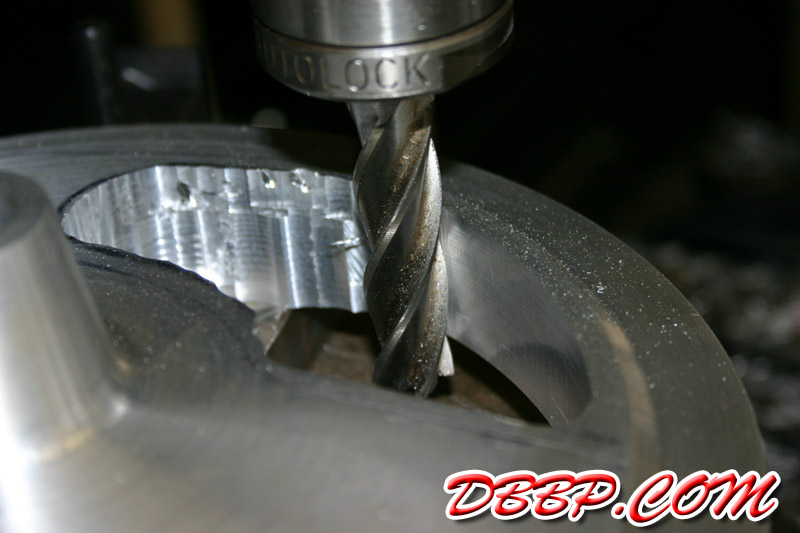

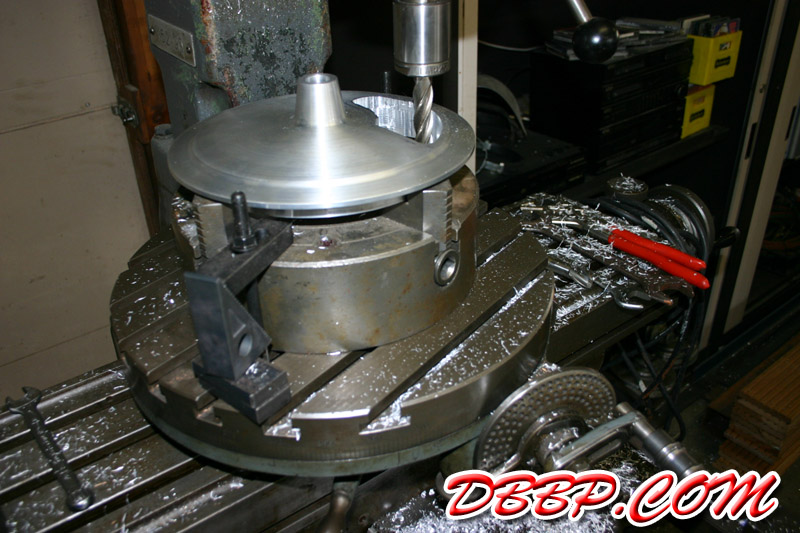

I cut out the rough shape of the hole in a vertical milling machine by drilling overlapping holes with an end mill cutting tool, then I cleaned up all the edges with a longer end mill after mounting the brake plate on a rotary table.
