  After I put the engine in CAD, there were still a lot more components to
measure up before I could actually start on the frame.

Harry wanted a HD 4-speed transmission in his bike (which I already had in
CAD), but Willem wanted a Triumph transmission. Because both will use the
same frame design I also had to make both transmissions fit on the same mounts.

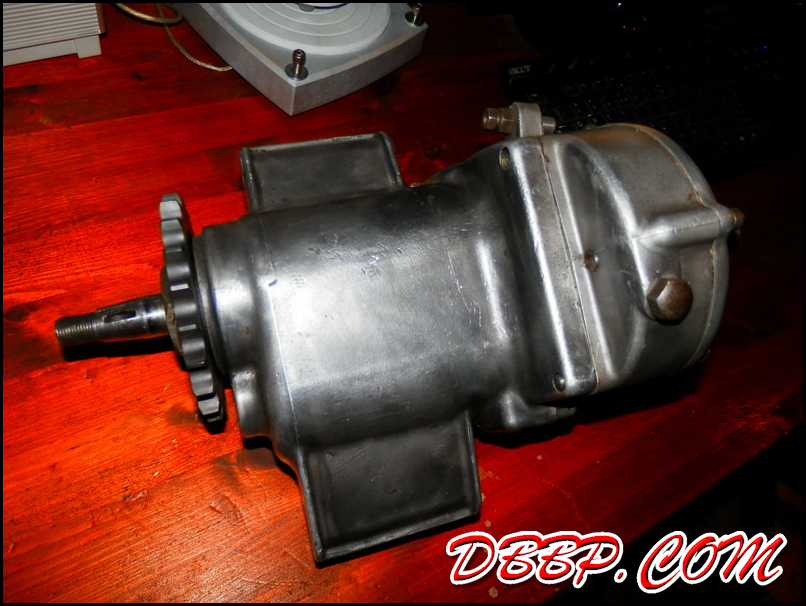

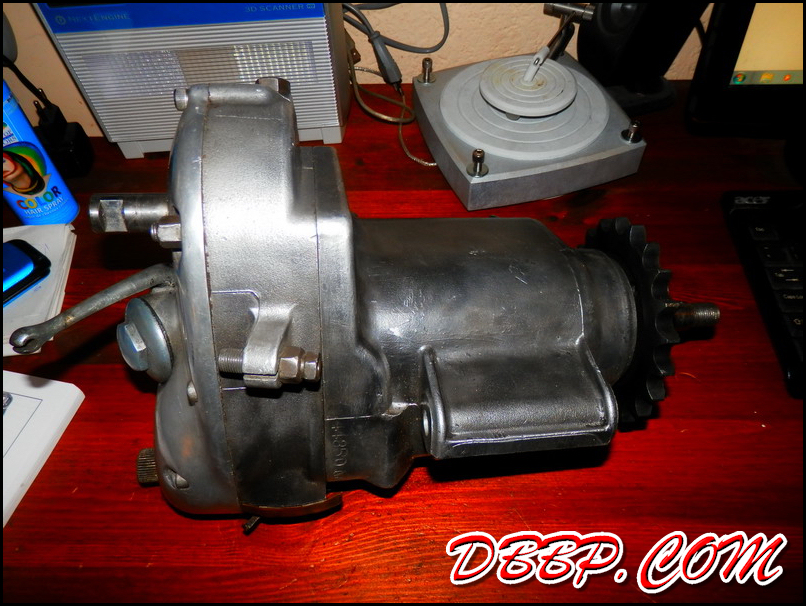

The "real" Triumph transmission

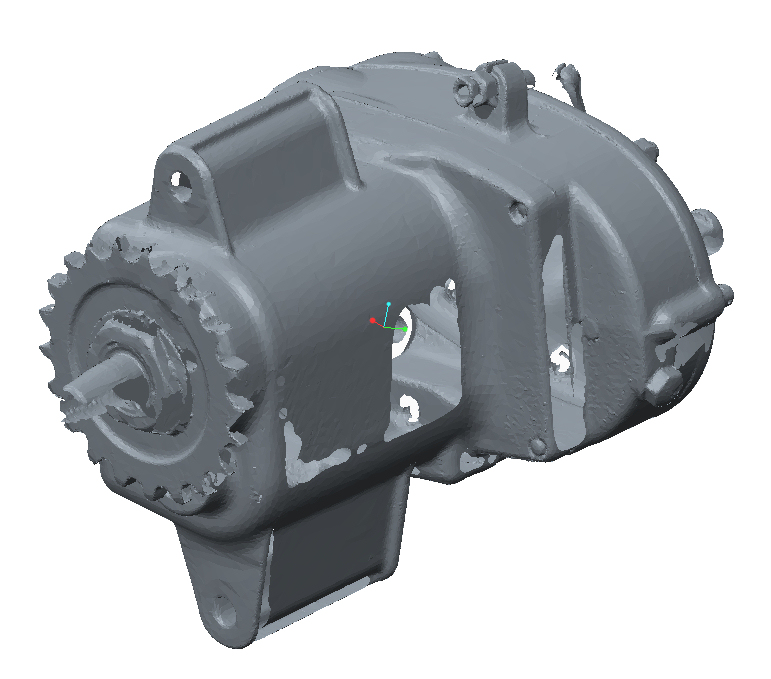

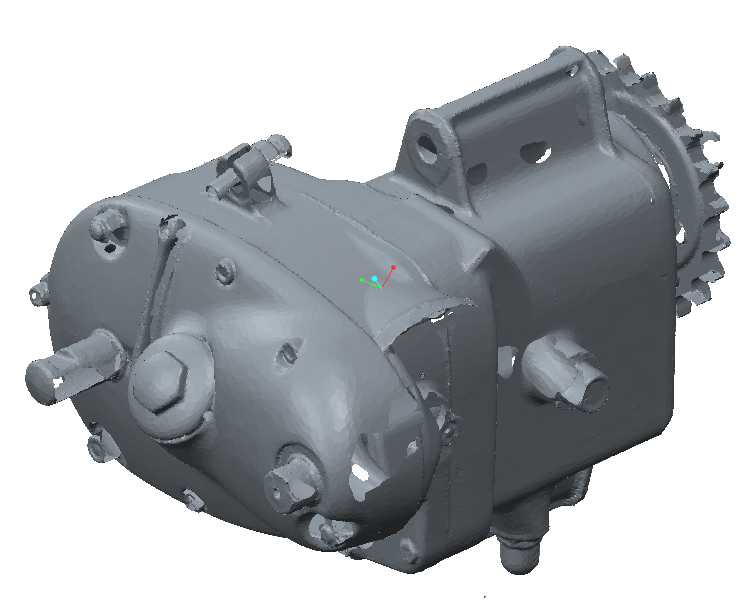

Quick & Dirty laserscan to get the general dimensions

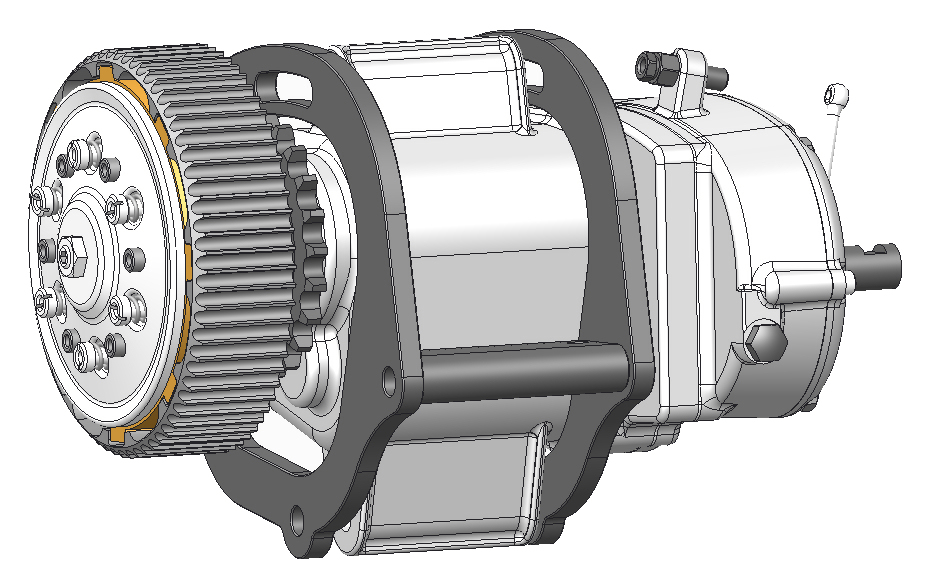

CAD model with brackets to fit the HD transmission mounts

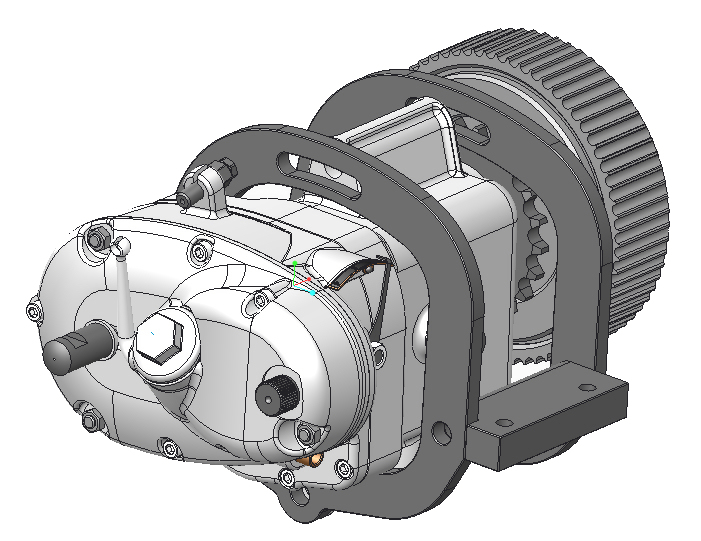

Rendered animation of the Triumph transmission

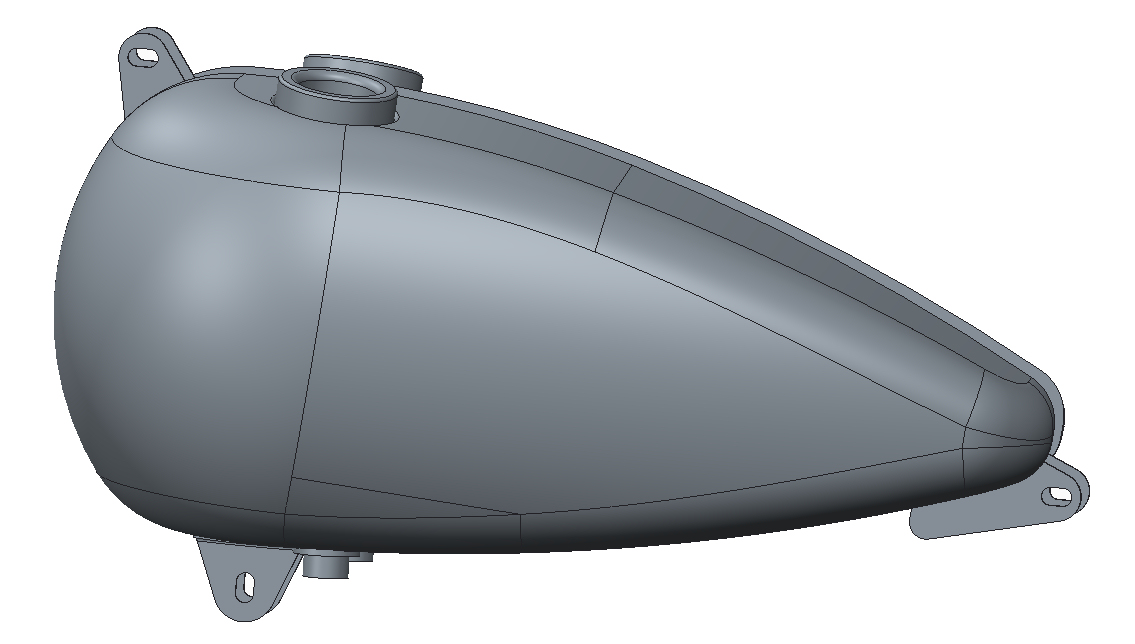

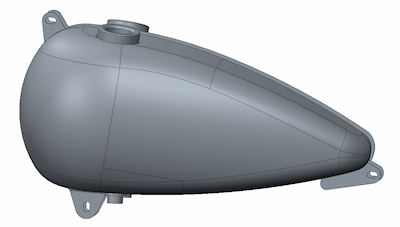

Indian Chief tank for Willem's bike

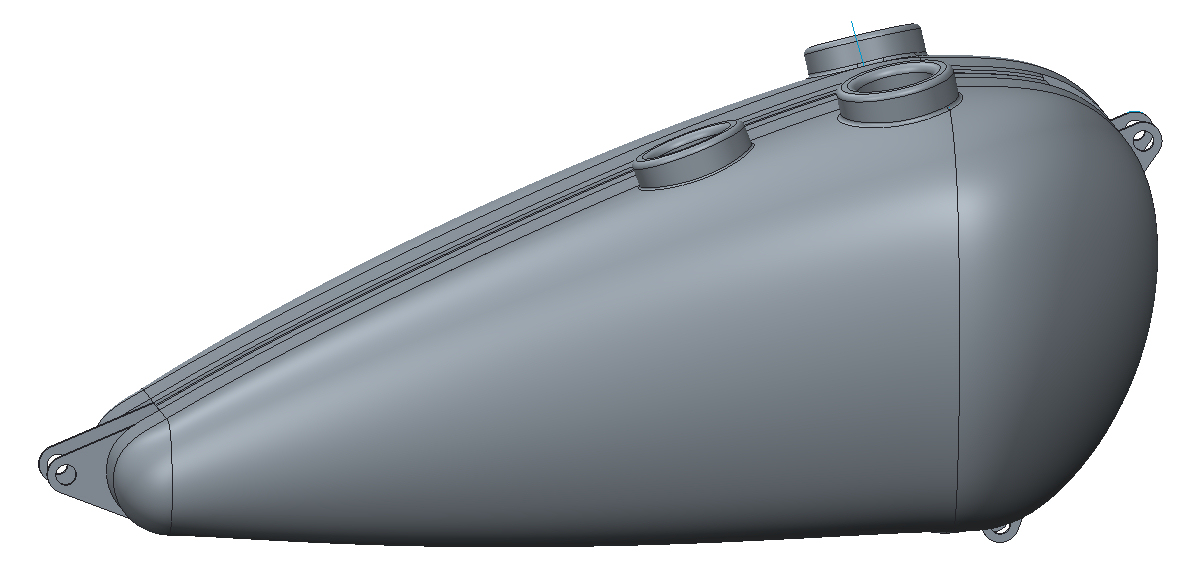

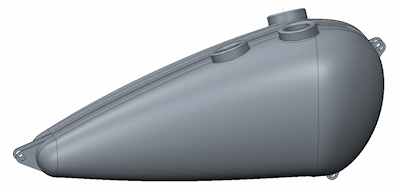

WR tank for Harry's bike

To be continued.....
