Knucklehead project started May 2007,

Thanks to Knukkel at Oldskoolchoppers.nl
I was able to borrow a knucklehead engine for a while!
I will take it apart, measure and model all the parts in CAD,
and then put it back together again...

Last week the knuckle cylinder head had 48 features; when I model a piece of material, that is called a feature. When I make a hole in it, that is another feature etcetera. I have started with a rough shape and will gradually make more and more details.

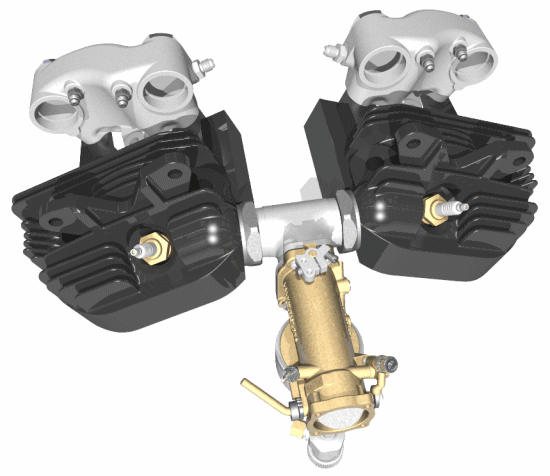

These screenshots show a few intermediate steps of the 132 features I added this week. Time spent this week 12 hours; total time spent 42 hours.
