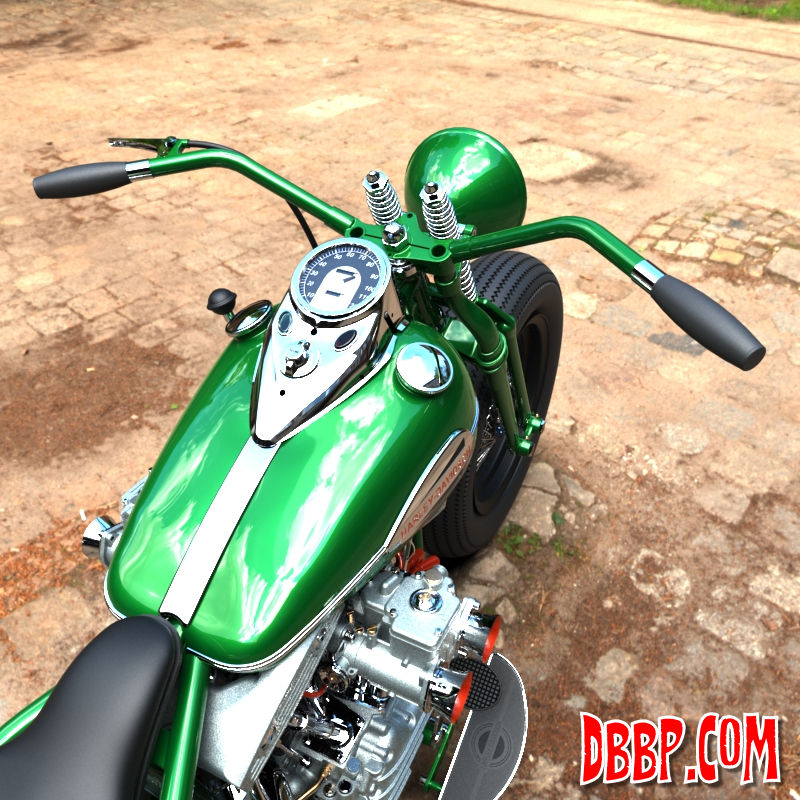

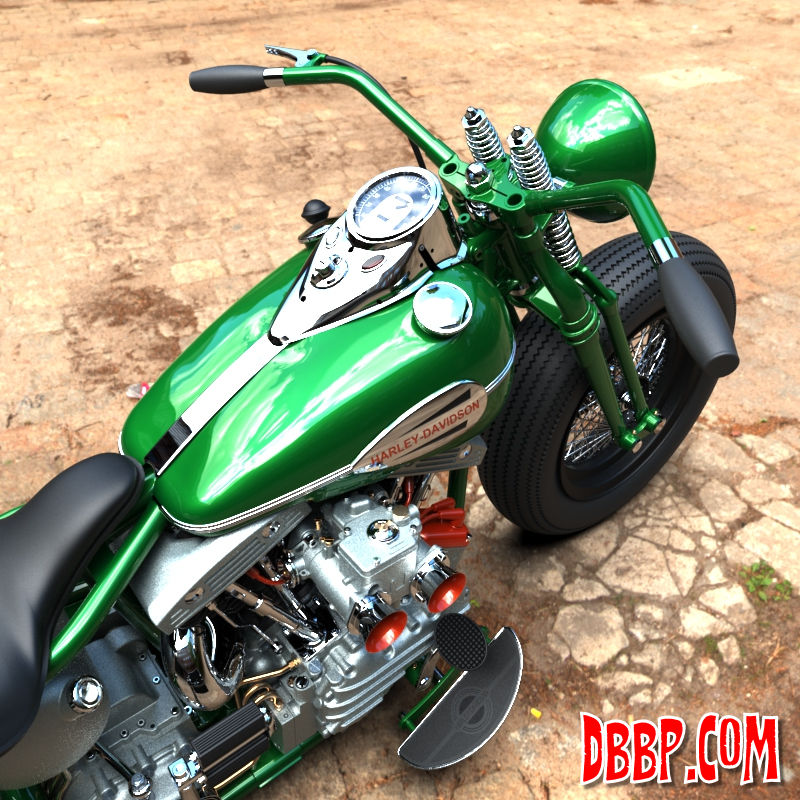

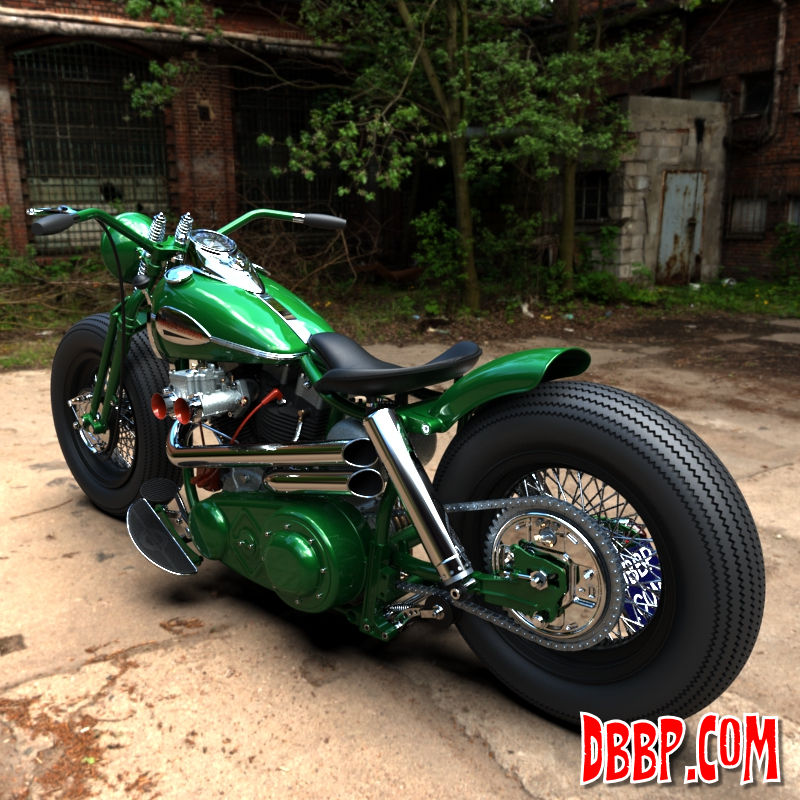

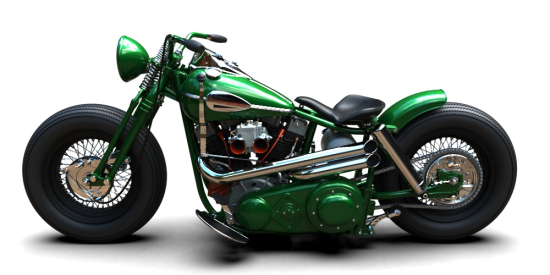

CADBIKE #8, Fat & Green

Well, you have to start a project somewhere,
and in this case I started with a 15 inch wheel with 80 spokes.
The tire is 230 mm wide, and I have used this wheel both on the
front and rear of Cadbike #8

2 June 2002: Added 4 extra detail views
2 September 2002: Changed tire profile to Avon 230,
added a bunch of extra line drawing views
21 April 2009: Re-rendered in Hypershot






Specifications of Cadbike #8 :
- Swingarmframe
- Early shovel engine
- Alternator left case
- 2 rear heads, 4 plugs
- 2 magneto's
- 2 double Weber carbs
- 2 inch belt drive

- Steel Primary
- WLA gas / oiltank
- WLA seat
- WLA-springer, 2" wider than stock
- Gearbox offset 50 mm for fat rear tire
- 15 inch x 230 tires
- 80 spokes per wheel
